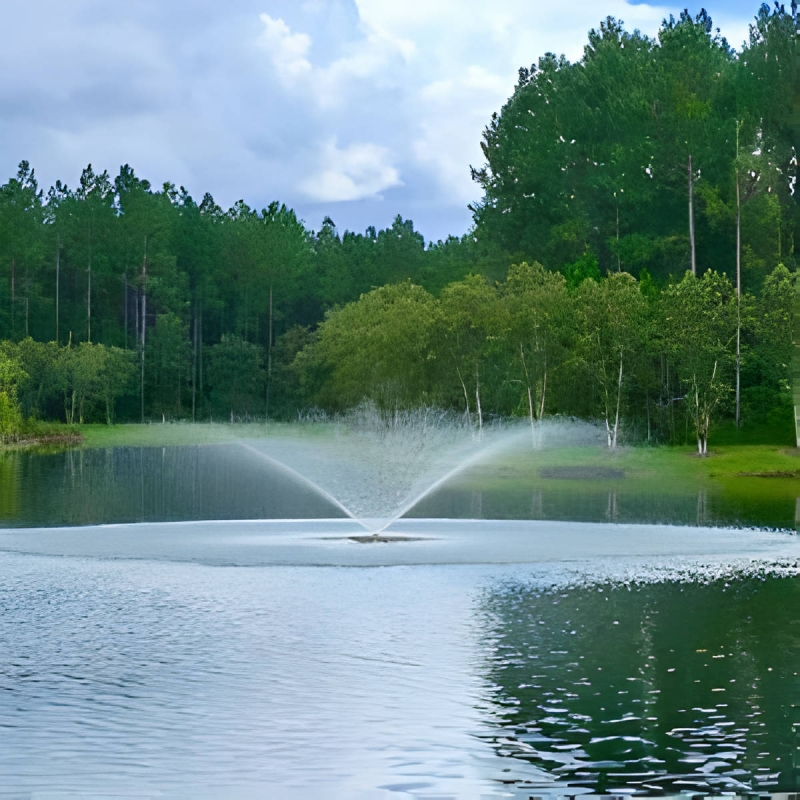

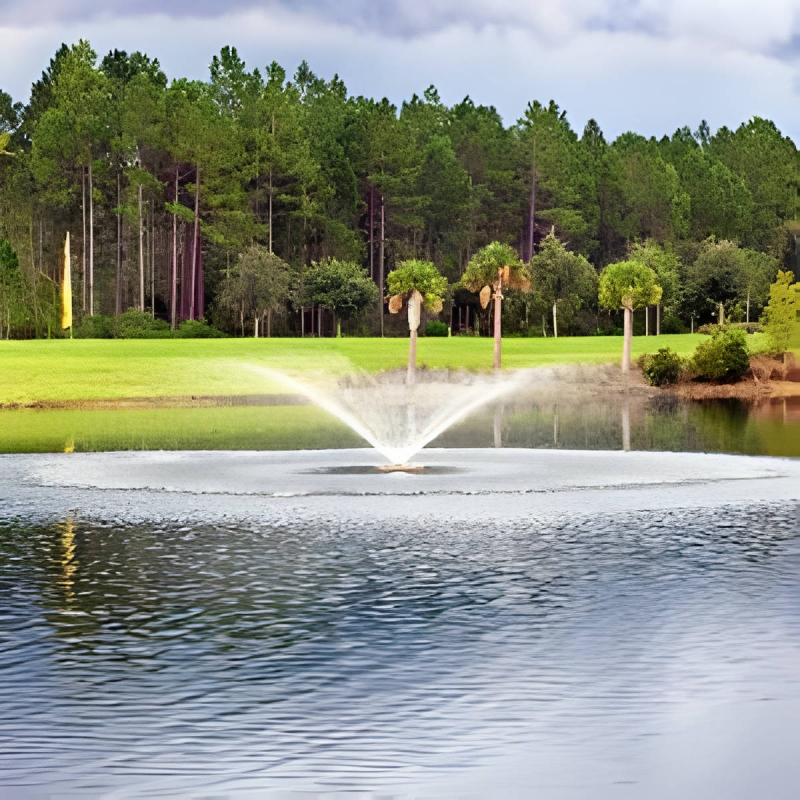

This FunnelJet vertical floating pond fountain has a low profile pattern that enhances the view without getting in the way. The evenly patterned display creates a very wide ring of sparkling water.

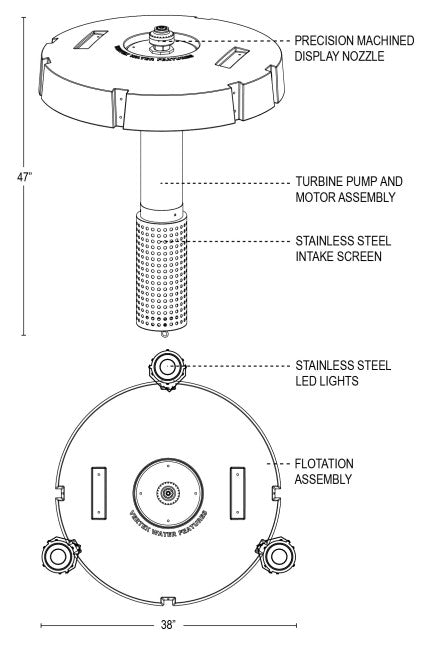

FunnelJet floating lake fountains are built with components that are fully waterproof and made of the finest corrosion resistant materials to provide years of dependability and high performance. All FunnelJet fountains are powered by a UL listed control panel and heavy-duty submersible turbine pump.
Everything you need is included with your Vertical FunnelJet Fountain.
The Vertical FunnelJet Pond Fountain models were developed using the same strict standards as our larger models and are covered under the same warranty program with 4 year coverage for display heads, pumps and motors, 2 years on LED lighting and 1 year for the control panel.
| Motor Unit | 2 HP Unit | 3 HP Unit | 5 HP Unit |
| Minimum Operating Depth | 6.5' | 6.5' | 6.5' |
| Spray Height (A) | 6' | 7' | 8' |
| Diameter (B) | 20ā² | 30ā² | 35ā² |
| LED Lights | 3 | 3 | 3 |
| Total Wattage | 86W | 86W | 86W |
| AMP Draw | 0.8 Amp | 0.8 Amp | 0.8 Amp |
| Available Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase |
| 1 Phase (Volts) | 230V | 230V | 230V |
| 3 Phase (Volts) | 208V or 230V | 208V or 230V | 208V or 230V |
| Display Head/Nozzle Warranty | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-Year | 2-Year | 2-Year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year |
Vertex Vertical FunnelJet Pond Fountain Product Sheet
Vertex Vertical FunnelJet Pond Fountain System Specifications
Vertex Vertical FunnelJet Pond Fountain Owner's Manual
