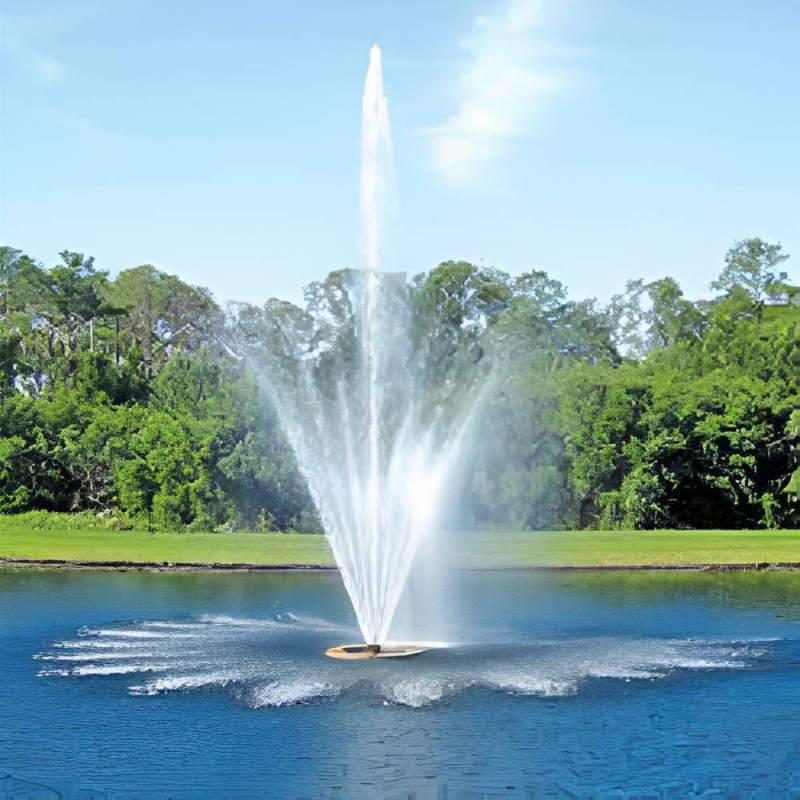

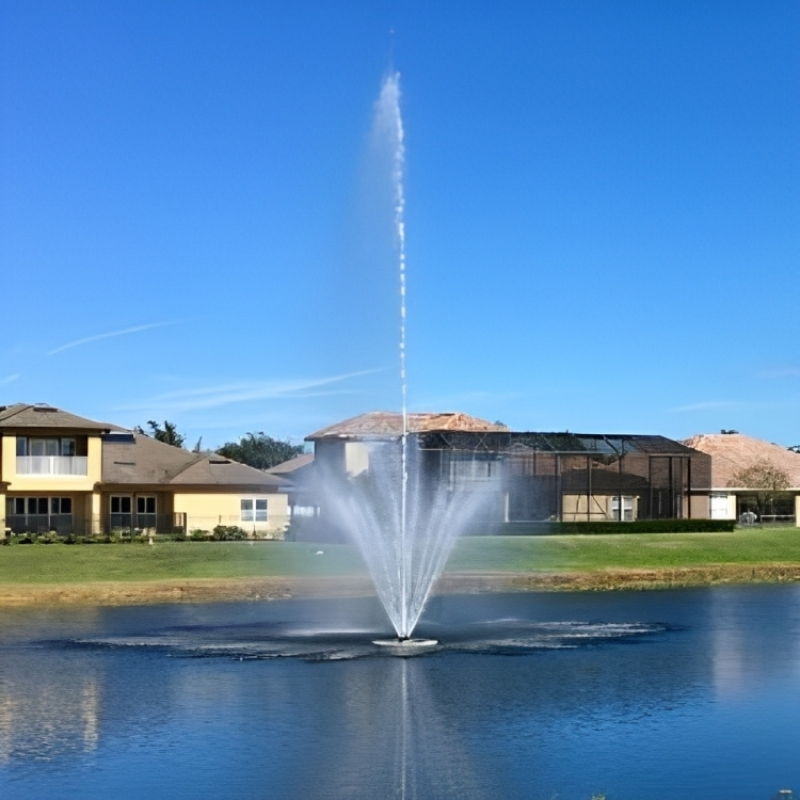

The wide spreading display of the TwoTier floating fountain series creates a broad feature that will beautifully fill any lake scene. The all-brass display head produces heavier floral side jets that arch up and out, making it a highly visible pattern in both daylight and when lit at night.
Years of dependability and high performance can be yours with a TwoTier fountain powered by a UL-listed control panel and heavy-duty submersible turbine pump. All components are fully waterproof and made of the finest corrosion resistant materials to provide.
Everything you need is included with your TwoTier Pond Fountain.
Form vs. function. Vertex understands that your custom lake fountain needs to work smoothly and efficiently over a long period of time as well as being beautiful. We work diligently to ensure that all of the individual components are built from the highest quality materials and assembled to exacting standards.
As the technology leader in custom floating lake and pond fountains, Vertex is known for providing the highest quality, environmentally sound custom floating fountains. Vertex has earned a reputation for attention to detail and customer satisfaction for over 30 years.
| Motor Unit | 2 HP Unit | 3 HP Unit | 5 HP Unit | 7.5 HP Unit | 10 HP Unit | 15 HP Unit |
| Minimum Operating Depth | 3' | 4' | 4' | 5' | 6' | 7' |
| Center Height (A) | 18' | 23' | 26' | 30′ | 35′ | 40' |
| Side Height (B) | 8' | 10' | 12' | 15' | 17' | 20' |
| Diameter (C) | 20′ | 25′ | 30′ | 35' | 40′ | 45′ |
| LED Lights | 2 | 2 | 3 | 4 | 4 | 5 |
| Total Wattage | 86W | 86W | 129W | 172W | 172W | 215W |
| AMP Draw | 1 Amp | 1 Amp | 1.5 Amps | 2 Amps | 2 Amps | 2.5 Amps |
| Available Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase |
| 1 Phase (Volts) | 230V | 230V | 230V | 230V | 230V | 230V |
| 3 Phase (Volts) | 208V or 230V | 208V or 230V | 208V or 230V | 208V or 230V | 208V or 230V | 208V or 230V |
| Display Head/Nozzle Warranty | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-Year | 2-Year | 2-Year | 2-Year | 2-Year | 2-Year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year | 1-Year | 1-Year |
