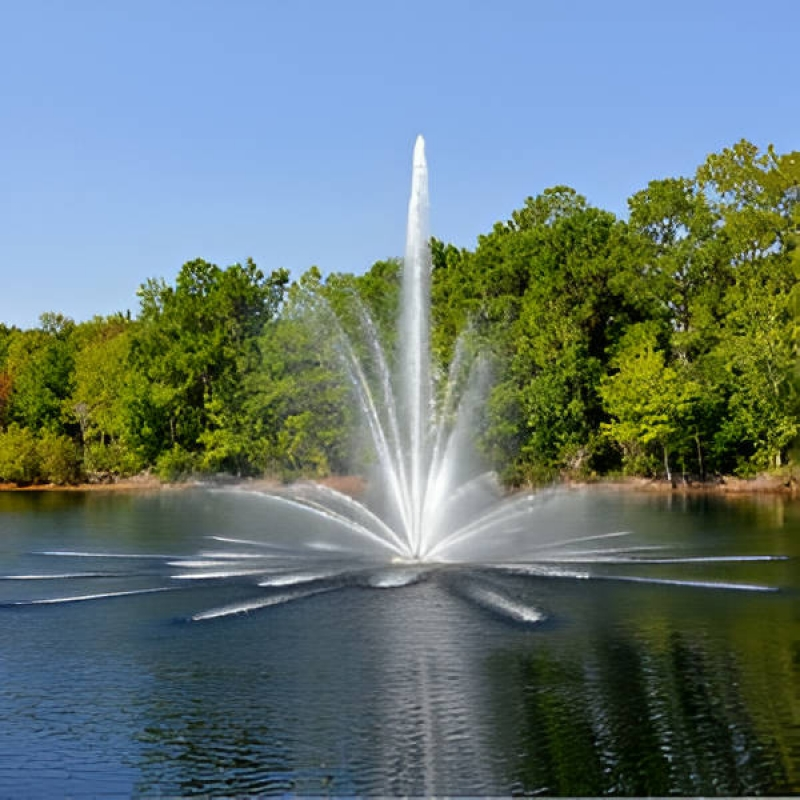

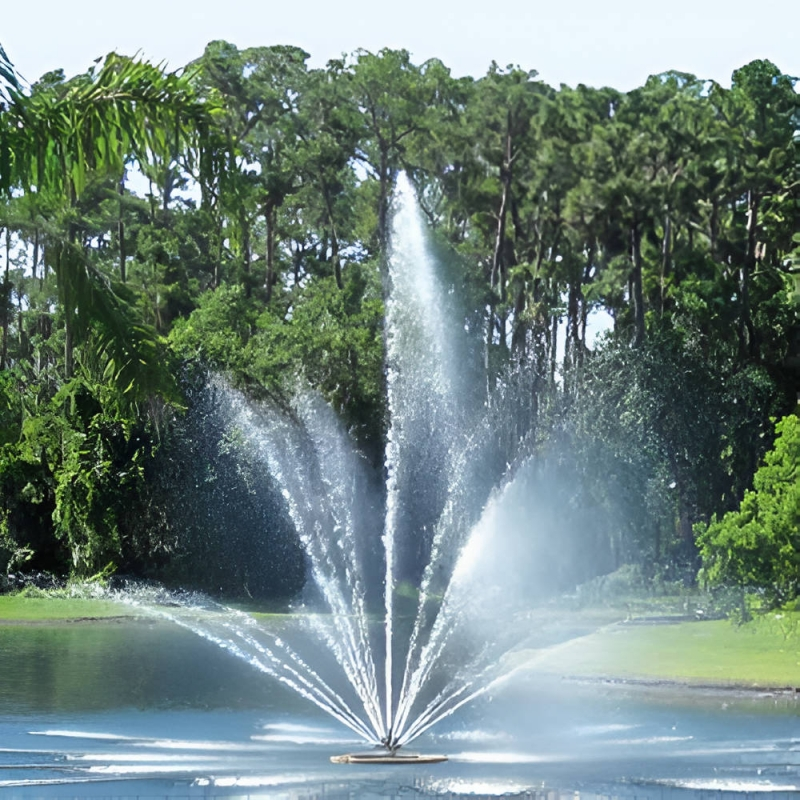

The TriTier floating fountain series provides one of the most delicate and aesthetic displays offered. The dramatic three-tier pattern, with its floral arches, created by all brass precision machined nozzle is available in heights from 18 to 40 feet.
The TriTier lake fountains are powered by a heavy-duty submersible turbine pump and a UL listed control panel. All components are fully waterproof and made of the finest corrosion resistant materials providing customers years of dependability and high performance.
Everything you need is included with your TriTier Pond Fountain.
Form vs. function. Vertex understands that your custom lake fountain needs to work smoothly and efficiently over a long period of time as well as being beautiful. We work diligently to ensure that all of the individual components are built from the highest quality materials and assembled to exacting standards.
As the technology leader in custom floating lake and pond fountains, Vertex is known for providing the highest quality, environmentally sound custom floating fountains. Vertex has earned a reputation for attention to detail and customer satisfaction for over 30 years.
| Motor Unit | 2 HP Unit | 3 HP Unit | 5 HP Unit | 7.5 HP Unit | 10 HP Unit | 15 HP Unit |
| Minimum Operating Depth | 3' | 4' | 4' | 5' | 6' | 7' |
| Spray Height 1 (A) | 18' | 23' | 26' | 30′ | 35′ | 40' |
| Spray Height 2 (B) | 8' | 10' | 12' | 15' | 17' | 20' |
| Spray Height 3 (C) | 4' | 5' | 6' | 7' | 8' | 10' |
| Diameter (D) | 20′ | 25′ | 40′ | 45' | 50′ | 55′ |
| LED Lights | 2 | 2 | 3 | 4 | 4 | 5 |
| Total Wattage | 86W | 86W | 129W | 172W | 172W | 215W |
| AMP Draw | 1 Amp | 1 Amp | 1.5 Amps | 2 Amps | 2 Amps | 2.5 Amps |
| Available Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase |
| 1 Phase (Volts) | 230V | 230V | 230V | 230V | 230V | 230V |
| 3 Phase (Volts) | 208V or 230V | 208V or 230V | 208V or 230V | 208V or 230V | 208V or 230V | 208V or 230V |
| Display Head/Nozzle Warranty | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-Year | 2-Year | 2-Year | 2-Year | 2-Year | 2-Year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year | 1-Year | 1-Year |
