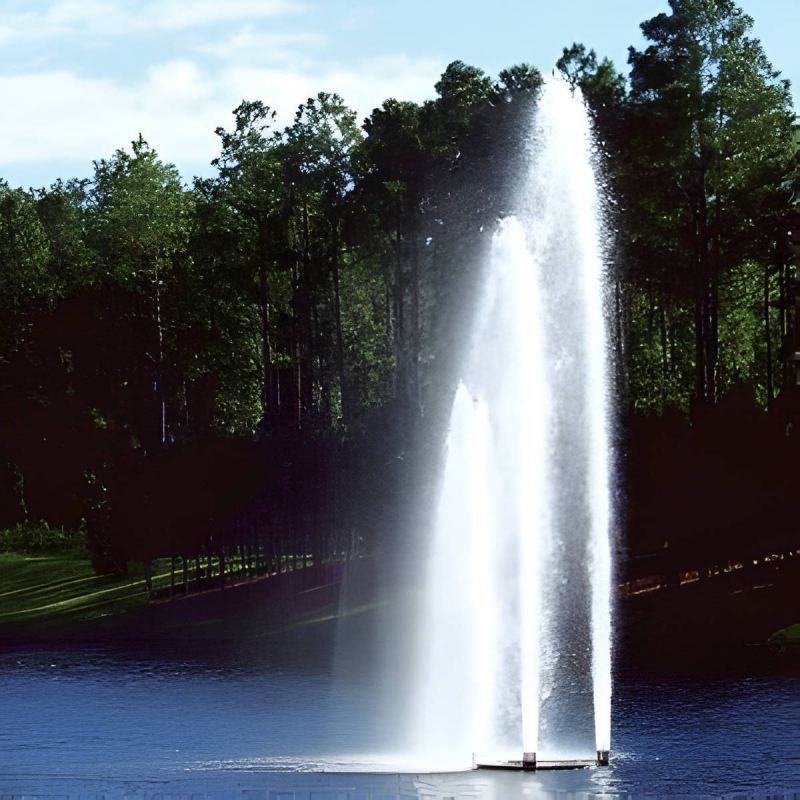

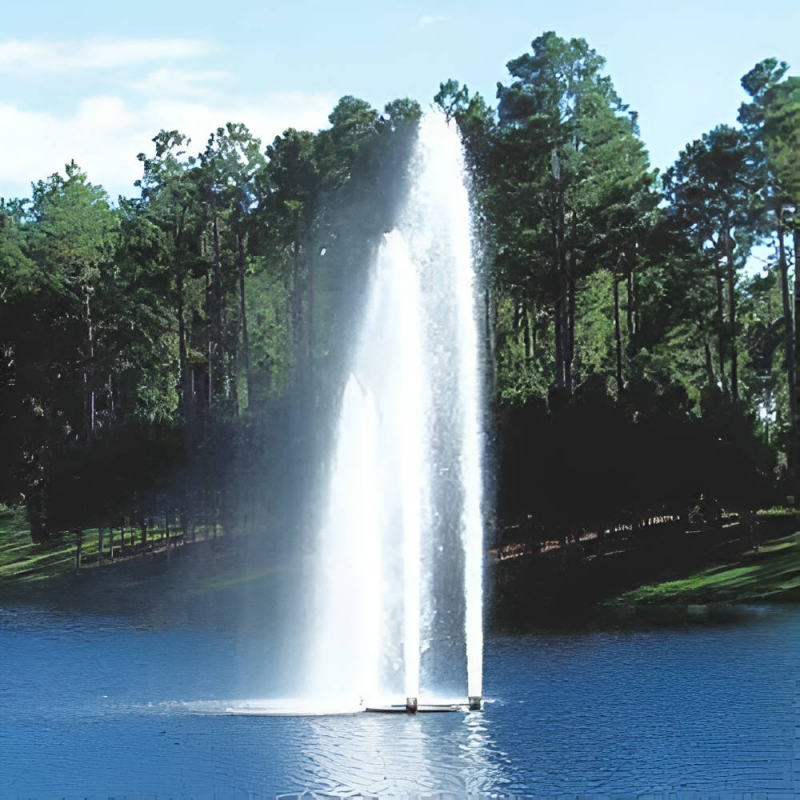

Three progressive columns of frothy water, each 8″ in diameter, create the unique TriPod floating fountain series. The height proportions can be varied by the adjustment of valves regulating each pod, allowing on site modifications.
Tripod floating lake fountains are powered by a UL listed control panel and heavy-duty submersible turbine pump with components that are fully waterproof and made of the finest corrosion resistant materials to provide years of dependability and high performance.
Everything you need is included with your TriPod Pond Fountain.
Form vs. function. Vertex understands that your custom lake fountain needs to work smoothly and efficiently over a long period of time as well as being beautiful. We work diligently to ensure that all of the individual components are built from the highest quality materials and assembled to exacting standards.
As the technology leader in custom floating lake and pond fountains, Vertex is known for providing the highest quality, environmentally sound custom floating fountains. Vertex has earned a reputation for attention to detail and customer satisfaction for over 30 years.
| Motor Unit | 10 HP Unit | 15 HP Unit | 20 HP Unit | 30 HP Unit |
| Minimum Operating Depth | 6' | 7' | 7' | 8' |
| Spray Height 1 (A) | 20' | 25' | 30' | 40′ |
| Spray Height 2 (B) | 15' | 20' | 25' | 30' |
| Spray Height 3 (C) | 10' | 15' | 20' | 25' |
| Diameter (D) | 10′ | 12′ | 12′ | 12′ |
| LED Lights | 6 | 7 | 9 | 9 |
| Total Wattage | 258W | 301W | 387W | 387W |
| AMP Draw | 3 Amps | 3.5 Amps | 4.5 Amps | 4.5 Amps |
| Available Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 3 Phase | 3 Phase |
| 1 Phase (Volts) | 230V | 230V | N/A | N/A |
| 3 Phase (Volts) | 208V or 230V | 208V or 230V | 208V or 230V | 208V or 230V |
| Display Head/Nozzle Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-Year | 2-Year | 2-Year | 2-Year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year |
Vertex TriPod Floating Pond Fountain Product Sheet
Vertex TriPod Floating Pond Fountain System Specifications
Vertex TriPod Floating Pond Fountain Owner's Manual
