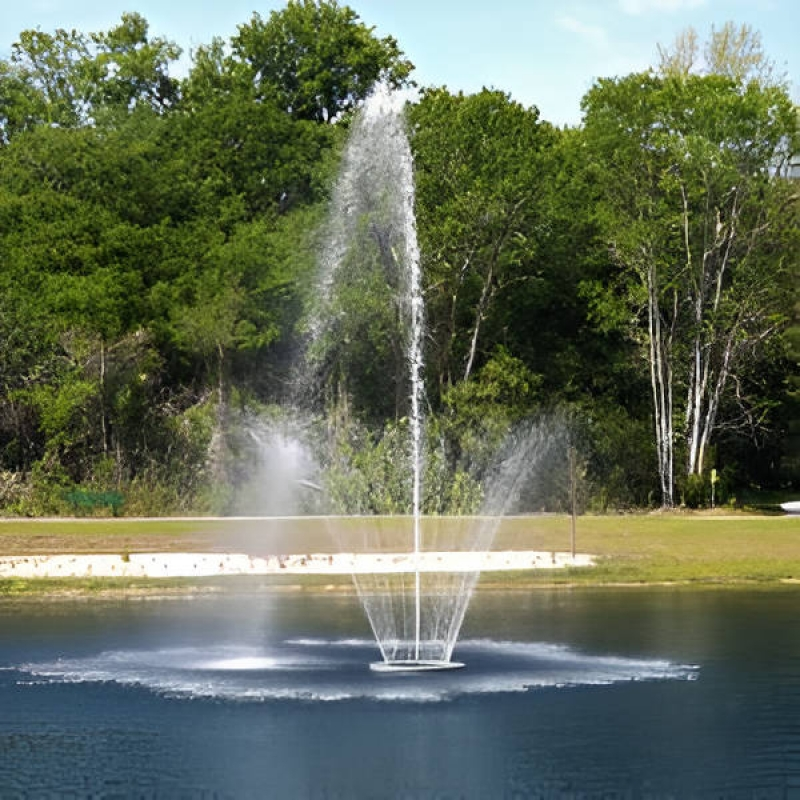

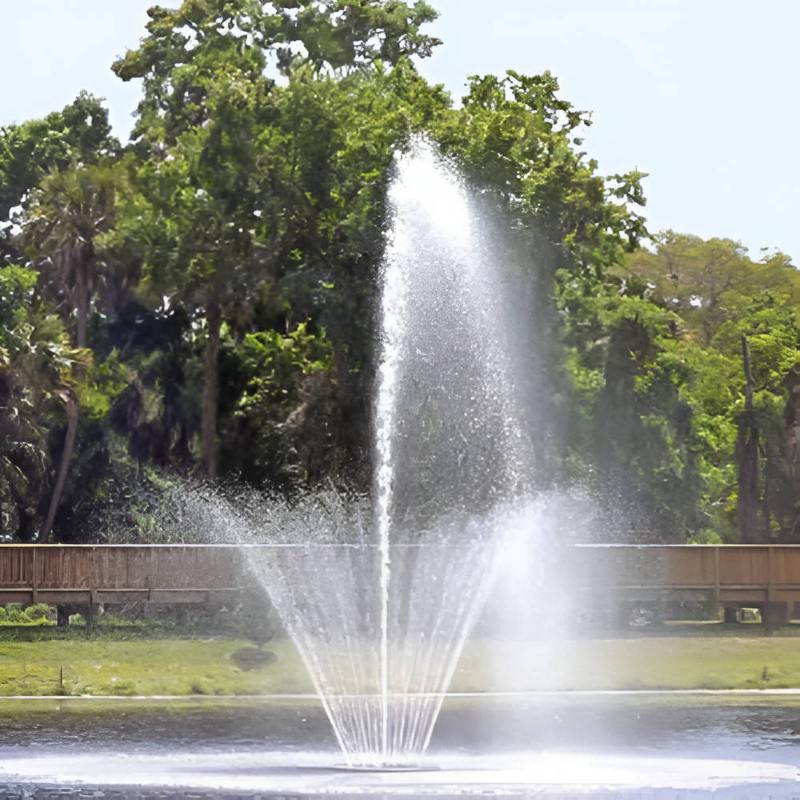

The RingJet Fountain series offers the perfect combination of maximum heights and delicate mass. The center display is accented by our custom spray ring, creating a graceful outward arch of water in a tulip-like pattern.
The Vertex line of RingJet floating fountains is powered by a UL listed control panel and a submersible, heavy-duty turbine pump with components that are fully waterproof and made of the finest corrosion resistant materials to provide years of dependability and high performance.
Everything you need is included with your RingJet Pond Fountain.
Form vs. function. Vertex understands that your custom lake fountain needs to work smoothly and efficiently over a long period of time as well as being beautiful. We work diligently to ensure that all of the individual components are built from the highest quality materials and assembled to exacting standards.
As the technology leader in custom floating lake and pond fountains, Vertex is known for providing the highest quality, environmentally sound custom floating fountains. Vertex has earned a reputation for attention to detail and customer satisfaction for over 30 years.
| Motor Unit | 5 HP Unit | 7.5 HP Unit | 10 HP Unit | 15 HP Unit |
| Minimum Operating Depth | 4' | 5' | 6' | 7' |
| Center Height Spray (A) | 25' | 30′ | 40′ | 45' |
| Side Height Spray (B) | 12' | 15' | 18' | 20' |
| Diameter (C) | 25′ | 30' | 35′ | 40′ |
| Nozzle Diameter | 3/16″ | 3/16″ | 1/4″ | 1/4″ |
| LED Lights | 4 | 4 | 5 | 5 |
| Total Wattage | 172W | 172W | 215W | 215W |
| AMP Draw | 2 Amps | 2 Amps | 2.5 Amps | 2.5 Amps |
| Available Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase |
| 1 Phase (Volts) | 230V | 230V | 230V | 230V |
| 3 Phase (Volts) | 208V or 230V | 208V or 230V | 208V or 230V | 208V or 230V |
| Display Head/Nozzle Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-Year | 2-Year | 2-Year | 2-Year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year |
Vertex RingJet Floating Fountain Series Product Sheet
Vertex RingJet System Specifications
Vertex Fountain Owner's Manual
