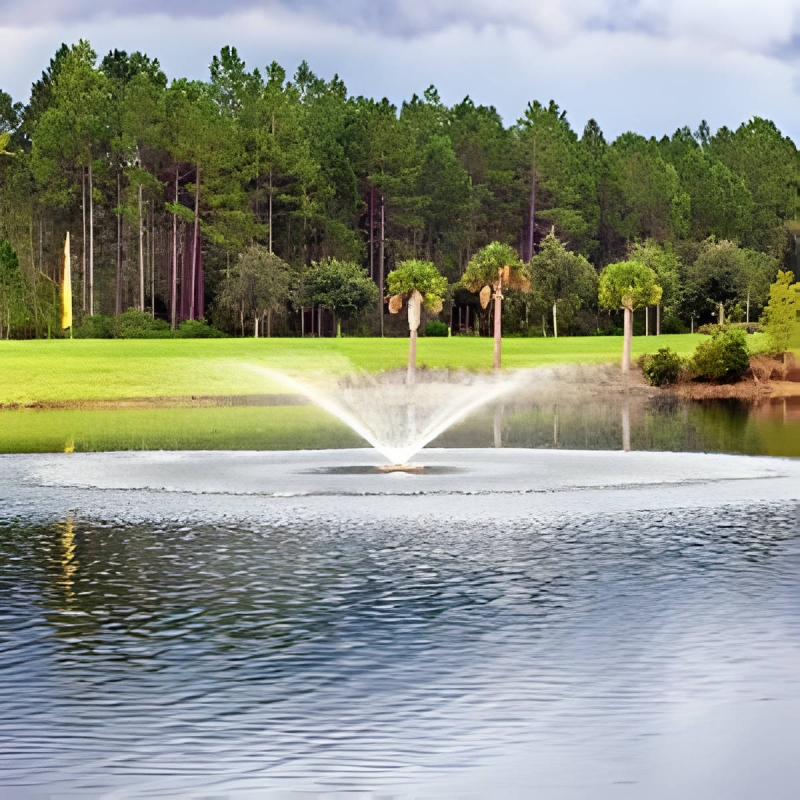

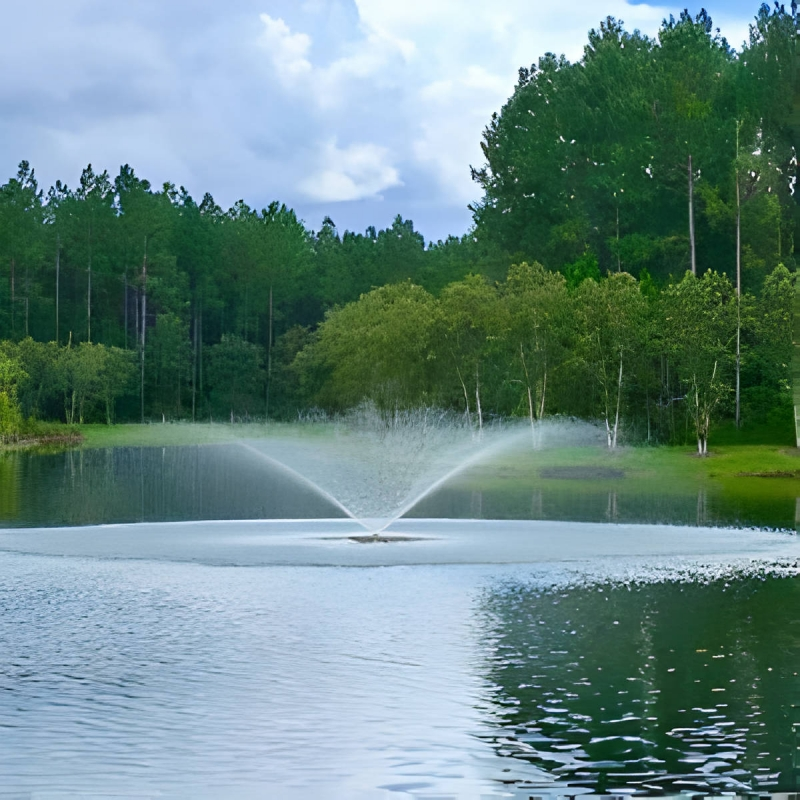

A powerful, yet elegant, fountain display creating a very wide ring of sparkling water. The FunnelJet floating fountain series offers a low profile pattern for lakes or ponds where a water feature is wanted but height is not desired to keep the views open.
FunnelJet floating lake fountains are built with components that are fully waterproof and made of the finest corrosion resistant materials to provide years of dependability and high performance. All FunnelJet fountains are powered by a UL listed control panel and heavy-duty submersible turbine pump.
Everything you need is included with your FunnelJet Pond Fountain.
Form vs. function. Vertex understands that your custom lake fountain needs to work smoothly and efficiently over a long period of time as well as being beautiful. We work diligently to ensure that all of the individual components are built from the highest quality materials and assembled to exacting standards.
As the technology leader in custom floating lake and pond fountains, Vertex is known for providing the highest quality, environmentally sound custom floating fountains. Vertex has earned a reputation for attention to detail and customer satisfaction for over 30 years.
| Motor Unit | 2 HP Unit | 3 HP Unit | 5 HP Unit | 7.5 HP Unit | 10 HP Unit |
| Minimum Operating Depth | 3' | 3' | 4' | 5' | 6' |
| Spray Height (A) | 6' | 7' | 8' | 8' | 9' |
| Spray Diameter (B) | 25′ | 30′ | 35′ | 45' | 50′ |
| LED Lights | 3 | 3 | 3 | 3 | 3 |
| Total Wattage | 86W | 86W | 86W | 86W | 86W |
| AMP Draw | 1 Amp | 1 Amp | 1 Amp | 1 Amp | 1 Amp |
| Available Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase |
| 1 Phase (Volts) | 230V | 230V | 230V | 230V | 230V |
| 3 Phase (Volts) | 208V or 230V | 208V or 230V | 208V or 230V | 208V or 230V | 208V or 230V |
| Display Head/Nozzle Warranty | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-Year | 2-Year | 2-Year | 2-Year | 2-Year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year | 1-Year |
Vertex FunnelJet Floating Pond Fountain Product Sheet
Vertex FunnelJet Floating Pond Fountain System Specifications
Vertex FunnelJet Floating Pond Fountain Owner's Manual
