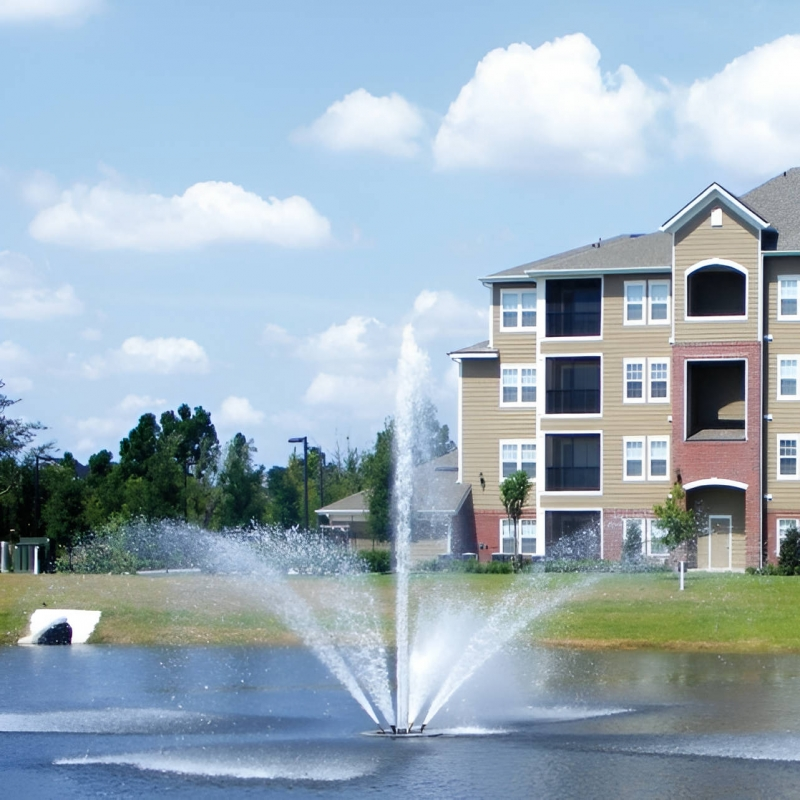

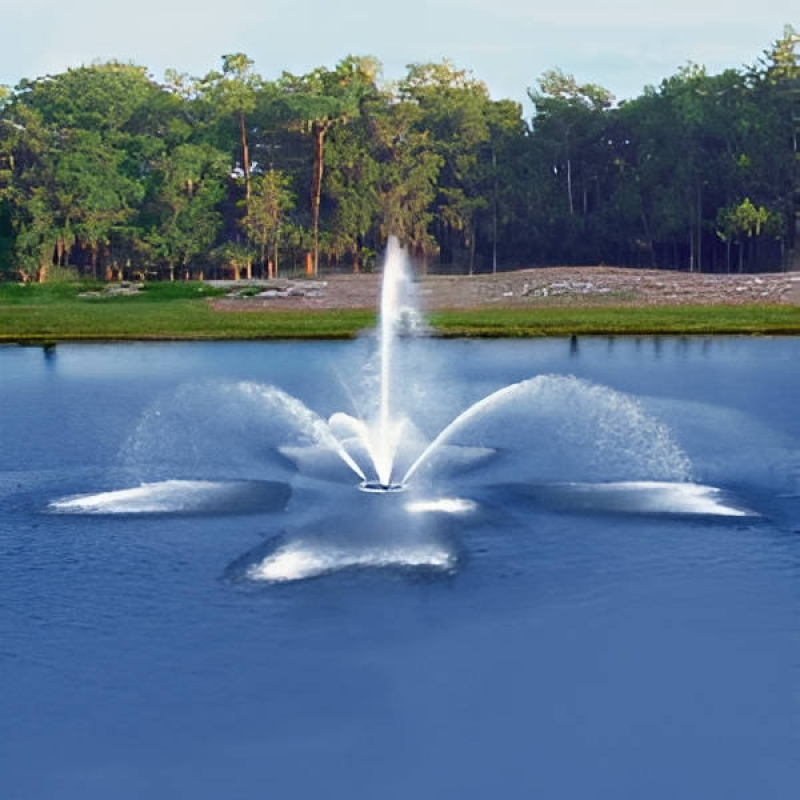

An impressive water feature sure to be the focal point on any site. The FanJet floating fountain series brings visual interest with a high center display and a lower side pattern. This combination blends to create a beautiful look for any lake.
All FanJet fountains are powered by a UL listed control panel in combination with a submersible, heavy-duty turbine pump. All fountain components are fully waterproof and made of the finest corrosion resistant materials to ensure your community enjoys years of high performance and dependability.
Everything you need is included with your FanJet Pond Floating Fountain.
Form vs. function. Vertex understands that your custom lake fountain needs to work smoothly and efficiently over a long period of time as well as being beautiful. We work diligently to ensure that all of the individual components are built from the highest quality materials and assembled to exacting standards.
As the technology leader in custom floating lake and pond fountains, Vertex is known for providing the highest quality, environmentally sound custom floating fountains. Vertex has earned a reputation for attention to detail and customer satisfaction for over 30 years.
| Motor Unit | 10 HP Unit | 15 HP Unit | 20 HP Unit | 30 HP Unit |
| Minimum Operating Depth | 6' | 7' | 7' | 8' |
| Center Height Spray (A) | 25' | 30' | 35' | 45′ |
| Side Height Spray (B) | 8' | 10' | 12' | 15' |
| Diameter (C) | 35′ | 40′ | 45′ | 50' |
| LED Lights | 7 | 7 | 9 | 9 |
| Total Wattage | 301W | 301W | 387W | 387W |
| AMP Draw | 3.5 Amps | 3.5 Amps | 4.5 Amps | 4.5 Amps |
| Available Phase | 1 Phase & 3 Phase | 1 Phase & 3 Phase | 3 Phase | 3 Phase |
| 1 Phase (Volts) | 230V | 230V | N/A | N/A |
| 3 Phase (Volts) | 208V or 230V | 208V or 230V | 208V or 230V | 208V or 230V |
| Display Head/Nozzle Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| Pump & Motor Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-Year | 2-Year | 2-Year | 2-Year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year |
Vertex FanJet Floating Pond Fountain Product Sheet
Vertex FanJet Floating Pond Fountain System Specifications
Vertex FanJet Floating Pond Fountain Owner's Manual
