Vertex Air 2 XL2 Aeration System

ā˜…ā˜…ā˜…ā˜…ā˜… (0)
by Vertex

  • Suggested pond side: 2-3 surface acres
  • Built for durability, safety, and efficiency
  • 24/7 continuous operation

$3,456.00
✓ FAST and Free Shipping
✓ No Sales Tax
✓ Easy 30 Day Returns
✓ We Will Beat Any Advertised Price - Call Us
✓ Financing Available
✓ Installation Available

Notify me when back in stock

Elevate Your Environment with the Vertex Air 2 XL2 Pond and Lake Aeration System

The Vertex Air2 XL2 pond aerator is a super-efficient, affordable, and safe system. In a typical pond, an Air2 XL2 can aerate approximately 2-3 acres depending on the shape, slope, oxygen demand and other factors. A 1/2hp (0.37kW) Brookwood SafeStart compressor, housed in our rustproof aluminum outdoor cabinet, feeds two bottom-mounted CoActive AirStations utilizing Vertex's MicronBubble technology.

The rising force of millions of bubbles circulates the entire water column, entraining bottom water up to the surface allowing vital oxygen to be absorbed and poisonous gasses expelled. With no electricity in the water, Vertex's aeration systems are safe for any type of water recreation.

  • Circulates up to 9,800 GPM (gallons per minute)
  • High pumping rate easily penetrates stratification layers
  • Promotes beneficial bacteria growth
  • Prevents low oxygen fish kills
  • Reduces nutrient levels and associated algae growth
  • Oxidizes/reduces bottom muck
  • Expands oxygenated habitat for improved fisheries
  • Reduces aquatic midge and mosquito insect hatches
  • Eliminates foul odors from undesirable dissolved gases

Vertex - Main Aeration Banner Image

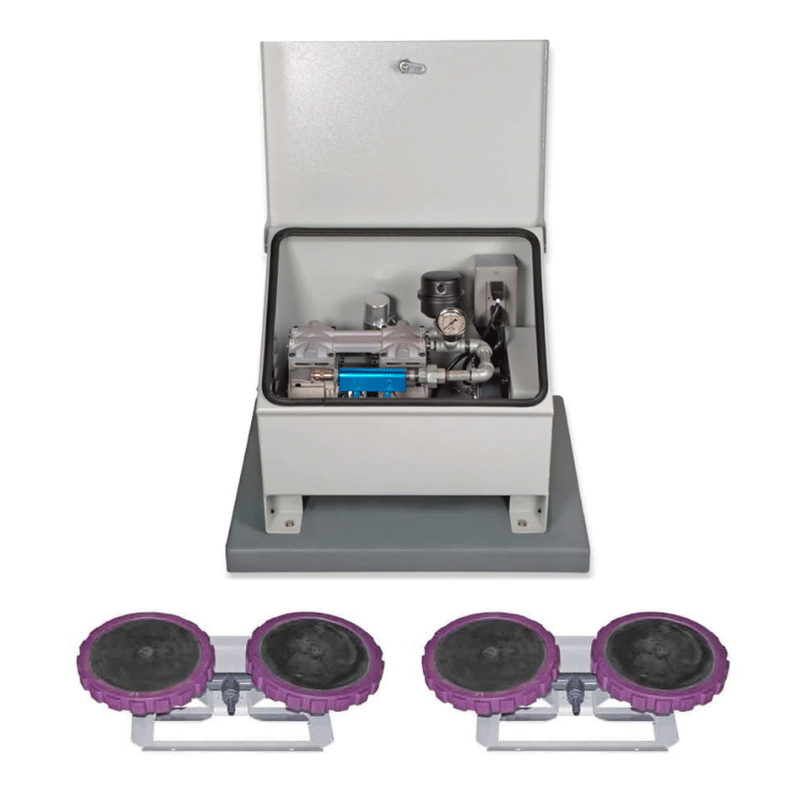

What's Included With Your Lake Aerator

Everything you need is included with your Air 2 XL2 Aeration System.

  • 1/2 HP Brookwood CompressorĀ
  • Two XL2 Airstations
  • QuietAir Cabinet with Cooling Fan
  • GFCI Protection
  • Mounting Pad
  • Dual-Valved Aluminum Control Manifold
  • Comprehensive Warranty


Super-Duty Brookwoodā„¢ Compressor Details

  • 1/2 HP (0.37kW): low electrical costs
  • UL, 115v or 230v, 2 cycle, 4.3 CFM
  • Built for continuous 24/7 operation
  • Upgraded rotors, stators, valve plates, bearings and capacitors
  • Vertex SafeStartā„¢ Technology for auto restart under maximum rated pressure without motor damage
  • Oil-free, and require no lubrication
  • 2-3 year extended duty cycle between scheduled maintenance
  • 3-Year Vertex warrantyĀ (excluding wearable parts: air filters and compressor maintenance kits)
Vertext - Brookwood Compressors Image

Medium QuietAirā„¢ Cabinet Details

  • Powder-coated aluminum is a durable, attractive finish
  • Equipped with a stamped ventilation grill
  • High capacity 140 CFM fan
  • Class "A" GFCI protection on compressor and fan circuits
  • Quick disconnect switch included
  • Easy access design with cam lock
  • Easy plug-in connection to waterside electrical service
  • Heavy duty, light weight mounting pad included
  • Limited lifetime warranty: against rust
Vertex - QuietAir Cabinet Image

Self-Sinking AirStation XL2 Details

Over 60K MembraneĀ diffuser disks have been sold without a single reported clogged or blown-out membrane. Vertex stands behind its diffuser technology with our famous 5-year ā€œNo Questions Askedā€ warranty.

  • Total pumping capacity of up to 9,800 GPM
  • Four 9" flexible membrane discs with MicronBubble technology
  • Shallow water Airstation is optional for depths lower than 8'
  • Ā Self-cleaning, low maintenance
  • Powder-coated stainless steel self-sinking base unit designed to prevent sinking into soft bottom sediments
Vertex - 4 AirStation Bottom Diffusers

Vertex - BottomLine Tubing Image

BottomLine Tubing (Optional)

Self-weighted air supply tubing addresses the needs of professionals by ensuring the air gets where itā€™s needed without extra cost or materials.

Bottomline Tubing Features

  • Use with standard PVC solvent weld cement
  • High wall thickness for long-term durability
  • Remains flexible in cold temperatures
  • Over-sized for high-flow
  • Self-weighted for easy installation
  • Available in 50ā€², 100', 250', and 500ā€² lengths
  • BottomLineā„¢ tubing warranty:Ā 15 years based on the date of receipt.

Vertex - Optional Sound Kits

Sound Kits (Optional)

Normal conversation is in the 60-70 decibel rangeĀ ā€“ the same as our cabinets without sound kits. But when they have to be placed byĀ patios, underĀ bedroom windowsĀ or inĀ community gathering areas, the noise just seems louder.

The Vertex Sound Kit consists of a Muffler Box, Sound Insulation and a Quiet Filter. This option is available for all sizes of Vertex QuietAirā„¢ Cabinets.
