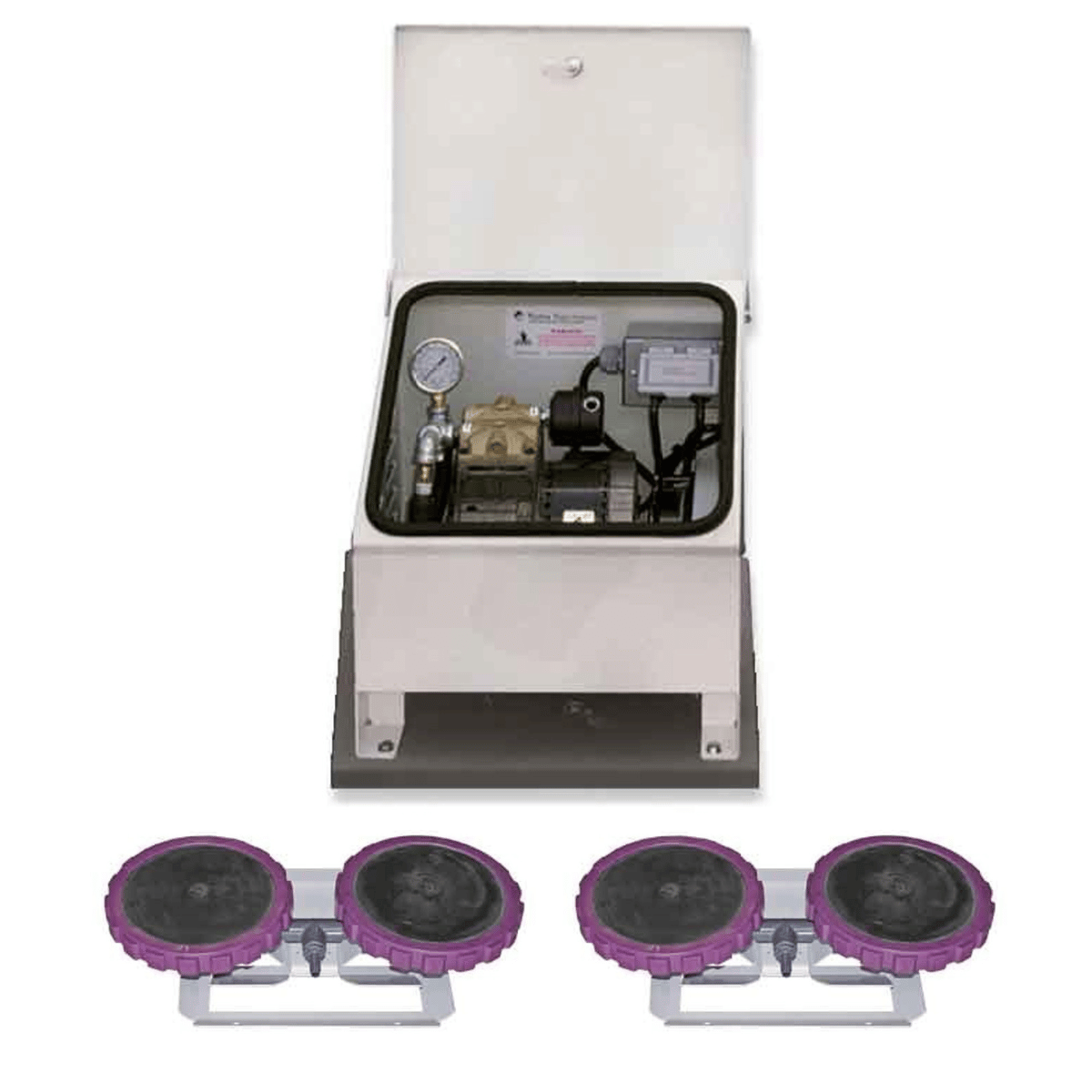

Vertex Air 1 Plus XL2 Aeration System - Full Unit System

Vertex Air 1 Plus XL2 Aeration System

★★★★★ (0)
by Vertex

  • Best fit for rectangular or oblong shaped ponds up to 2 surface acres and 45 ft deep
  • Built for durability, safety, and efficiency
  • 24/7 continuous operation

$3,049.00
✓ FAST and Free Shipping
✓ Easy 30 Day Returns
✓ We Will Beat Any Advertised Price - Call Us
✓ Financing Available
✓ Installation Available

Notify me when back in stock

Infuse Your Pond With Vertex Air 1 Plus XL2 Pond and Lake Aeration System

Experience tailored aeration with the Vertex Air 1 Plus XL2 Aeration System, meticulously designed for rectangular or oblong-shaped ponds covering up to two surface acres and reaching depths of 45 feet. Its adaptability to various shapes, slopes, and oxygen demands ensures optimal performance. Choose the voltage that suits your preferences, with options available in both 115 and 230 volts. Unleash the power of customized aeration for your pond's health and vitality.

The Air 1 Plus XL2 Aeration system is super-efficient and safe. The rising force of millions of bubbles transports bottom water to the surface, allowing oxygen to be absorbed and circulating the entire water column.

  • Circulates up to 6,700 GPM (gallons per minute)
  • High pumping rate easily penetrates stratification layers
  • Promotes beneficial bacteria growth
  • Prevents low oxygen fish kills
  • Reduces nutrient levels and associated algae growth
  • Decreases pond bottom sediment
  • Expands oxygenated habitat for improved fisheries
  • Lessens aquatic midge and mosquito insect hatches
  • Eliminates foul odors from undesirable dissolved gases

Vertex - Main Aeration Banner Image

What's Included With Your Lake Aerator

Everything you need is included with your Air 1 Plus XL2 Aeration System.

  • 1/3 HP Brookwood Compressor
  • Two XL2 Airstations
  • QuietAir Cabinet with Cooling Fan
  • GFCI Protection
  • Mounting Pad
  • Dual-Valved Aluminum Control Manifold
  • Comprehensive Warranty


Super-Duty Brookwood™ Compressor Details

  • 1/3 HP (0.25kW): low electrical costs
  • UL, 115v or 230v, 2 cycle, 2.5 CFM
  • Built for continuous 24/7 operation
  • Upgraded rotors, stators, valve plates, bearings and capacitors
  • Vertex SafeStart™ Technology for auto restart under maximum rated pressure without motor damage
  • Thermal overload protection
  • Oil-free, and require no lubrication
  • 2-3 year extended duty cycle between scheduled maintenance
  • 3-Year Vertex warranty (excluding wearable parts: air filters and compressor maintenance kits)
Vertext - Brookwood Compressors Image

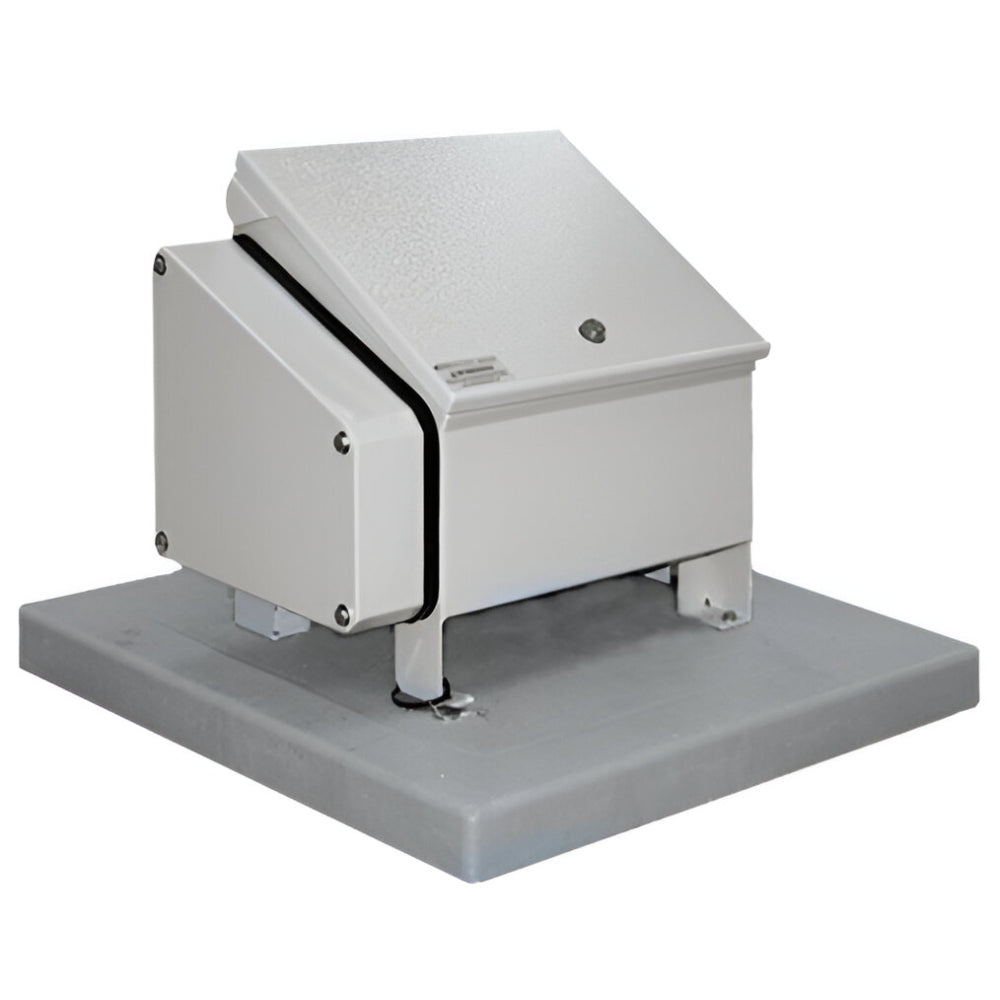

Small QuietAir™ Cabinet Details

  • Powder-coated aluminum is a durable, attractive finish
  • Equipped with a stamped ventilation grill
  • High capacity 140 CFM fan
  • Class "A" GFCI protection on compressor and fan circuits
  • Quick disconnect switch included
  • Easy access design with cam lock
  • Easy plug-in connection to waterside electrical service
  • Heavy duty, light weight mounting pad included
  • Limited lifetime warranty
Vertex - Small QuietAir Cabinet Image

Self-Sinking AirStation XL2 Details

Over 60K Membrane diffuser disks have been sold without a single reported clogged or blown-out membrane. Vertex stands behind its diffuser technology with our famous 5-year “No Questions Asked” warranty.

  • Total pumping capacity of up to 6,700 GPM
  • Four 9" flexible membrane discs with MicronBubble technology
  • Shallow water Airstation is optional for depths lower than 8'
  •  Self-cleaning, low-maintenance
  • Powder-coated stainless steel self-sinking base unit designed to prevent sinking into soft bottom sediments
Vertex - 4 AirStation Bottom Diffusers

Vertex - BottomLine Tubing Image

BottomLine Tubing (Optional)

Self-weighted air supply tubing addresses the needs of professionals by ensuring the air gets where it’s needed without extra cost or materials.

Bottomline Tubing Features

  • Use with standard PVC solvent weld cement
  • High wall thickness for long-term durability
  • Remains flexible in cold temperatures
  • Over-sized for high-flow
  • Self-weighted for easy installation
  • Available in 50′, 100', 250', and 500′ lengths
  • BottomLine™ tubing warranty: 15 years based on the date of receipt.

Vertex - Optional Sound Kits

Sound Kits (Optional)

Normal conversation is in the 60-70 decibel range – the same as our cabinets without sound kits. But when they have to be placed by patios, under bedroom windows, or in community gathering areas, the noise just seems louder.

The Vertex Sound Kit consists of a Muffler Box, Sound Insulation, and a Quiet Filter. This option is available for all sizes of Vertex QuietAir™ Cabinets.

★★★★★
★★★★★
★★★★★
★★★★★
