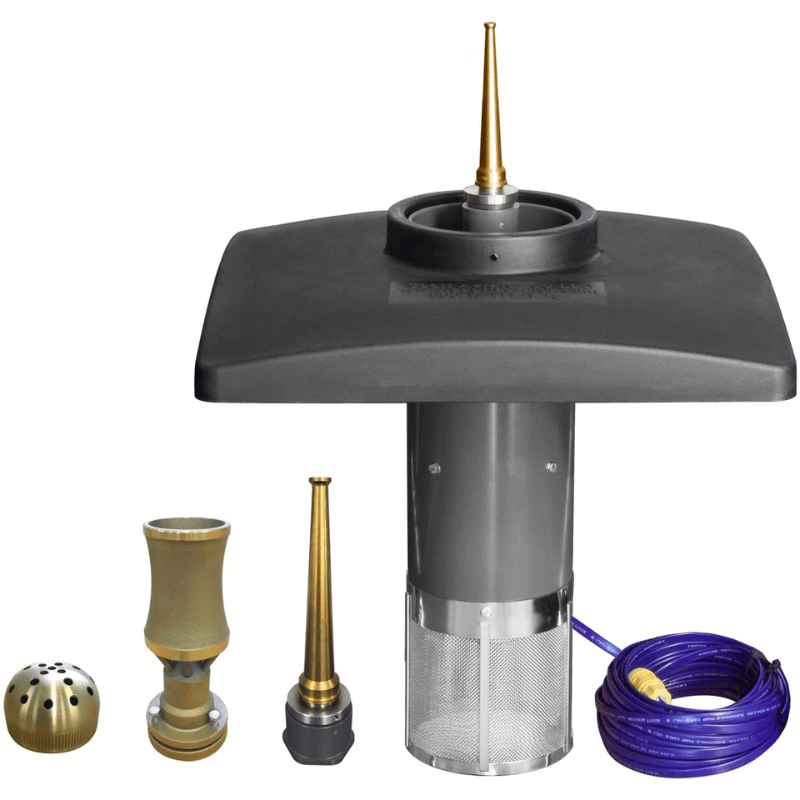

The Triad Fountain offers a versatile and visually appealing addition to outdoor ponds or lake scapes. The option to choose between three different nozzle styles allows customization of your water feature. Three individually distinct brass nozzles are included with the Triad Fountain, and all can be easily changed in minutes, and no tools are required!
The Triad is manufactured utilizing a stainless steel submersible motor and pump, making it the most environmentally friendly fountain on the market.
The Scott Aerator Company has engineered the Triad Fountain to eliminate the need for costly, time-consuming winterizing products and procedures. Simply leave your fountain in the water, turn off its power supply, and forget about it all winter. Once the water thaws in the spring, re-establish power to the unit and you’re good to go. All components will withstand sub-zero conditions without damage.
The Triad is proudly manufactured in the USA and carries an unconditional 5-year motor warranty.
Everything you need is included with your Triad Fountain and more!

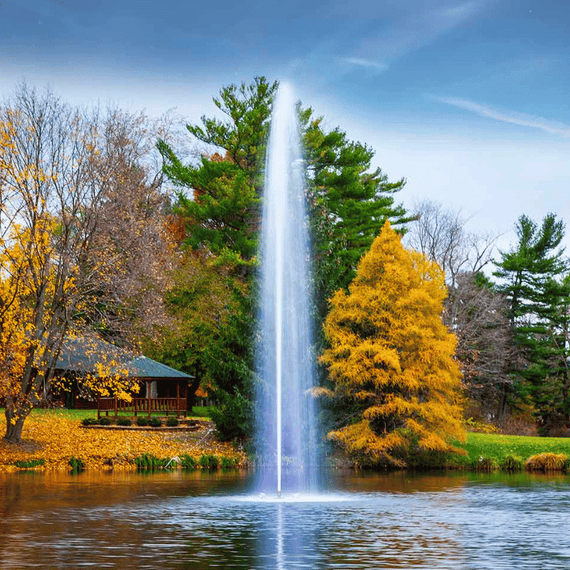

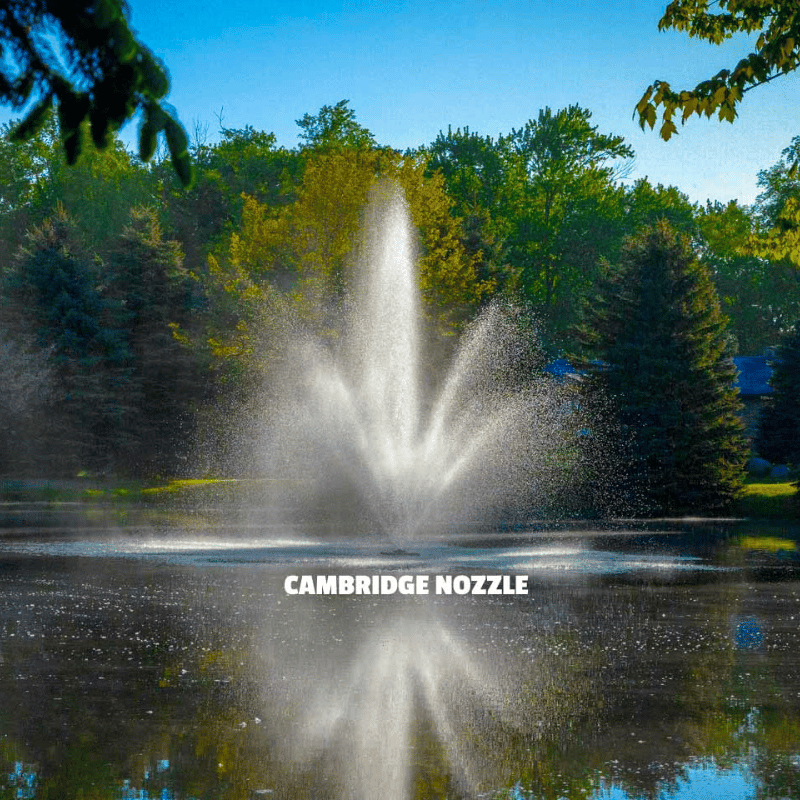

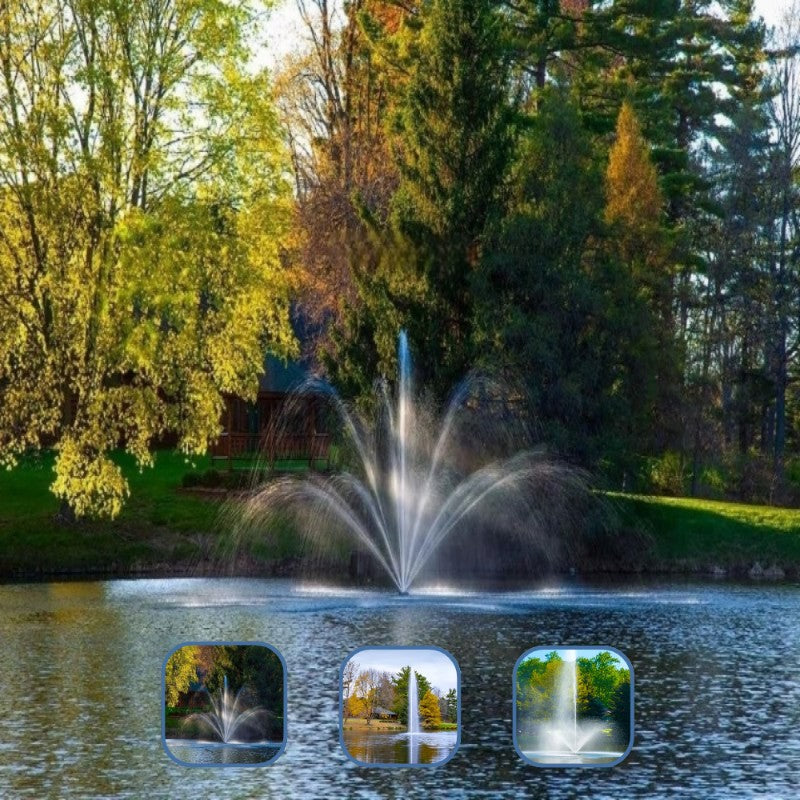

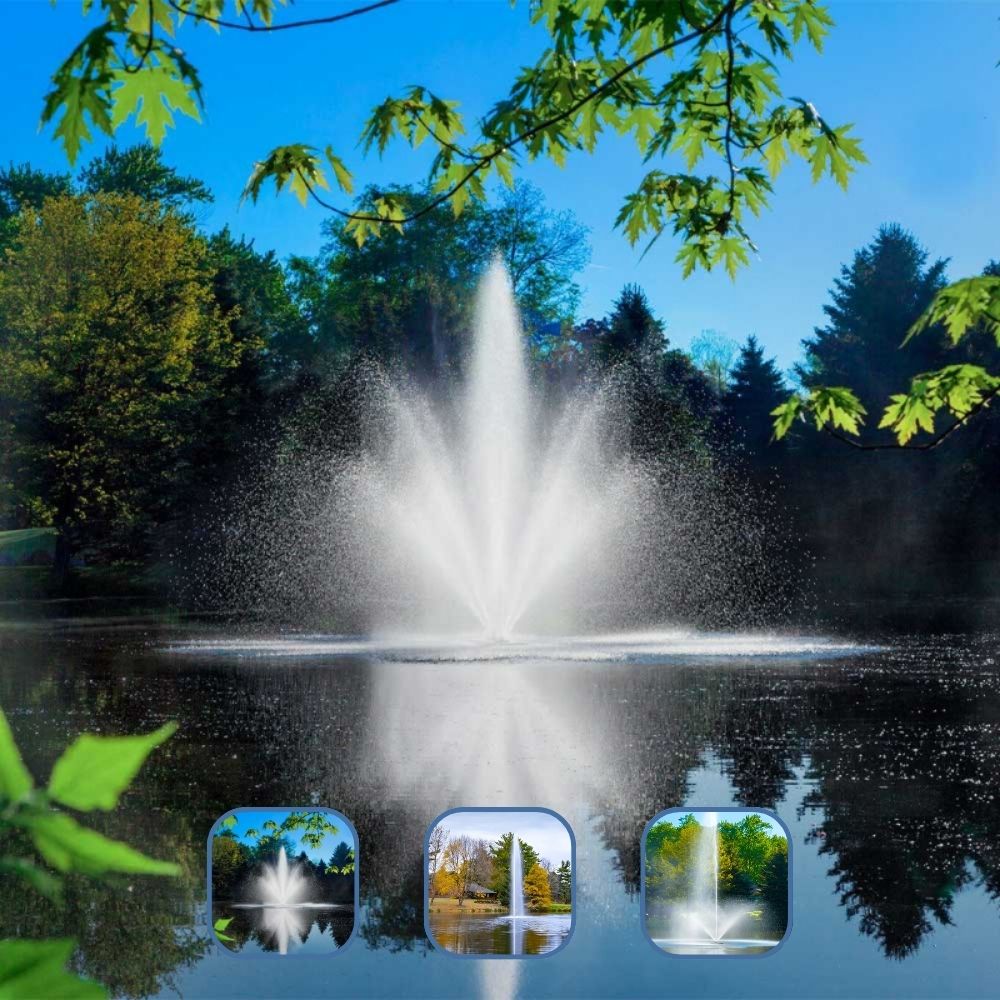

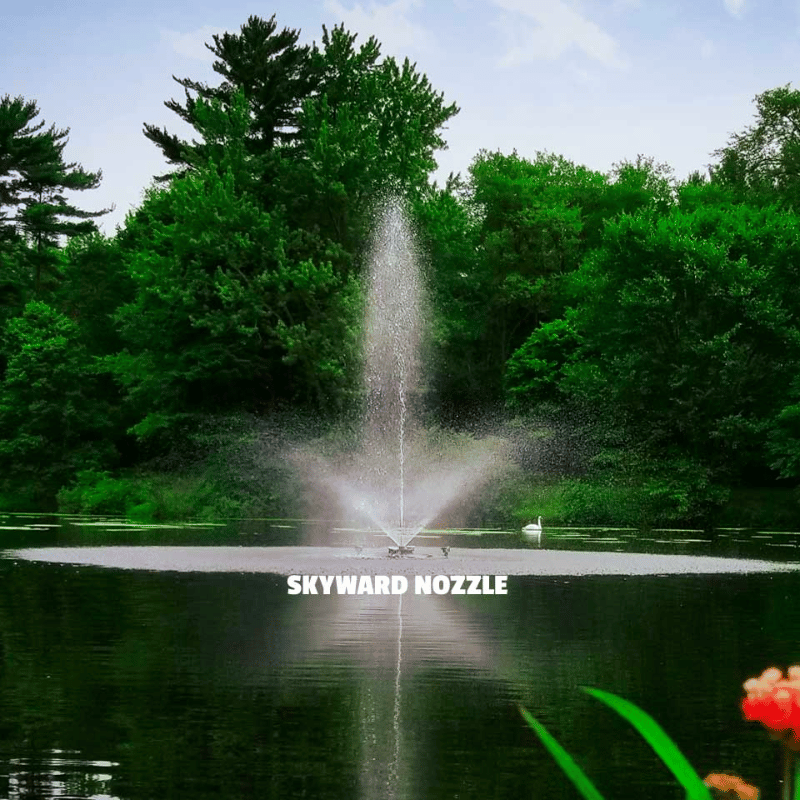

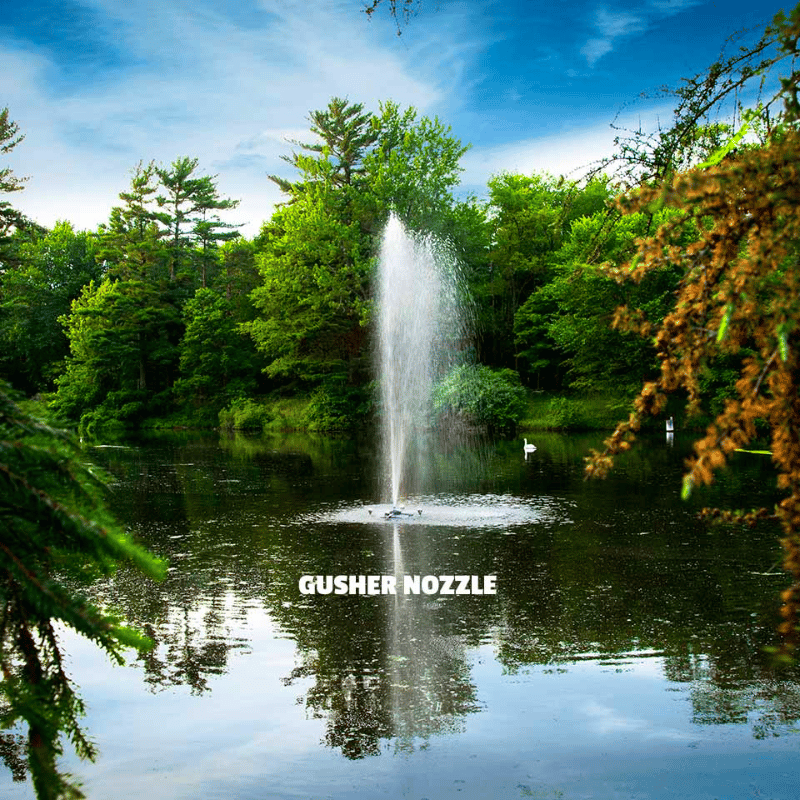

The Triad Fountain gives you a choice between the more traditional geyser style of the “Gusher” nozzle or a more elegant cascading pattern such as the “Cambridge” and “Skyward” nozzles.
All three will provide a dynamic, aesthetically pleasing addition to your pond or lakescape while helping to maintain water clarity, oxygen levels, and overall promoting a healthy aquatic environment.
 |
 |
 |
|
| Nozzle Spray Pattern | Gusher Spray Pattern | Cambridge Spray Pattern | Skyward Spray Pattern |
| 1 HP Unit Spray Measurement | 25' H x 6' W | 15' H x 30' W | 15' H x 30' W |
| 1.5 HP Unit Spray Measurement | 35' H x 6' W | 35' H x 45' W | 40' H x 50' W |
| 3 HP Unit Spray Measurement | 35' H x 6' W | 40' H x 55' W | 50' H x 70' W |
Whether you're a seasoned professional or a first-time pond owner, you'll find the installation process quick and easy. Once your fountain is up and running, you'll be amazed at how quickly it transforms your pond.
The Triad Fountain is super easy to install, requiring just two anchoring ropes and weights or tethers.
In addition to its superior aeration capabilities and impressive fountain display, the Scott Aerator Triad Fountain offers the option to add LED lights to further enhance the ambiance of your pond.
You can choose between white lights or color-changing lights, allowing you to create a unique and personalized look that perfectly complements your outdoor space.
Whether you're hosting a summer soiree or enjoying a quiet evening by the water, the Triad Fountain with lights is sure to impress. You can add lights by clicking here.
| Unit | 1 HP Motor Unit | 1.5 HP Motor Unit | 3 HP Motor Unit |
| Motor Construction | Oil Filled | Oil Free | Oil Free |
| Voltage | 115V / 230V | 230V | 230V |
| Amps | 115V - 19.5 Amps | 230V - 10.5 Amps | 12.2 Amps | 14 Amps |
| Watts | 115V - 2242 Watts | 230V - 2415 Watts | 2806 Watts | 3000 Watts |
| Flow Rate | 85 GPM | 135 GPM | 180 GPM |
| Power Cord Gauge | 12-gauge submersible | 12-gauge submersible | 10-gauge submersible |
| Minimum Anchor Weight | 35 lbs | 40 lbs | 55 lbs |
| Light Kits Can Be Added | Yes, now or later | Yes, now or later | Yes, now or later |
| Can use in Saltwater | Yes | Yes | Yes |
| 24-Hour Operation | Yes | Yes | Yes |
| Maintenance Required | None | None | None |
| Minimum Pond Depth | 45 inches | 50 inches | 64 inches |
| Motor Warranty | 5-Year | 5-Year | 5-Year |
| Cable Size | 1 HP 115V | 1 HP 230V | 1.5 HP 230V | 3 HP 230V |
| 12G | 100' | 400' | 310' | 190' |
| 10G | 150' | 630' | 480' | 300' |
| 8G | 225' | 990' | 770' | 470' |
| 6G | 400' | 1540' | 1200' | 750' |
| 4G | 770' | 2380' | 1870' | 1190' |
| 2G | 1160' | 3610' | 2850' | 1850' |
GFCI required. Please disconnect the power when swimmers are present. ARL was tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages.
