Experience the future of aeration with the Scott Aerator Solar Sub-Surface Aeration System, a dependable and economical alternative to conventional aeration methods. Boasting a high-efficiency solar module, individual rocker-style circuit breakers, and a brushless compressor, this system ensures consistent, low-maintenance, and high-volume solar aeration, even on overcast days.
Tailored for ponds up to 2.5 acres, it comes with a reassuring two-year warranty and is meticulously crafted using top-tier American-made components celebrated for their durability.
For expansive water bodies up to 5 acres, the Solar XL Sub-Surface Aeration System offers enhanced capacity while delivering the same unparalleled benefits.
Note:Ā A vertical 3" (3-1/2" OD) by approximately 10 feet in length galvanized pole for mounting is not included.

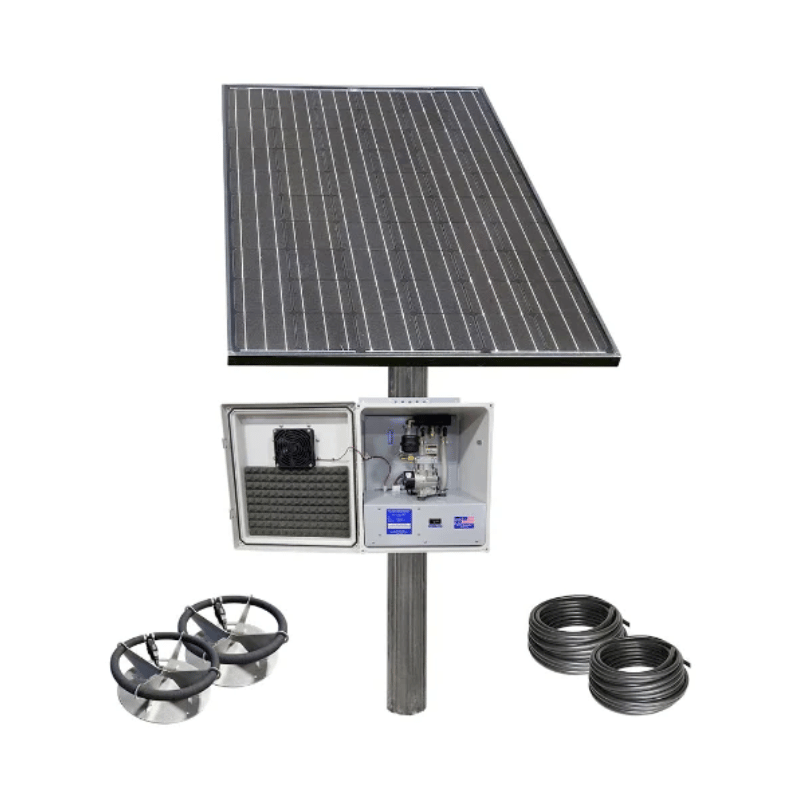

Everything you need is included with your Solar Sub-Surface Aeration System.
The Solar Sub-Surface Aeration System provides all of the benefits of traditional aeration without the costly batteries, AC wiring, and ongoing expense of grid power.
Even during cloudy conditions, the Solar Sub Surface Aeration System provides low-maintenance, high-volume solar aeration on any site.
Utilizing aeration tubing instead of industry-standard rubber membranes, these diffusers offer greater flow rates with much lower back pressure. With hidden benefits like reduced system wear and extended life on compressors, use them to improve the effectiveness of any aeration system.
Each diffuser is ruggedly constructed using high-quality, American-made components with a proven history of durability.
Each unit is ruggedly constructed using high-quality, American-made components with a proven history of durability. Fiberglass reinforced enclosure secures digital motor controller and brushless compressor(s).
All components are engineered and tested for unmatched reliability, providing years of trouble-free operation. The entire system is designed to allow quick and easy installation by anyone, using just a few basic hand tools.
 |
 |
|
| Unit Model | Solar Sub-Surface Aeration | Solar XL Sub-Surface Aeration |
| Solar Panels | 2x 36-cell, 300-watt, high-efficiency solar panel (39"x65") | 2x 60-cell, 300-watt, high-efficiency solar panel (39"x65") |
| Racking | Fully adjustable top-of-pole, (pole not included) | Fully adjustable top-of-pole, (pole not included) |
| Circuit Protection | Individual rocker-style circuit breakers | Individual rocker-style circuit breakers |
| Compressor Type | High-efficiency, brushless, rocking-piston compressor | 2 High-efficiency, brushless, rocking-piston compressors |
| Max Flow / Depth | 2.5 SCFM / 30'+ / 25 psi | 5 SCFM / 30'+ / 25 psi |
| Over-Pressure | Brass automatic pressure relief valve | Brass automatic pressure relief valve |
| Pressure Gauge | Liquid-filled, stainless steel pressure gauge | Liquid-filled, stainless steel pressure gauge |
| Flow Balancing | 2 Full-flow brass ball valves | 4 Full-flow brass ball valves |
| Sound Level | <65 dB @ 6' | <67 dB @ 6' |
| Air Intake | Washable & reusable slide-in primary filter | Washable & reusable slide-in primary filter |
| Compressor Cooling | 78 CFM automatic active ventilation | 110 CFM automatic active ventilation |
| High-Temp Limit | Yes - with automatic re-start | Yes - with automatic re-start |
| Hose Connections | Two 3/8" x 100 feet airline | Four 3/8" x 100 feet airline |
| Diffusers | Two self-weighted diffusers | Four self-weighted diffusers |
| Diffuser Types | Works with any style diffuser | Works with any style diffuser |
| Enclosure | ULTRAGUARDā¢ Fiberglass Reinforced Polyester Compression Molded Non-Corrosive/ Non-Conductive Continuous, Poured-in-Place Gasket 316 Stainless Steel Hardware | ULTRAGUARDā¢ Fiberglass Reinforced Polyester Compression Molded Non-Corrosive/ Non-Conductive Continuous, Poured-in-Place Gasket 316 Stainless Steel Hardware |
| Mounting Type | Ground mount | Ground mount |
| Steel Components | Formed carbon steel with polyester powder coat | Formed carbon steel with polyester powder coat |
| Aluminum Rails | 6360 T6 Anodized, .2-.25mil Thickness | 6360 T6 Anodized, .2-.25mil Thickness |
| Codes & Standards | Structural, ASTM A36, A53 Plating ASTM B633 | Structural, ASTM A36, A53 Plating ASTM B633 |
| Enclosure Weight | 50 lbs | 66 lbs |
| Coverage | Up to 2 acres | Up to 5 acres |
| Warranty | 2-Year warranty on all components | 2-Year warranty on all components |
Scott Aerator Solar Sub-Surface Aeration System - Instructions
Scott Aerator Solar Sub-Surface Aeration System - Pole Mount Instructions
Scott Aerator Solar Sub-Surface Aeration System Brochure
