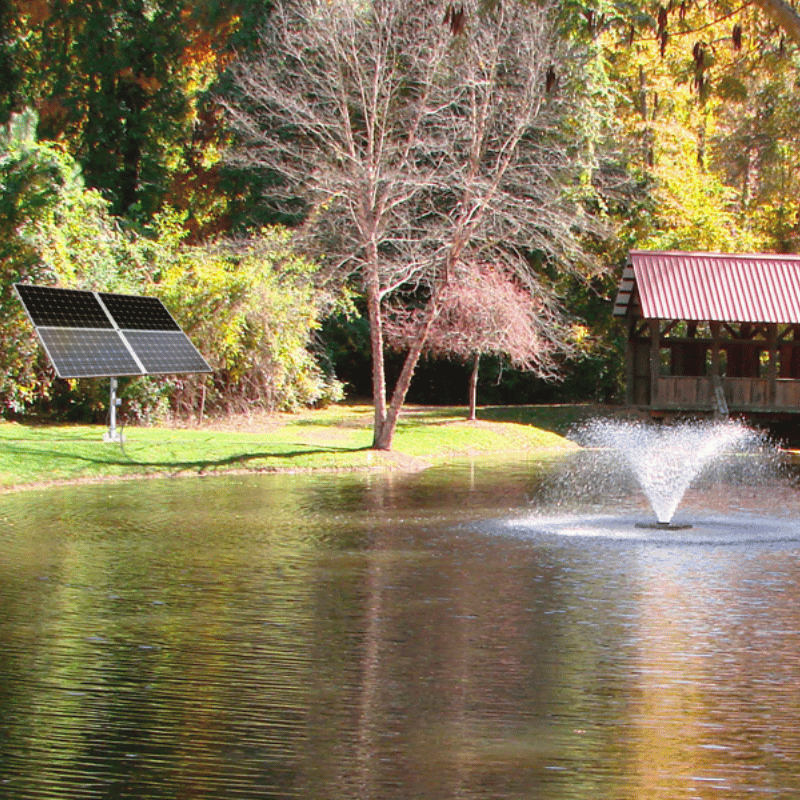

The Solar Powered DA-20 3/4 HP Display Aerator combines clean, eco-friendly aeration with the focal point of a fountain: a spectacular solution for remote spots where running electric power wouldn’t be feasible or cost-effective.
With the 3/4 HP motor, the Solar Powered DA-20 sprays up to 300 gallons per minute (in the four-panel model) in a cascading, trumpet-shaped, adjustable pattern measuring about 5 feet tall, and 9 to 20 feet wide.
This efficient aerator effectively clears algae from the pond surface, keeps water clean and clear, deters insects, and infuses the pond with oxygen. Increased oxygen levels not only benefit fish but also accelerate the breakdown of decaying organic material, reducing muck over time and promoting a healthier ecosystem.
Equipped with a stainless steel, oil-free submersible motor, this aerator is exceptionally durable, maintenance-free, and eco-friendly, making it one of the most environmentally conscious water aeration solutions available.
Everything you need is included with your Solar DA-20 3/4 HP Pond Aerator.
The Solar Array - The system includes a pole-mounted frame, four photovoltaic panels, a disconnect box, a control unit, and all necessary wiring components. The entire structure mounts on a 4-inch SCH40/80 galvanized steel pipe and concrete footing which is not included (installer supplied).
Controller - The brains of the system is our Fhoton Drive™, a variable speed motor drive designed to run the 3/4 HP DA-20 specially equipped with a Franklin Electric submersible induction motor. This allows the solar PV array to gradually bring the water flow up to capacity and operate with variable sunny or cloudy conditions.
The Scott Aerator Solar DA-20 is easy to install and comes with everything you need to get started.
Whether you're a seasoned professional or a first-time pond owner, you'll find the installation process quick and easy.
Once your aerator is up and running, you'll be amazed at how quickly it starts to make a difference in the health and appearance of your pond.
The unit is designed for fresh water or saltwater. Please disconnect power source when swimmers are present.
In addition to its superior aeration capabilities and impressive fountain display, the Scott Aerator Solar DA-20 offers the option to add LED lights to further enhance the ambiance of your pond.
You can choose between white lights or color-changing lights, allowing you to create a unique and personalized look that perfectly complements your outdoor space. Whether you're hosting a summer soiree or enjoying a quiet evening by the water, the Scott Aerator Solar DA-20 with lights is sure to impress. You can add lights by clicking here.
The Solar 3/4 HP DA-20 fountain boasts impressive spray heights ranging from 5 feet high, up to 20 feet wide, for detailed specifications, please view the product specifications below.
Proudly Made in America! All Scott Aerator products are manufactured and shipped from beautiful Holland, MI.
All standard Scott Aerator products are unconditionally warranted for five years against motor defects in materials or workmanship, under normal operating conditions.
| Motor | 3/4 HP |
| Flow Rate | 300 GPM |
| Volts/Phase/Hz | 100V / 3 Phase / 60 Hz |
| Amps | 8.6 Amps |
| Watts | 810 Watts |
| Spray Pattern Measurement | 5 feet high, up to 20 feet wide (Spray pattern adjusts in width, as narrow as 9 feet) |
| Solar Panels | Four 325-watt 60-cell solar panels |
| Solar Panels Measurement | 39 inches x 65 inches |
| Minimum Anchor Weight | Two 30lbs (Not included) |
| Maintenance Required | No |
| Minimum Pond Depth | 44-inch |
| Light Kits Can Be Added | Yes, now or later |
| Warranty | 5-Year motor warranty |
Note: GFCI required. Please disconnect the power source when swimmers are present.
