Infuse Your Pond With The Bubble Pro Sub-Surface Aerator By Scott Aerator
Enhancing water quality and oxygen levels in your pond can be seamlessly achieved by incorporating a sub-surface aeration system. The SCOTT AERATOR Bubble Pro Sub-Surface Aerator features two diffuser modules positioned at the pond's bottom, connected through weighted tubing to an onshore air compressor. This compressor efficiently delivers essential air to the pond's depths, guaranteeing optimal oxygen levels, especially crucial during the warm summer months.
Air is pumped from the compressor through the weighted airline to the diffusers at the pond bottom. When the air reaches the diffuser, several thousand small air bubbles are created. These bubbles rise to the surface and produce an upward current. Water at the pond bottom is lifted to the surface where oxygen is replenished by the atmosphere.
The Bubble Pro comes complete with two diffusers; two lengths of 100-foot by 3/8-inch Quick Sink weighted tubing; a 1/4 HP, rocking-piston compressor; a valved air outlet assembly with individual controls for each hose and a pressure relief valve; and all required fittings and clamps. Designed for easy installation, the Bubble Pro comes with a two-year warranty. The Bubble Pro works as a pond de-icer too!
Shop SCOTT AERATOR cabinet options here
Sub-Surface Bubble Pro Coverage Area
- 1/2 acre at 5 to 8 feet in pond depth
- 1 acre at 9 to 12 feet in pond depth
- 2 acres at 13 to 16 feet in pond depth
Rocking Piston Compressor 1/4 HP Details
- The compressor is available in 115 or 230 volts
- Oil-free operation
- Lightweight, die-cast aluminum components
- Hard-coated cylinder for wear resistance
- Permanently lubricated bearings and easily replaceable piston seal
- 1.7 amps for the 115 volts, 0.9 amps for the 230 volts
- CFM of 2 at a 10-foot depth

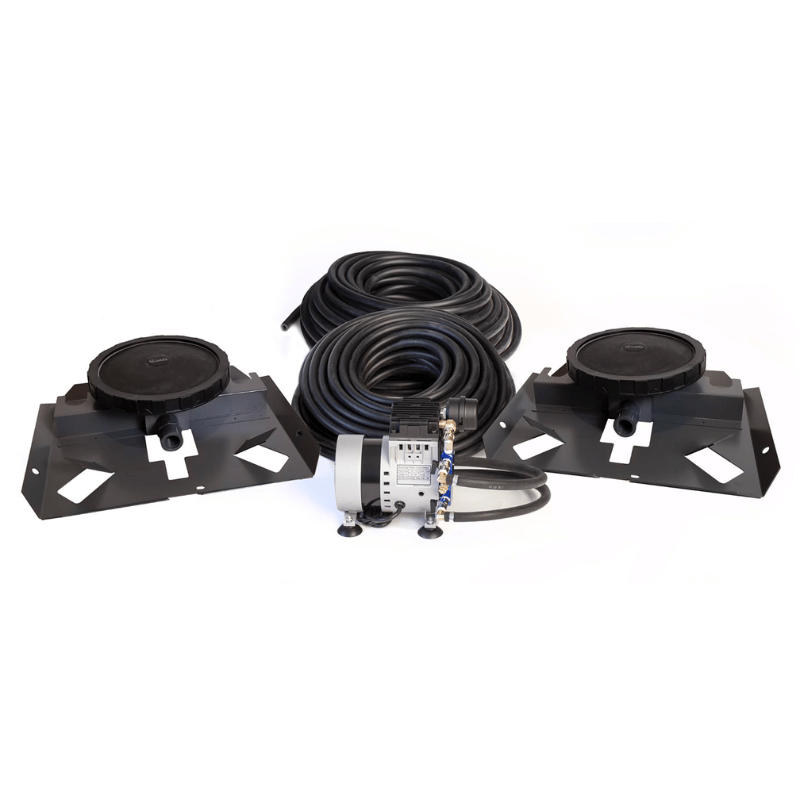

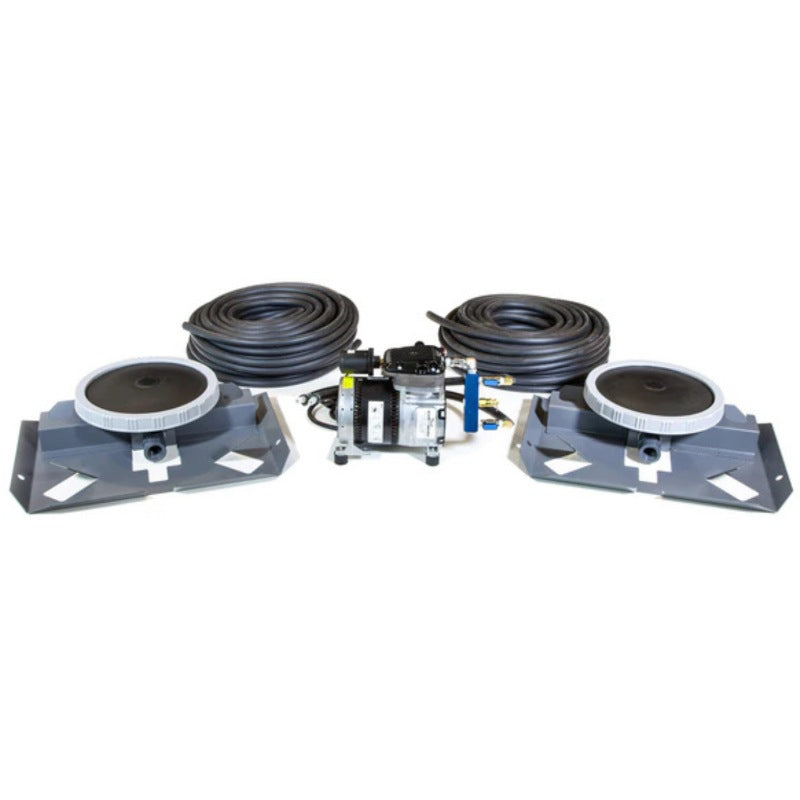

Scott Bubble Pro Sub-Surface Package Includes
- 1 - 1/4 HP compressor
- 2 - Self-weighted diffuser bases
- 2 - Diffuser membranes
- 2 - Rolls 3/8" x 100 foot self-weighted air tubing
- 1 - Double valve assembly
- 2 - Barbed check valve fittings
- 4 - Hose clamps
- 2 - Padded hose clamps
Tools Needed To Install Your Bubble Pro Sub-Surface Aerator
- Flat head screwdriver
- 7/16" Wrench or pliers
- 9/16" Wrench or pliers
