Scott Aerator Bubble Pro Max Sub-Surface Aerator
Adding a sub-surface aeration system is a great way to boost water quality and oxygen levels while maintaining the natural appearance of your pond. The SCOTT AERATOR Bubble Pro Max Sub-Surface Aerator has three diffuser modules that sit at the bottom of the pond, connected by weighted tubing which is in turn connected to an air compressor onshore. The compressor pumps much-needed air to the bottom of your pond, ensuring adequate oxygen levels during hot summer months.
Air is pumped from the compressor through the weighted airline to the diffusers at the pond bottom. When the air reaches the diffuser, several thousand small air bubbles are created. These bubbles rise to the surface and produce an upward current. Water at the pond bottom is lifted to the surface where oxygen is replenished by the atmosphere.

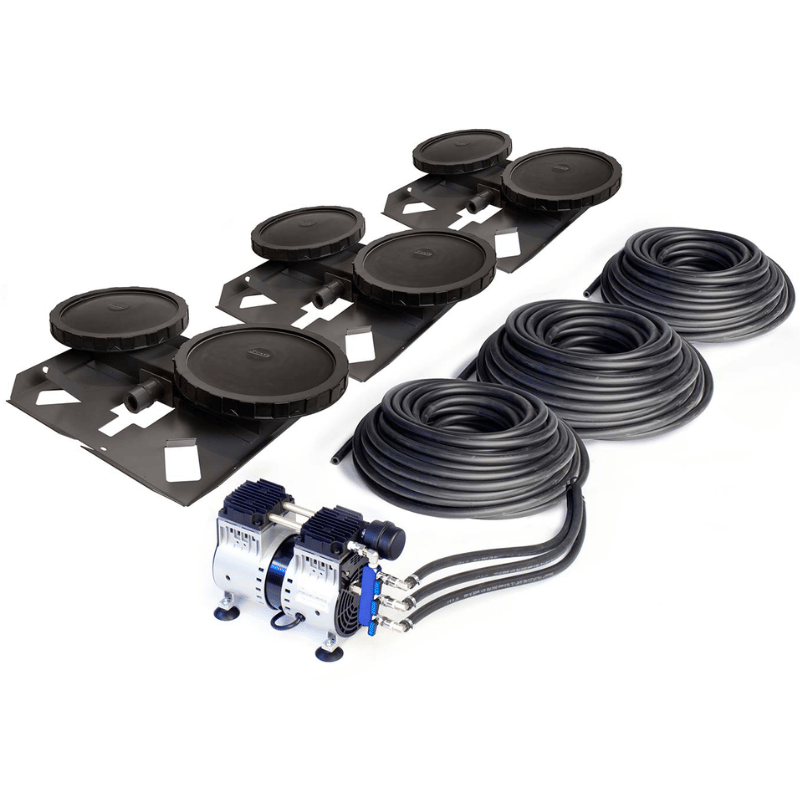

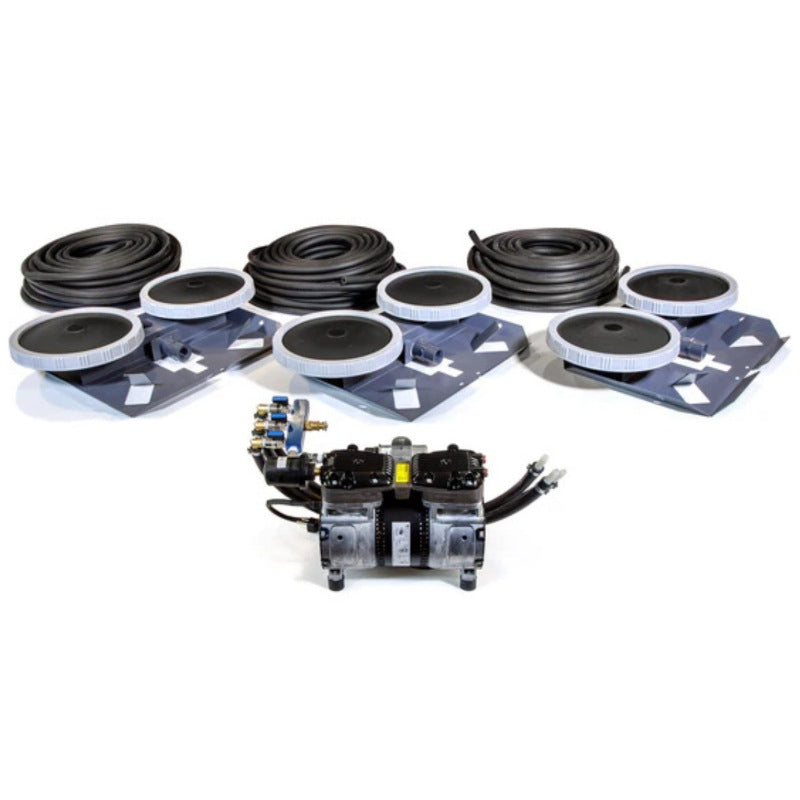

The Bubble Pro Max comes complete with three diffusers; three lengths of 100-foot by 3/8" Quick Sink weighted tubing; a 1/2 HP, rocking-piston compressor; a valved air outlet assembly with individual controls for each hose and a pressure relief valve; and all required fittings and clamps. Designed for easy installation, the Bubble Pro comes with a two-year warranty. Also available for 230-volt power. The Bubble Pro Max works as a pond de-icer too!
Shop SCOTT AERATOR cabinet options here
Coverage Area
- 3/4 acre at 5 to 8-foot pond depth
- 1-1/2 acres at 9 to 12-foot pond depth
- 3 acres at 13 to 16-foot pond depth
Rocking Piston Compressor 1/2 HP Details
- The compressor is available in 115 or 230 volts
- Oil-free operation
- Lightweight, die-cast aluminum components
- Hard-coated cylinder for wear resistance
- Permanently lubricated bearings and easily replaceable piston seal
- 3.6 amps for the 115 volts, 1.8 amps for the 230 volts
- CFM of 4.3 at 10-foot depth
Package Includes
- 1 - 1/2 HP compressor
- 3 - Self-weighted diffuser bases
- 6 - Diffuser membranes
- 3 - Rolls 3/8" x 100 foot self-weighted air tubing
- 1 - Triple valve assembly
- 3 - Barbed check valve fittings
- 6 - Hose clamps
- 3 - Padded hose clamps
Tools Needed
- Flat head screwdriver
- 7/16" Wrench or pliers
- 9/16" Wrench or pliers
