Revitalize Your Waterscape: Unleashing The ProLake 4.16 Aeration System

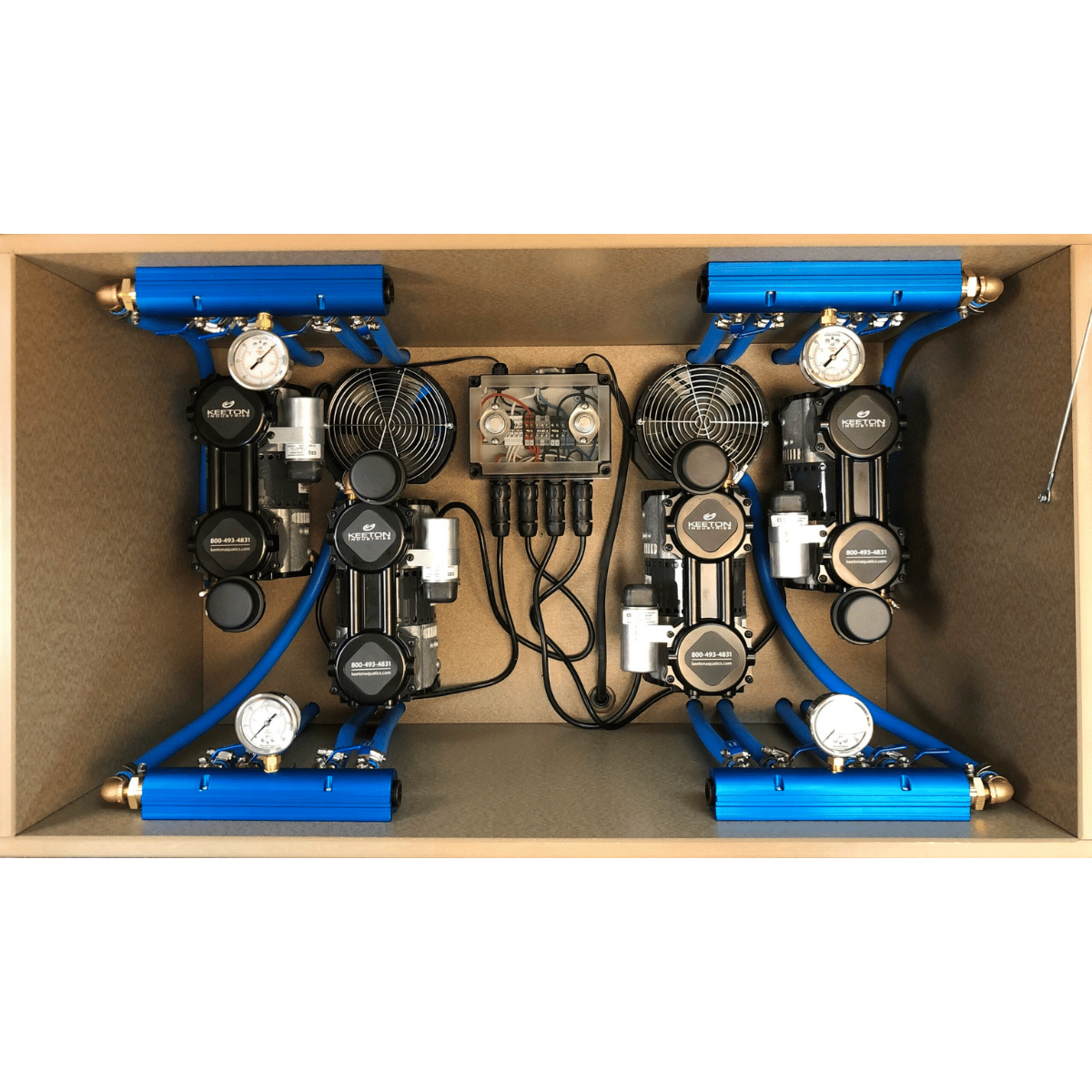

Tailored for ponds and lakes spanning up to 16 surface acres, the ProLake4 4.16 Aeration System boasts four robust ½ horsepower compressors. These compressors deliver an impressive 21.2 cubic feet of air per minute to the Duraplate™ diffusers, renowned for their non-clogging and self-cleaning design. The system is complemented by high-volume cooling blowers, fully adjustable brushed aluminum manifolds, and an exclusive programmable timer, all housed within a durable, sound-deadening cabinet. The result is a premium, energy-efficient aeration system designed to ensure the long-term cleanliness and trouble-free maintenance of your pond.

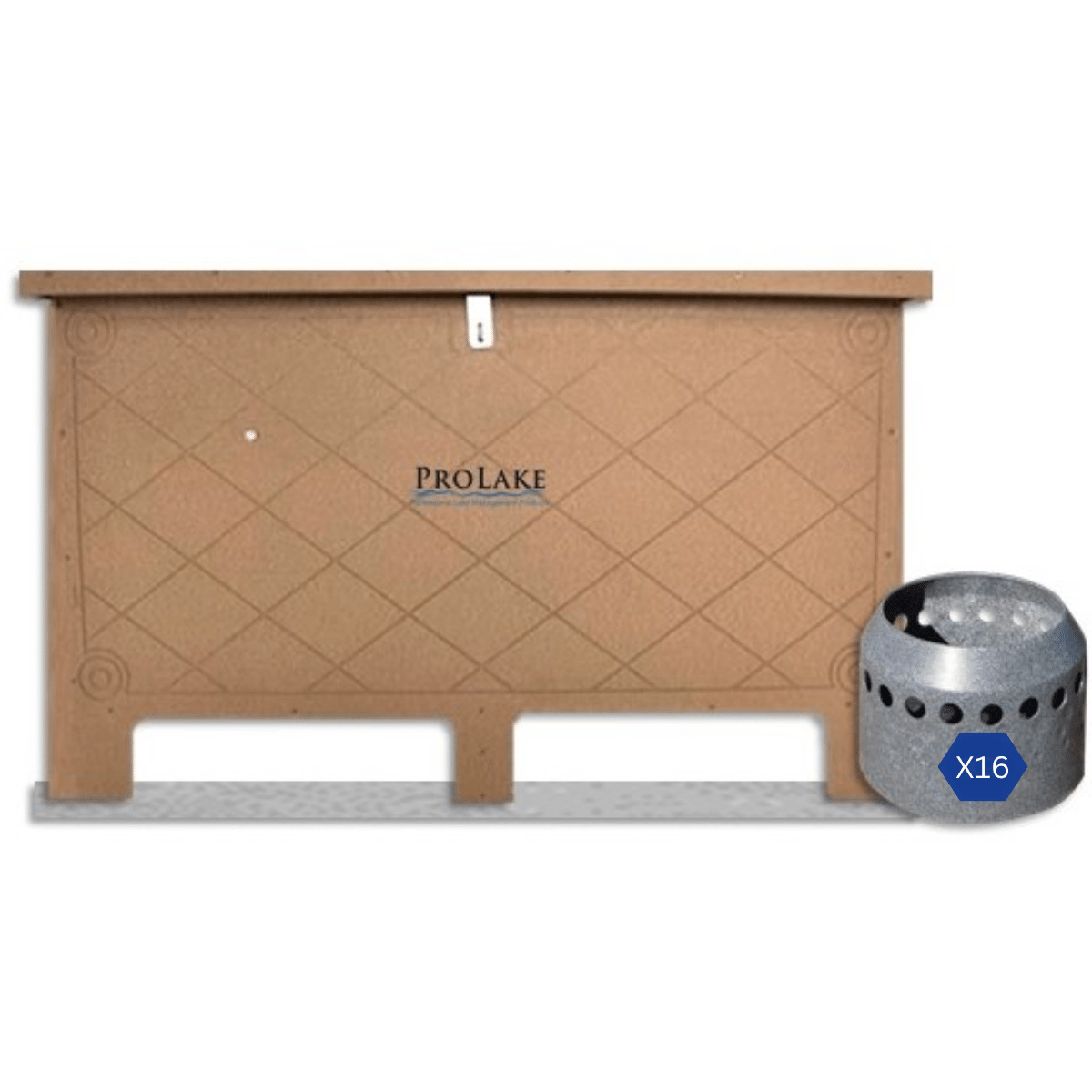

PROLAKE 4.16 Aeration System Includes
16- Duraplate™ Diffusers
4- ½ HP Compressor(115v or 230v)
1- Sound Deadening Cabinet
4- 4 Valve Brushed Aluminum Manifolds
Tubing Optional - click here for tubing options
Contact us for an installation quote: support@everbluepond.com
The ProLake 4.16 Technical Specifications
|
ProLake 4.16 Aeration System |
| Maximum Pond Size |
Up To 16 Acres |
| 115V or 230V Compressor |
4 |
| Duraplate™ Diffusers |
16 |
| Maximum Diffuser Depth |
50 Feet
|
| Max CFM |
Up To 21.2 |
| Amps |
17.2/4 ½ HP 115V |
| Watts |
655 |
| Programmable Timer |
Not Included |
| Manifold |
4-4 port
|
| Pressure Gauge |
1 |
| Cooling Fan |
1 |
| Decibels/Operational Sound |
50/60 DB |
| 1” ASTM Cert. Acoustical Sound-Deadening Foam |
Included |
| Complete Product Warranty |
2 Years |
| 115V or 230V Compressor Warranty |
2 Years |
| Alpine™ ½" Weighted Airline Warranty |
Lifetime
|
| Cabinet Warranty |
2 Years |
| Duraplate™ Diffuser Warranty |
Lifetime
|
| Cabinet Dimensions |
40"W x 24"L x 24"T |
| Alpine™ ½" Weighted Airline Measurement |
1/2" ID x 1" OD |
| Level-Aer™ Equipment Pad Dimensions |
30" x 42" x 3" |
PL 4.16 Maintenance & Repair: Monthly System Check
- Ensure compressor air intake filter is clean and not restricting airflow. Replace if necessary.
- Ensure air vents on bottom of cabinet are clean and free of debris.
- Ensure compressor and cooling fan are functioning properly. Repair or replace if necessary. System failure is almost always a result of compressor overheating due to clogged intake filters and/or air vents or cooling fan failure. Every eighteen (18) to twenty four (24) months the compressor should have a repair kit installed. This is a fairly simple process that usually takes about an hour to complete. If you are not mechanically inclined it is recommended to have a service professional do this for you. Repair kits come with instructions. You may send your compressor to Keeton Industries for maintenance or repair.
