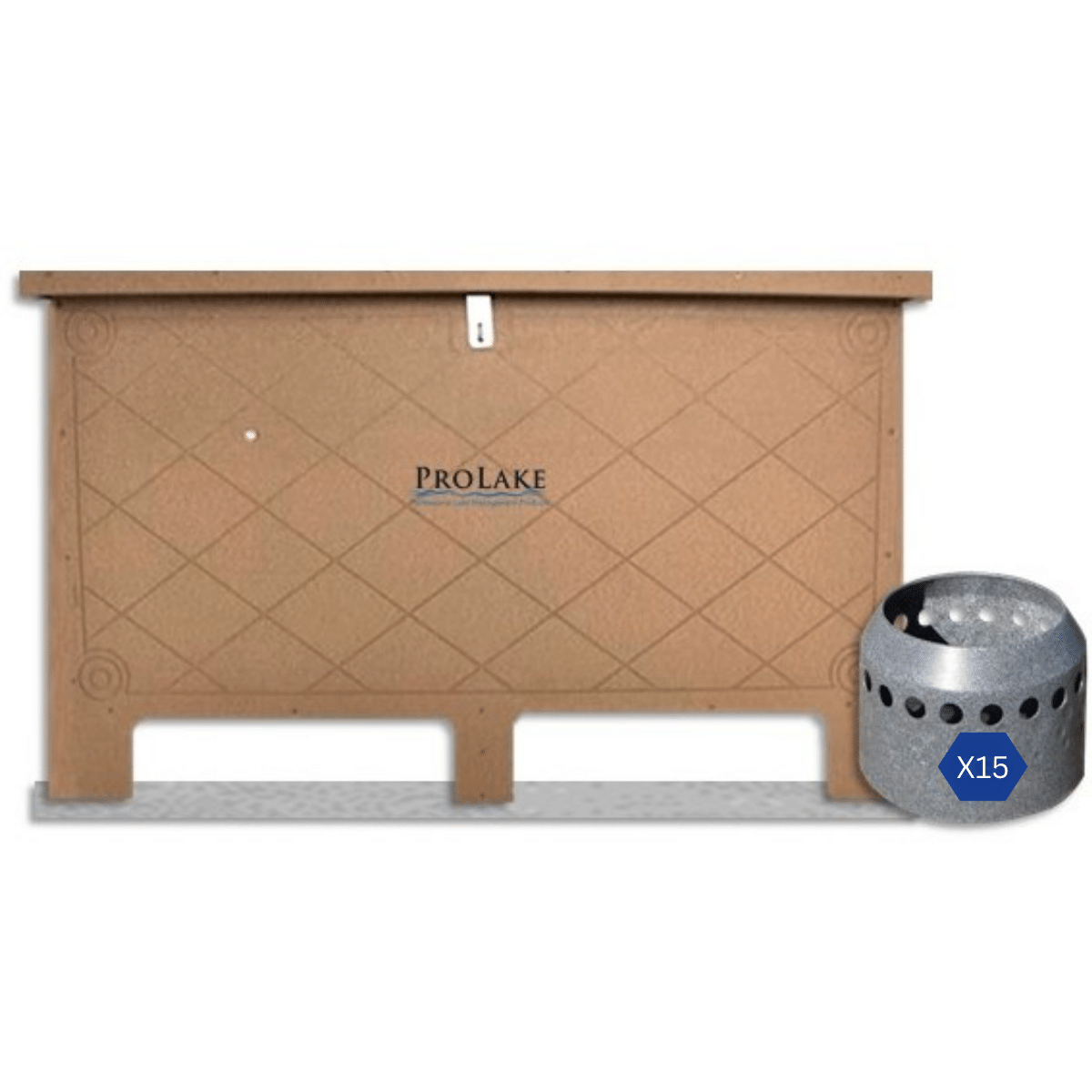

The ProLake 4.15 Diffused Aeration System is designed for large ponds and lakes up to 15 acres, providing powerful aeration for optimal water clarity and quality. This system is equipped with four Ā½ horsepower compressors that deliver 21.2 cubic feet of air per minute to non-clogging, self-cleaning Duraplateā¢ diffusers, ensuring consistent and reliable performance.
With high-volume cooling blowers and fully adjustable brushed aluminum manifolds, this system is built to handle demanding conditions. Plus, the industry-exclusive programmable timer allows for precise control over aeration schedules.
Housed in a durable, sound-deadening cabinet, the ProLake 4.15 ensures long-lasting, energy-efficient operation, helping to maintain a clean, healthy pond or lake for years to come.
Everything you need is included with your ProLake 4.15 Aeration System.
ProLakeā¢Ā aerationĀ systems are the ONLY aeration systems in the industry that come with a programmable timer so pond and lake owners can control exact times for when they want to aerate their body of water.
ProLakeā¢ UL Listed timers feature seven-day, 24-hour control, power outage back up, manual override, permanent schedule retention and locking hasp.Ā Ā ProLakeā¢ timers are just another way ProLakeā¢ pond aeration systems add value and versatility to managing ponds and lakes.
Duraplateā¢ diffusers never need to be removed for cleaning like many of the other diffuser designs on the market, and are backed by a lifetime warranty. The rotationally molded diffuser shell is also fishhook resistant, making them an ideal choice for fishing ponds and lakes.Ā DiffusersĀ also come in dual and quad set-ups for those larger jobs where single compressor layouts just arenāt enough.
The Alpineā¢ Self-Weighted Airlines for solar or electric aeration offers the perfect balance of flexibility and weight. Alpineā¢ airline sinks directly to the bottom and will not kink or break. Alpine tubing is a high density, flexible tubing that features a thick, Ā¼ā sidewall.
ProLakeā¢ Level-Aerā¢ Equipment Pads, made from a high-density plastic, are a great way to ensure that your system is on a sturdy durable surface without having to use concrete or other heavy construction materials.
| Model | ProLake 4.15 Aeration System |
| Maximum Pond Size | Up To 15 Acres |
| 115V or 230V Compressor | 4 |
| Duraplateā¢ Diffusers | 15 |
| Maximum Diffuser Depth | 50 Feet |
| Max CFM | Up To 21.2 |
| Amps | 17.2/4 Ā½ HP Compressors |
| Watts | 655 |
| Alpineā¢ 1/2" Weighted Airline | Optional |
| Programmable Timer | Optional |
| Manifold | 4-4 Port |
| Pressure Gauge | 1 |
| Cooling Fan | 1 |
| Level-Aerā¢ Equipment Pad (Suggested) | Optional |
| Decibels/Operational Sound | 50/60 DB |
| 1ā ASTM Cert. Acoustical Sound-Deadening Foam | Included |
| Cabinet Dimensions | 40"W x 24"L x 24"T |
| Alpineā¢ Ā½" Weighted Airline Measurement | 1/2" ID x 1" OD |
| Level-Aerā¢ Equipment Pad Dimensions | 30" x 42" x 3" |
| Complete Product Warranty | 2-Year |
| 115V or 230V Compressor Warranty | 2-Year |
| Alpineā¢ Ā½" Weighted Airline Warranty | Lifetime |
| Cabinet Warranty | 2-Year |
| Duraplateā¢ Diffuser Warranty | Lifetime |
ProLake 4.15 Aeration System Data Sheet
ProLake 4.15 System Electric Aeration Install Guide ā 2021
