ProLake 4.14 Aeration System
The ProLake4 4.14 Aeration System is best fit for ponds and lakes up to 14 surface acres.
This system offers 4 powerful ½ horsepower compressors capable of delivering 21.2 cubic feet of air per minute to the non-clogging, self-cleaning Duraplate™ diffusers.
We top it all off with high volume cooling blowers, fully adjustable, brushed aluminum manifolds and an industry exclusive programmable timer. All housed in a durable, sound-deadening cabinet. The result is a high-end, energy efficient aeration system that will keep your pond clean and problem free for many years to come.

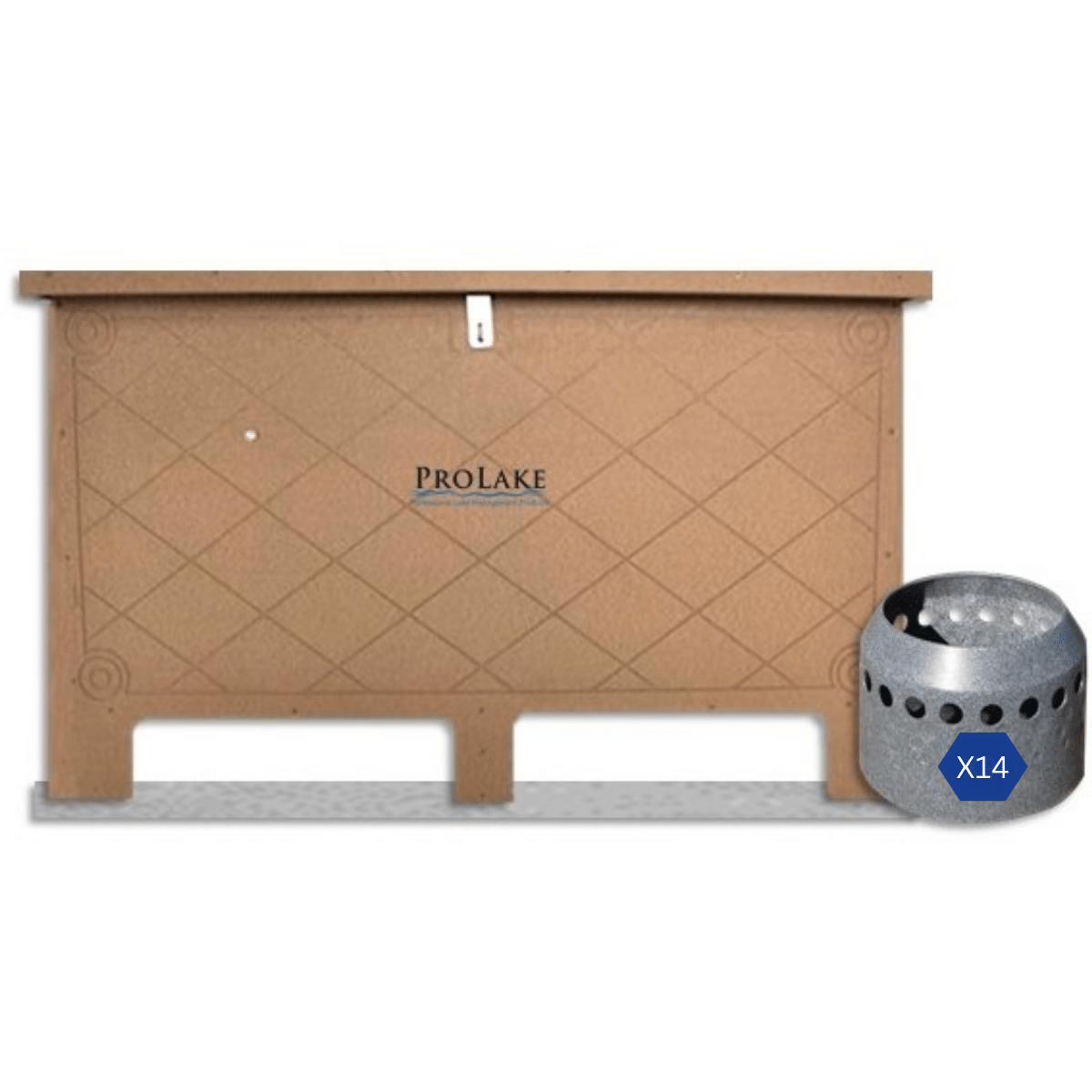

PROLAKE 4.14 Aeration System Includes
14- Duraplate™ Diffusers

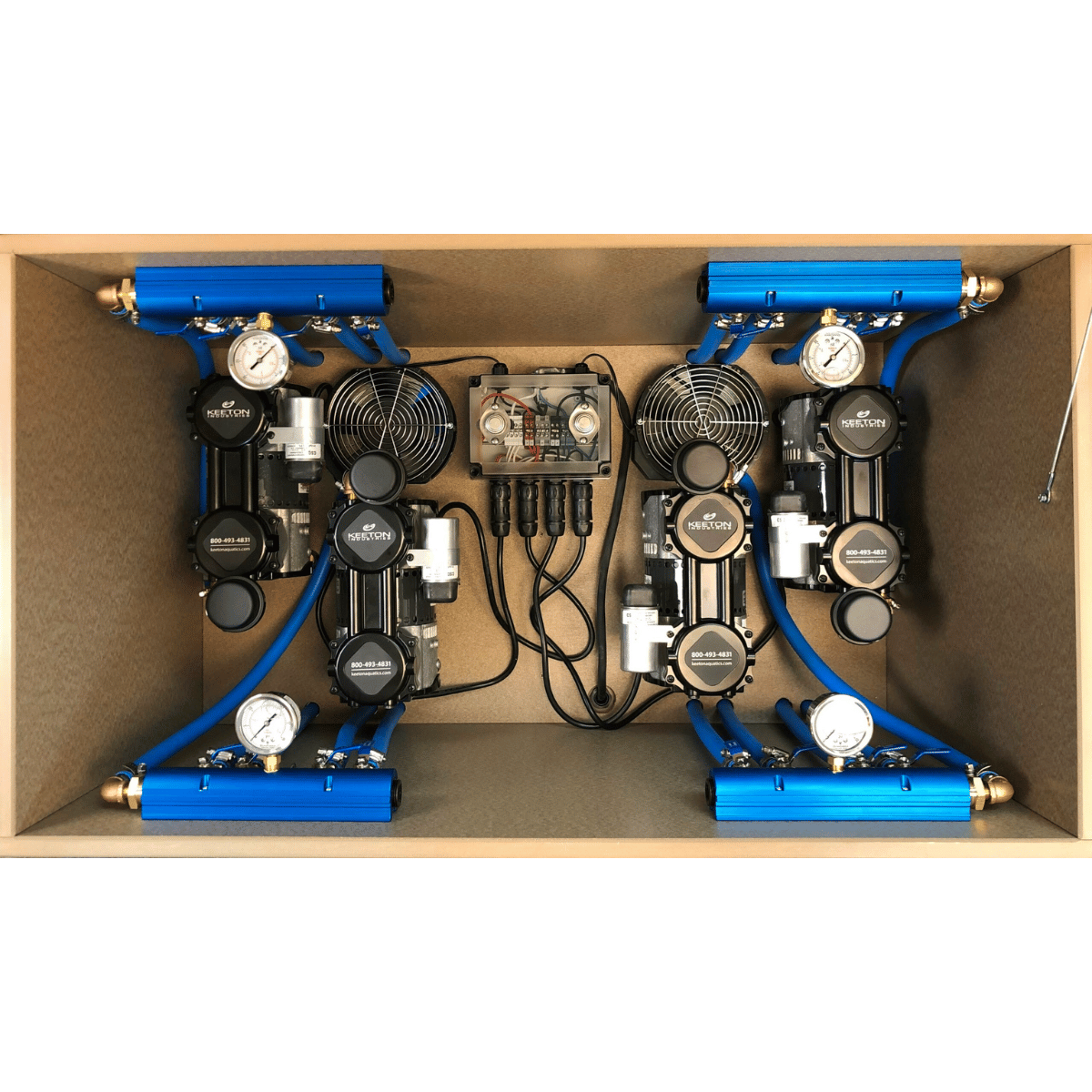

4- ½ HP Compressor(115v or 230v)
1- Sound Deadening Cabinet
4- 4 Valve Brushed Aluminum Manifolds
Tubing Optional - click here for tubing options
Contact us for an installation quote: support@everbluepond.com
Technical Specifications
|
ProLake 4.14 Aeration System |
| Maximum Pond Size |
Up To 14 Acres |
| 115V or 230V Compressor |
4 |
| Duraplate™ Diffusers |
13 |
| Maximum Diffuser Depth |
50 Feet
|
| Max CFM |
Up To 21.2 |
| Amps |
17.2/4 ½ HP 115V |
| Watts |
655 |
| Programmable Timer |
Not Included |
| Manifold |
4-4 port
|
| Pressure Gauge |
1 |
| Cooling Fan |
1 |
| Decibels/Operational Sound |
50/60 DB |
| 1” ASTM Cert. Acoustical Sound-Deadening Foam |
Included |
| Complete Product Warranty |
2 Years |
| 115V or 230V Compressor Warranty |
2 Years |
| Alpine™ ½" Weighted Airline Warranty |
Lifetime
|
| Cabinet Warranty |
2 Years |
| Duraplate™ Diffuser Warranty |
Lifetime
|
| Cabinet Dimensions |
40"W x 24"L x 24"T |
| Alpine™ ½" Weighted Airline Measurement |
1/2" ID x 1" OD |
| Level-Aer™ Equipment Pad Dimensions |
30" x 42" x 3" |
Maintenance & Repair: Monthly System Check
- Ensure compressor air intake filter is clean and not restricting airflow. Replace if necessary.
- Ensure air vents on bottom of cabinet are clean and free of debris.
- Ensure compressor and cooling fan are functioning properly. Repair or replace if necessary. System failure is almost always a result of compressor overheating due to clogged intake filters and/or air vents or cooling fan failure. Every eighteen (18) to twenty four (24) months the compressor should have a repair kit installed. This is a fairly simple process that usually takes about an hour to complete. If you are not mechanically inclined it is recommended to have a service professional do this for you. Repair kits come with instructions. You may send your compressor to Keeton Industries for maintenance or repair.
