ProLake 2.7 Aeration System
The ProLake² 2.7 Aeration System is best fit for ponds and lakes up to 7 surface acres.
This system offers 2 powerful 1/2 horsepower compressors capable of delivering 10.6 cubic feet of air per minute to the non-clogging, self-cleaning Duraplate™ diffusers.
We top it all off with high volume cooling blowers, fully adjustable, brushed aluminum manifolds and an industry exclusive programmable timer. All housed in a durable, sound-deadening cabinet. The result is a high-end, energy efficient aeration system that will keep your pond clean and problem free for many years to come.
ProLake™ aeration systems are the ONLY aeration systems in the industry that come with a programmable timer so pond and lake owners can control exact times for when they want to aerate their body of water.
ProLake™ UL Listed timers feature seven-day, 24-hour control, power outage back up, manual override, permanent schedule retention and locking hasp. ProLake™ timers are just another way ProLake™ pond aeration systems add value and versatility to managing ponds and lakes.

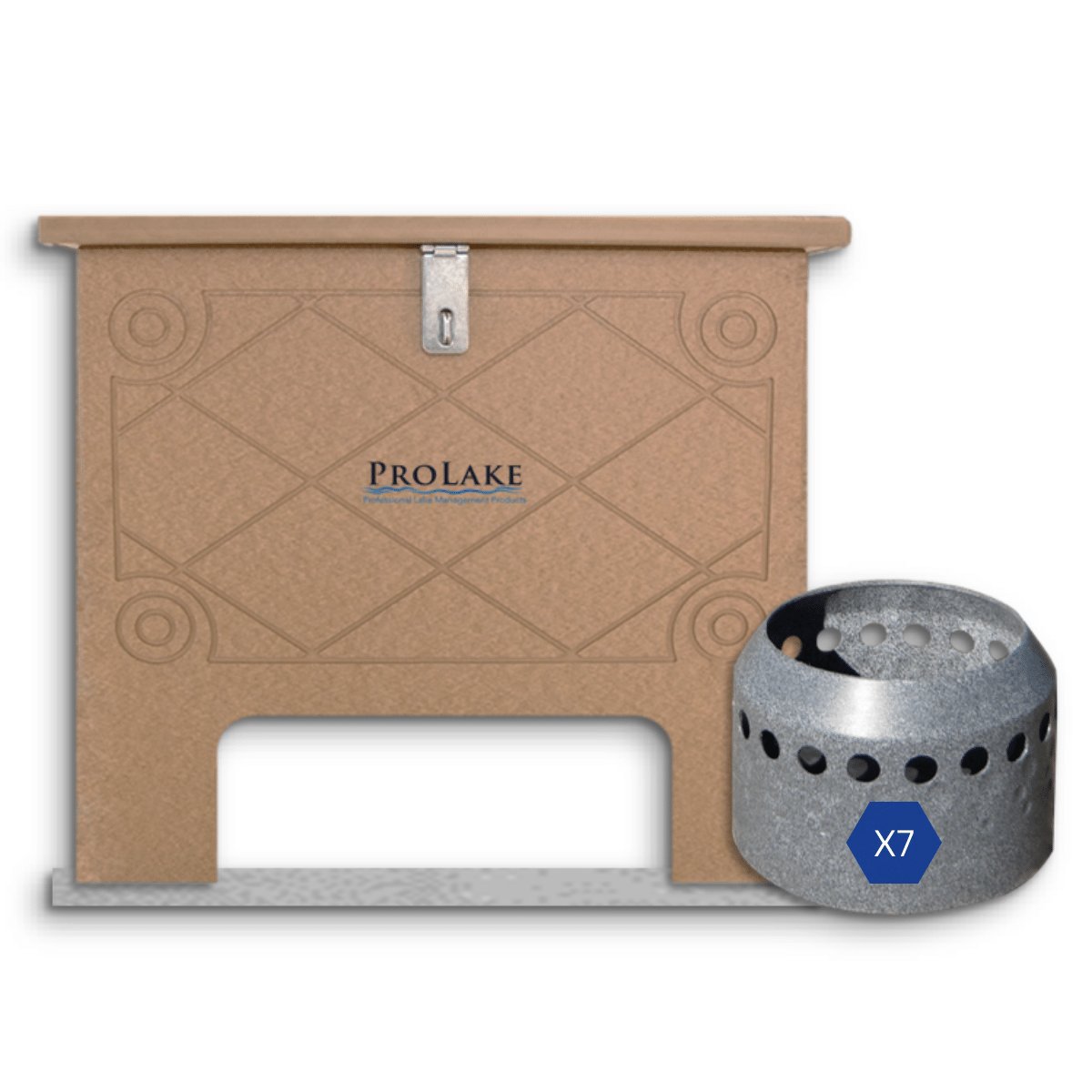

PROLAKE 2.7 Aeration System Includes
7- Duraplate™ Diffusers
2- ½ HP Compressor(115v or 230v)
1- Sound Deadening Cabinet
1- Programmable Timer
2- 4 Valve Brushed Aluminum Manifolds
Tubing Optional - click here for tubing options
Contact us for an installation quote: support@everbluepond.com
Technical Specifications
|
ProLake 2.7 Aeration System |
| Maximum Pond Size |
Up To 7 Acres |
| 115V or 230V Compressor |
2 |
| Duraplate™ Diffusers |
7 |
| Maximum Diffuser Depth |
50 Feet
|
| Max CFM |
Up To 10.6 |
| Amps |
8.6/2 ½ 115V |
| Watts |
655 |
| Programmable Timer |
1
|
| Manifold |
2-4 port
|
| Pressure Gauge |
1 |
| Cooling Fan |
1 |
| Decibels/Operational Sound |
50/60 DB |
| 1” ASTM Cert. Acoustical Sound-Deadening Foam |
Included |
| Complete Product Warranty |
2 Years |
| 115V or 230V Compressor Warranty |
2 Years |
| Alpine™ ½" Weighted Airline Warranty |
Lifetime
|
| Cabinet Warranty |
2 Years |
| Duraplate™ Diffuser Warranty |
Lifetime
|
| Cabinet Dimensions |
24"W x 24"L x 16"T |
| Alpine™ ½" Weighted Airline Measurement |
1/2" ID x 1" OD |
| Level-Aer™ Equipment Pad Dimensions |
30" x 30" x 3" |
Maintenance & Repair: Monthly System Check
- Ensure the compressor air intake filter is clean and not restricting airflow. Replace if necessary.
- Ensure air vents on bottom of cabinet are clean and free of debris.
- Ensure compressor and cooling fan are functioning properly. Repair or replace if necessary. System failure is almost always a result of compressor overheating due to clogged intake filters and/or air vents or cooling fan failure. Every eighteen (18) to twenty four (24) months the compressor should have a repair kit installed. This is a fairly simple process that usually takes about an hour to complete. If you are not mechanically inclined it is recommended to have a service professional do this for you. Repair kits come with instructions. You may send your compressor to Keeton Industries for maintenance or repair.
