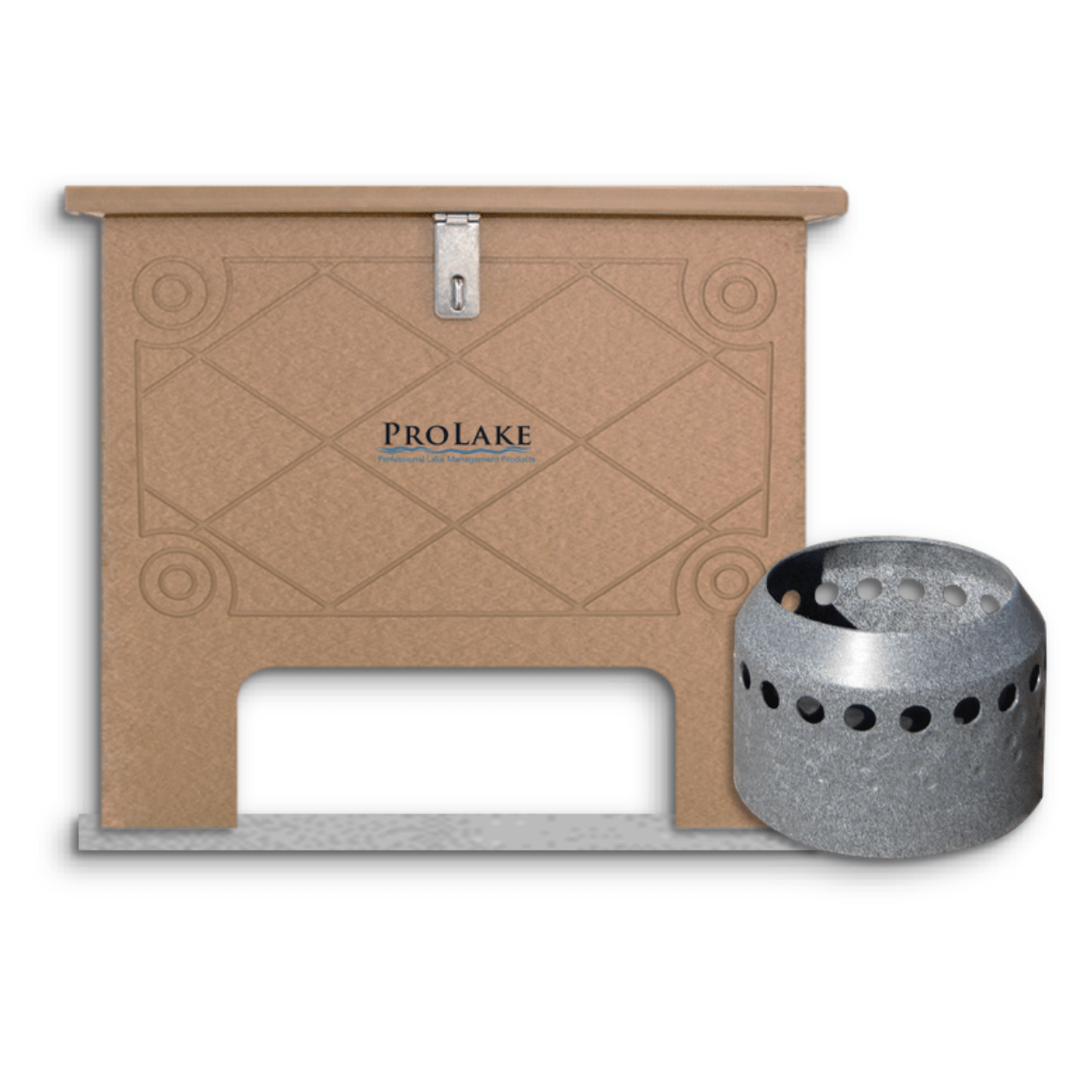

The ProLake 1.1 Aeration System is ideally suited for small ponds with a surface area of up to 1 acre, ensuring optimal aeration for a healthy aquatic environment.
This system offers a powerful 1/2 HP compressor capable of delivering 5.3 cubic feet of air per minute to the non-clogging, self-cleaning Duraplate™ diffuser.

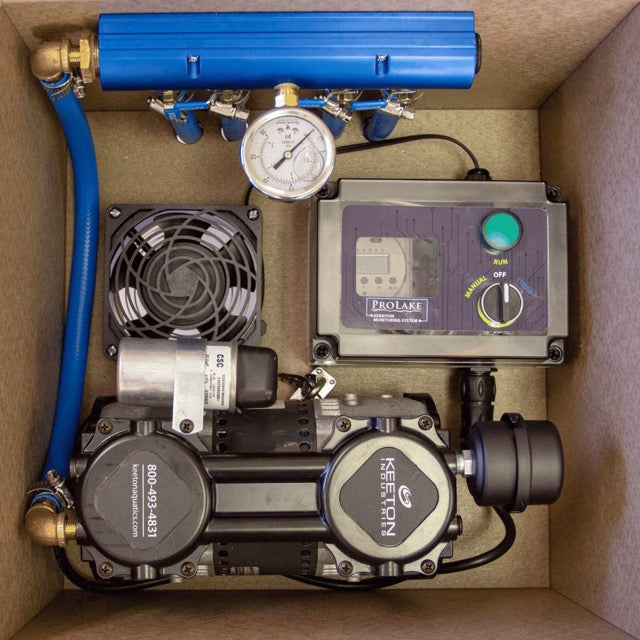

We top it all off with high volume cooling blowers, fully adjustable, brushed aluminum manifolds and an industry exclusive programmable timer. All housed in a durable, sound-deadening cabinet. The result is a high-end, energy efficient aeration system that will keep your pond clean and problem free for many years to come.
Everything you need is included with your ProLake 1.1 Aeration System.
ProLake™ aeration systems are the ONLY aeration systems in the industry that come with a programmable timer so pond and lake owners can control the exact times for when they want to aerate their body of water.
ProLake™ UL Listed timers feature seven-day, 24-hour control, power outage backup, manual override, permanent schedule retention and locking hasp. ProLake™ timers are just another way ProLake™ pond aeration systems add value and versatility to managing ponds and lakes.
Duraplate™ diffusers never need to be removed for cleaning like many of the other diffuser designs on the market, and are backed by a lifetime warranty. The rotationally molded diffuser shell is also fishhook resistant, making it an ideal choice for fishing ponds and lakes. Diffusers also come in dual and quad set-ups for those larger jobs where single compressor layouts just aren’t enough.
The Alpine™ Self-Weighted Airlines for solar or electric aeration offers the perfect balance of flexibility and weight. Alpine™ airline sinks directly to the bottom and will not kink or break. Alpine tubing is a high density, flexible tubing that features a thick, ¼” sidewall.

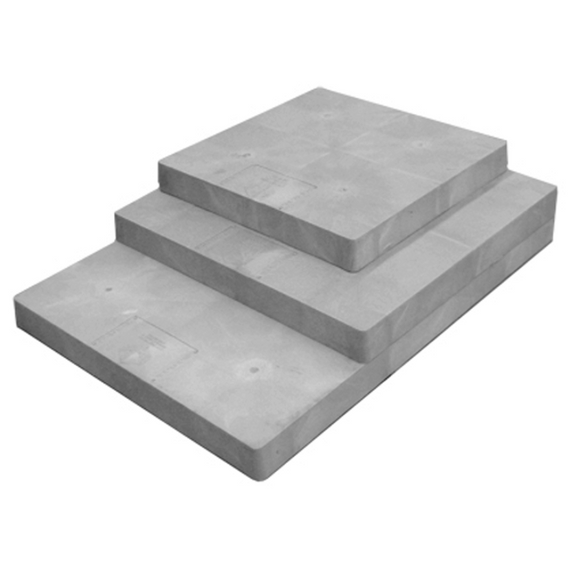

ProLake™ Level-Aer™ Equipment Pads, made from a high-density plastic, are a great way to ensure that your system is on a sturdy durable surface without having to use concrete or other heavy construction materials.
| Model | ProLake 1.1 Aeration System |
| Maximum Pond Size | Up To 1 Acre |
| 115V or 230V Compressor | 1 |
| Duraplate™ Diffusers | 1 |
| Maximum Diffuser Depth | 50 Feet |
| Max CFM | Up To 5.3 |
| Amps | 4.3/115V |
| Watts | 655 |
| Alpine™ 1/2" Weighted Airline | Optional |
| Programmable Timer | 1 |
| Manifold | 1-4 Port |
| Pressure Gauge | 1 |
| Cooling Fan | 1 |
| Level-Aer™ Equipment Pad (Suggested) | Optional |
| Decibels/Operational Sound | 50/60 DB |
| Complete Product Warranty | 2-Year |
| 115V or 230V Compressor Warranty | 2-Year |
| Alpine™ ½" Weighted Airline Warranty | Lifetime |
| Cabinet Warranty | 2-Year |
| Duraplate™ Diffuser Warranty | Lifetime |
| Cabinet Dimensions | 18"W x 18"L x 17"T |
| Alpine™ ½" Weighted Airline Measurement | 1/2" ID x 1" OD |
| Level-Aer™ Equipment Pad Dimensions | 24" x 24" x 3" |
