A True Masterpiece: The Kasco VFX Fountains
The Kasco VFX Series Pond Fountain is a crossover of surface aerators and fountains, offering an elegant display with superior aeration benefits. These high-flow units are efficient, easy to install and operate, and can be used for many applications. These fountains are highly efficient and easy to install, making them a great choice for a wide range of applications. With a variety of sizes and horsepower options available, there is a Kasco VFX fountain to meet the needs of any body of water.
- Available as 1/2, 3/4, 1, 2, and 5HP.
- Offered as 60Hz and 50Hz, 120V and 208-240V, and single and three-phase options.
- Operates in as little as 15 in. of water.
Illuminate your display into the evening hours with one of the Kasco WaterGlow Lighting Kits (purchased separately)
Note: Stainless Steel cord lengths over 200 ft require an estimated 4-week lead time.
What's Included With Your Kasco VFX Aerating Fountain?
All the Kasco VFXAerating Fountains Parts Included!
- Motor unit
- Float
- Bottom screen
- Control panel with GFCI protection
- Power cord (Standard or Stainless Steel)
- Mooring lines
- 2-year warranty on 1/2, 3/4, and 1HP units
- 3-year warranty on 2 and 5HP units (optional 5-year extended warranty available)
Kasco Submersible Pump Design for the Kasco VFX Series

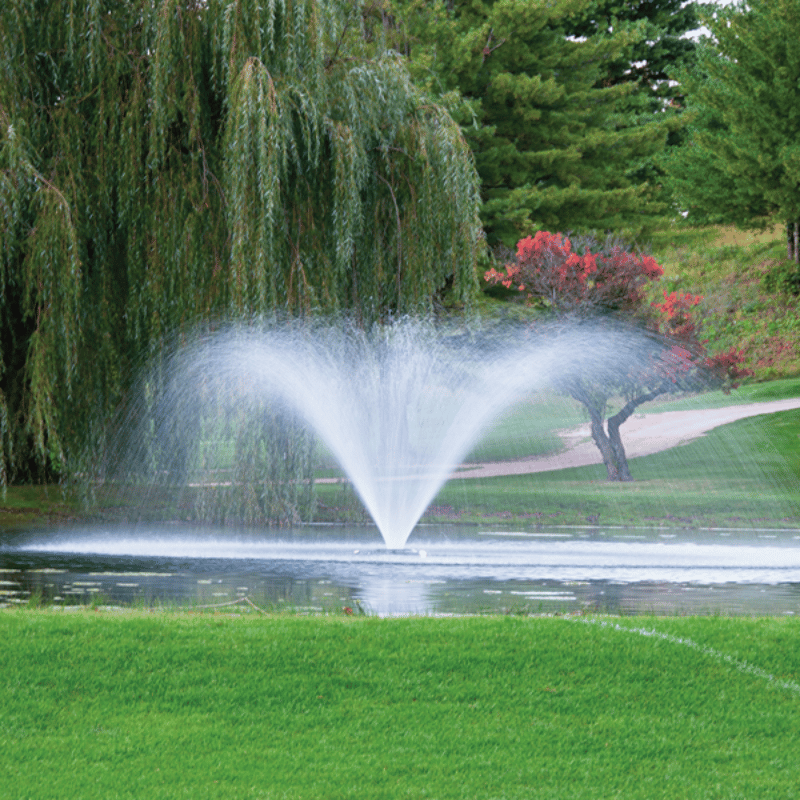

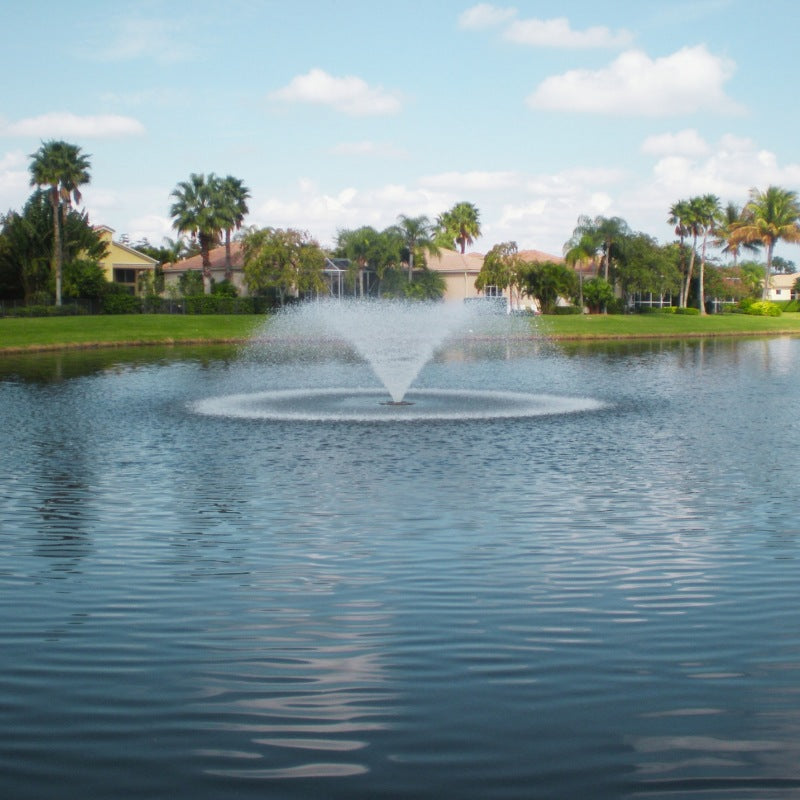

The Kasco VFX Series Pond Fountain is a beautifully designed aerating fountain that pulls water in and dispenses it as a stunning “V-shaped” fountain pattern while aerating your body of water. The VFX Series Fountain is the choice for an elegant display with superior aeration benefits. These high-flow units are efficient, easy to install and operate, and can be used for many applications.
The VFX Series Fountain can be used for many applications, including:
- Golf courses
- Parks and recreational facilities
- Commercial and residential developments
- Marinas and waterfront properties
- Industrial and agricultural ponds
Kasco Aerators are Reliable and Durable
Kasco VFX Series Fountains are designed to provide a long-lasting and reliable solution for aeration and aesthetic enhancement of your water body. Each unit is built with high-quality materials and undergoes rigorous testing to ensure durability and longevity.
The motor unit of the fountain is constructed with stainless steel, making it resistant to corrosion and rust. The float and bottom screen are also made of high-density thermoplastics that can withstand exposure to UV rays and harsh weather conditions.
To further enhance the durability of the fountain, Kasco offers a competitive warranty to provide peace of mind and ensure that your investment is protected for years to come.
Kasco Control Panel for the VFX Aerating Fountains (Included)
Empower your unit with KASCO control panels, enabling energy-efficient automatic control. Simply choose your preferred settings, and let the control panel take care of the rest. These panels are rigorously approved and listed to meet the highest UL and CSA standards, ensuring the safety and performance you demand.
Kasco panels are GFCI protection-rated, include a photocell for use with lighting packages, and feature a timer dial for programming operation.
Control Panel Options
C-25 or C-85 - For 1/2 HP and 3/4 HP Units
C-85 - For 3/4 HP, 1 HP, and 2 HP Units
C-95 - For 5 HP Unit

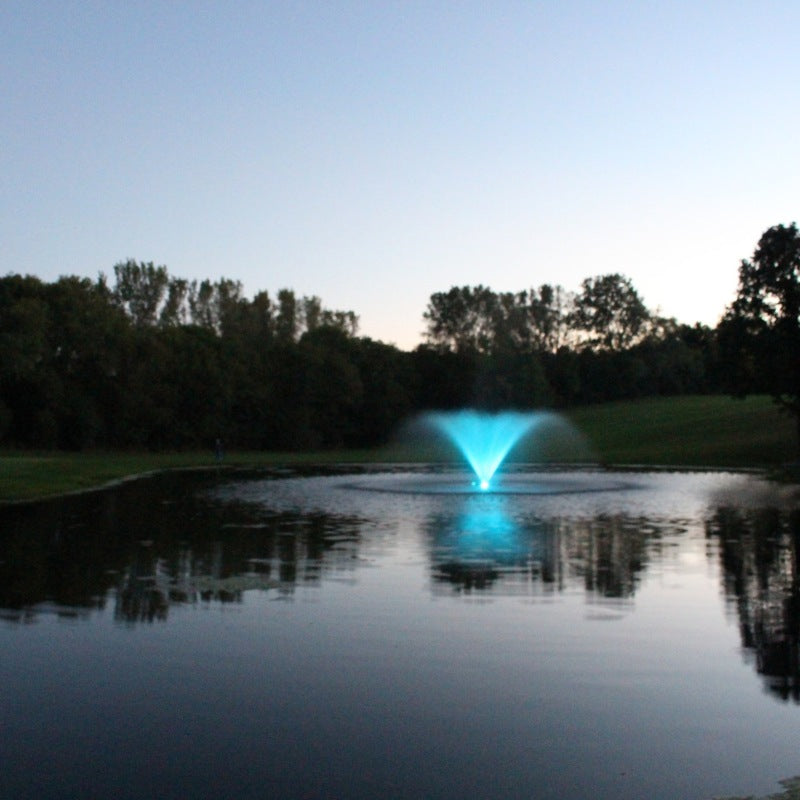

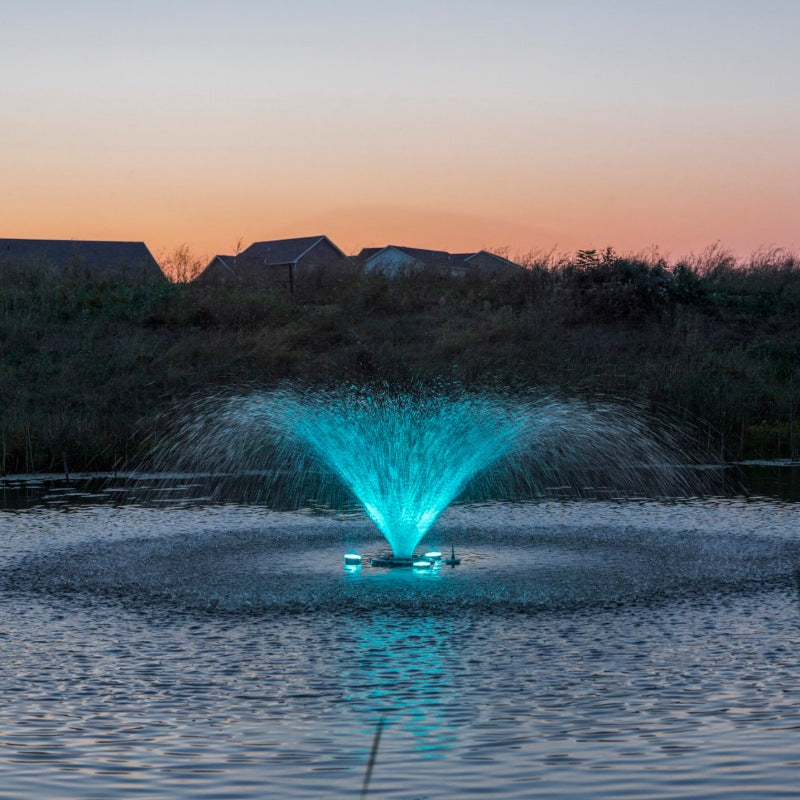

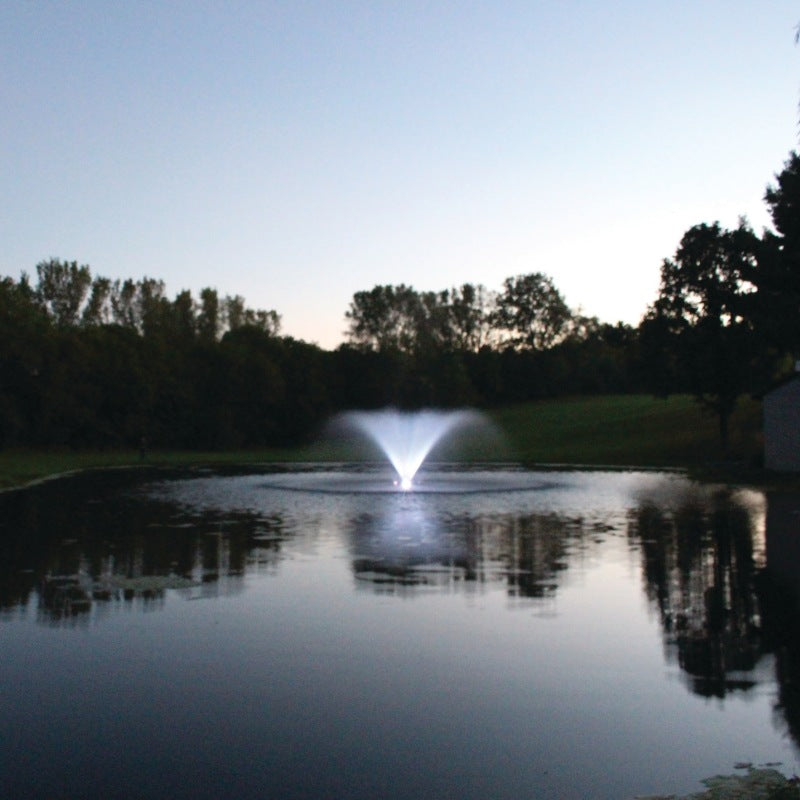

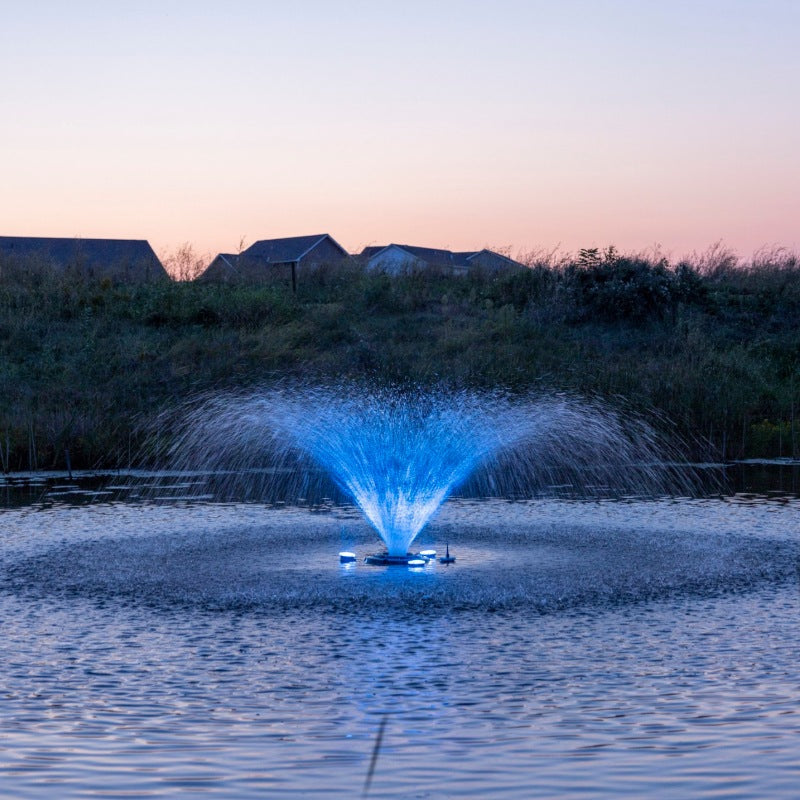

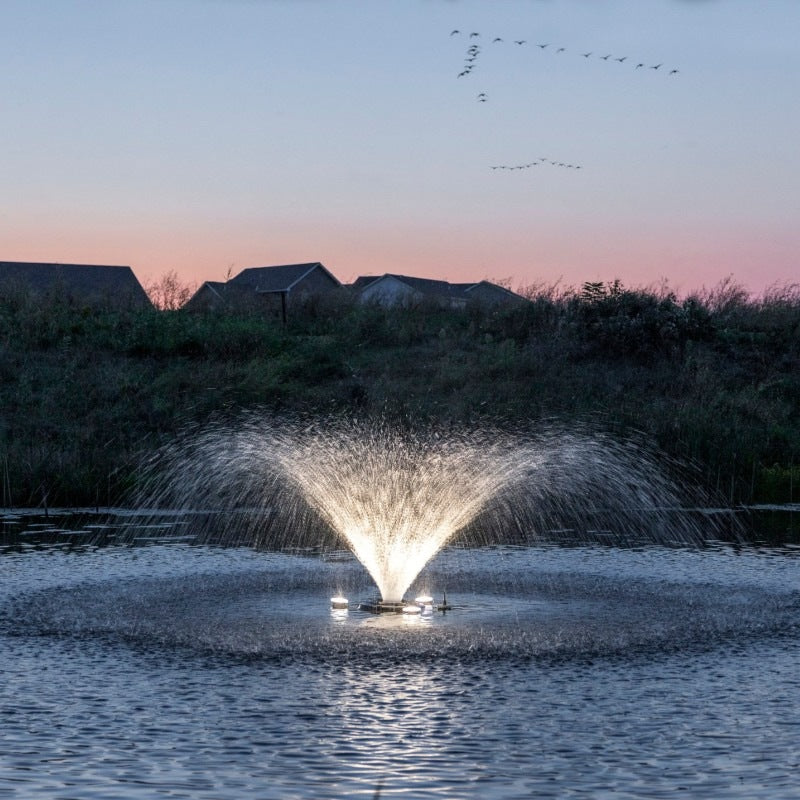

Kasco WaterGlow Lighting adds Luminance to Kasco VFX Foutains (Optional)
Kasco WaterGlow Lighting will dramatically illuminate your fountain or surface aerator. Available in composite or stainless steel housings and in several color options, these versatile LED lights are a perfect addition to your VFX Series Fountain.
Kasco Pond VFX Aerator Technical Specifications
 |
 |
 |
 |
 |
 |
 |
|
| Unit Model |
Kasco 2400VFX |
Kasco 3400VFX |
Kasco 3400HVFX |
Kasco 4400VFX |
Kasco 4400HVFX |
Kasco 8400VFX |
Kasco 5.1VFX |
| Motor | 1/2 HP | 3/4 HP | 3/4 HP | 1 HP | 1 HP | 2 HP | 5 HP |
| Voltage | 120V | 120V | 240V | 120V | 240V | 240V | 240V |
| Amps | 5.6 Amps | 7.3 Amps | 3.7 Amps | 11.3 Amps | 5.7 Amps | 11 Amps | 20 Amps |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Minimum Depth | 17.5" | 17.5" | 17.5" | 19" | 19" | 20" | 26" |
| Spray Pattern Height | 5 ft. | 5.5 ft. | 5.5 ft. | 8 ft. | 8 ft. | 8 ft. | 9 ft. |
| Spray Pattern Width | 15 ft. | 21 ft. | 21 ft. | 25 ft. | 26 ft. | 32 ft. | 34 ft. |
| Lighting Kits | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Control Panel Included | C-25 | C-25 | C-85 | C-25 | C-85 | C-85 | C-95 |
| Power Cord Length | 50', 100', 150', 200' | 50', 100', 150', 200' | 50', 100', 150', 200', 250', 300', 400' | 50', 100', 150', 200' | 50', 100', 150', 200', 250', 300', 400' | 50', 100', 150', 200', 250', 300', 400' | 100', 150', 200', 250', 300', 400' |
| Warranty | 2-Year | 2-Year | 2-Year | 2-Year | 2-Year | 3-Year | 3-Year |
Kasco VFX Aerating Fountains Manuals
NOTE: These products are subject to a 10% restocking fee if returned, made mandatory by the manufacturer.
