The Kasco Mahogany Pond Fountain gives your pond a bold, eye-catching display with the trusted power and performance of Kasco’s J Series fountain system. Designed for ponds, lakes, commercial properties, and decorative water features, this fountain adds strong visual impact while helping improve water movement and surface aeration.
Built for long-lasting outdoor use, the Kasco Mahogany Fountain includes the core J Series fountain package with a premium Mahogany display option. It is available in multiple horsepower options, making it easy to choose the right model for your pond size and desired visual effect.
Note: Stainless Steel cord lengths over 200 ft require an estimated 4-week lead time.

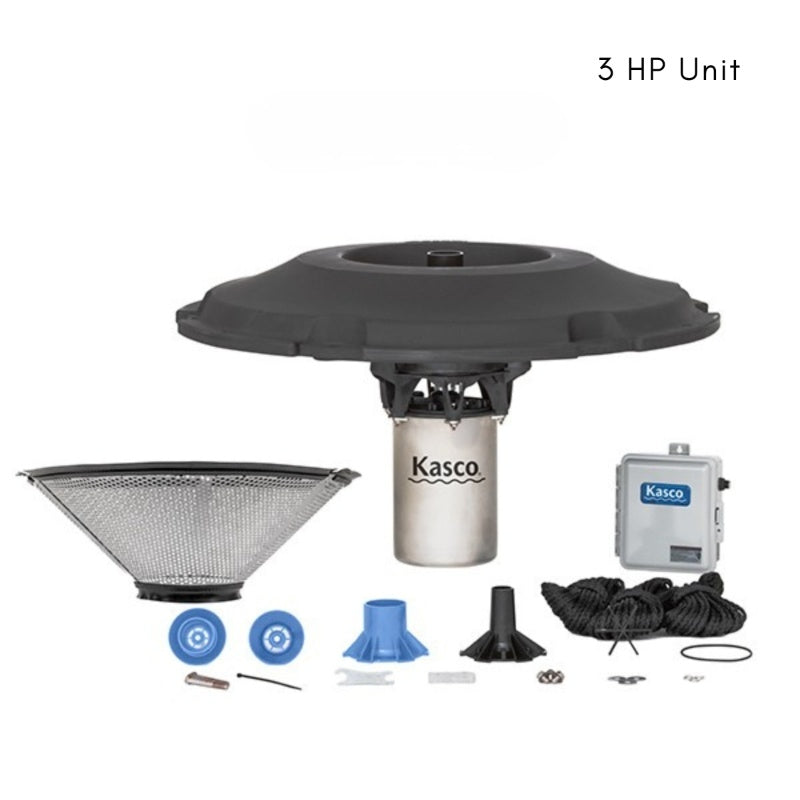

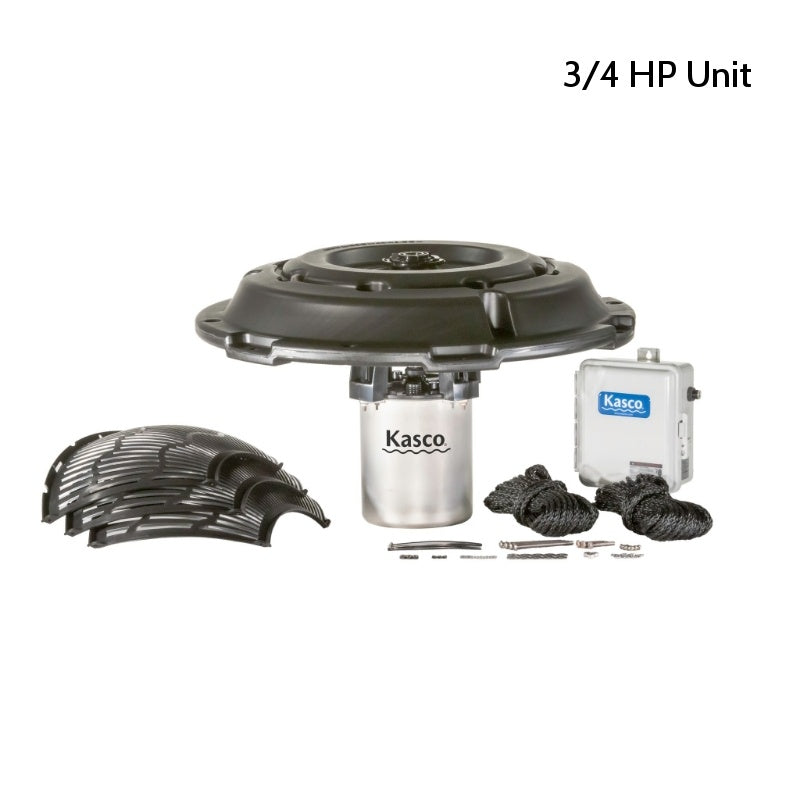

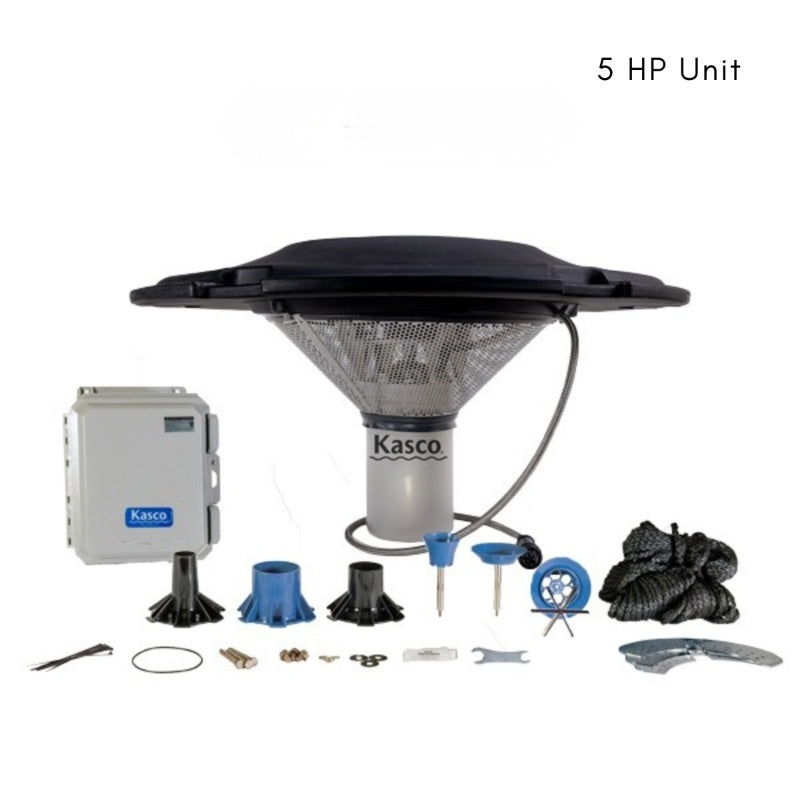

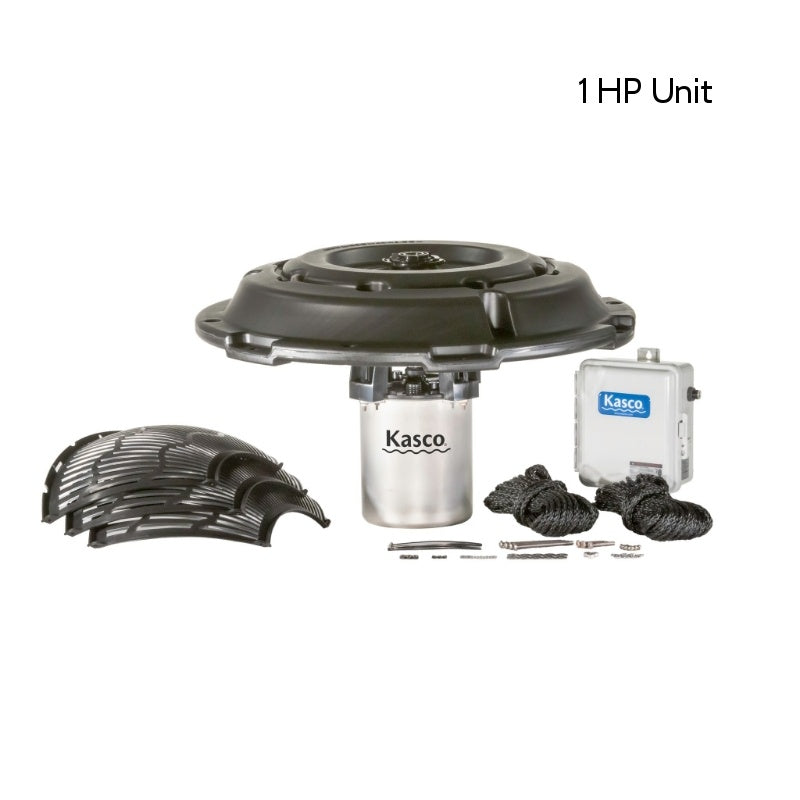

Everything you need is included with your Kasco Marine Mahogany Pond Fountain.

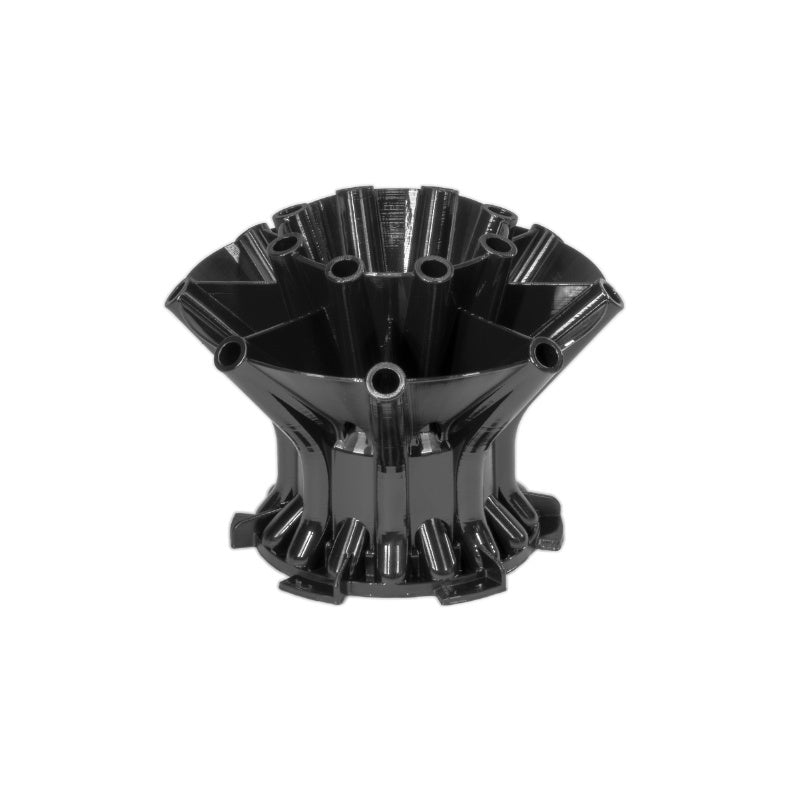

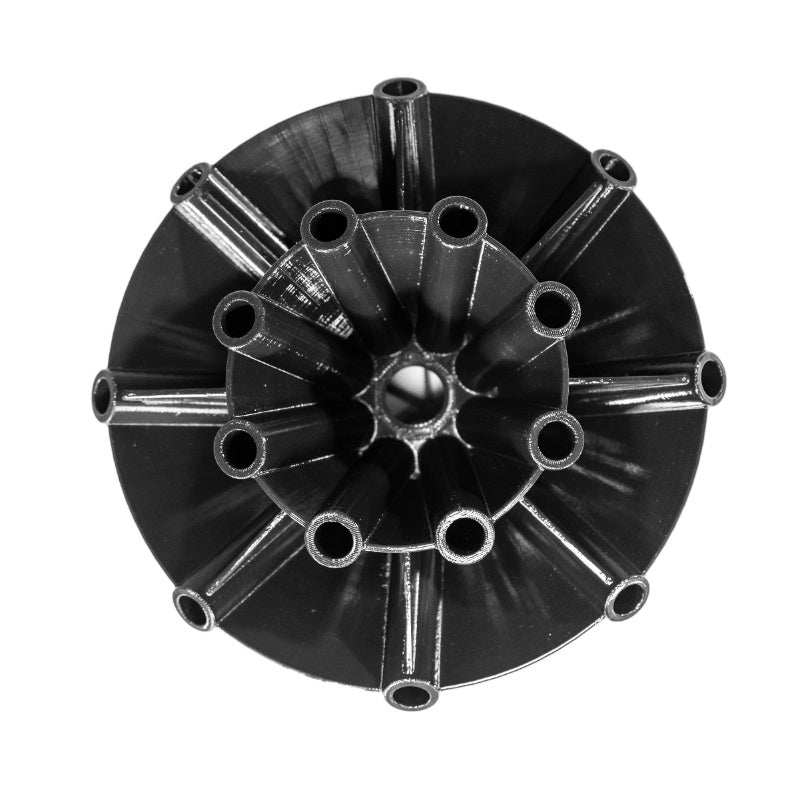

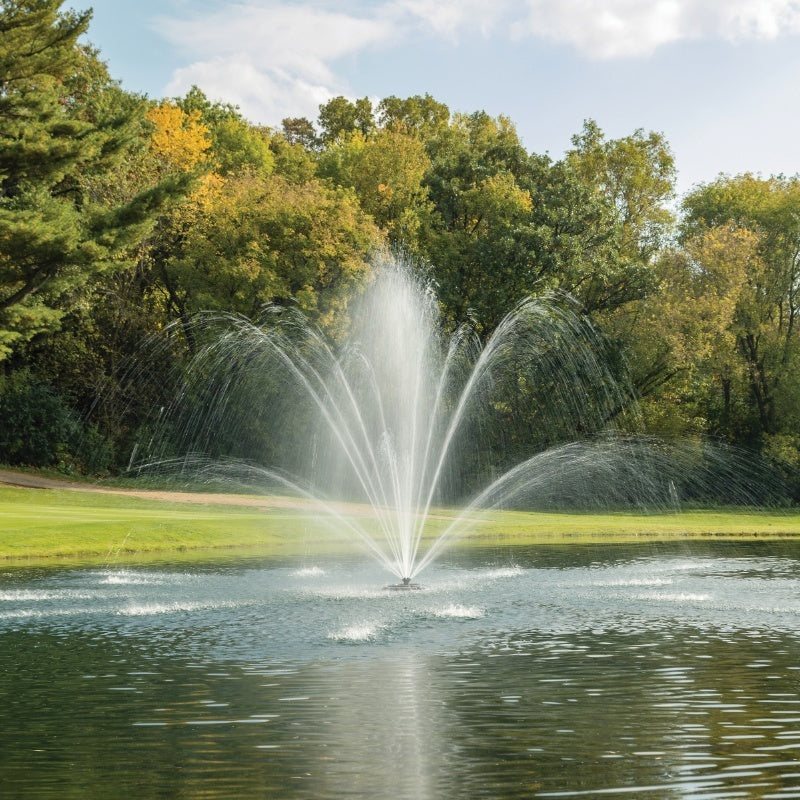

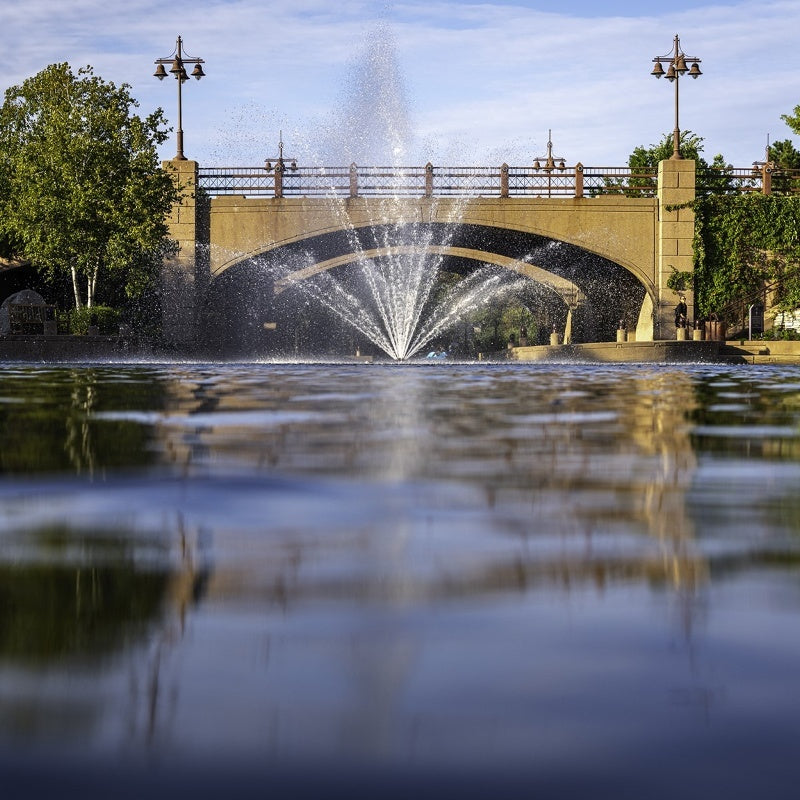

The Mahogany nozzle produces one of Kasco’s widest cascading fountain profiles, creating a bold, full-bodied display that spreads beautifully across the pond surface. Starting at 28 ft wide on the 3/4 HP model, the Mahogany pattern delivers an impressive visual presence even on smaller setups.
As horsepower increases, the display becomes even more dramatic, reaching up to 72 ft wide on the 7.5 HP model. This makes the Mahogany Fountain a strong choice for larger ponds, lakes, commercial landscapes, and properties that need a wide, attention-grabbing water feature with elegant movement.
| HP Unit | Model | Spray Height | Spray Width | Min. Depth |
| 3/4 HP | 3400JF / 3400HJF | 11.5 ft | 28 ft | 17.5" |
| 1 HP | 4400JF / 4400HJF | 14 ft | 34 ft | 19" |
| 2 HP | 8400JF | 12 ft | 43 ft | 20" |
| 3 HP | 3.1JF | 19 ft | 48 ft | 24" |
| 5 HP | 5.1JF | 28 ft | 64 ft | 26" |
| 7.5 HP | 7.3JF | 29 ft | 72 ft | 28" |
Intelligent, Automatic Control
The Kasco Mahogany Fountain includes a control panel designed for safe, efficient fountain operation. Kasco control panels allow automatic control, so you can set your preferred schedule and let the system manage operation.
These panels are UL and CSA listed, include GFCI protection, and feature a timer dial for programmed use. They also include a photocell for use with compatible lighting packages.
Control Panel Options
C-25 or C-85 - For 3/4 and 1 HP Units
C-85 - For 2 HP Unit
C-95 - For 3 and 5 HP Units
CF-3075 - For 7.5 HP Unit

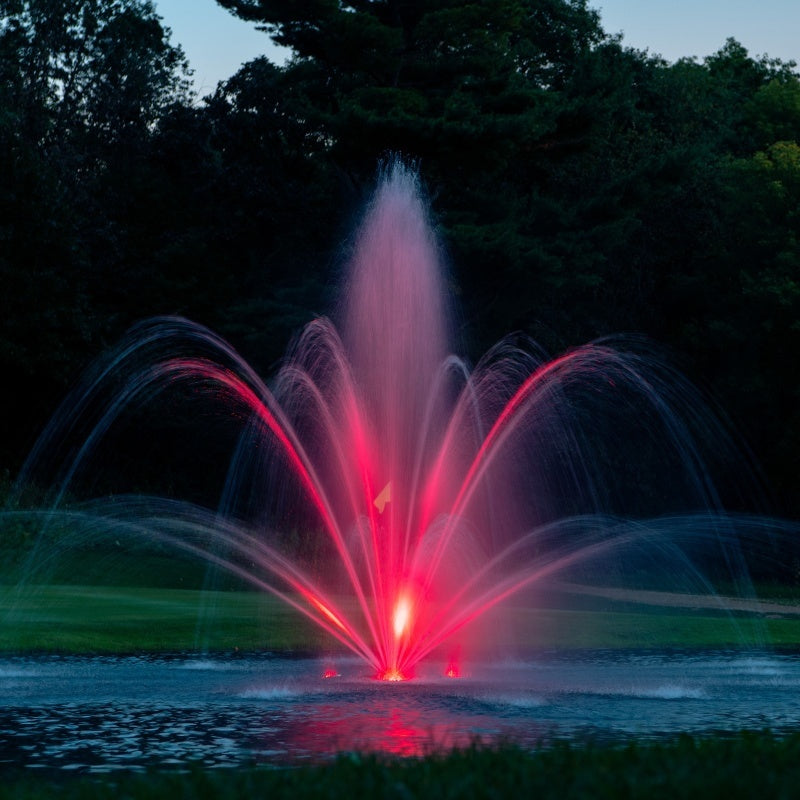

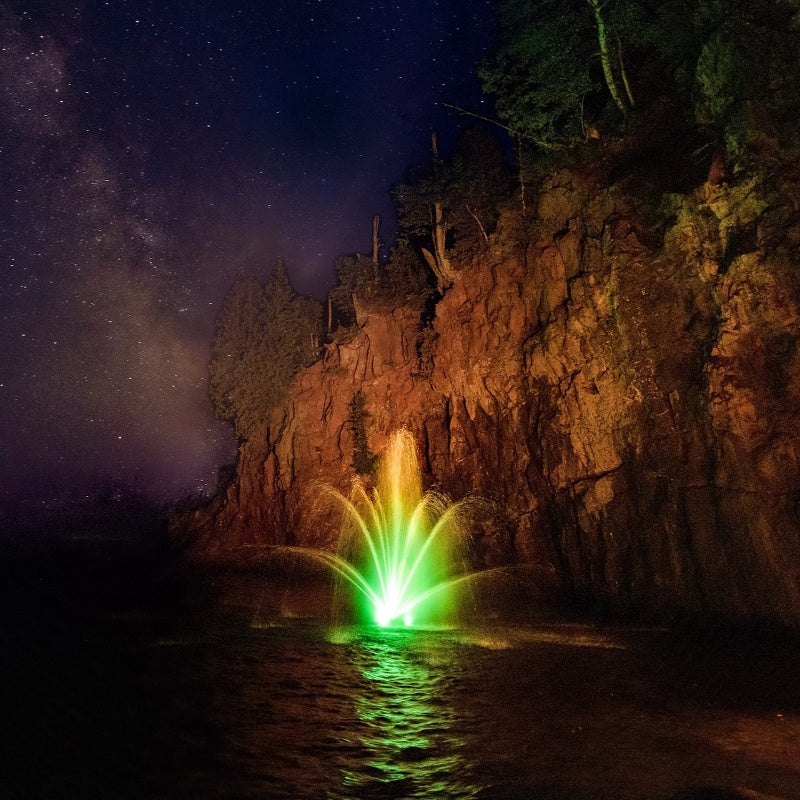

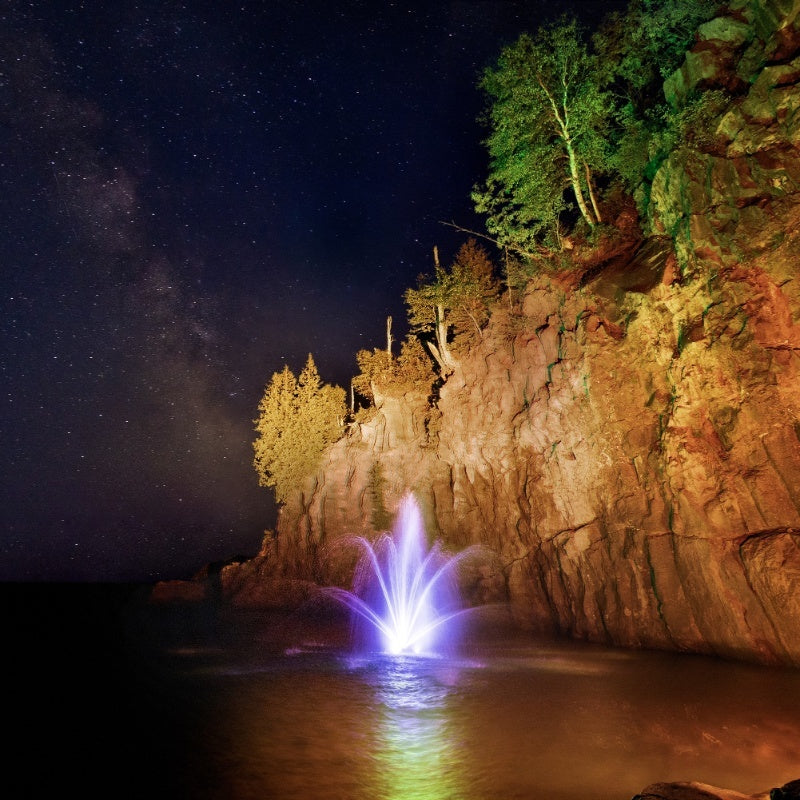

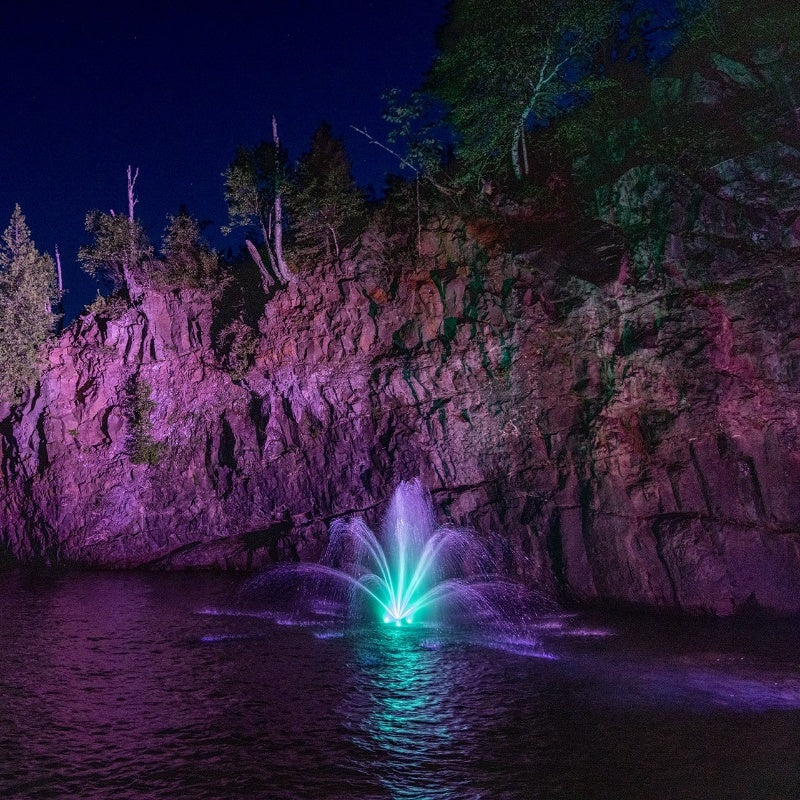

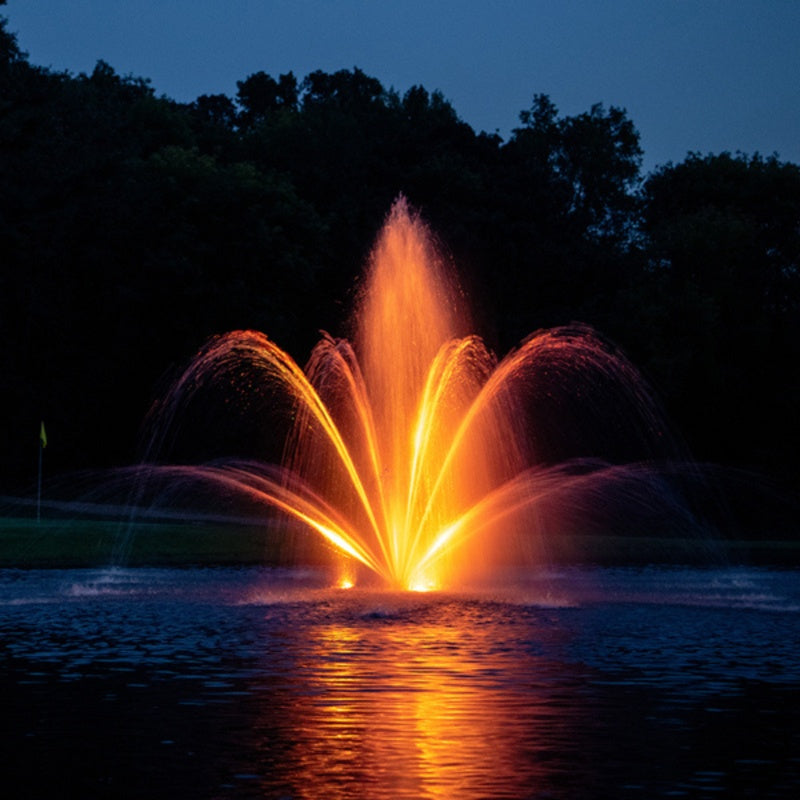

Kasco WaterGlow Lighting can be added to dramatically illuminate your Mahogany fountain display after dark. Available in composite or stainless steel housing options, these LED lighting kits help create a more polished and impressive pond feature for homes, parks, resorts, golf courses, and commercial properties.
| Motor | 3/4 HP Unit | 1 HP Unit | 2 HP Unit | 3 HP Unit | 5 HP Unit | 7.5 HP Unit |
| Model | 3400JF / 3400HJF | 4400JF / 4400HJF | 8400JF | 3.1JF | 5.1JF | 7.3JF |
| Voltage | 120V / 240V | 120V / 240V | 240V |
240V |
240V | 240V |
| Phase | 1 |
1 |
1 |
1 |
1 |
3 |
| Hertz | 60 Hz |
60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Running Amps | 6.7 / 3.3 | 10.7 / 5.3 | 10 | 13 | 20 | 20 |
| Lock Rotor Amps | 18 / 12 | 40 / 20 | 40 | 63 | 97 | 100 |
| Suggested Pond Size (SA)* | Up to 1/3 Acre* | Up to 1/2 Acre* | Up to 1 Acre* | Up to 1.5 Acres* | Up to 2.5 Acres* | Up to 3.5 Acres* |
| Min. Depth of Operation | 17.5” | 19” | 20” | 24” | 26” | 28” |
| RPM | 1750 | 1750 | 1750 | 1750 | 1750 | 1750 |
| Power Cord Length | 50', 100', 150', 200', 250', 300', 400' | 50', 100', 150', 200', 250', 300', 400' | 50', 100', 150', 200', 250', 300', 400' | 50', 100', 150', 200', 250', 300', 400' | 100', 150', 200', 250', 300', 400' | 100', 150', 200', 250', 300', 400' |
| Warranty | 2-Year |
2-Year | 3-Year | 5-Year | 5-Year | 5-Year |
| Lighting Kits |
Optional |
Optional | Optional | Optional | Optional | Optional |
| Control Panel Included |
C-25 or C-85 |
C-25 or C-85 | C-85 | C-95 | C-95 | CF-3075 |
| Total Nozzles Included | 6 Nozzles | 6 Nozzles | 6 Nozzles | 6 Nozzles | 6 Nozzles | 6 Nozzles |
