Experience the reliable performance of Kasco's brand new Home Series Diffused Aeration System, thoughtfully designed for the homeowner with a small residential pond of up to 2 acres and depths of up to 20 feet.

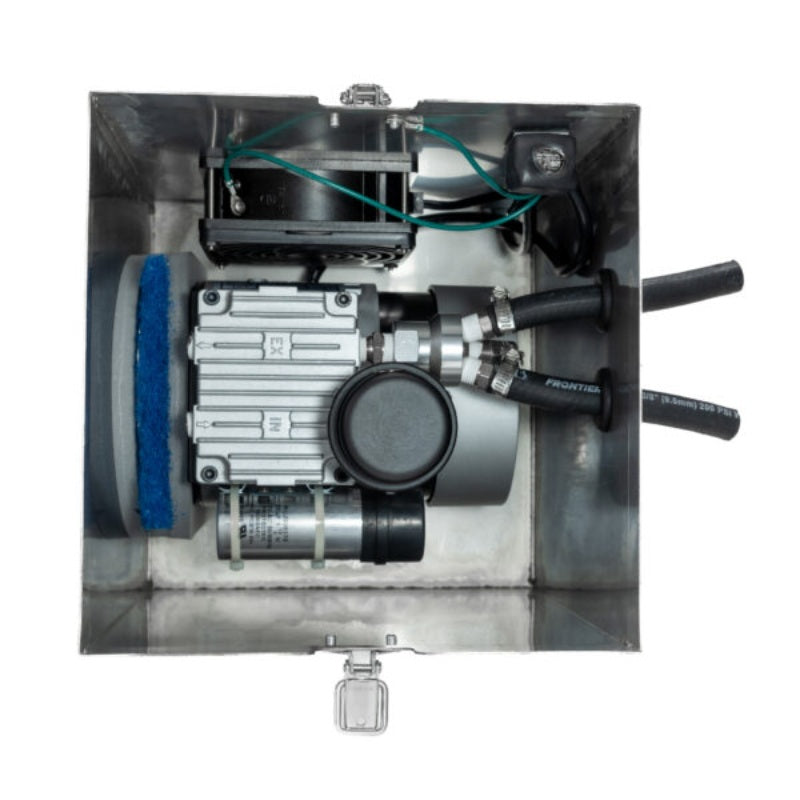

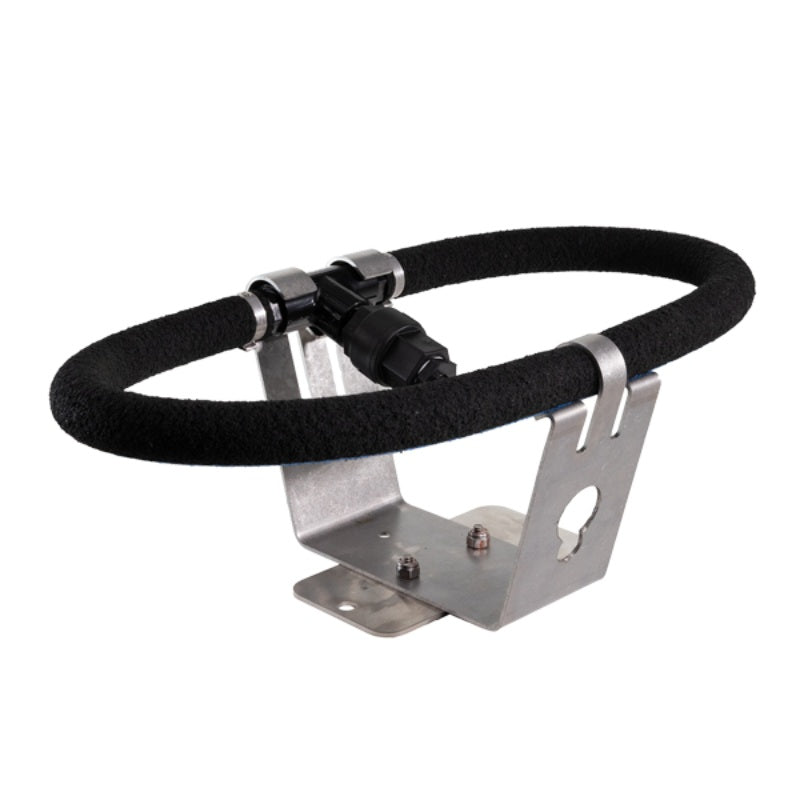

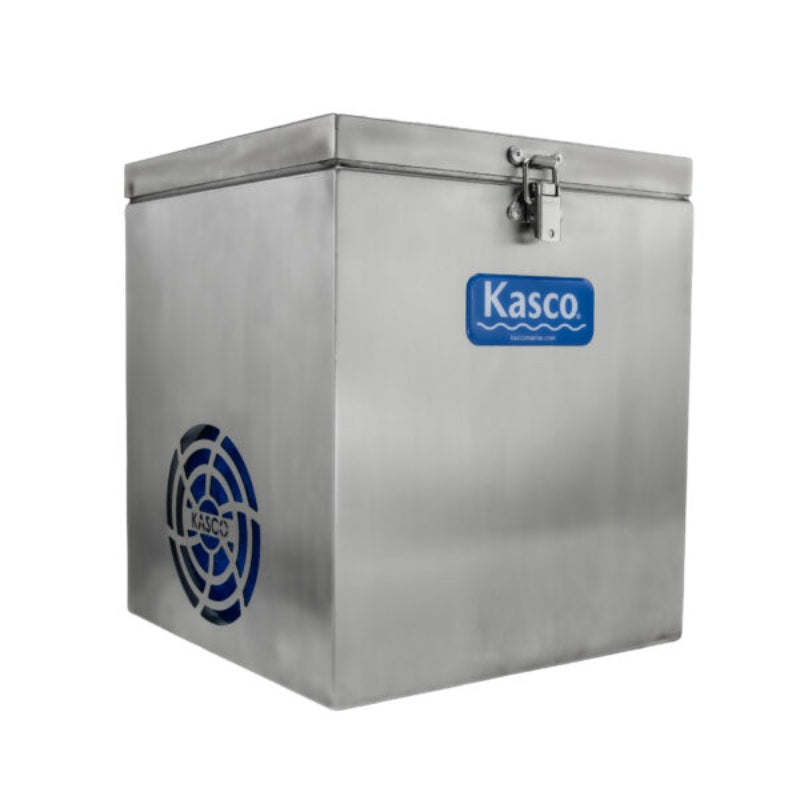

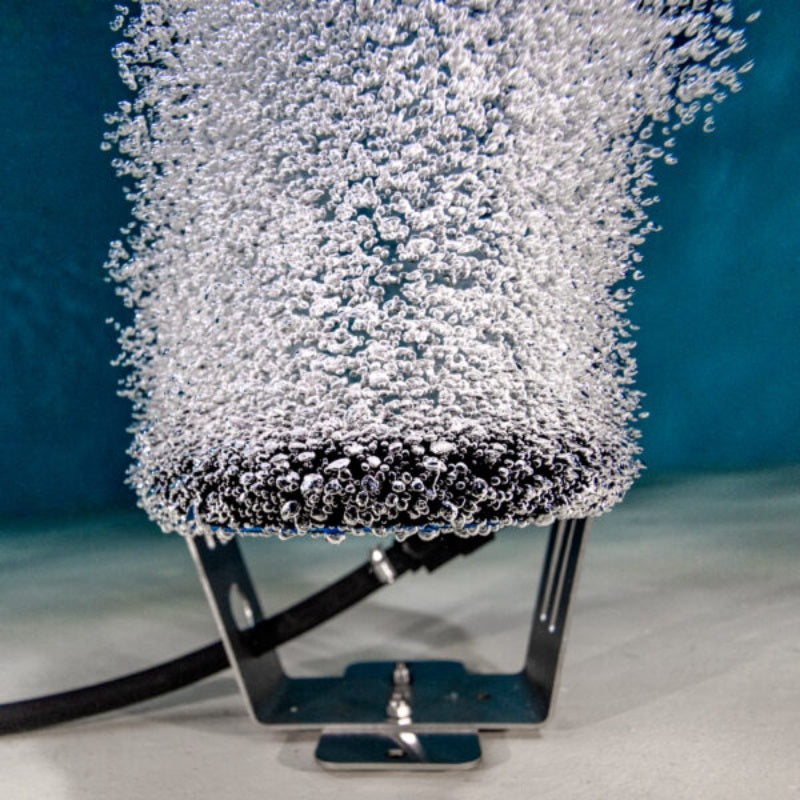

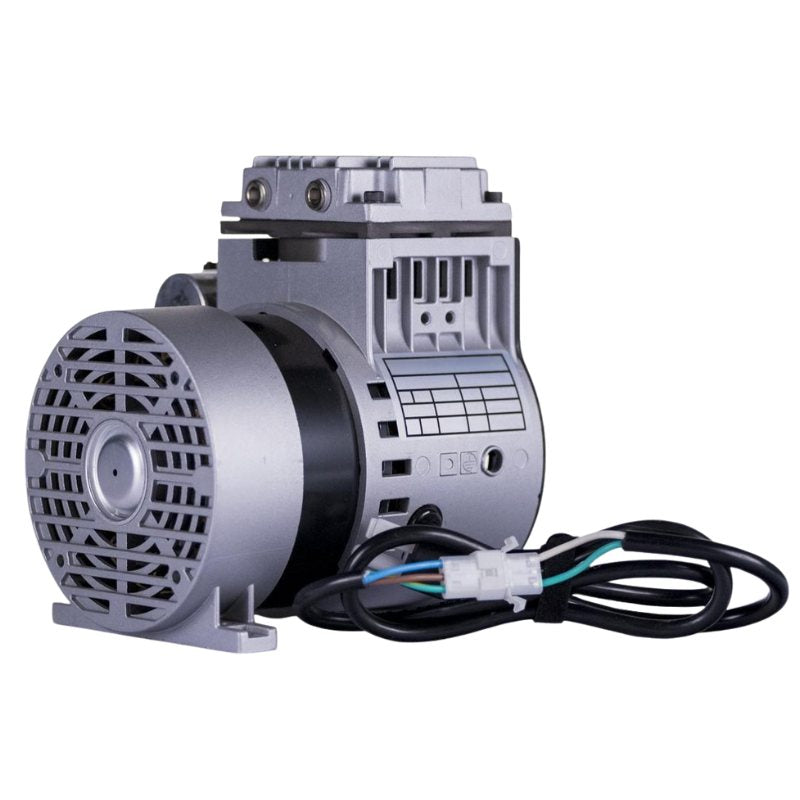

Housed in a sturdy stainless steel cabinet, the quiet 1/4 HP compressor pushes air through self-weighted tubing to a single-loop diffuser placed on the pond bottom. The diffuser releases a continuous stream of fine bubbles, drawing large volumes of water upward to promote consistent mixing and circulation.
This vital water movement enhances oxygen levels, eliminates thermal layering, and helps prevent common pond issues such as algae growth, excessive weeds, murky water, and unpleasant odors.
Easy to install and built for dependable, year-round operation, Kasco Home Series systems help maintain clean, healthy, and vibrant backyard ponds.

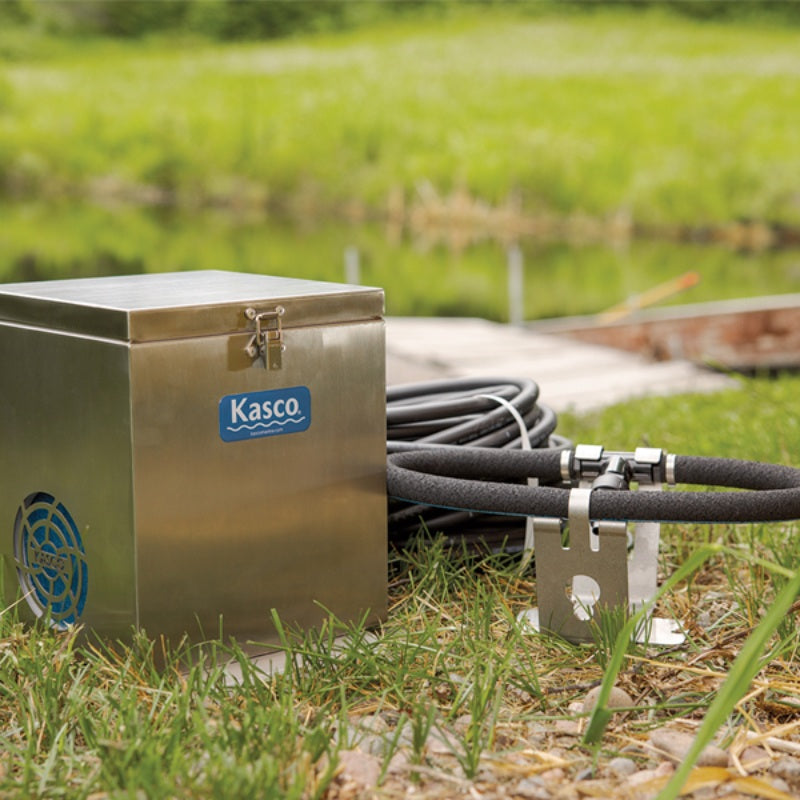

Everything you need is included with your Kasco Home Series Diffused Aeration System.
| Pond Size | Home Series Diffused Aeration (1 Diffuser) DA1, DAH1 | Home Series Diffused Aeration (2 Diffusers) DA2, DAH2 |
| 1/4 Acre | 6 to 8 ft. Pond Depth | 3 to 6 ft. Pond Depth |
| 1/2 Acre | 9 to 12 ft. Pond Depth | 6 to 8 ft. Pond Depth |
| 1 Acre | 13 to 20 ft. Pond Depth | 9 to 12 ft. Pond Depth |
| 2 Acres | N/A | 13 to 20 ft. Pond Depth |

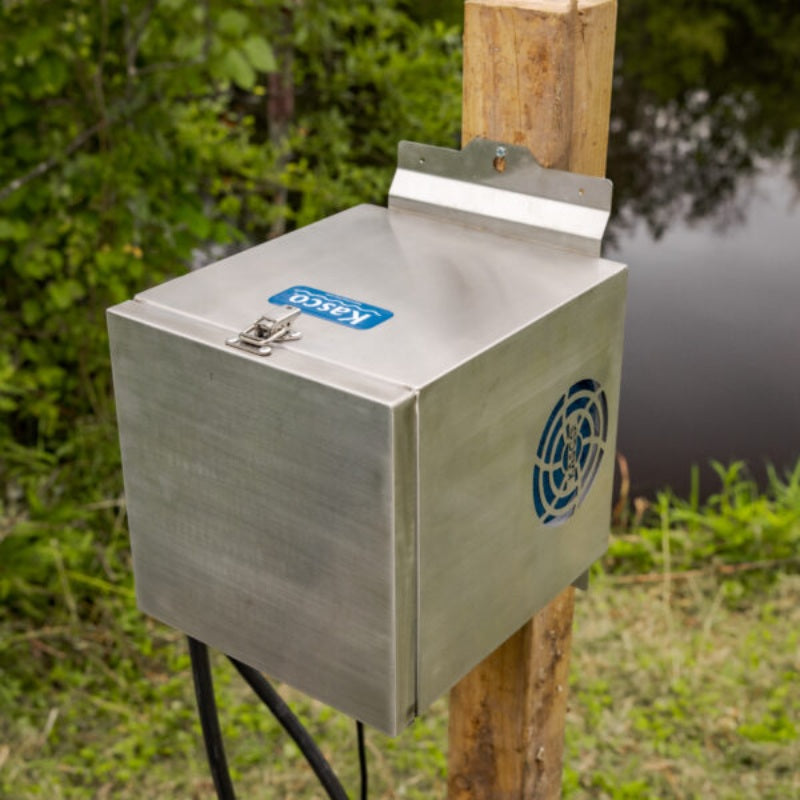

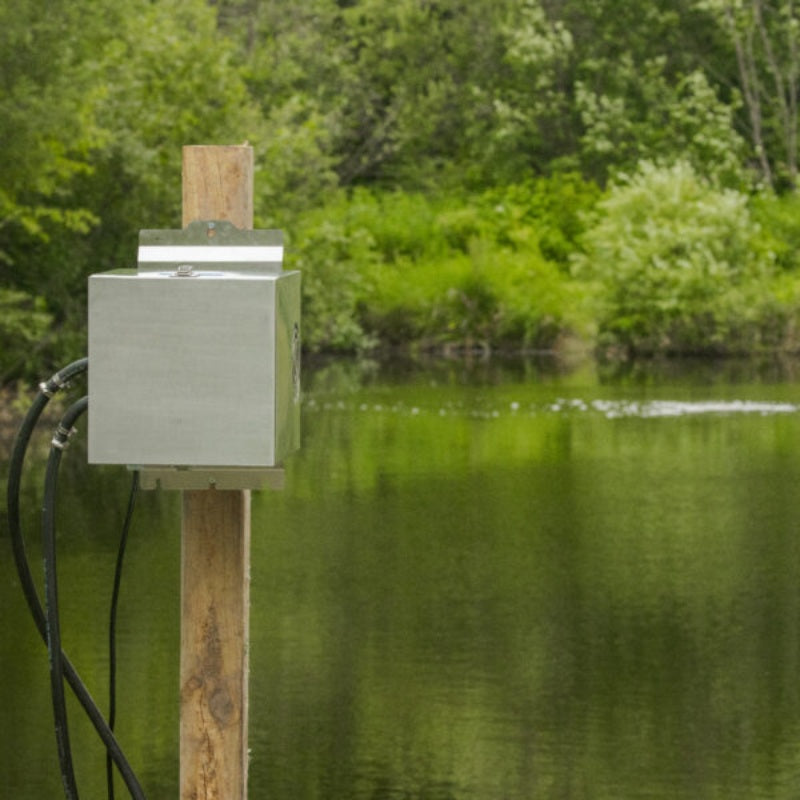

The optional mounting bracket for post mount offers added flexibility and convenience when installing your Kasco Home Series Diffused Aeration system. Instead of placing the compressor cabinet on the ground, this durable bracket allows you to securely mount the stainless steel cabinet onto a post or pole near the pond’s edge.
Built from heavy-duty, corrosion-resistant materials, the bracket ensures long-lasting strength and stability in all weather conditions. It keeps the compressor elevated and off the ground, protecting it from standing water, debris, and pests while improving accessibility for maintenance and inspections.
| Part Number | DA1 (120V) & DAH1 (240V) | DA2 (120V) & DAH2 (240V) |
| Number of Compressors | One 1/4 HP Motor | One 1/4 HP Motor |
| No. of Diffusers | 1 | 2 |
| Voltage | 120V or 240V | 120V or 240V |
| Phase | 1 | 1 |
| Amps | 2.5, 1.25 Amps | 2.5, 1.25 Amps |
| Included Weighted Tubing | One 100 ft. roll 3/8 in. tubing | Two 100 ft. roll 3/8 in. tubing |
| Diffuser Warranty | Lifetime | Lifetime |
| Cabinet Warranty | 2 Years | 2 Years |
| Compressor & Piston Cups and Cylinders Warranty | 2 years | 2 years |
| SureSink Tubing Warranty | 15 years | 15 years |
Corie, the owner of Mahala Springs and Farm in Tennessee, had tried multiple solutions to aerate her pond without success. We helped her find the perfect pond fountain that truly met her needs, and she couldn't be happier!
Kasco Home Series Diffused Aeration System - Product Brochure
Kasco Home Series Diffused Aeration System - Product Manual
Kasco Home Series Diffused Aeration System - Single-Loop Diffuser Manual
Kasco Small Pond Aeration System - Mounting Bracket Instructions
Kasco Small Pond Aeration System - SureSink Tubing Instructions
