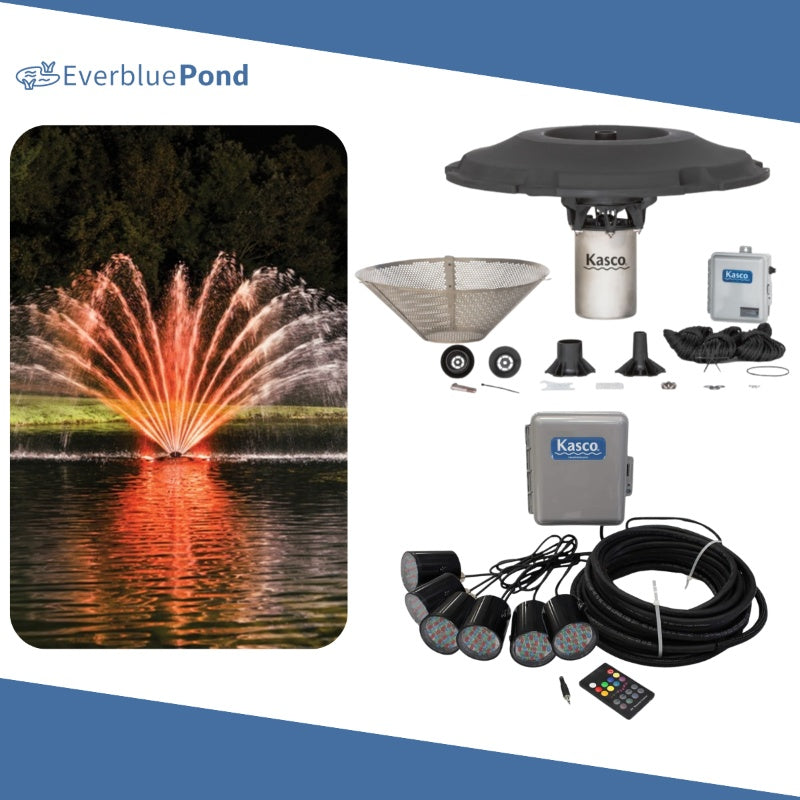

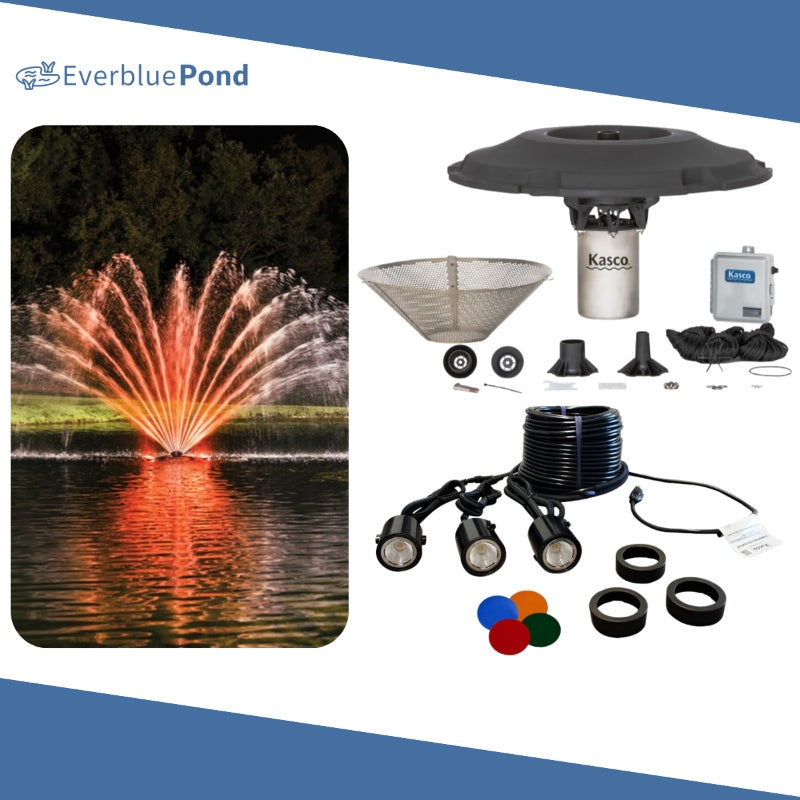

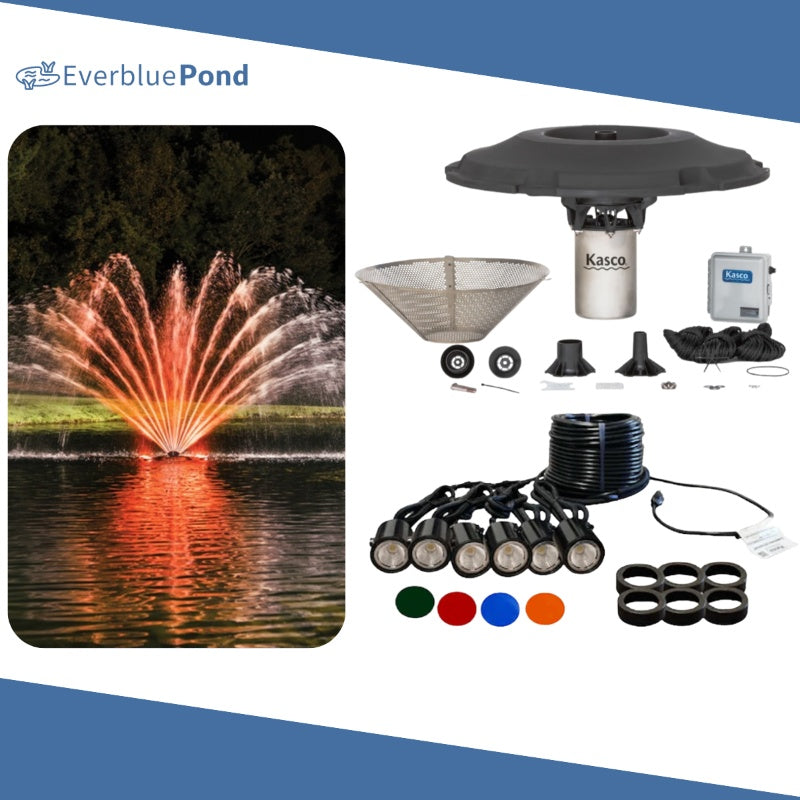

Kasco Fern Fountain Masterpiece Bundle - Up to 12ft - 3 LED Composite Light Sets - Including Motor, Float, Control Panel, Bottom Screen, Mooring Ropes and Steel Hardware

Kasco Fern Fountain Masterpiece Bundle

β˜…β˜…β˜…β˜…β˜… (0)
Save $754.00
$8,294.00
$7,540.00
Price Match Specialist

FOUND A LOWER PRICE?

Call us now and we’ll beat it. Guaranteed!

866-383-7258 (Call/Text) support@everbluepond.com
Free USA Shipping
🚚 Ships In:
2–5 Business Days
πŸ“¦ Delivers In:
Estimated 3–9 Days
(Jun 17 – Jun 25)
30 Day Extended Returns: Buy with Total Confidence

Notify me when back in stock

Where Elegance Meets the Water: The Kasco Fern Fountain With Lights Masterpiece Bundle

The Kasco Fern Fountain Masterpiece Bundle gives your pond the full treatment β€” bold fan-shaped water display, brilliant LED illumination, and every component for a seamless installation. Built on Kasco's trusted J Series platform, the Fern's thirteen evenly spaced streams spread in a wide, elegant 2D fan arc that commands attention from every angle, day or night.

This Masterpiece Bundle includes:

  • Kasco Fern Fountain – Features the premium Fern nozzle plus five additional interchangeable spray patterns for customizable elegance. Available in 2 HP, 3 HP, and 5 HP to suit ponds up to 2.5 acres
  • High-Performance LED Lights – Choose from crisp white Composite LEDs or vibrant color-changing RGB options
  • Precision Timer – Automate your fountain's operation with ease
  • Durable Power Cords – Separate cords for fountain and lights, available in multiple lengths to fit your needs
  • Sturdy Mooring Lines – Two 50' braided nylon ropes to securely anchor your fountain in place
  • Up to 5-Year Motor Warranty – Built for durability and backed with confidence

For the pond that deserves more than ordinary β€” the Fern Masterpiece Bundle delivers a display as elegant as it is breathtaking.

Note: If you need longer cords (300ft to 400ft), please contact us.

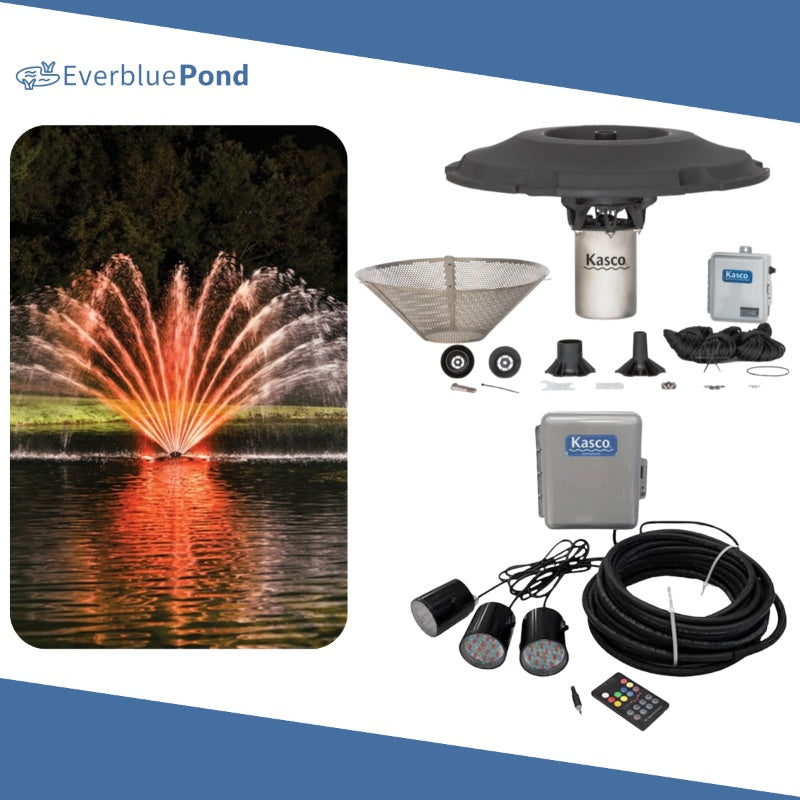

What's Included With Your Fern Fountain Bundle

The Fern Fountain Bundle includes everything you need and more!

  • Heavy Duty Motor Unit
  • Heavy Duty Float
  • Bottom Screen
  • Fern Premium Nozzle + 5 additional nozzles
  • Composite LED Lights or RGB LED Lights Set
  • Control Panel with GFCI protection
  • Power Cord for Lights
  • Power Cord for Fountain
  • Two 50’ Braided Nylon Mooring Ropes
  • Comprehensive Warranty Coverage on the Bundle

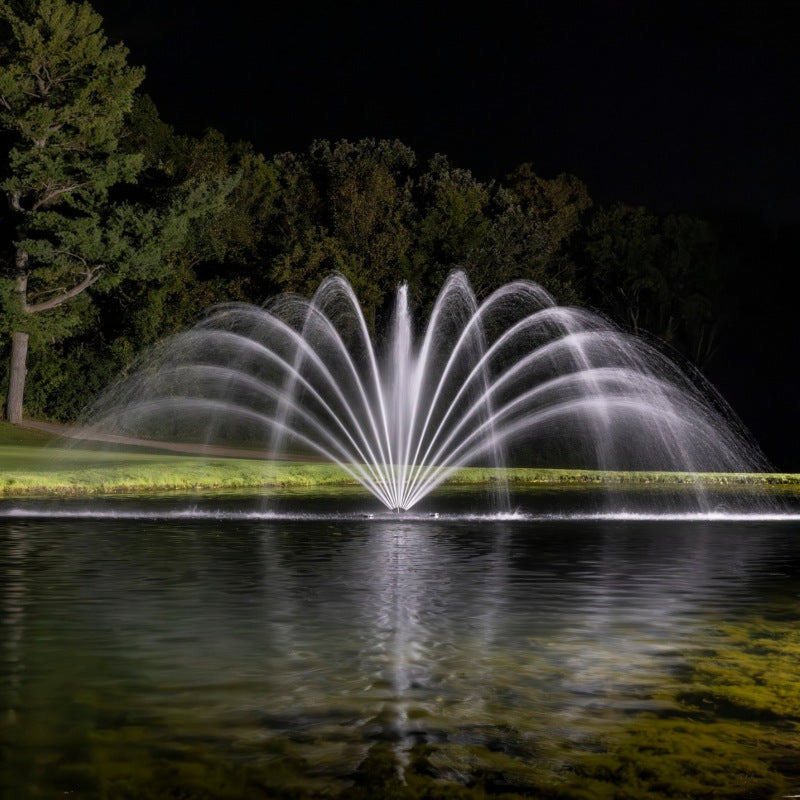

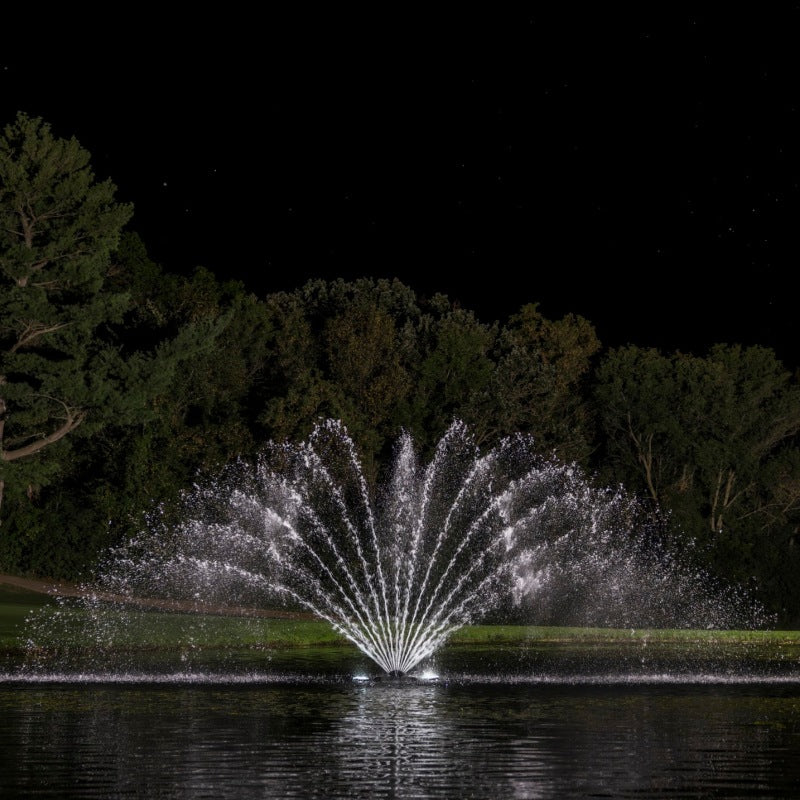

Kasco Fern Fountain Masterpiece Bundle spray pattern illuminated at night with white lighting in golf course pond wide landscape view

Fern Fountain: Spray Dimensions by Horsepower

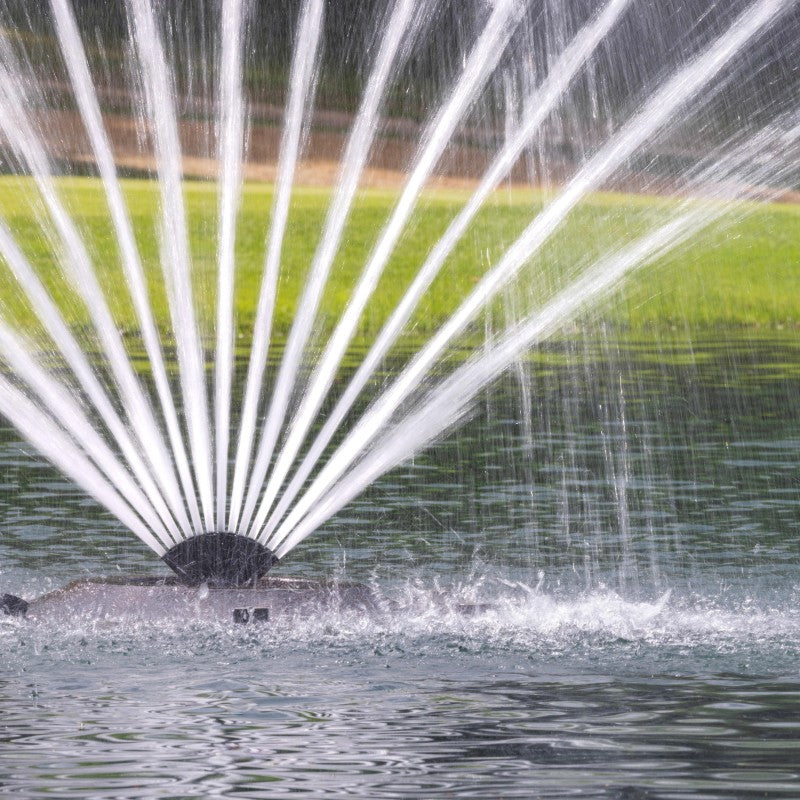

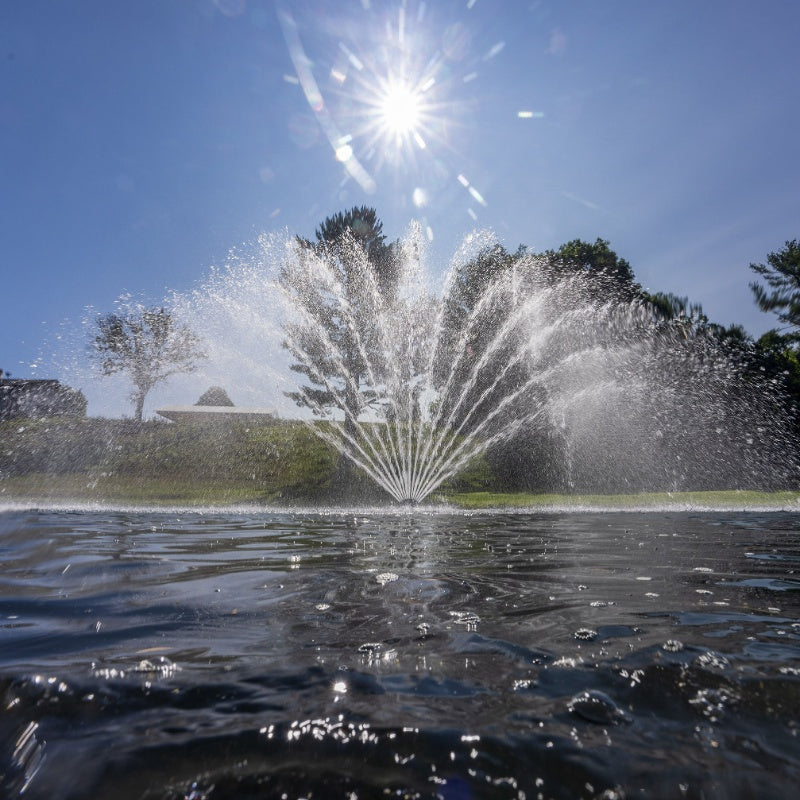

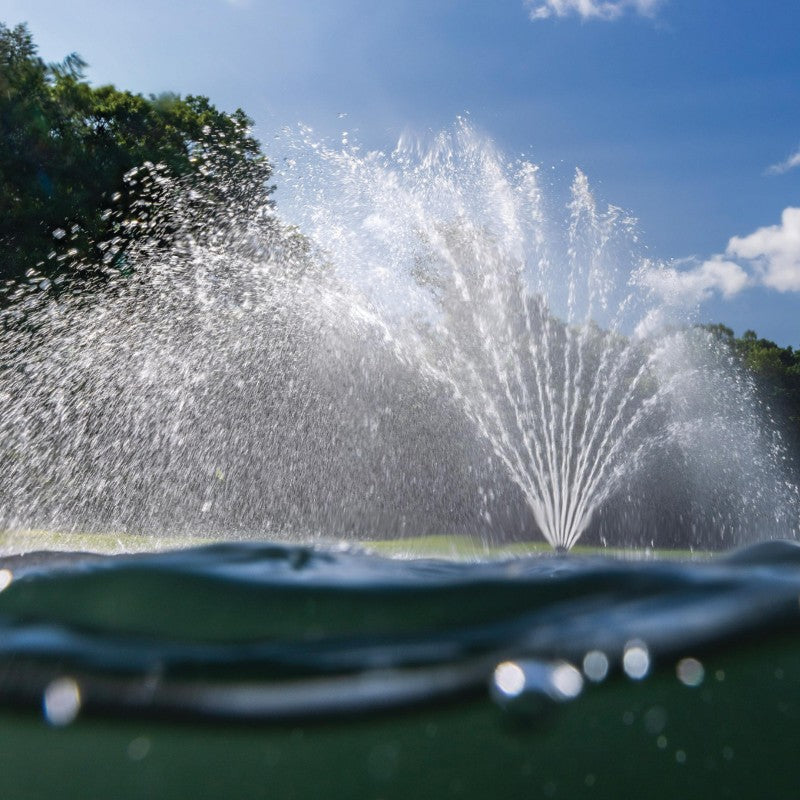

The Fern nozzle produces one of Kasco's most distinctive fountain profiles β€” a flat, 2D fan of thirteen evenly spaced streams that sweeps elegantly across the pond surface. Starting at 36 ft wide on the 2 HP model, the Fern pattern delivers an impressive, wide-reaching display ideal for long and narrow ponds. Step up to the 5 HP and the display reaches 23 ft high and 68 ft wide β€” making it an exceptional choice for ponds up to 2.5 acres that demand graceful, far-reaching water movement.

HP Unit Model Spray Height Spray Width Min. Depth
2 HP 8400JF 12 ft 36 ft 20"
3 HP 3.1JF 16 ft 54 ft 24"
5 HP 5.1JF 23 ft 68 ft 26"

Why Choose the Kasco Fern Fountain Masterpiece Bundle?

  • Signature Fern Display – Thirteen evenly spaced streams fan outward in a graceful 2D arc, creating a wide, elegant display ideal for long and narrow ponds
  • Enhanced Aeration – Improves water quality and supports a healthy, balanced pond ecosystem
  • Complete Bundle – Fountain, LED lights, control panel, power cords, and mooring lines β€” everything included for a seamless installation
  • Rugged Durability – Constructed from marine-grade stainless steel for reliable, long-lasting outdoor performance

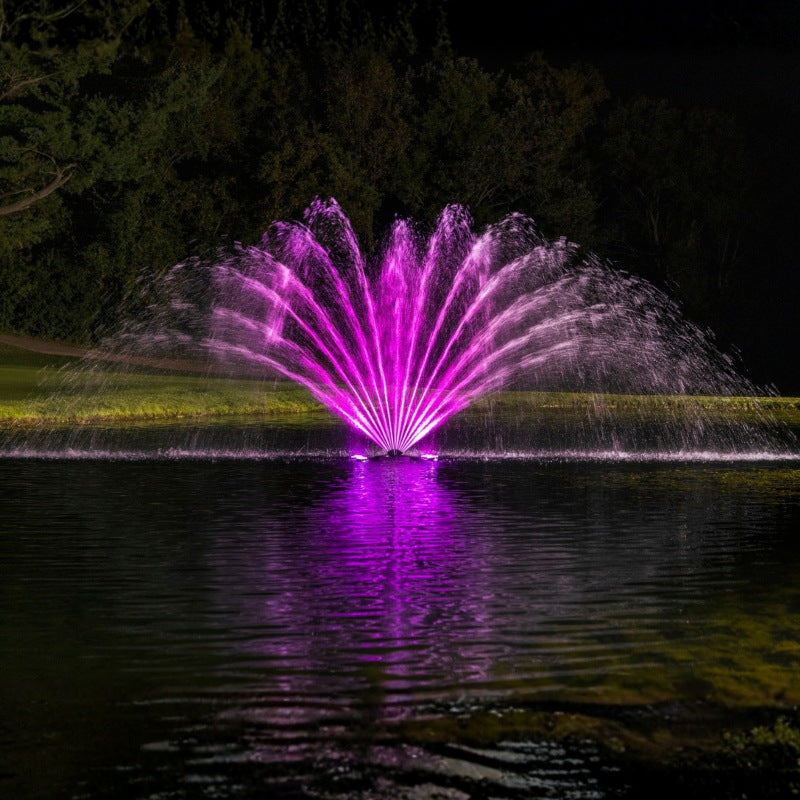

  • Brilliant Nighttime Illumination – Choose between Composite or RGB LED lighting to dramatically transform your fountain after dark

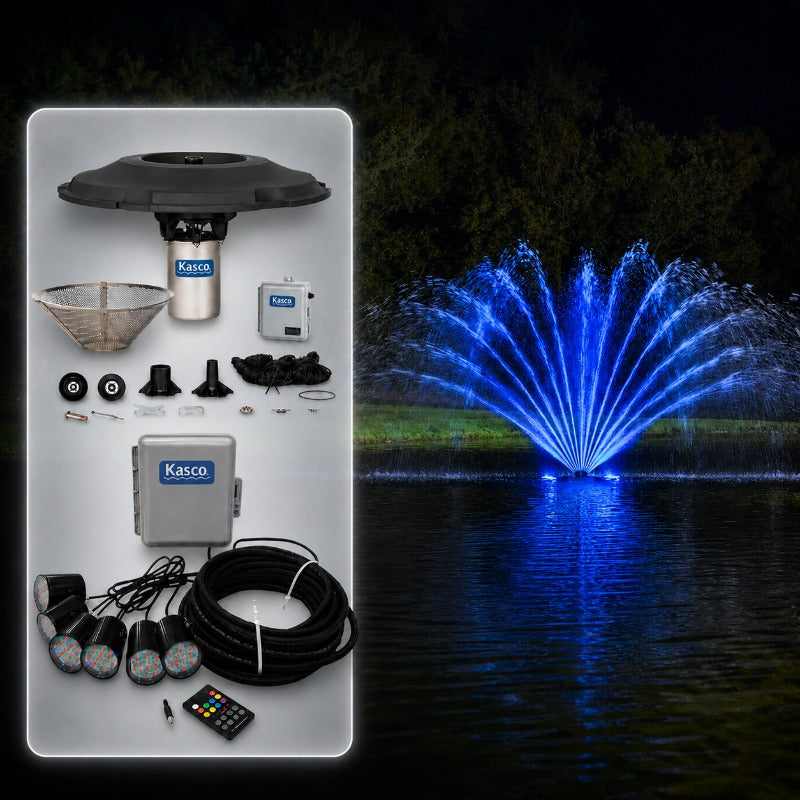

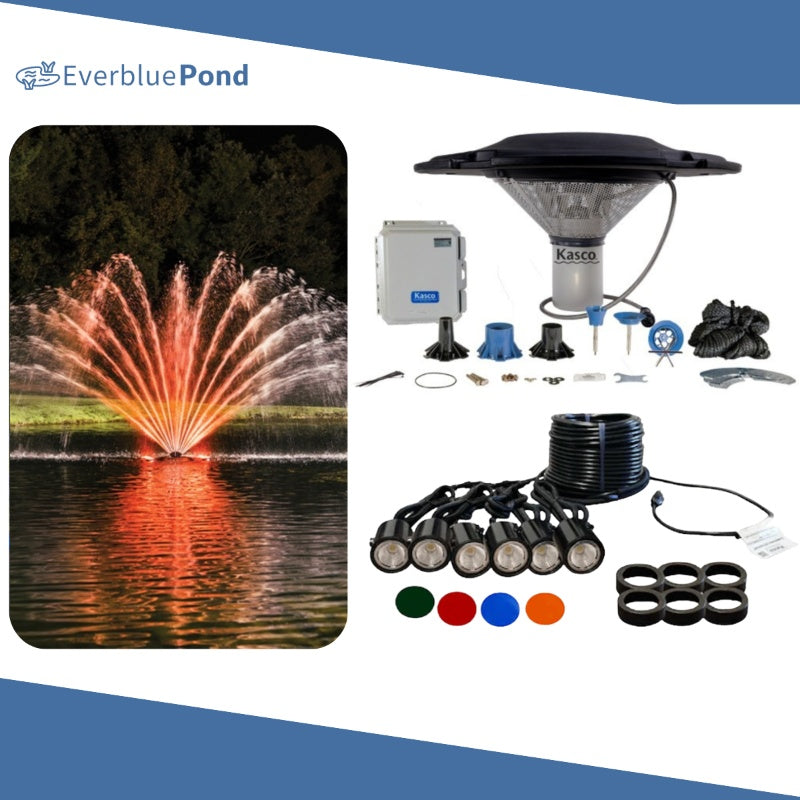

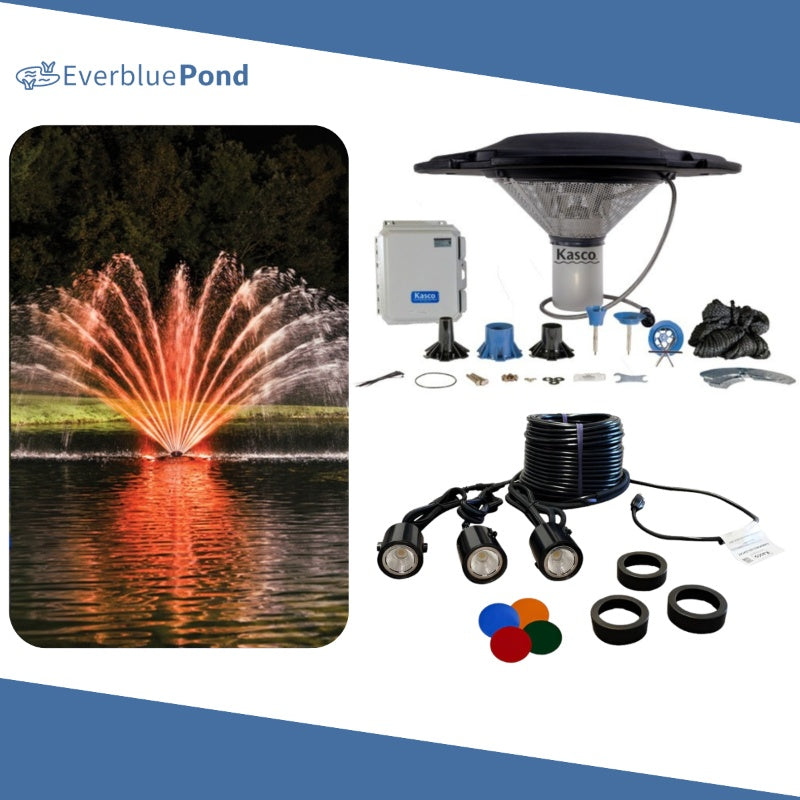

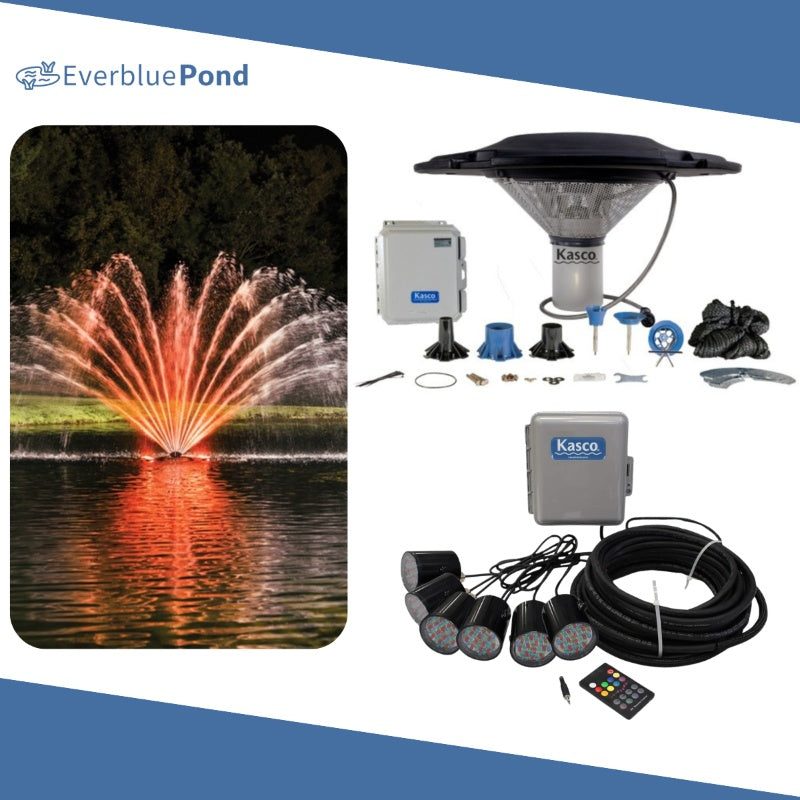

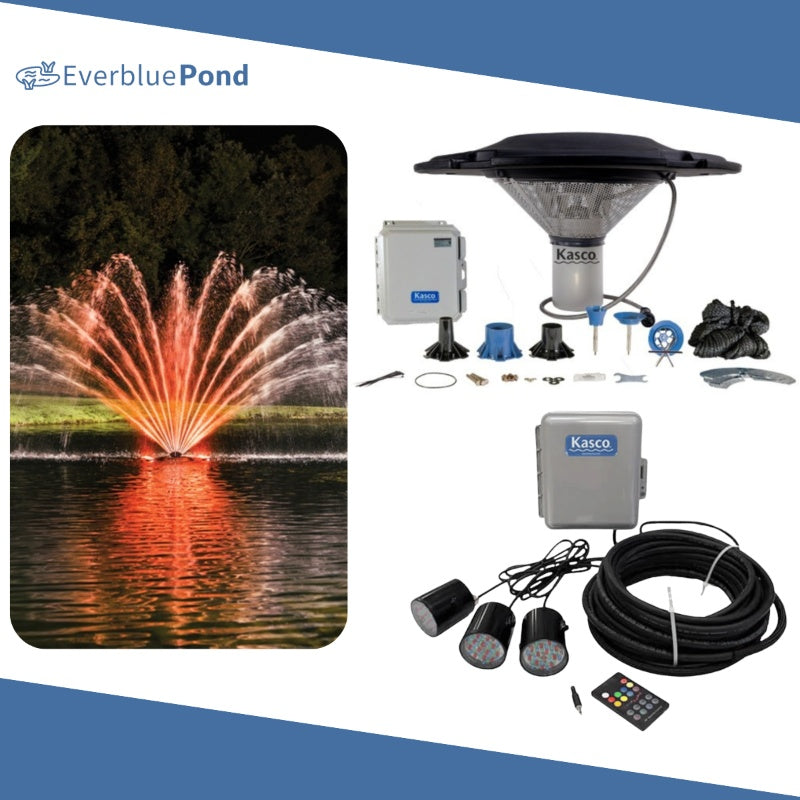

Kasco Fern Fountain Masterpiece Bundle showing complete kit

Kasco Fern Technical Specifications

Motor 2 HP Unit 3 HP Unit 5 HP Unit
Model 8400JF 3.1JF 5.1JF
Voltage 240V 240V 240V
Phase 1 Phase 1 Phase 1 Phase
Hertz 60 Hz 60 Hz 60 Hz
Running Amps 10 Amps 13 Amps 20 Amps
Lock Rotor Amps 40 Amps 63 Amps 97 Amps
Suggested Pond Size (SA)* Up to 1 Acre* Up to 1.5 Acres* Up to 2.5 Acres*
Min. Depth of Operation 20" 24" 26"
RPM 1750 RPM 1750 RPM 1750 RPM
Power Cord Length 50', 100', 150', 200', 250', 300', 400' 50', 100', 150', 200', 250', 300', 400' 100', 150', 200', 250', 300', 400'
Warranty 3-Year 5-Year 5-Year

*Surface Acreage; also consider pond shape, depth, and oxygen demand.


Kasco Composite LED Light Kit Technical Specifications

Model 3-Fixture LED Light Kit 6-Fixture LED Light Kit
Volts 120V 120V
Wattage Per Fixture 11 Watts 11 Watts
Total Wattage 33 Watts 66 Watts
Power Cord Lengths 50', 100', 150', 200', 250', 300', 400', 500' 50', 100', 150', 200', 250', 300', 400', 500'
Number of LED Lights 3 Light fixtures 6 Light fixtures
Standard Light Color Classic White Classic White
Included Colored Lenses Amber, Blue, Green, and Red Amber, Blue, Green, and Red
Warranty 2-Year 2-Year

Kasco RGB LED Lighting Technical Specifications

Model 3 Light Set 6 Light Set
Volts 120V 120V
Wattage Per Fixture 5 Watts 5 Watts
Total Wattage 15 Watts 30 Watts
Number of RGB LED Lights 3 Light fixtures 6 Light fixtures
Color Options white, red, green, blue, warm white, amber, yellow, cyan, and magenta white, red, green, blue, warm white, amber, yellow, cyan, and magenta
Brightness Levels 5 Levels 5 Levels
Can be set to music Yes Yes
Rhythmic Patterns 3 Patterns 3 Patterns
Warranty 2-Year 2-Year


NOTE:Β This product is subject to a 10% restocking fee if returned, made mandatory by the manufacturer.
