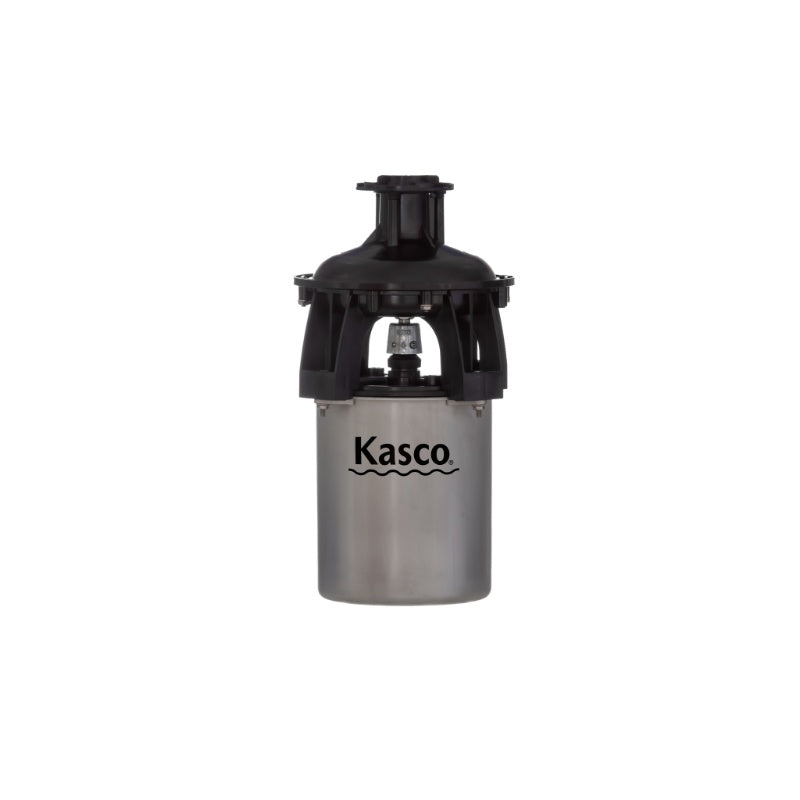

The Kasco Fern Fountain brings a graceful, fan-shaped water display to any pond, lake, or decorative water feature — powered by the trusted Kasco J Series platform.
Unlike traditional radial fountain designs, the Fern's thirteen evenly spaced streams spread outward in a flat, 2-dimensional arc, creating a mesmerizing "fern frond" effect that stretches beautifully across the water's surface.
Note: Stainless Steel cord lengths over 200 ft require an estimated 4-week lead time.

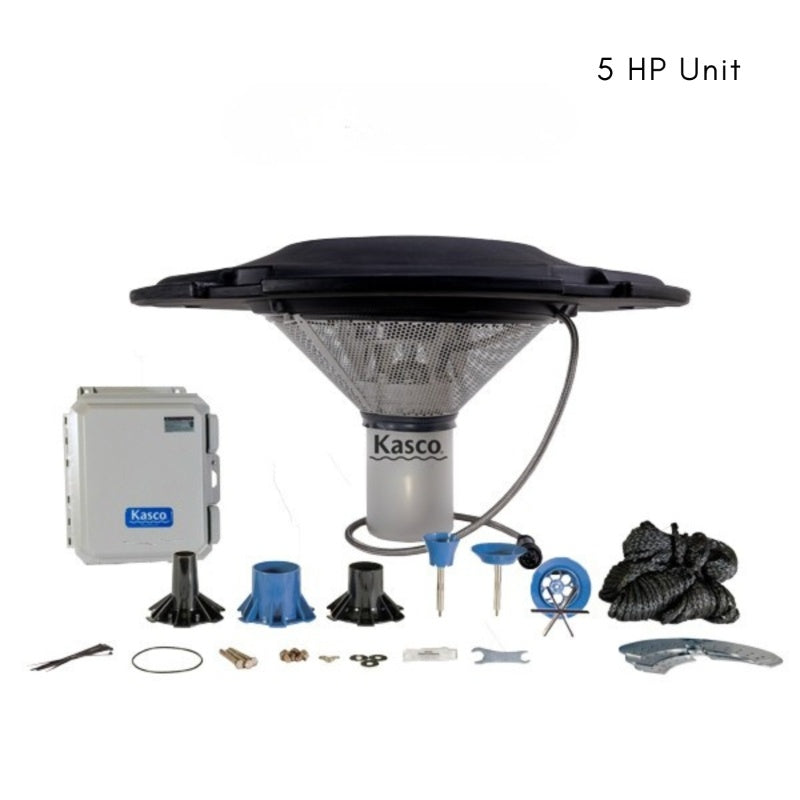

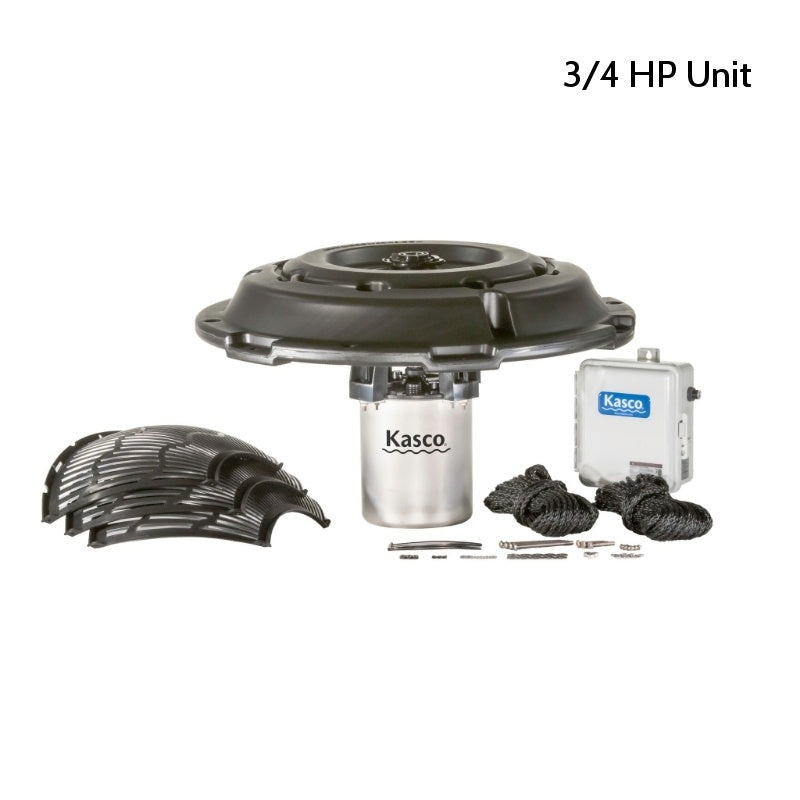

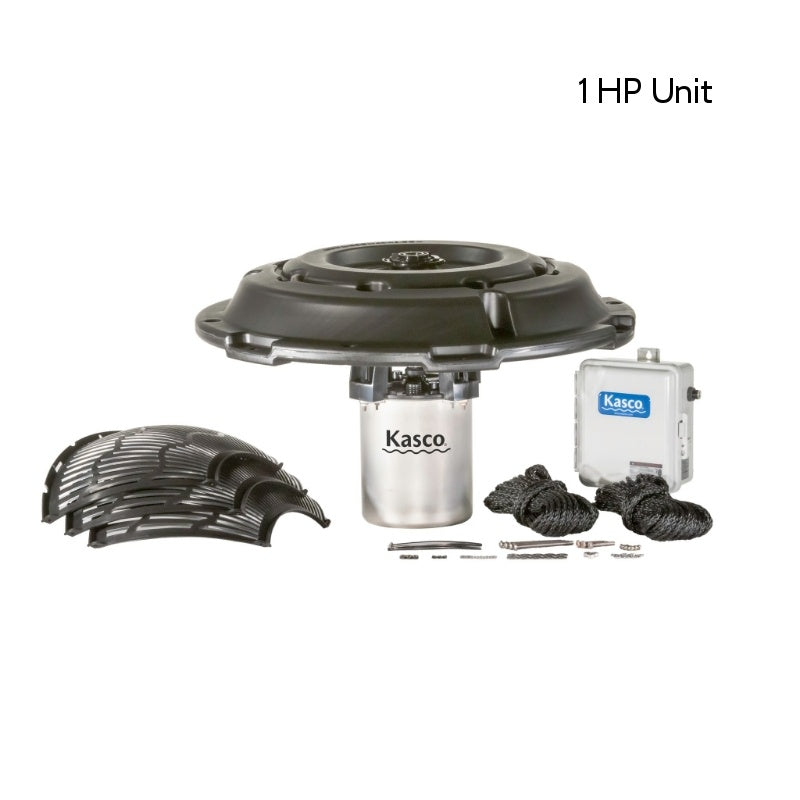

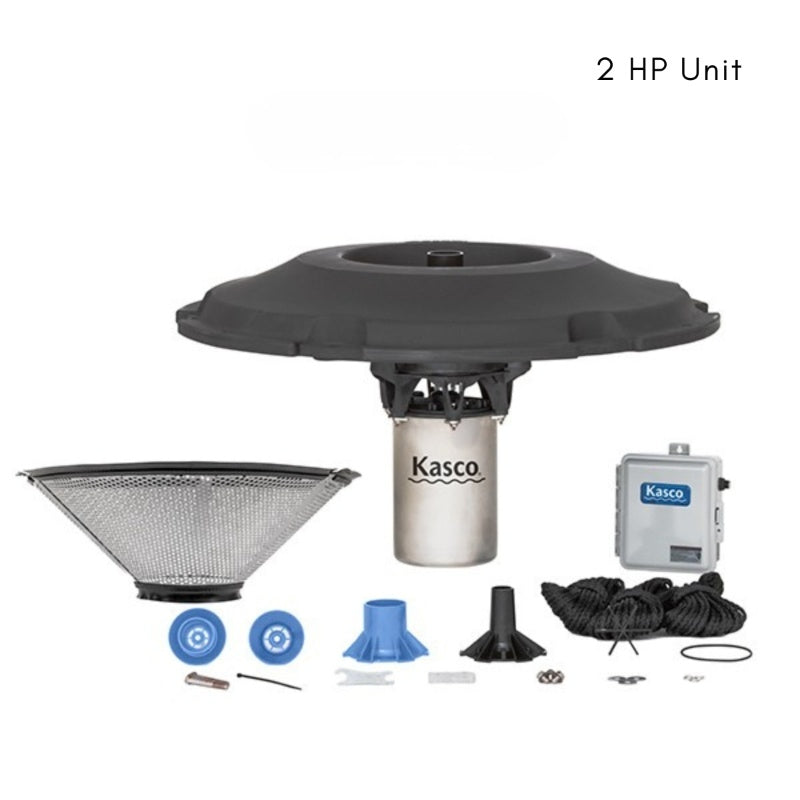

Everything you need is included with your Kasco Marine Fern Pond Fountain.

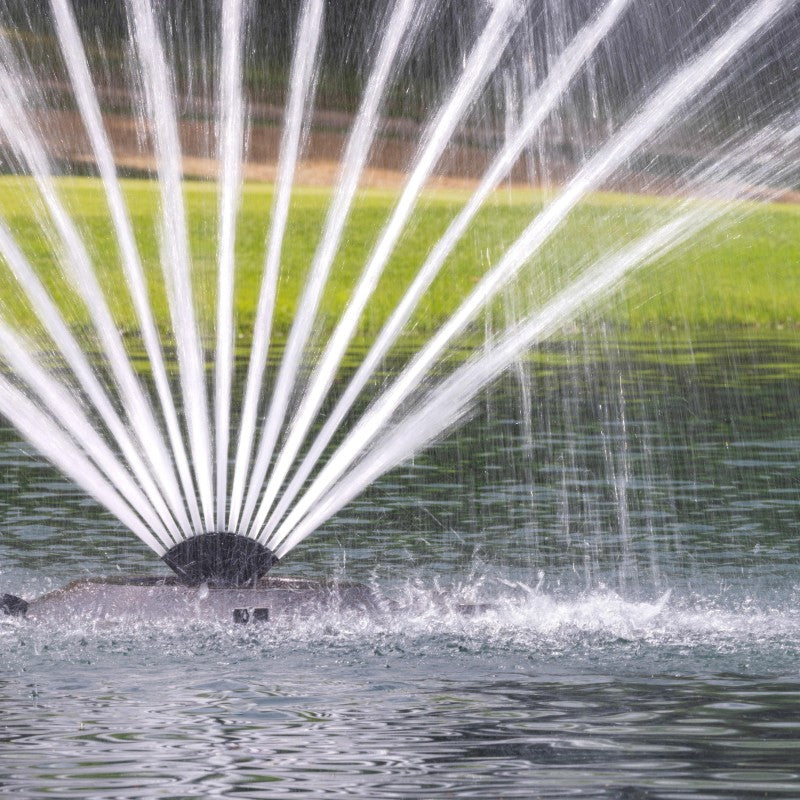

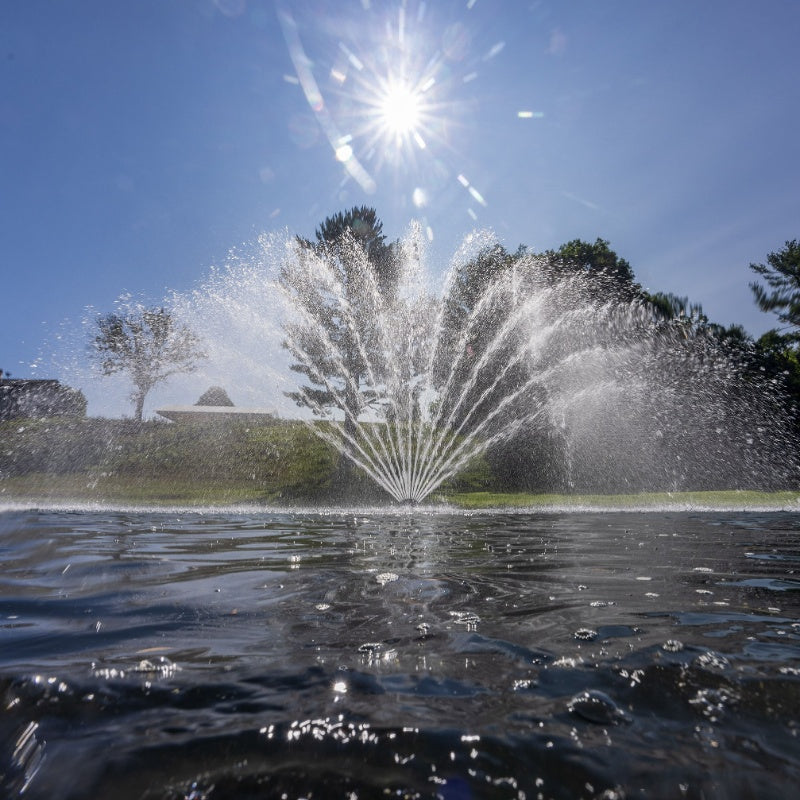

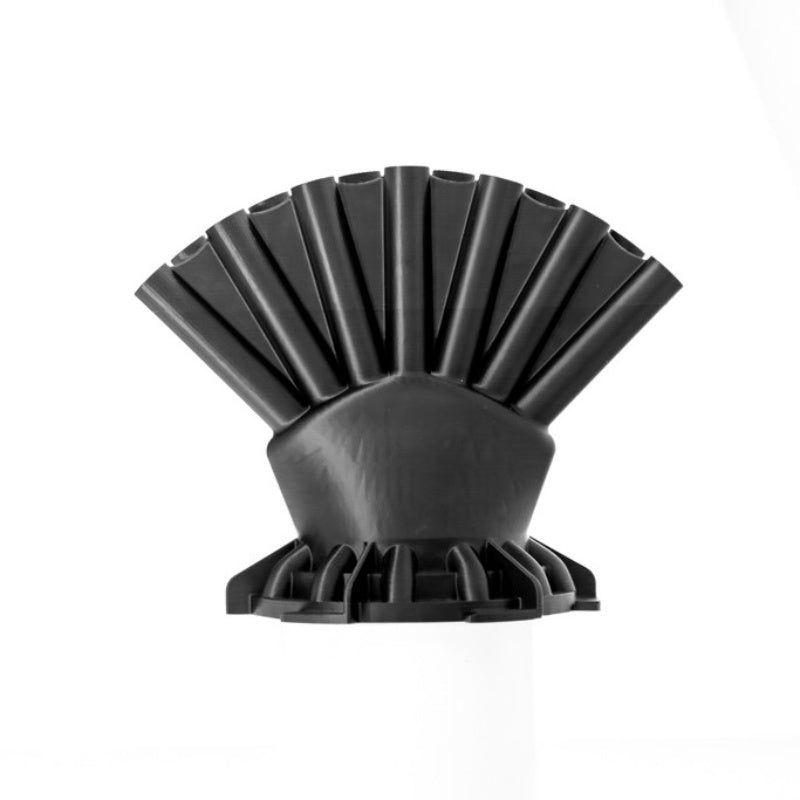

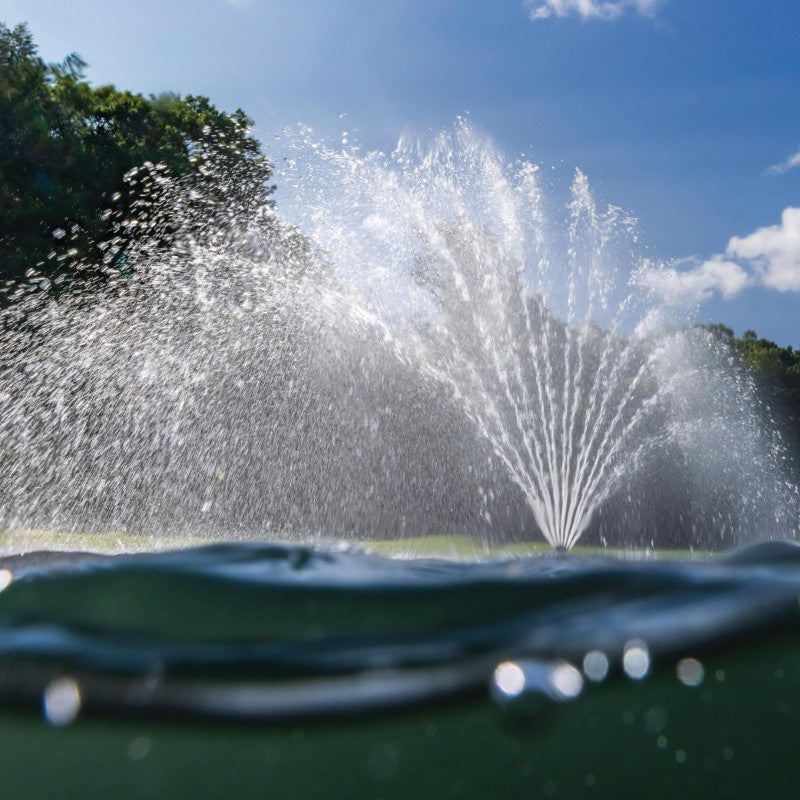

The Fern nozzle creates a striking 2-dimensional fan-shaped display with 13 evenly spaced water streams, producing a unique fern-frond effect across the water’s surface. Unlike more vertical fountain patterns, the Fern design stretches outward, making it an excellent choice for ponds that are longer or narrower in shape.

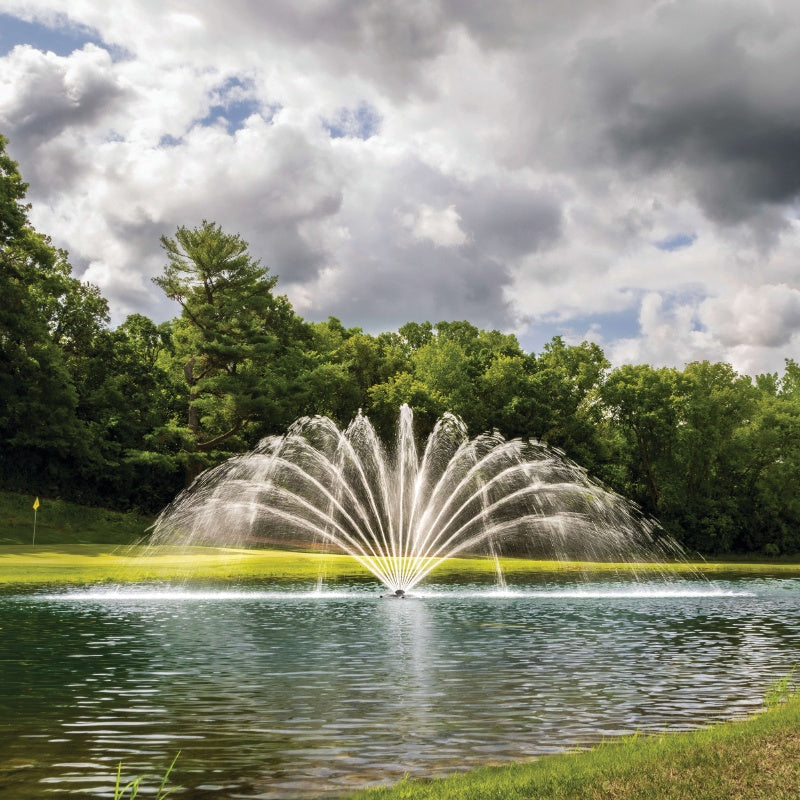

Starting at 12 ft high and 36 ft wide on the 2 HP model, the Fern pattern creates an elegant and dramatic spread. As horsepower increases, the display becomes even more expansive, reaching up to 23 ft high and 68 ft wide on the 5 HP model and 24 ft high by 66 ft wide on the 7.5 HP model, making it a beautiful option for larger ponds and commercial water features.
| HP Unit | Model | Spray Height | Spray Width | Min. Depth |
| 2 HP | 8400JF | 12 ft | 36 ft | 20" |
| 3 HP | 3.1JF | 16 ft | 54 ft | 24" |
| 5 HP | 5.1JF | 23 ft | 68 ft | 26" |
| 7.5 HP | 7.3JF | 24 ft | 66 ft | 28" |

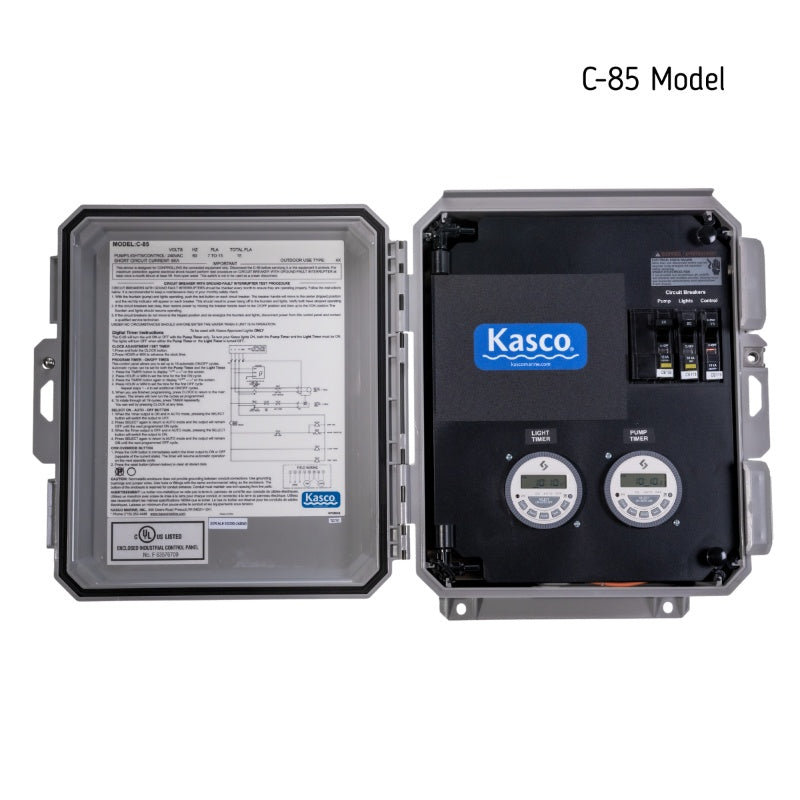

The Kasco Fern Fountain includes a control panel designed for safe, efficient fountain operation. Kasco control panels allow automatic control, so you can set your preferred schedule and let the system manage operation.
These panels are UL and CSA listed, include GFCI protection, and feature a timer dial for programmed use. They also include a photocell for use with compatible lighting packages.
Control Panel Options
C-85 - For 2 HP Unit
C-95 - For 3 and 5 HP Units
CF-3075 - For 7.5 HP Unit

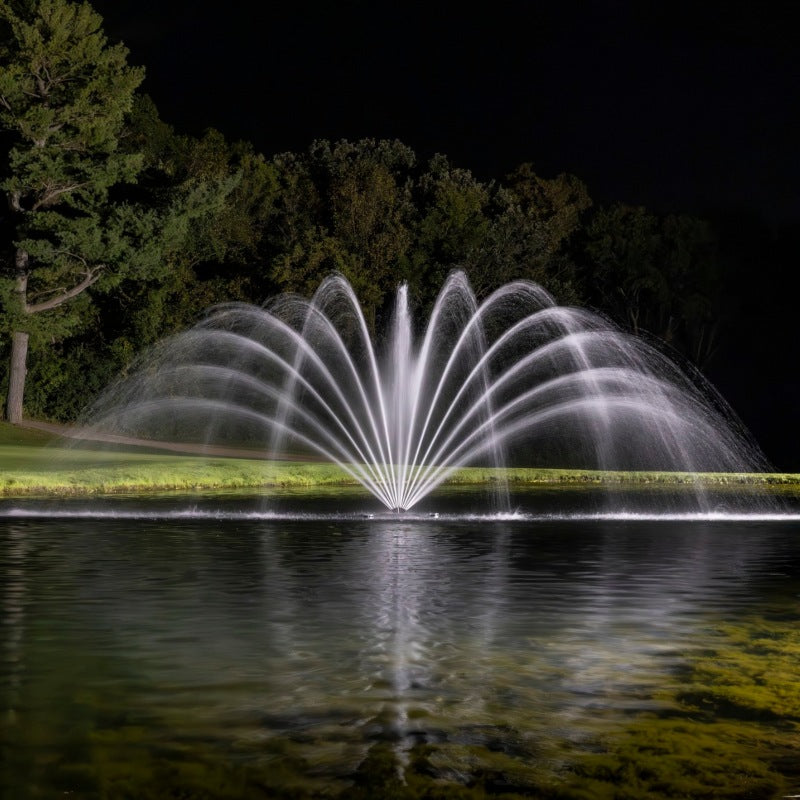

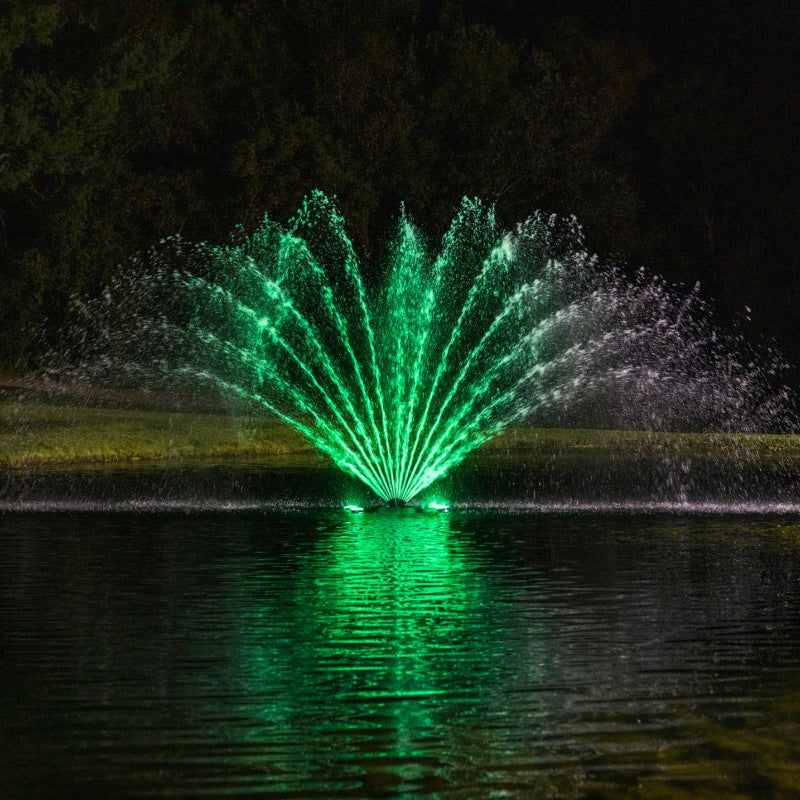

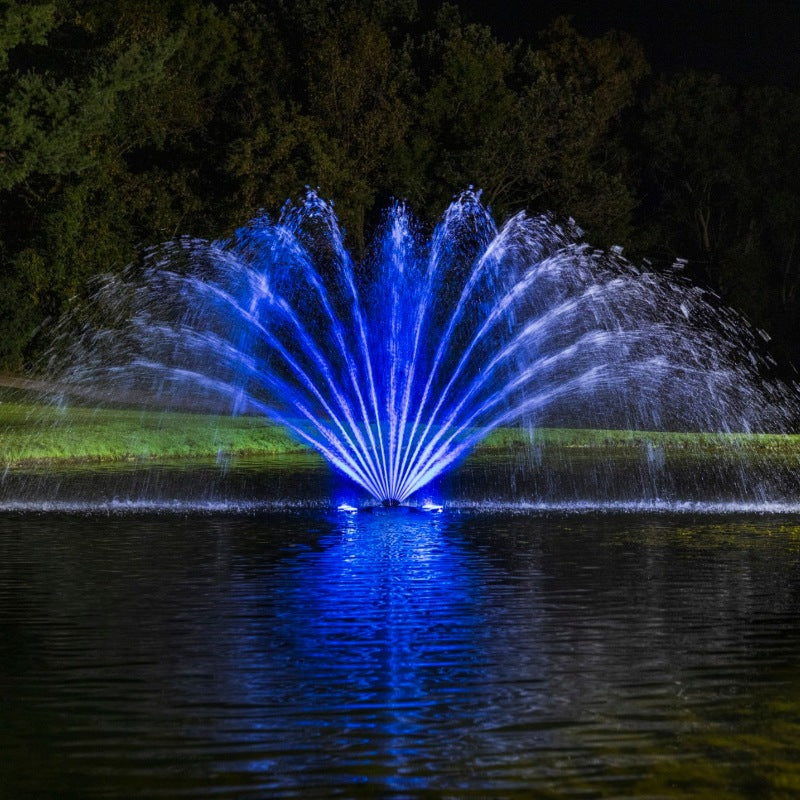

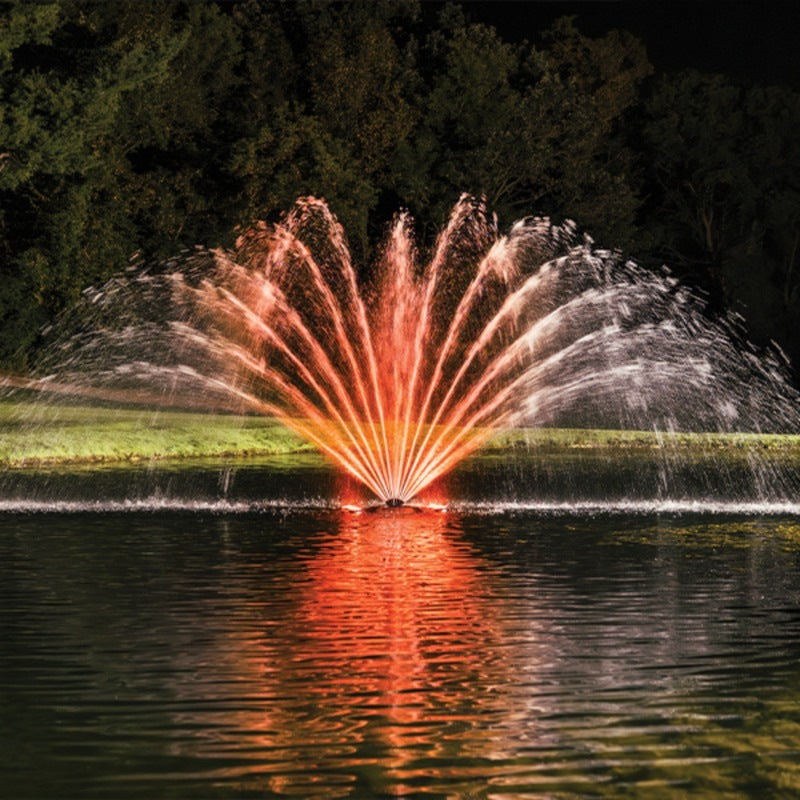

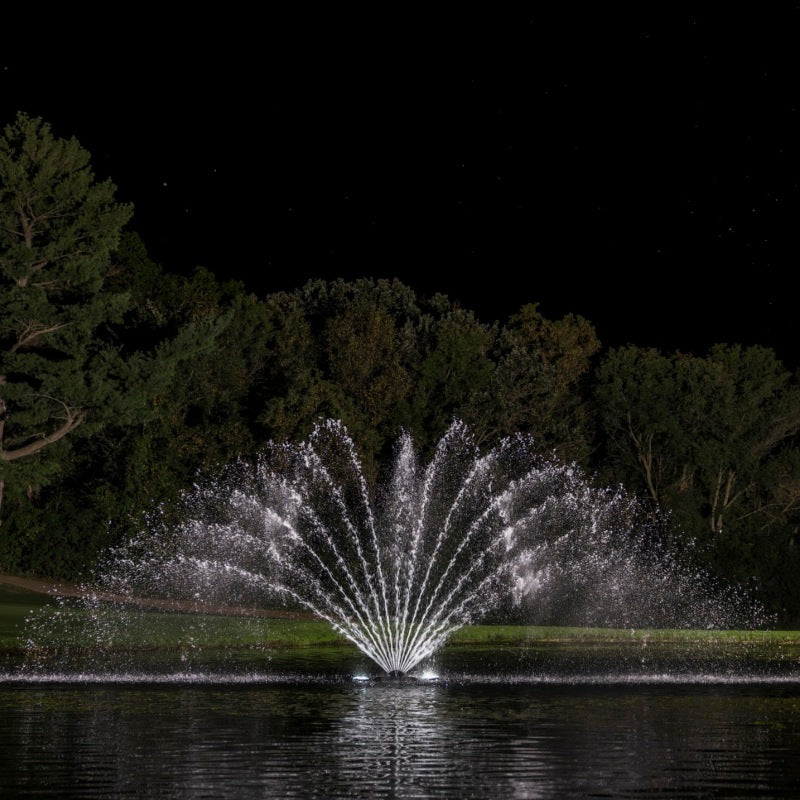

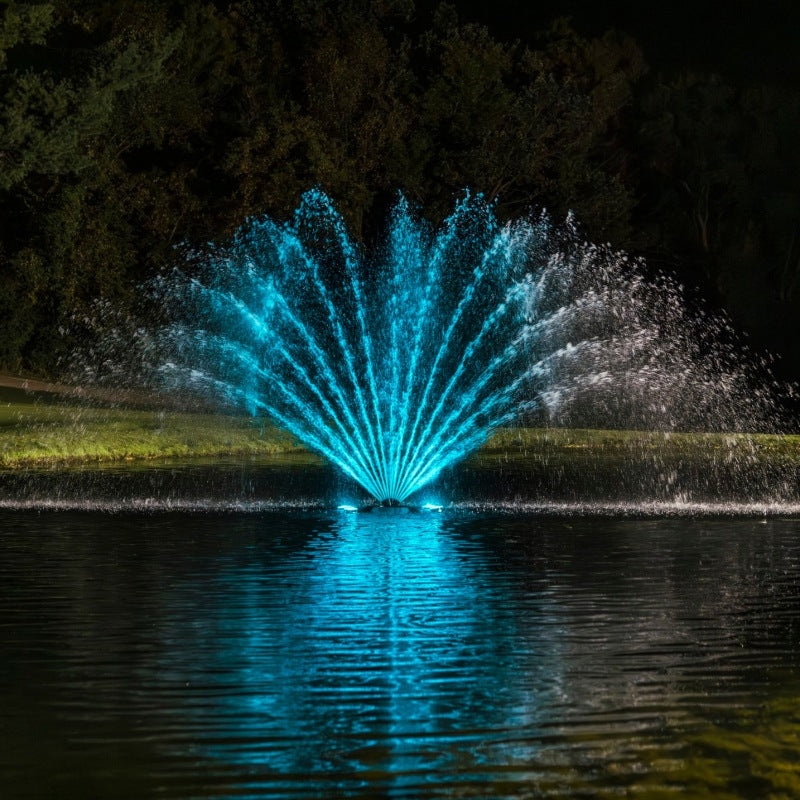

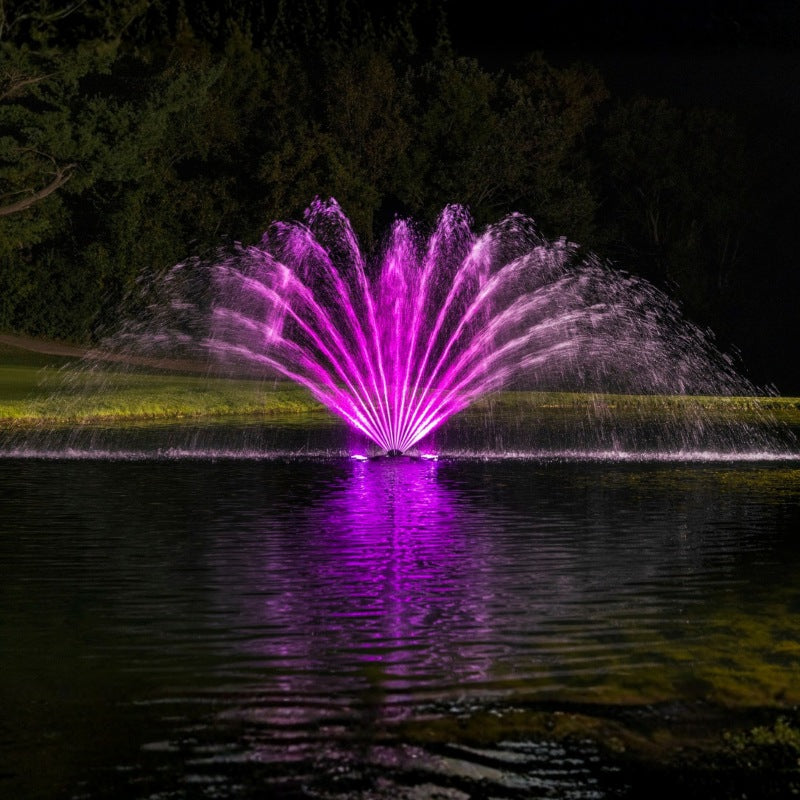

Kasco WaterGlow Lighting can be added to dramatically illuminate your Fern fountain display after dark. Available in composite or stainless steel housing options, these LED lighting kits help create a more polished and impressive pond feature for homes, parks, resorts, golf courses, and commercial properties.
| Motor | 2 HP Unit | 3 HP Unit | 5 HP Unit | 7.5 HP Unit |
| Model | 8400JF | 3.1JF | 5.1JF | 7.3JF |
| Voltage | 240V |
240V |
240V | 240V |
| Phase | 1 |
1 |
1 |
3 |
| Hertz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Running Amps | 10 | 13 | 20 | 20 |
| Lock Rotor Amps | 40 | 63 | 97 | 100 |
| Suggested Pond Size (SA)* | Up to 1 Acre* | Up to 1.5 Acres* | Up to 2.5 Acres* | Up to 3.5 Acres* |
| Min. Depth of Operation | 20” | 24” | 26” | 28” |
| RPM | 1750 | 1750 | 1750 | 1750 |
| Power Cord Length | 50', 100', 150', 200', 250', 300', 400' | 50', 100', 150', 200', 250', 300', 400' | 100', 150', 200', 250', 300', 400' | 100', 150', 200', 250', 300', 400' |
| Warranty | 3-Year | 5-Year | 5-Year | 5-Year |
| Lighting Kits | Optional | Optional | Optional | Optional |
| Control Panel Included | C-85 | C-95 | C-95 | CF-3075 |
| Total Nozzles Included | 6 Nozzles | 6 Nozzles | 6 Nozzles | 6 Nozzles |
NOTE: These products are subject to a 10% restocking fee if returned, made mandatory by the manufacturer.
