Power Up Your Pond: Kasco 3400 Replacement Motor 3/4 HP

These Kasco 3400 Series Replacement Motors are high-quality replacement options for your water aerator, fountain system, and circulator offering enhanced performance and long-lasting durability.

Designed to meet the demands of both residential and commercial aquatic environments. Available in 120V and 240V, these 3/4 HP motors ensure efficient water movement and aeration.

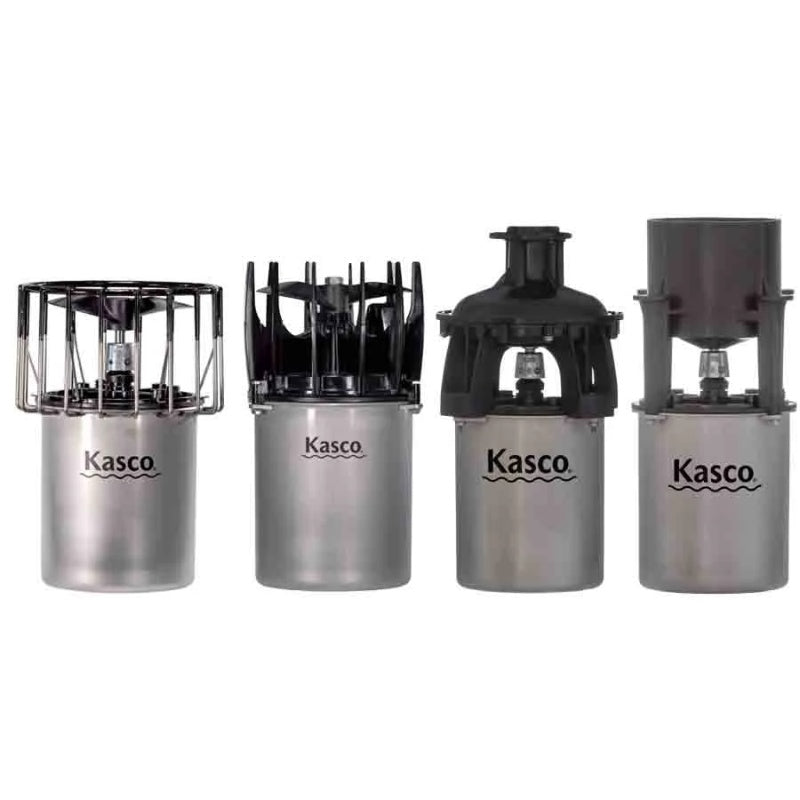

Kasco 3400 Replacement Motor 3/4 HP - 3400A, 3400C, 3400J, 3400VX Studio Image

3400A/3400HA - 3/4 HP Replacement Motor for Surface Aerator Details

3400A (Motor Only)

  • Replacement motor forĀ 3400AFĀ (3/4 HP Surface Aerator)
  • 3/4 HP, 120V, single phase
  • 1750 RPM
  • Oil cooled, continuous duty rated
  • 17mm top and bottom bearings
  • Thermal overload protection

3400HA (Motor Only)

  • Replacement motor for 3400HAF (3/4 HP Surface Aerator)
  • 3/4 HP, 208-240V, single phase
  • 1750 RPM
  • Oil cooled, continuous duty rated
  • 17mm top and bottom bearings
  • Thermal overload protection

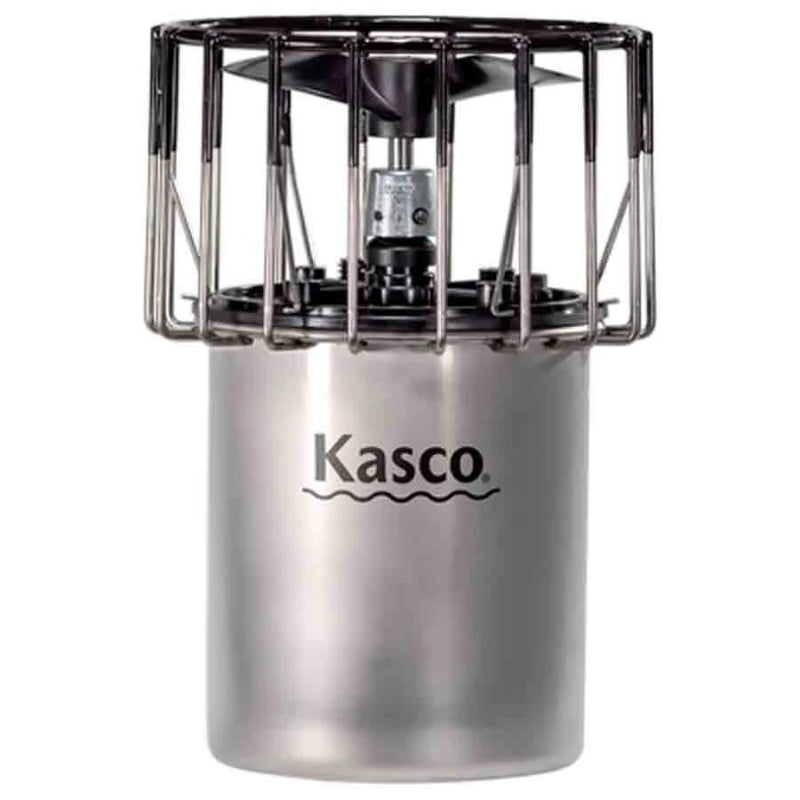

Kasco 3400A/3400HA Replacement Motor 3/4 HP for - 3400AF/3400HAF Studio Image

3400C/3400HC - 3/4 HP Replacement Motor for AquatiClear Circulator Details

3400C (Motor Only)

  • Replacement motor for 3400CFM (Horizontal Float) and 3400CDM (Universal Mount)
  • 3/4 HP, 120V single phase
  • 1750 RPM
  • Oil-cooled, continuous duty rated
  • 17mm top and bottom bearingsĀ
  • Thermal overload protection

3400HC (Motor Only)

  • Replacement motor for 3400HCFM (Horizontal Float) and 3400HCDM (Universal Mount)
  • 3/4 HP, 208-240V, single phase
  • 1750 RPM
  • Oil-cooled, continuous duty rated
  • 17mm top and bottom bearingsĀ
  • Thermal overload protection

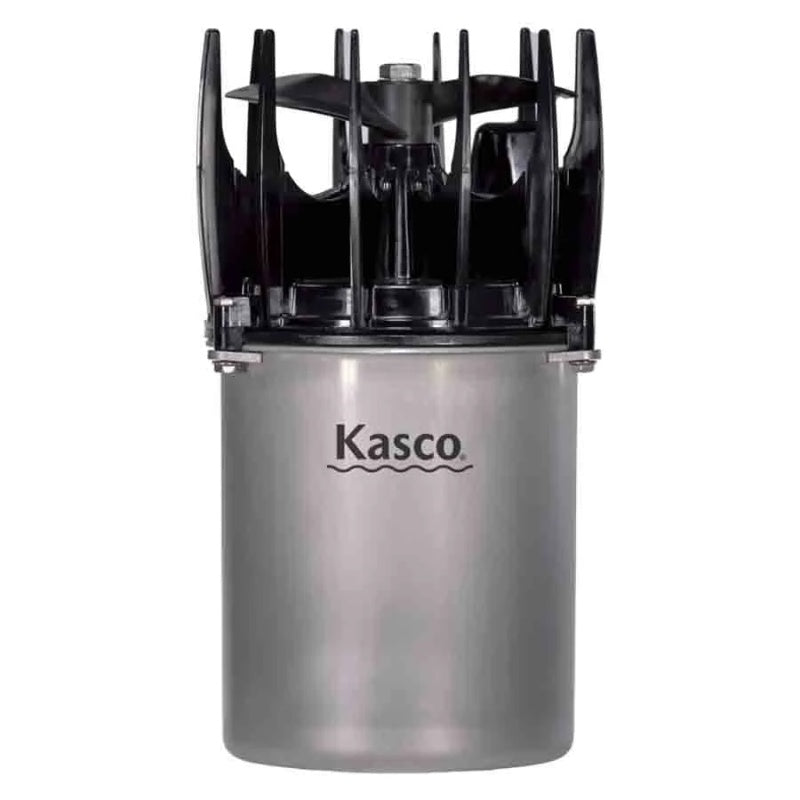

Kasco 3400C/3400HC Replacement Motor 3/4 HP for -  AquatiClear Circulators Studio Image

3400J/3400HJ - 3/4 HP Replacement Motor for J Series Fountain Details

3400J (Motor Only)

  • Replacement motor for 3400JF (3/4 HP J Series Fountain)
  • 3/4 HP, 120V, single phase
  • 1750 RPM
  • Oil cooled, continuous duty rated
  • 17mm top and bottom bearings
  • Thermal overload protection

3400HJ (Motor Only)

  • Replacement motor for 3400HJF (3/4 HP J Series Fountain)
  • 3/4 HP, 208-240V, single phase
  • 1750 RPM
  • Oil cooled, continuous duty rated
  • 17mm top and bottom bearings
  • Thermal overload protection
Kasco 3400 Replacement Motor 3/4 HP for -  3400J/3400JF/3400HJ/3400HJF Studio Image

3400VX/3400HVX - 3/4 HP Replacement Motor for VFX Aerating Fountain Details

3400VX (Motor Only)

  • Replacement motor for 3400VFX (3/4 HP VFX Aerating Fountain)
  • 3/4 HP, 120V, single phase
  • 1750 RPM
  • Oil cooled, continuous duty rated
  • 17mm top and bottom bearings
  • Thermal overload protection

3400HVX (Motor Only)

  • Replacement motor for 3400HVFX (3/4 HP VFX Aerating Fountain)
  • 3/4 HP, 208-240V, single phase
  • 1750 RPM
  • Oil cooled, continuous duty rated
  • 17mm top and bottom bearings
  • Thermal overload protection
Kasco 3400VX Replacement Motor 3/4 HP for -  3400VFX/3400HVX Studio Image

Kasco 3400 Series 3/4 HP Motor Technical Specifications

Replacement Motor for Surface Aerator 3/4 HP (3400AF, 3400HAF) Replacement Motor for Aquaticlear Circulators 3/4 HP (3400CFM, 3400CDM, 3400HCFM, 3400HCDM) Replacement Motor for J Series Fountain 3/4 HP (3400JF, 3400HJF) Replacement Motor for VFX Aerating Fountain 3/4 HP (3400VFX, 3400HVFX)
Motor Model 3400A - 3400HA 3400C - 3400HC 3400J - 3400HJ 3400VX - 3400HVX
Application Replacement Motor for Surface Aerator 3/4 HP (3400AF, 3400HAF) Replacement Motor for Aquaticlear Circulator 3/4 HP (3400CFM, 3400CDM, 3400HCFM, 3400HCDM) Replacement Motor for J Series Fountain 3/4 HP (3400JF, 3400HJF) Replacement Motor for VFX Aerating Fountain 3/4 HP (3400VFX, 3400HVFX)
Horsepower 3/4 HP 3/4 HP 3/4 HP 3/4 HP
Voltage / Phase / Hz 120V or 240V / 1 Phase / 60 Hz 120V or 240V / 1 Phase / 60 Hz 120V or 240V / 1 Phase / 60 Hz 120V or 240V / 1 Phase / 60 Hz
Running Amps 6.7 or 3.4 Amps 6.6 or 3.1 Amps 6.7 or 3.3 Amps 7 or 4 Amps
Locked Rotor Amps 18 or 9 Amps 18 or 9 Amps 18 or 12 Amps 24 or 12 Amps
Package Includes Pre-assembled propeller with all necessary components securely attached to the motor and a protective wire cage. Quick disconnect with stub cord. Pre-assembled propeller with all necessary components securely attached to the motor and a clog-resistant propeller cage. Quick disconnect with stub cord. Pre-assembled propeller and all necessary components attached to the motor, along with five fountain nozzles. Quick disconnect with stub cord. Pre-assembled propeller with all necessary components securely attached to the motor. Quick disconnect with stub cord.
Power Cord Lengths Available 50', 100', 150', 200', 250', 300', 400' 50', 100', 150', 200', 250', 300', 400' 50', 100', 150', 200', 250', 300', 400' 50', 100', 150', 200', 250', 300', 400'
Warranty 2-Year 2-Year 2-Year 2-Year

NOTE: These products are subject to a 10% restocking fee if returned, made mandatory by the manufacturer.
