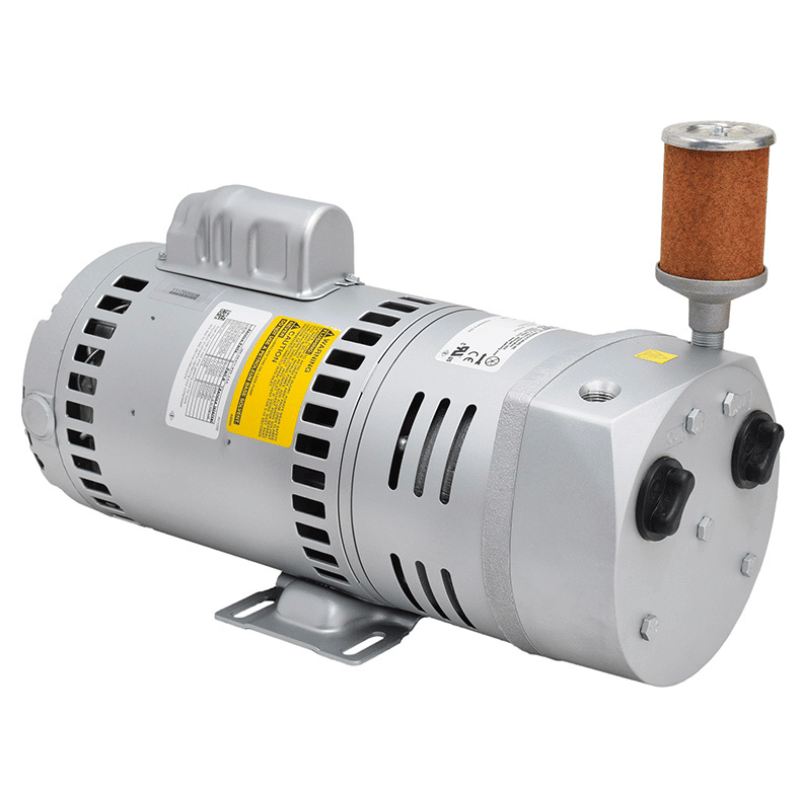

EasyPro Stratus Rotary Vane Compressor
The EasyPro Stratus Rotary Vane CompressorĀ hasĀ a long-lasting, continuous-duty motor and can produce considerably more air than diaphragm or rocking piston compressors. This compressor isĀ specifically engineered for pond and lake aeration as well as de-icing, makingĀ it an excellent choice for these applications. Available in three different HP options, you can choose from the 1/4 HP, 3/4 HP, and 1 HP models to suit your needs.
The Rotary Vane Compressor is designed for continuous-duty operationĀ and known to produce more air, despite having less depth capabilities compared to diaphragm or rocking piston compressors.Ā The carbon vanes self-adjust to maintain maximum efficiency and can be easily replaced when worn out.Ā All models come with an air filter and 6' power cord, and can operate up to a depth of 18 feet.
With the Stratus Rotary Vane Compressor, you can also connect air outlet assemblies, allowing one pump to supply up to six air manifolds. Choose from either 115v or 230v voltage options, and enjoy peace of mind with a one-year warranty.
Technical Specifications
|
RV33 |
RV332 |
RV75 |
RV752 |
RV100 |
RV1002 |
| Horsepower |
1/4 HP |
1/4 HP |
3/4 HP |
3/4 HP |
1 HP |
1 HP |
| Voltage |
115v |
230v |
115v |
230v |
115v |
230v |
| Amps |
5.0 |
2.5 |
12 |
6 |
14 |
7
|
| CFM @ 0ft |
2.3 |
2.3 |
4.5 |
4.5 |
6.5 |
6.5 |
| CFM @ 6ft |
2.2 |
2.2 |
4.3 |
4.3 |
6.0 |
6.0 |
| CFM @ 12ft |
2.0 |
2.0 |
4.2 |
4.2 |
5.5 |
5.5 |
| CFM @ 18ft |
1.9 |
1.9 |
4.0 |
4.0 |
5.2 |
5.2 |
| Max PSI |
10 psi |
10 psi |
10 psi |
10 psi |
10 psi |
10 psi |
| Max Depth |
18ft |
18ft |
18ft |
18ft |
18ft |
18ft |
| Cord Length |
6' |
6' |
6' |
6' |
6' |
6' |
