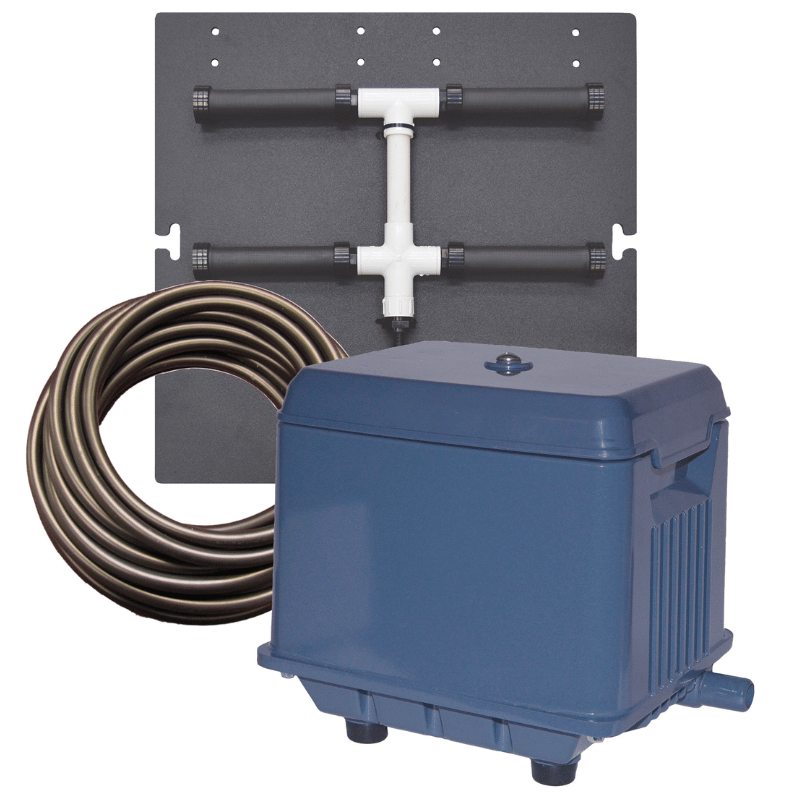

The perfect aeration system for shallow ponds 7′ deep or less, choose from either a single (PA6SWN) or double (PA8SWN) diffuser system. A single diffuser is ideal for round or regular shaped ponds. Use the dual diffuser system for long and narrow or irregular shaped ponds.
Supplying adequate oxygen levels and circulation during hot summer months or deicing during freezing months is critical for pond and fish care. Stratus KLC series compressors provide dependable aeration for water gardens, koi ponds or large shallow water ponds. With their quiet and energy efficient design the KLC Series compressors operate on just pennies per day making them the perfect choice to provide some Koi Loving Care to your pond.

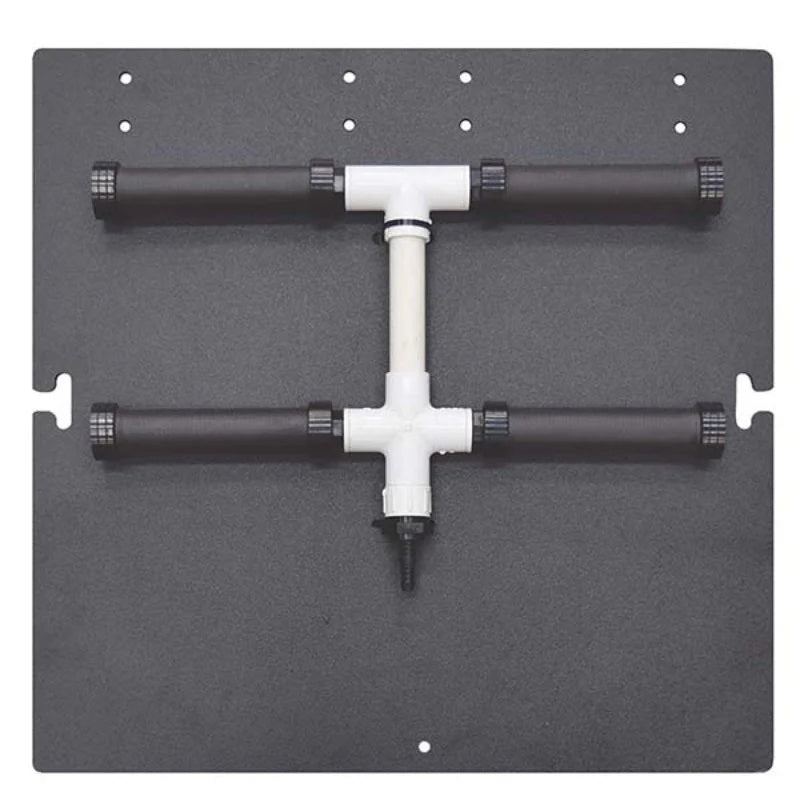

With self-weighted design for easier installation. Air Diffuser Manifolds includes check valve to prevent water from filling air line when not in use. Polyethylene underlay keep diffusers from settling into the mud and prevents sediment erosion during operation.

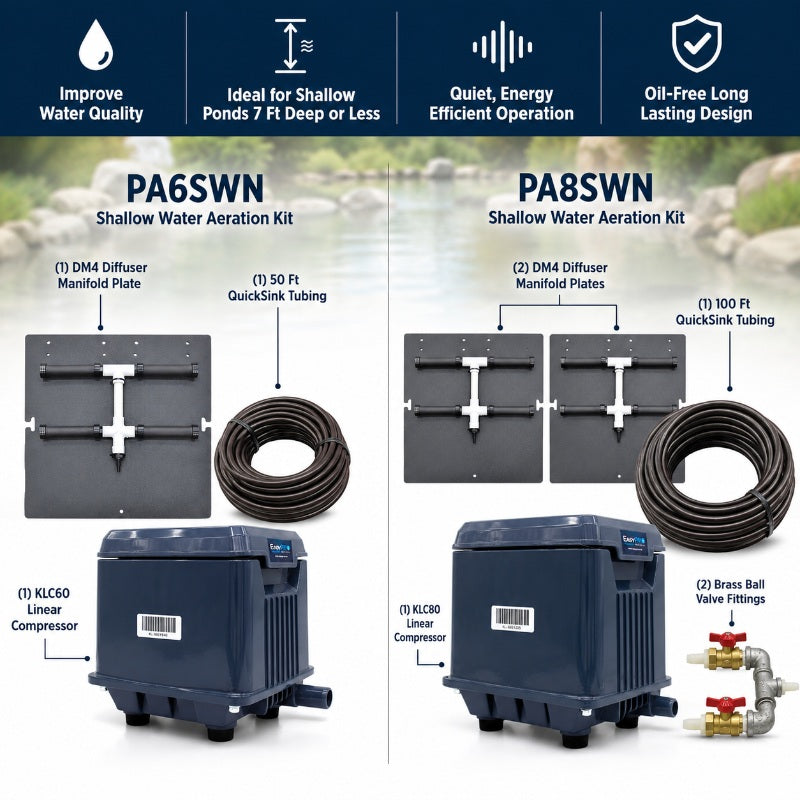

| Unit |

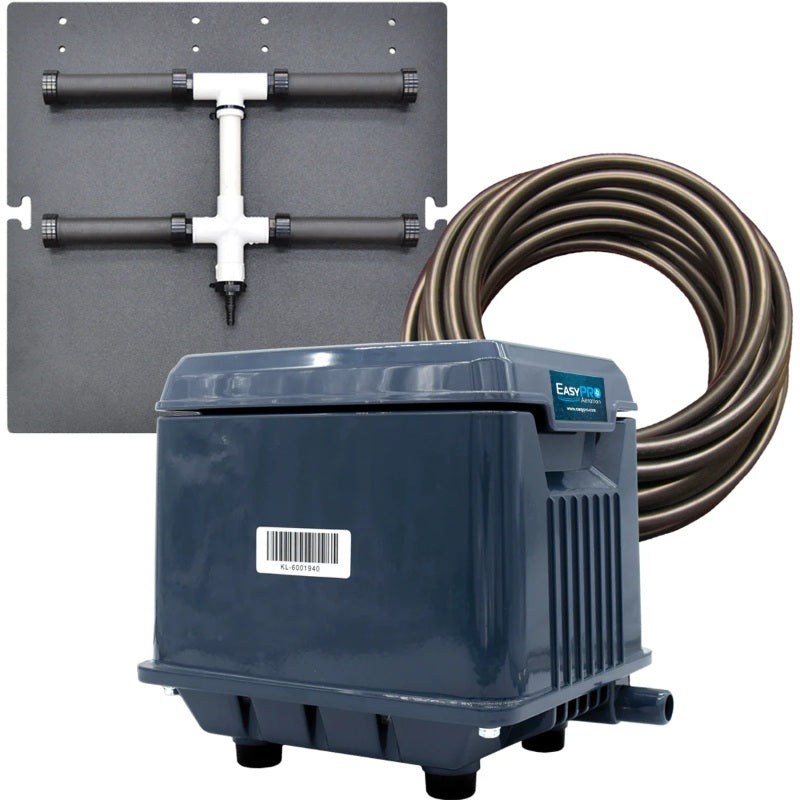

PA6SWN Single Diffuser |

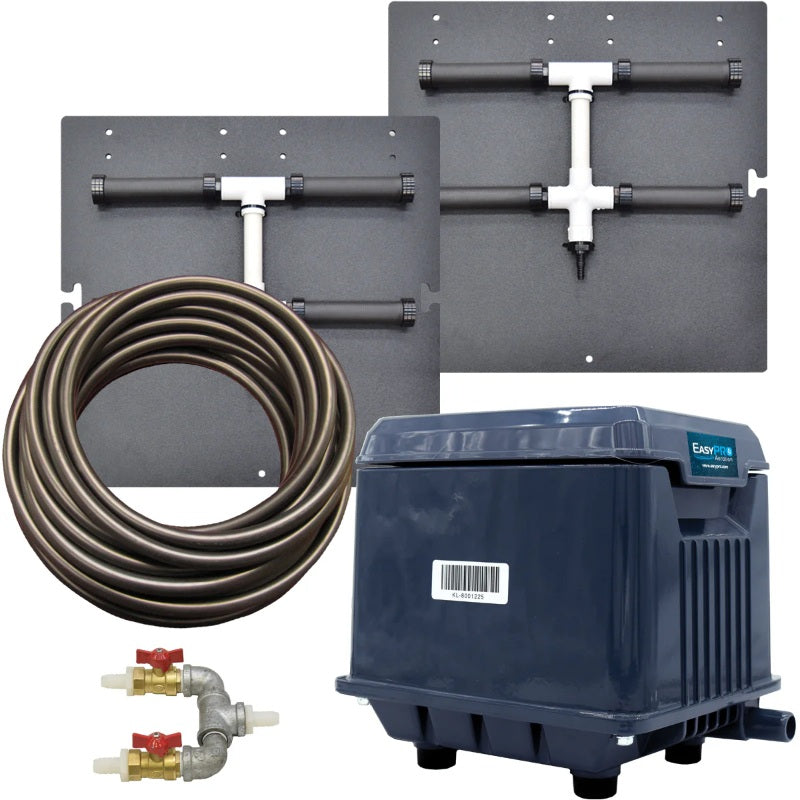

PA8SWN Double Diffusers |
| Number of diffusers | 1 | 2 |
| Compressor model | KLC60 | KLC80 |
| Tubing length | 50 ft | 100 ft |
| Tubing diameter | 1/2" | 1/2" |
| Voltage | 115v | 115v |
| Watts | 60 watts | 70 watts |
| Maximum airflow | 3.1 cfm | 3.7 cfm |
| Maximum depth | 7' | 7' |
| Weight | 49 | 88 |
| Coverage area (in acres) | up to 3/8 acre | up to 3/4 acre |
| Warranty | 3 years on compressor, 5 years on tubing/diffusers | 3 years on compressor, 5 years on tubing/diffusers |
| Suitable for | Round or regular shaped ponds | Irregularly shaped or long, narrow ponds |
EasyPro Shallow Water Aeration Kit Instructions for Operation
