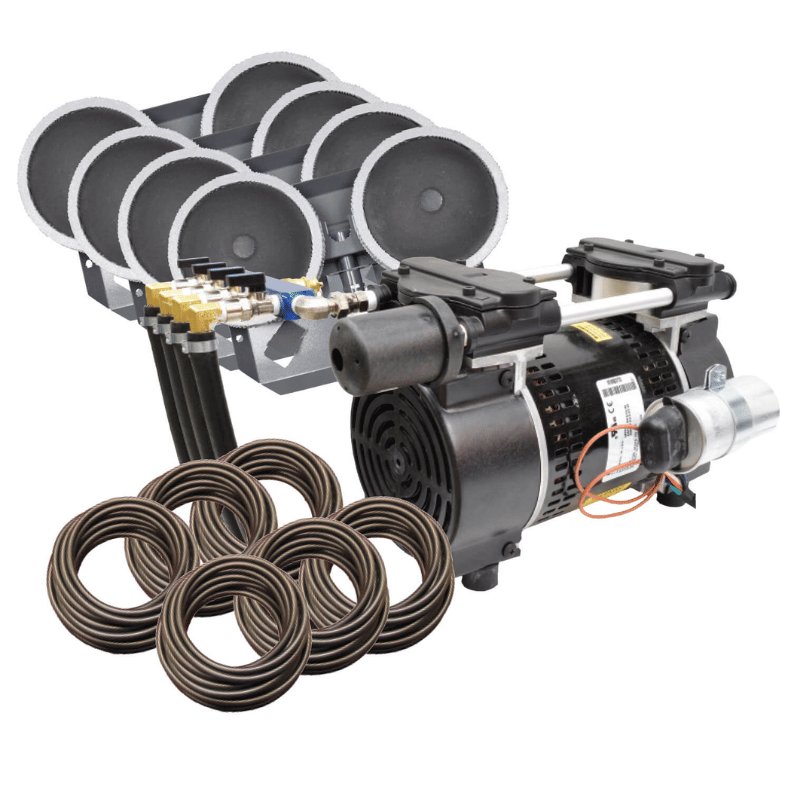

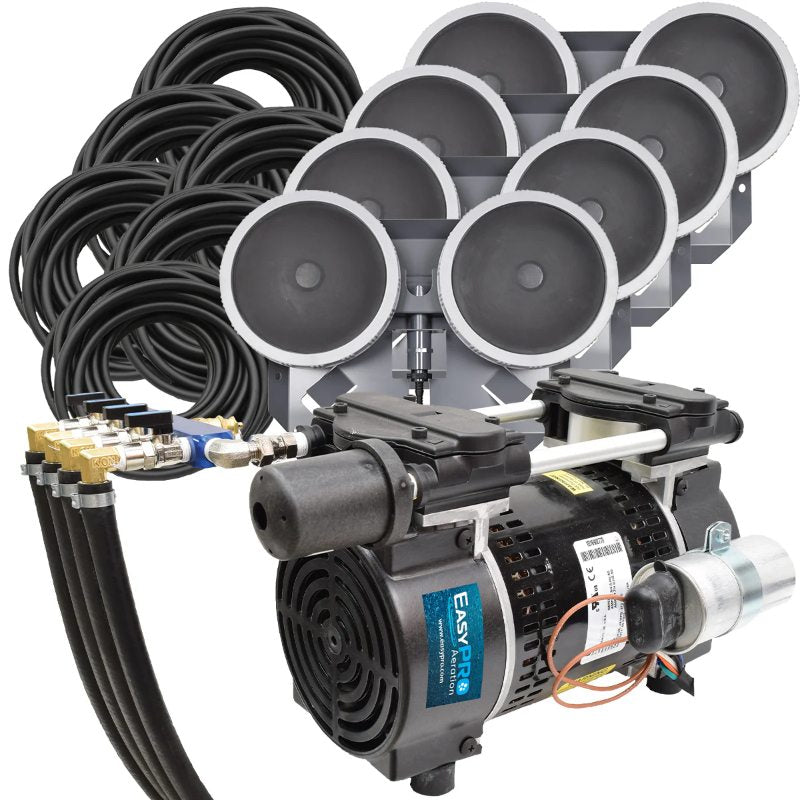

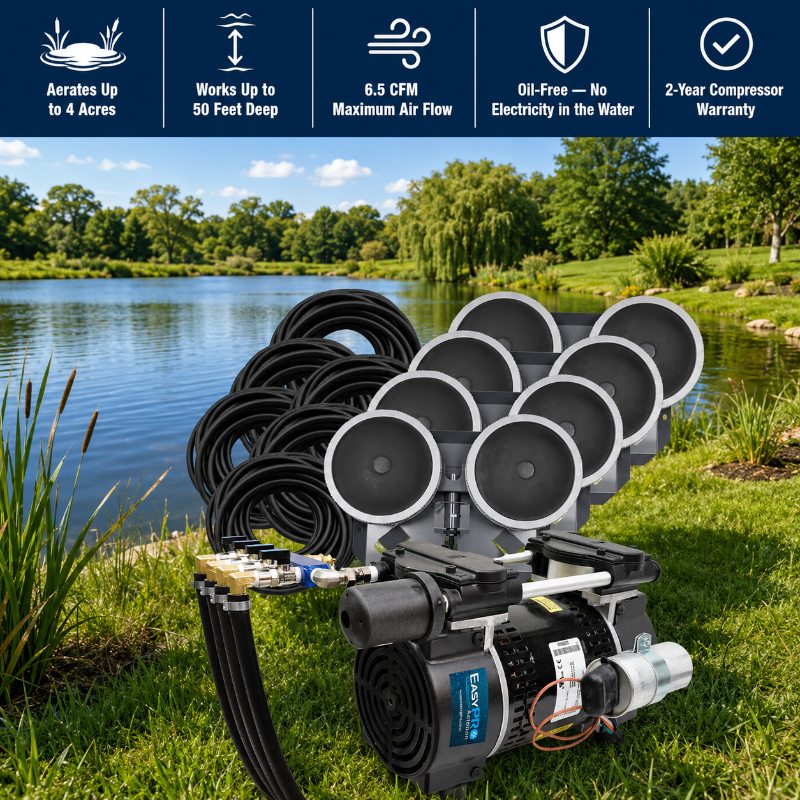

Introducing the PA86W Aeration System, an all-inclusive solution for ponds up to four acres, adapting to various shapes and depths. Anchored by the robust 3/4 hp Rocking Piston SRC75 compressor boasting 6.5 cfm and 4.5 amps, this system aerates depths of up to 50 feet. The kit features four QS2 Quick Sink air diffusers, four valved outlet assemblies with pressure relief valves, and 600 feet of 3/8" Quick Sink tubing, complete with fittings and clamps. Elevate your pond's well-being with comprehensive aeration excellence.
The typical operation cost of $1.10 per 24 hours at .09¢ per kWh, actual cost may vary.
Everything you need is included with your EasyPro PA86 system and more!
Stratus SRC series “Gen 2” rocking piston compressors are specifically designed for the demanding job of 24 hour operation. These high-performance compressors are ideal for pond aeration systems. The oil-less design safely aerates ponds with no electricity in the water. The shore mounted compressor sends air through tubing to a bottom mounted diffuser for a safe, effective way to aerate ponds.
Compressors are available in 115v or 230v.
Quick Sink, self weighted membrane air diffuser assemblies are designed to be placed at the bottom of a pond or lake. The self weighted design eliminates the need for gravel and reduces installation time. The Quick Sink diffuser assembly features round rubber (EPDM) membrane diffusers with thousands of holes which produce small air bubbles when supplied with air from an on shore compressor.
These bubbles rise to the surface and create circulation that helps destratify and aerate the water body.
Safeguard your air compressors with the EasyPro SC22 Standard Lockable Steel Cabinet – a resilient and enduring solution. Crafted from top-tier 14-gauge galvanized steel, this cabinet offers lasting protection, ensuring the safety and security of your compressors. Featuring up to six knockouts for airlines and one for incoming power, it provides customizable flexibility.
Opt for the pre-installed cooling fan option to maintain cooler operating temperatures, extending the lifespan of your compressors and minimizing the risk of damage.
| Part Number |
115V: PA86W, 230V: PA86W2 |
| Compressor | Stratus SRC75 Gen 2 |
| Horsepower | 3/4 HP |
| Tubing | 600 ft 3/8" Quick Sink |
| Amps | 4.5/2.3 amps (at 10' operating depth) |
| Maximum Airflow | 6.5 cfm |
| Maximum Depth | 50' |
| Weight | 223 pounds |
| Pond Size | Up to 4 Acres |
| Compressor Warranty | 2 Year |
| Tubbing & Diffuser Warranty | 5 Year |
| Cabinet | SC22 (Not Included) |
Corie, the owner of Mahala Springs and Farm in Tennessee, had tried multiple solutions to aerate her pond without success. We helped her find the perfect pond fountain that truly met her needs, and she couldn't be happier!
EasyPro Rocking Piston Pond Aeration System PA86 Instructions
EasyPro Rocking Piston Compressor PA86 Specifications
EasyPro Rocking Piston Compressor PA86 Installation and Service Manual
EasyPro Quick Sink Diffuser PA86 Instructions
