The PA34W Rocking Piston Pond Aeration System is a dependable and efficient solution designed to enhance the health and vitality of your pond or water feature. Powered by a 1/4 HP motor, this system delivers effective aeration to ensure optimal oxygen levels and circulation, fostering a thriving aquatic environment.
The typical operation cost of $0.40 per 24 hours at .09¢ per kWh, actual cost may vary.

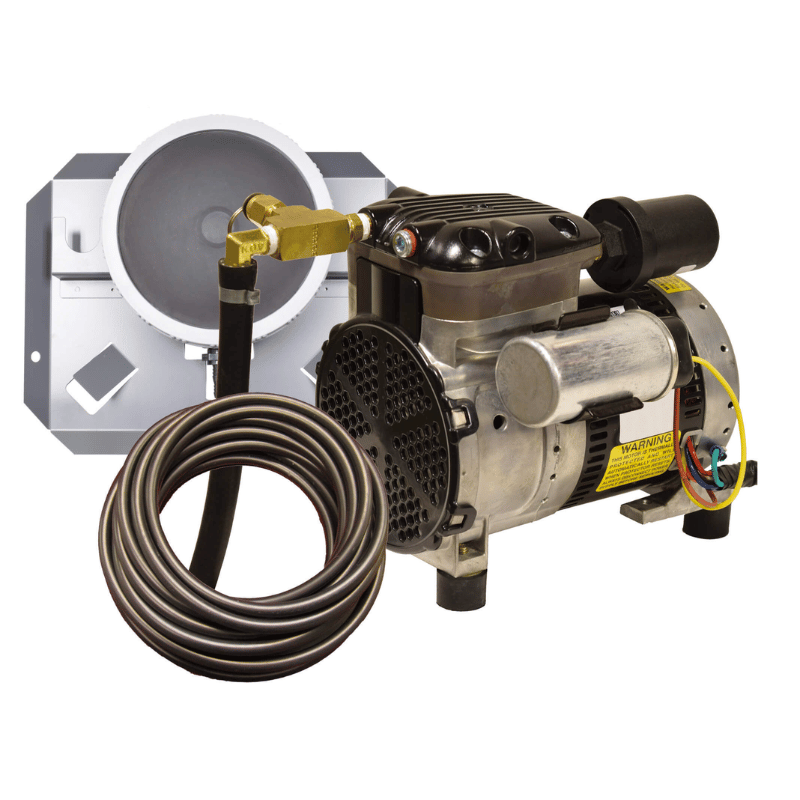

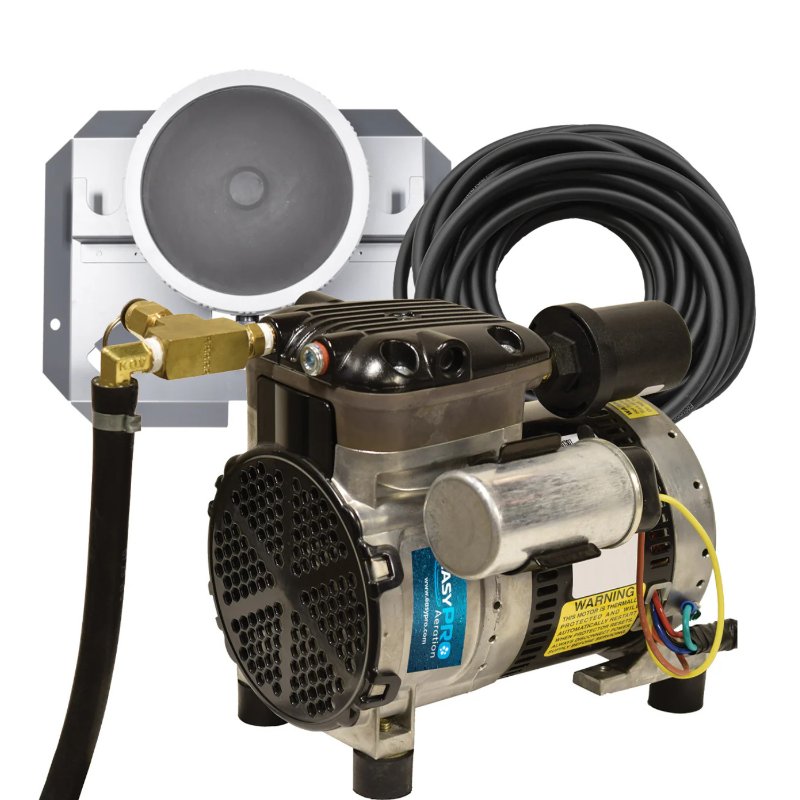

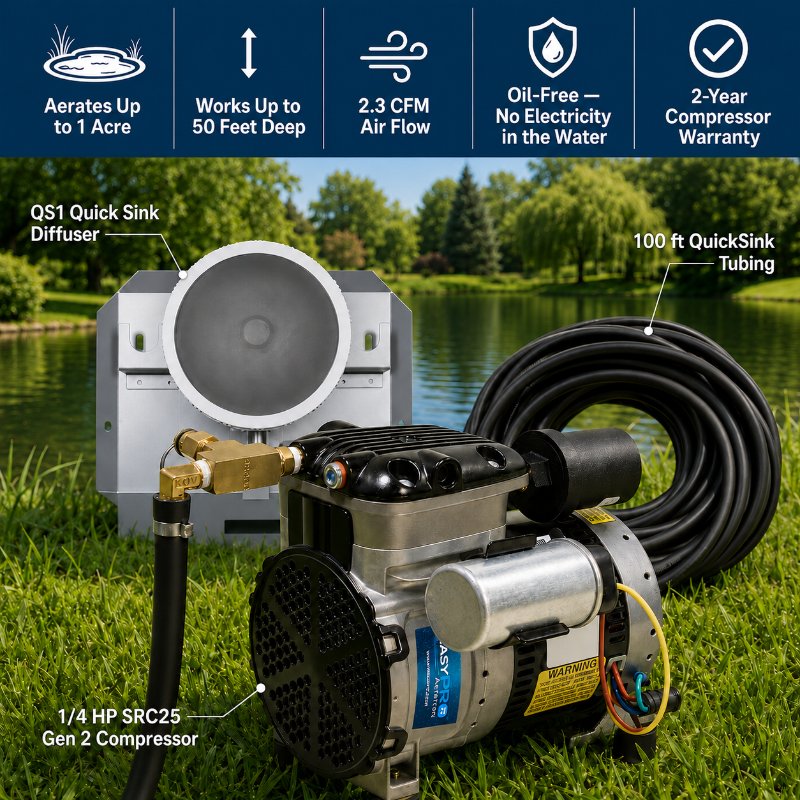

Everything you need is included with your EasyPro PA34 and more!

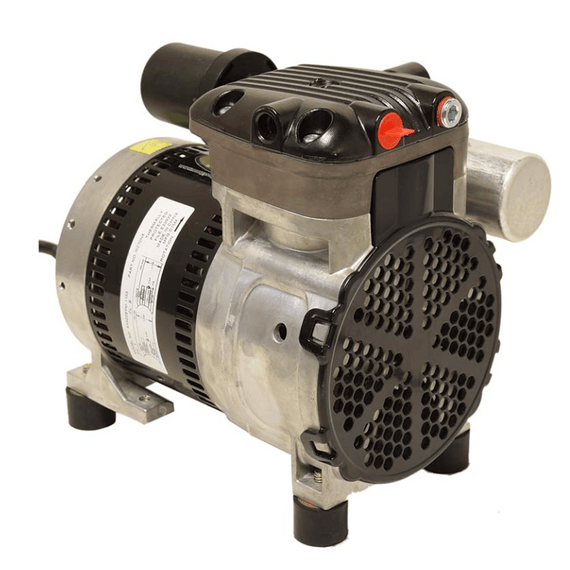

Stratus SRC series “Gen 2” rocking piston compressors are specifically designed for the demanding job of 24 hour operation. These high-performance compressors are ideal for pond aeration systems. The oil-less design safely aerates ponds with no electricity in the water. The shore mounted compressor sends air through tubing to a bottom mounted diffuser for a safe, effective way to aerate ponds. Compressors are available in 115v or 230v.
QS1 is a Quick Sink, self weighted air diffuser assemblies are designed to be placed at the bottom of a pond or lake. The self weighted design eliminates need for gravel and reduces installation time. The Quick Sink (QS1) diffuser assembly features round rubber (EPDM) membrane diffusers with thousands of holes which produce small air bubbles when supplied with air from an on shore compressor.
These bubbles rise to the surface, creating circulation that helps destratify and aerate the water body.
The QS1 has the same great membrane diffuser performance now in a self-sinking design.

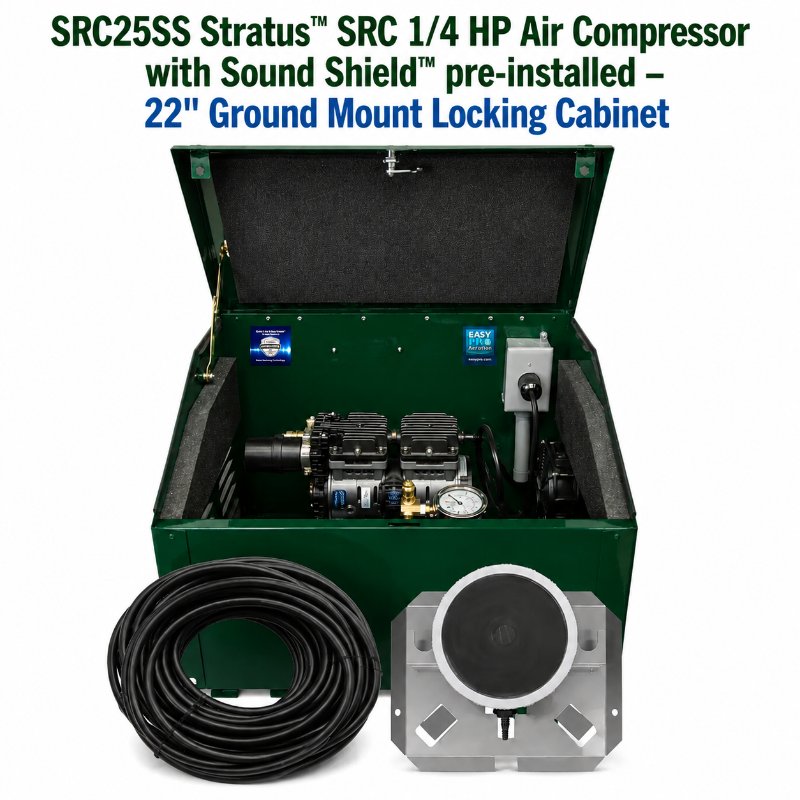

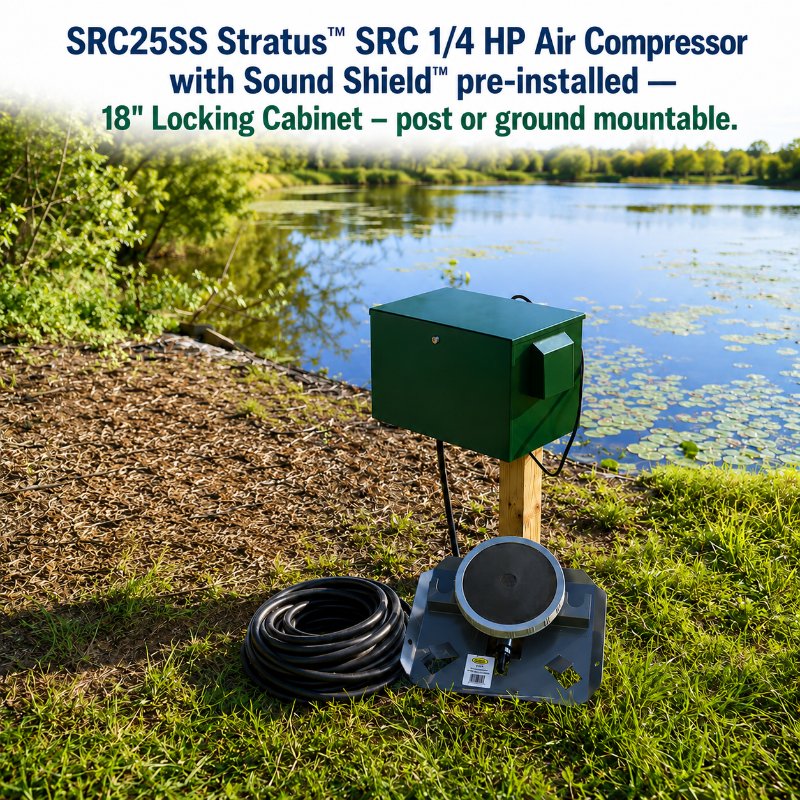

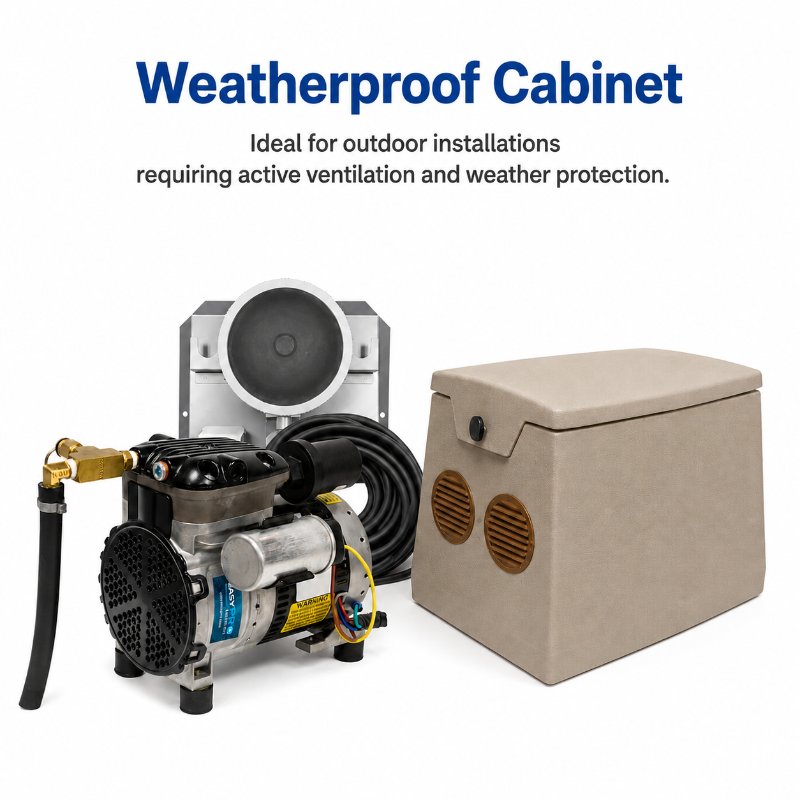

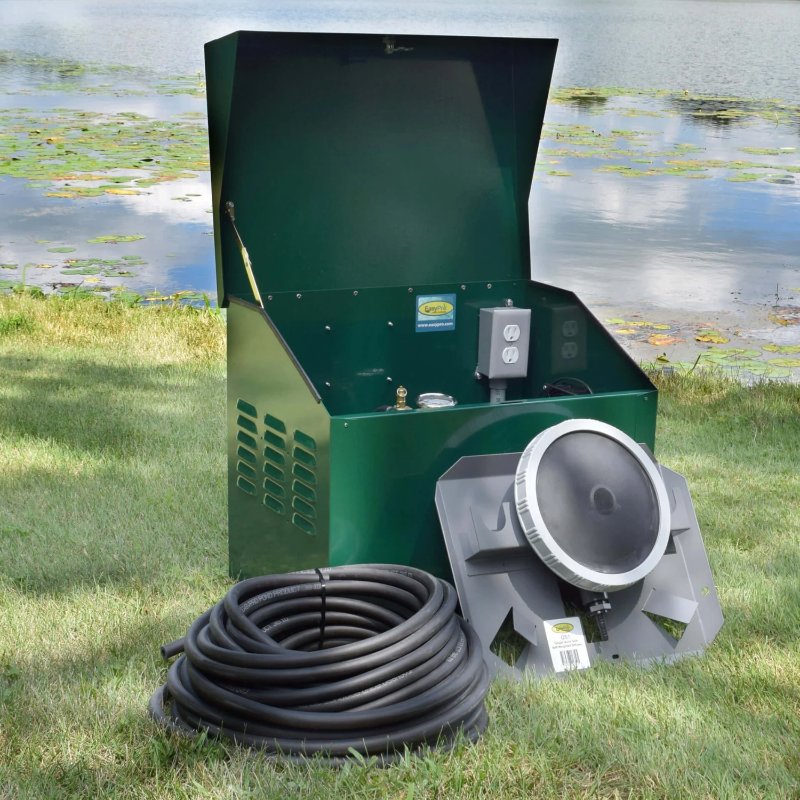

An EasyPro Compressor Cabinet provides a secure and weather-resistant housing solution for your pond aeration compressor. Designed with durability and functionality in mind, these cabinets offer protection for your compressor while allowing for proper ventilation and easy access for maintenance.
| Part Number |
115V: PA34W, 230V: PA34W2 |
| Compressor | Stratus SRC25 Gen 2 |
| Horsepower | 1/4 HP |
| Tubing | 100 ft 3/8" Quick Sink |
| Amps | 1.7/0.9 amps (at 10' operating depth) |
| Maximum Airflow | 2.3 cfm |
| Maximum Depth | 40' |
| Weight | 52 pounds |
| Pond Size | Up to 1 Acre |
| Compressor Warranty | 2 Year |
| Tubbing & Diffuser Warranty | 5 Year |
| Cabinet | Not Included - recommended cabinets are SC18, SC22, or SC25 and can be found here. |
EasyPro Rocking Piston Pond Aeration System PA34 Instructions
EasyPro Rocking Piston Compressor PA34 Installation and Service Manual
EasyPro Quick Sink Diffuser PA34 Instructions
