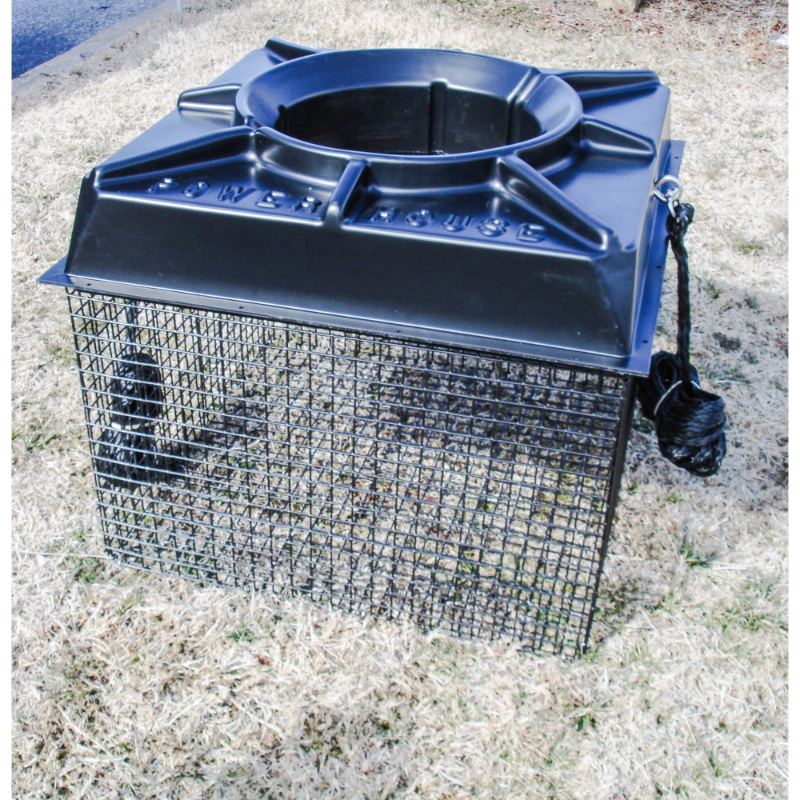

Bearon Aquatics Large Float Cage

Protect Your F-Series Aerating Fountain Or Surface Aerator With A Large Float Cage!

Elevate the safeguarding of your F-Series Aerating Fountain F500F, F1000F, and Surface Aerator with the indispensable Bearon Aquatics Large Float Cage. Shielding your Aerator from floating debris, fish, and wildlife is paramount for various reasons, be it preventing fish fatalities or combating algae bloom. Consider this unit your insurance policy, guaranteeing uninterrupted operation by eradicating the risk of downtime due to potential damage. Boasting a 1" grid plastic-coated, hot-rolled metal screen kit, this innovative protector fortifies your investment, ensuring foreign objects are kept at bay. Embrace the reassurance of wildlife-friendly design, guaranteeing operational readiness precisely when you need it the most. Trust in this reliable solution to safeguard your invaluable equipment.

Float Cage Application

Use this on: F-Series Aerating Fountain F500F, F1000F, and Surface Aerator F500, F750D, and F1000DP

Note: For the smaller unit, Surface Aerator F250 you'll need the Bearon Aquatics Small Float Cage

Bearon Float Cage Package Includes

• (1) Float Cage
• (16) Hog Rings
• (16) 5/16” Black Clips
• (16) Stainless Steel 18-8 Phillips Pan Screws
• (16) Stainless Steel 10/32 Hex Machine Nuts
• (1) Year Warranty

Tools You’ll Need To Install The Float Cage

• #2 Phillips Head Screw Driver
• Hog Ring Pliers
• Wire Cutters
• Zip-tie

Installation Guide For Aerator Float Cage

1. Remove the float cage from the box.
2. Unfold the cage, and lay flat on the ground.
3. Stand up the (4) 16”x24” side flaps. Using hog rings, connect the side flaps together. We recommend spacing hog rings approximately every 4-5”.
   Clamp the hog rings together with hog ring pliers, or something comparable.
4. With all four side flaps fastened together, space the 5/16” black clips out on the top edge of the side flaps.
   Make sure to attach the clips on the 2nd, 9th, 16th, and 23rd 1” grid on the float cage. Make sure the clips have the rounded edge facing down
5. Lay the square black float on top of the float cage.
6. Line the black clips with the pre-drilled holes of the square black float.
7. Fasten the screw and nut through the square black float and black clip.
8. Run the power cord from the F-Series unit through the square black float.
9. Cut a section of the float cage to allow the power cord to pass through.
10. Zip-tie the power cord into place.
