The Airmax SolarSeries Direct Drive Aeration System is designed to be the best solar-powered device for keeping ponds healthy. They're perfect for people who want to use solar energy or have ponds in remote areas without electricity. These systems are built to work well all over the country, even in winter and when there isn't much sunlight.
This aeration system is made to high standards, so it lasts a long time, needs little maintenance, and doesn't make much noise. It uses direct drive systems that can run up to 12 hours daily. This helps stop fish from dying in cold weather and adds extra oxygen when it's hot in the summer. Once it's set up, your SolarSeries pond aerator will run on solar power, which means it won't cost anything.
Airmax aeration works by pumping air from the shore into special diffusers on the bottom of the pond. This creates bubbles that bring oxygen-rich water up from the bottom, which helps mix the water and keep it healthy.
Manufactured in the USA, Airmax Aeration Systems feature high-performance components, embodying reliability and quality.
Direct Drive
The SolarSeries Direct Drive solar aerator has a 24-volt DC SilentAir compressor housed in a thermoset fiberglass control panel that conveniently attaches to the solar panel mounting assembly. Direct drive systems, which run up to 12 hours per day even in low-light conditions, can prevent winter fish kills in freezing climates and provide supplemental oxygen saturation during the hot months of summer.
American Made Solar Panels
Unlike single-panel systems, the Airmax SolarSeries solar pond aerators come standard with two high-quality American-made solar panels. The panels deliver high output for maximum performance, even in low-light conditions. Solar panels can be installed at the water's edge or up to 1/4 mile away from the pond or lake.
Easy Installation
Our exclusive EasyMount system comes preassembled for simple installation of panels. Made from powder-coated, military-grade aluminum, the EasyMount system is corrosion-resistant, strong, and lightweight.
ProAir 2 Weighted Diffusers
Designed for maximum oxygen uptake, the ProAir 2 Weighted Diffusers incorporate high-efficiency, low-maintenance membrane sticks to release tiny oxygen bubbles into the water column. Membrane diffusers have the synergy of air stones without the headaches of cracking and acid-washing. The ProAir 2 Weighted Diffuser has an integrated check valve to prevent backflow of water in airlines. The innovative sled design keeps the ProAir 2 submerged while maintaining an upright position during installation. Comes with a 5-year warranty.
Airflow Manifold Assembly
Airmax simplifies airflow management to individual diffusers with a 2-port manifold with nickel-plated ball valves, as well as an integrated pressure gauge and pressure relief valve. The SolarSeries SS20-DD solar powered aerator is set up for 5/8" airlines (can be purchased with or without 200' of 5/8" airline). The airline comes with a 5-year warranty.
Direct drive power, which runs up to 12 hours per day even in low-light conditions, provides supplemental oxygen in the summer and prevents winter fish kills in freezing climates.
Thermoset fiberglass control panel houses the direct drive motor and conveniently attaches to the solar panel mounting assembly.
ProAir 2 Weighted Diffusers have an innovative maintenance-free sled design that keeps them submerged in water while maintaining an upright position during installation. Includes two diffusers.
Each compressor includes a pressure gauge to help monitor system performance and a pressure relief valve to protect against back pressure.

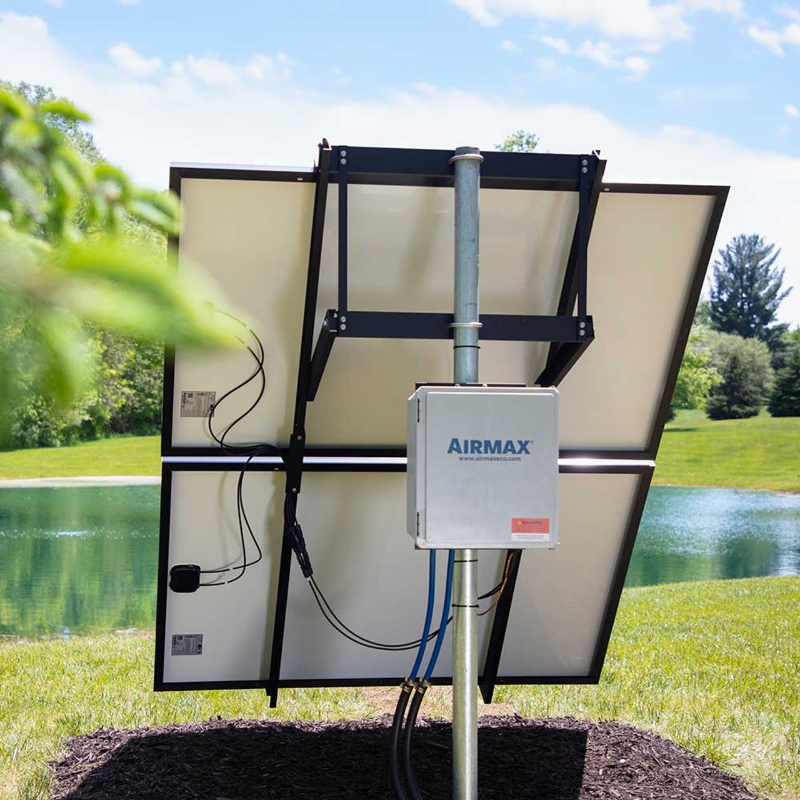

The EasyMount Assembly system comes preassembled for simple installation of two American-made high-output solar panels that provide direct drive power to the aeration motor.
Elevate your aeration system's capabilities effortlessly with EasySet Airline. Crafted for underground use, the 5/8" direct burial airline ensures seamless oxygen distribution. Its self-weighted design facilitates easy sinking to the pond's bottom, optimizing aeration effectiveness. Built to last, this airline is puncture-resistant, guaranteeing years of uninterrupted service.
 |
|
|---|---|
| Unit | SS20-DD Solar Powered Pond Aerator |
| Max Pond Size | Up to 2 Acres |
| Max Depth | 20 Feet |
| Running Time | Up to 12 Hours |
| Compressor | SilentAir Compressor 24V DC |
| CFM | Up to 2 CFM |
| Voltage | 24V (DC) |
| Solar Panel Type | Monocrystalline (60 Cell) |
| Solar Panel Dimensions | 75"L x 41.5"W x 1.57"H |
| Connector Type | MC4 |
| Diffuser Type | (2) ProAir 2 Weighted Diffusers |
| Airline | 5/8" I.D. Self-Weighted |
| Airline Quantity | No Airline or 200' (100' Roll x2) |
| Control Panel | Thermoset Fiberglass (Pole Mount) |
| Cooling Fan |
Yes |
|
1 Mounting Pole Required (Not Included) |
2.5" DIA (2.875" O.D. / 2.47" I.D) x 10'L (min) Schedule 40 Galvanized Steel Pole |
| dB Level |
45-50 @ 5' |
| Warranty | 3 years on Compressor, Electrical Components & Mounting HardwareĀ |
| Diffusers & Airline Warranty |
5 Years |
| Solar Panels Warranty |
Limited 25-Year |
