Tailored for ponds with depth constraints, the Airmax Shallow Water Series Aeration Systems are precision-engineered for optimal aeration and circulation. Ideal for bodies of water with limited depth, these systems are equipped to address the unique needs of ponds requiring multiple aeration diffusers. The high-efficiency dual-diaphragm compressor ensures robust airflow to the ProAir2 Weighted Diffusers, capable of operating effectively in water depths of up to 6 feet while demanding minimal maintenance.
Proudly manufactured in the United States, these systems boast top-of-the-line components, renowned for their exceptional performance and professional-grade quality.

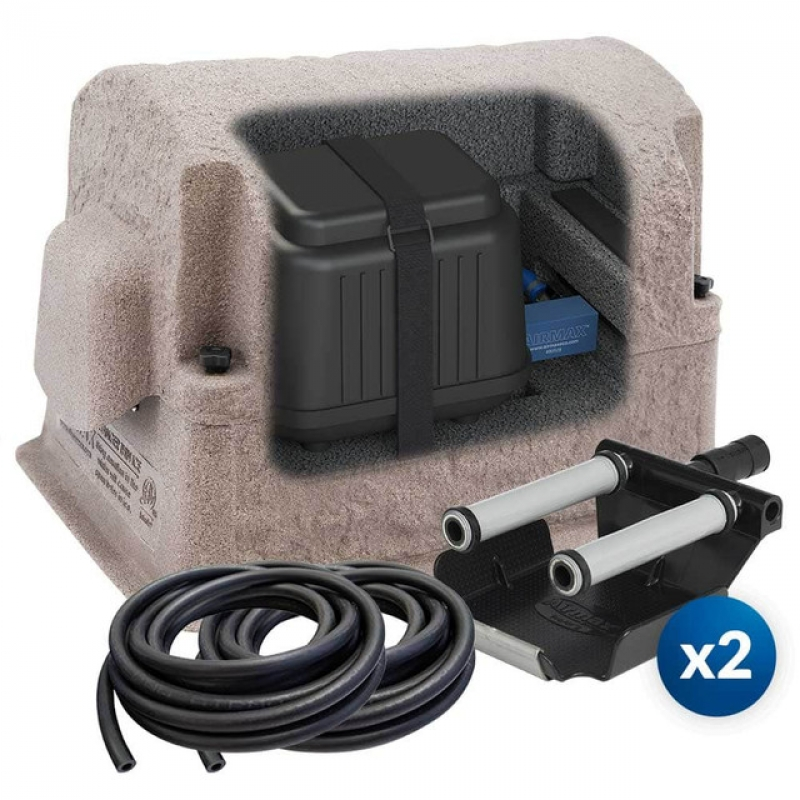

Everything you need is included with your Shallow Water Airmax Aerator.
The core of every Shallow Water Series Aeration System lies in its robust LR25 or LR50 Linear Diaphragm Compressor, designed for optimal efficiency and whisper-quiet operation at 115V. Equipped with rubber mounts to dampen noise and vibrations, ensuring silent performance, the LR25 powers the SW20, delivering up to 2.5 CFMs of oxygen to your pond for as little as $3.60 a month, backed by a 3-year warranty. Similarly, the LR50 drives the SW40, providing a generous 4.9 CFMs of oxygen while costing only $7.20 a month, also with a 3-year warranty.
Designed for maximum oxygen uptake, ProAir 2 Weighted Diffusers incorporate high-efficiency, low-maintenance membrane sticks to release tiny oxygen bubbles into the water column. Membrane diffusers have the synergy of air stones without the headaches of cracking and acid-washing. The ProAir 2 Weighted Diffuser has an integrated check valve to prevent back pressure on the compressor. The innovative sled design keeps the ProAir 2 submerged while maintaining an upright position during installation. Comes with a 5-year warranty.
ETL electrical safety certified composite cabinet has a quiet design with a faux rock finish to blend into any landscape. The removable top and side high-density air intake filter protect the compressor and pre-wired electrical box from outside contaminants while providing easy access. Other cabinet features include an elevated base protecting against damaging flood water and a ventilation fan with a rain shroud that cools and protects against moisture and heat damage. Cabinet dimensions: 23"L x 17"W x 15"H. Comes with a 10-year warranty.
The Airmax Shallow Water Series SW20 Aeration Systems, available with or without (2) 100' rolls of 3/8" Self-Weighted Airline, boasts kink-free and fish hook-resistant properties, ensuring durable performance. Similarly, the SW40 Aeration Systems offer (4) 100' rolls of the same airline, providing ample coverage and reliability for your aeration needs.
 |
 |
|
|---|---|---|
| Unit | SW20 | SW40 |
| ProAir2 Diffusers | 2 | 4 |
| Max Pond Size | Up to 1/4 Acre | Up to 1/2 Acre |
| Maximum Depth | 6' | 6’ |
| SilentAir Compressor | LR25 | LR50 |
| Running Amps | 0.43 | 0.87 |
| Voltage | 115V | 115V |
| Wattage | 50W | 100W |
| Monthly Operating Cost (24/7)* | $3.60 | $7.20 |
| 3/8" EasySet Weighted Airline | None, 100', (2) 100' | None, 200', (4) 100' |
| Cabinet Dimensions | 23"L x 17"W x 15"H | 23"L x 17"W x 15"H |
| Power Cord | 6' | 6' |
| ProAir2 Diffuser Warranty | 5-Year | 5-Year |
| Compressor & Electrical Component Warranty | 3-Year | 3-Year |
| Composite Cabinet Warranty | 10-Year | 10-Year |
| EasySet Airline Warranty | 5-Year | 5-Year |
**Cost Per Month is calculated at 10¢ per kilowatt hour. Please note that costs will vary depending on the location.
