The Remote Manifold Kit is specifically engineered for seamless integration with any Airmax Aeration System positioned at a distance from the pond's edge.
This innovative solution enables pond owners to extend a single line from the power source to the pond’s perimeter, allowing for convenient airflow adjustments within sight of the diffusers. This design simplifies the process of balancing each diffuser plate, eliminating the need to move repeatedly between the cabinet and the pond.

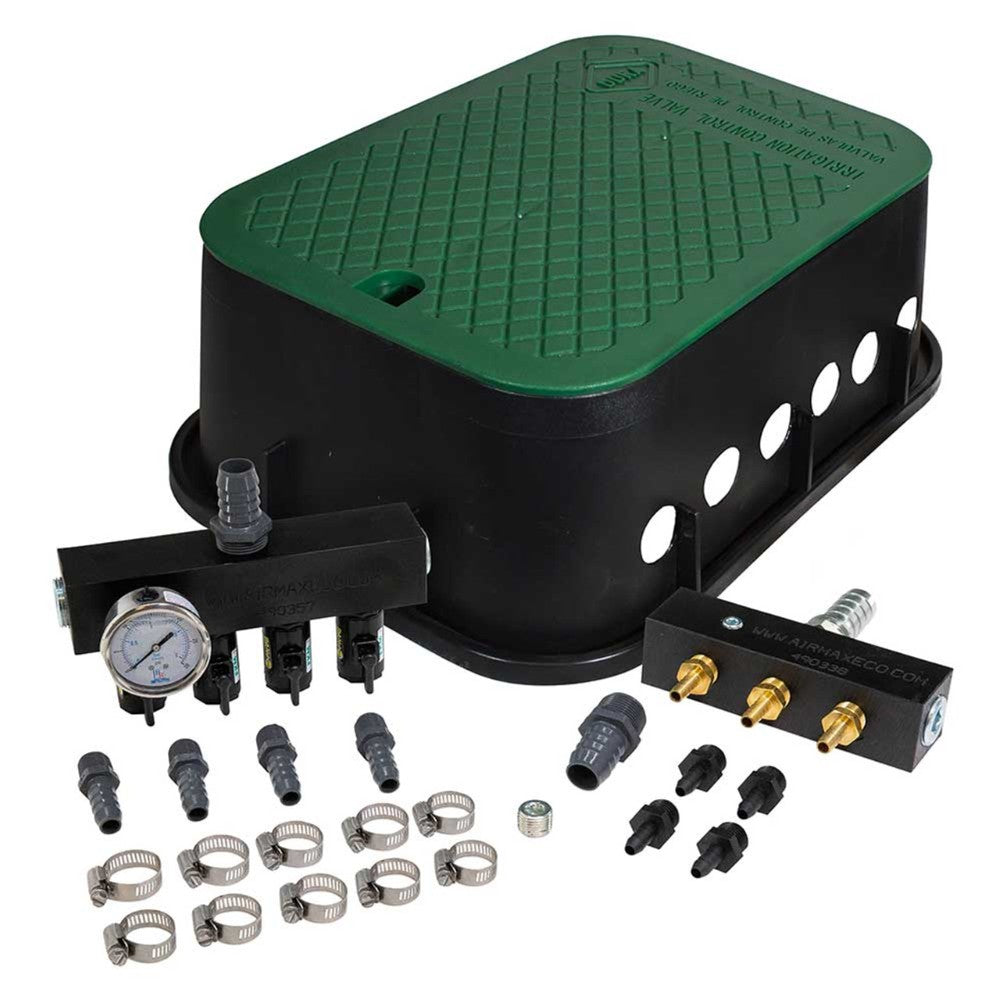

All kits include a junction valve box (17″L x 12″W x 6″D), remote manifold, and fittings to connect to 1″ direct burial (poly) tubing.
Everything you need is included with your Remote Manifold Kit.
The Remote Manifold Kit is specifically designed for aeration setups where the power source is located away from the pond. It enables a single run of direct burial airline from the power source to the pond, streamlining installation.
This innovative design allows you to adjust airflow directly at the pond's edge, providing a clear view of the diffusers for precise control.
Key Features:
 |
 |
|
| Model | 4-Port Remote Manifold Kit | 6-Port Remote Manifold Kit |
| Compatible Aeration System Models | SW20, SW40 SW20HP, SW40HP PS20, PS30, PS40,PS80 LS40, LS80* (2x 4-Ports) | PS60, LS60 LS80 LS120* (2x 6-Ports) |
| Junction Box Dimensions | 17"L x 12"W x 6"D | 17"L x 12"W x 6"D |
| Compatible Tubing | Adapts to 1" Poly Tubing | Adapts to 1" Poly Tubing |
| Number of Ports | 4 Ports | 6 Ports |
| Warranty | 1-Year | 1-Year |
Please Note: Aeration systems equipped with two compressors will require two Remote Manifold Kits and two runs of direct burial airline one for each compressor.
Airmax Remote Manifold Kit - Installation Instructions
