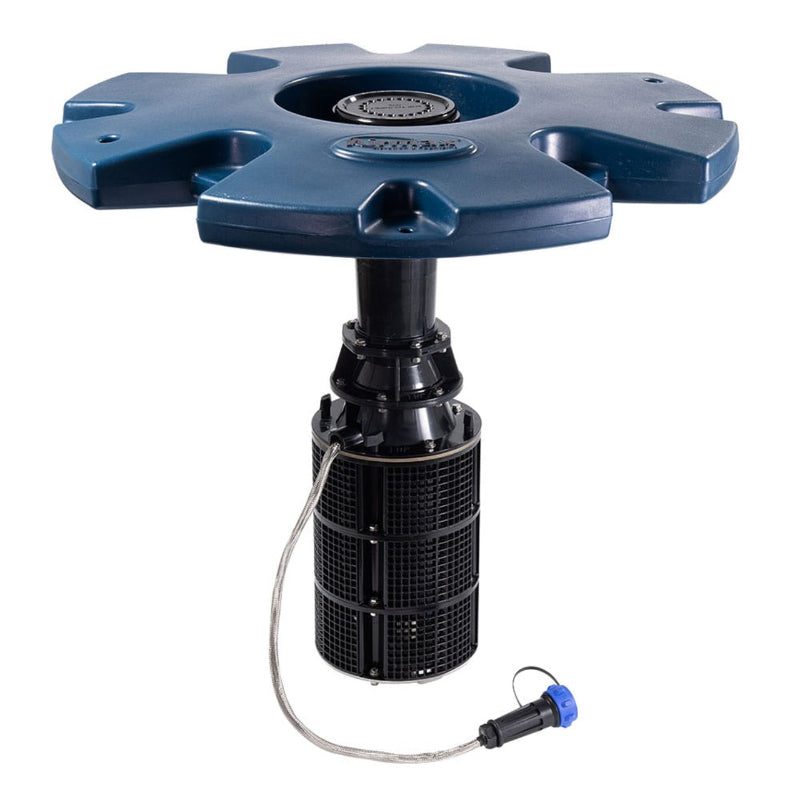

The PondSeries Fountain boasts a design engineered for both performance and longevity. Its patent-pending high-flow design delivers stunning spray patterns, adding an aesthetic touch to any pond while aerating the water effectively. Featuring a maintenance-free, energy-efficient motor with an innovative cooling shroud design, this fountain ensures maximum cooling and durability, reducing maintenance costs over time.
ItĀ boasts an oil-free motor and oversized intake screen for low maintenance and uninterrupted viewing pleasure.Ā The fountain offers three unique spray patterns, withĀ optionalĀ spray pattern nozzlesĀ available for purchase. Its Thermoset Fiberglass Control Panel includes safety features like fast-acting circuit breakers and programmable 24-hour digital timers for convenient scheduling of fountain and lighting.
And for those evenings when you crave a little extra magic, there's the option to includeĀ optional color-changing LED lights. A standard 100-foot power cord featuring a stainless-steel strain relief and underwater quick disconnect, the PondSeries Fountain offers ease of installation and flexibility. Additional power cord lengths are available, ensuring compatibility with ponds of various sizes.Ā
Everything you need is included with yourĀ fountain and more!
 |
 |
 |
|
|---|---|---|---|

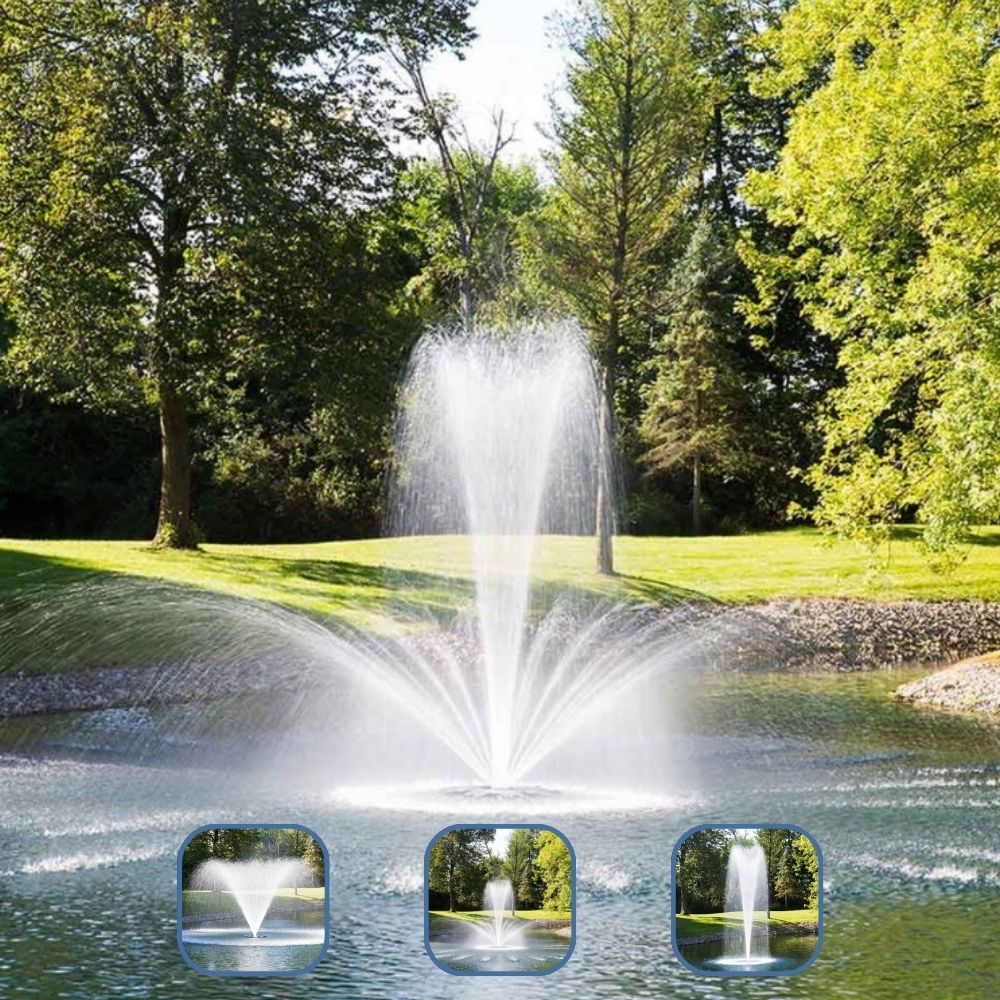

| Spray Pattern | ClassicĀ (Included) | Crown & TrumpetĀ (Included) | TrumpetĀ (Included) |
| Sample Video |
Watch Now |
Watch Now |
Watch Now |
| 1/2 HP Pattern Dimensions | 5.5'H x 13'W | Trumpet: 8'H x 6'W Crown: 4.5'H x 32'W |
12.5'H x 5'W |
| 1 HP Pattern Dimensions | 9.5'H x 23'W | Trumpet: 11'H x 6'W Crown: 4.5'H x 32'W |
16'H x 6'W |
| 2 HP Pattern Dimensions | 14'H x 28'W | Trumpet: 13'H x 8'W Crown: 6.5'H x 38'W |
20'H x 9'W |
 |
 |
 |
 |
|
|---|---|---|---|---|
| Spray Pattern | Single ArchĀ (Optional) | Double ArchĀ (Optional) | Double Arch & GeyserĀ (Optional) | Blossom (Crown & Arch)Ā (Optional) |
| Sample Video | Watch Now | Watch Now | Watch Now | Watch Now |
| 1/2 HP Pattern Dimensions | 9'H x 14'W | 1st Tier: 8'H x 8'W 2nd Tier: 4.5'H x 28'W |
Geyser: 9'H 1st Tier: 6'H x 7'W 2nd Tier: 4'H x 28'W |
1st Tier: 5'H x 7'W 2nd Tier: 2'H x 13'W |
| 1Ā HP Pattern Dimensions | 8'H x 22'W | 1st Tier: 9'H x 10'W 2nd Tier: 5'H x 34'W |
Geyser: 8.5'H 1st Tier: 5.5'H x 13'W 2nd Tier: 4'H x 30'W |
1st Tier: 6.5'H x 10'W 2nd Tier: 2'H x 19'W |
| 2Ā HP Pattern Dimensions | 9'H x 24'W | 1st Tier: 10'H x 10'W 2nd Tier: 5.5'H x 36'W |
Geyser: 9.5'H 1st Tier: 6'H x 15'W 2nd Tier: 4'H x 32'W |
1st Tier: 8.5'H x 10'W 2nd Tier: 2.5'H x 22'W |
Airmax Control Panels are equipped with two outlets to power both the fountain and optional light kits. These control panels feature programmable 24-hour digital timers, which enable users to independently program the run times for both the fountain and the lights.
Operating at either 115 or 230 volts, these control panels offer flexibility in scheduling, allowing for up to eight programmable run times per day for both the fountain and the lights. This level of customization ensures optimal control over the operation of the fountain and lighting system, catering to specific preferences and requirements.
The Airmax RGBW Color-Changing 4 LED Light SetĀ offers versatile mood lighting with colors like white, blue, green, and red. Controlled wirelessly by a remote with a 200-foot range, users can adjust colors, brightness, flash speed, and access nine preset programs for ambiance. Installation is tool-free, with lights clipping onto the PondSeries float.
Each set includes a 100-foot power cord, with options for longer lengths. The lights are sealed for maintenance-free operation and feature stainless-steel braiding for durability. With this setup, users can enjoy hassle-free customizable lighting for their pond or water feature.
All Airmax floating fountains come with aĀ standard power cord. You may want to explore the cord protection options if you have nuisance pond wildlife like beavers, muskrats, or nutria, notorious for chewing cords. Replacement cords can be expensive and time-consuming, so investing in cord protection is a great insurance policy for your fountain.
Airmax power cords can be wrapped with the durableĀ PolyFlex protective cord, or if you are looking for something more substantial, we highly recommend theĀ stainless-steelĀ option for the ultimate power cord protection.
 |
 |
 |
|
|---|---|---|---|
| Unit | 1/2 HP PondSeries Model | 1 HPĀ PondSeries Model | 2 HPĀ PondSeries Model |
| Recommended Pond Size | Aerates up to 1/4 Acre | Aerates up to 1/2 Acre | Aerates up to 1 Acre |
| Float Diameter | 34 Inches | 46 Inches | 46 Inches |
| Fountain Volts / Running Amps | 115 Volts / 12 Amps 230 Volts / 6 Amps |
230 Volts / 7 Amps | 230 Volts / 12 Amps |
| Fountain Wattage | 1,380-Watts | 1,610-Watts | 2,760-Watts |
| Min. Operating Depth | 36 Inches | 36 Inches | 36 Inches |
| Max Spray Height | 12.5 Feet | 16 Feet | 17 Feet |
| Included Patterns | Classic Crown & Trumpet Trumpet |
Classic Crown & Trumpet Trumpet |
Classic Crown & Trumpet Trumpet |
| Optional Spray Patterns | Single Arch, Double Arch, Double Arch & Geyser, Blossom |
Single Arch, Double Arch, Double Arch & Geyser, Blossom |
Single Arch, Double Arch, Double Arch & Geyser, Blossom |
| Control Panel Voltage/Amp Rating | 115V / 15A 230V / 20A |
230V / 20A | 230V / 20A |
| Control Panel Enclosure Type | Thermoset Fiberglass | Thermoset Fiberglass | Thermoset Fiberglass |
| Wattage | 184W | 472W | 725W |
| Protective Cord Sleeves | Standard PolyFlex Stainless-Steel Braiding |
Standard PolyFlex Stainless-Steel Braiding |
Standard PolyFlex Stainless-Steel Braiding |
| Fountain & Control Panel Warranty | 3 Years | 3 Years | 3 Years |
|
Daily Operating Cost (8 hrs/day)* |
$1.10 | $1.29 | $2.21 |
*Daily Operating Cost is calculated at $0.10 per kilowatt hour. Please note that costs vary by location.
Airmax PondSeries Fountain Manual
Airmax Fountain Nozzles Installation Instructions
Airmax Control Panels Installation Instructions
