Embark on pond perfection with the Scott Aerator Solar Boilermaker, a game-changer for off-grid water sanctuaries. Embrace eco-friendly excellence as this innovative aerator, fueled by solar prowess, breathes new life into your pond. Amplifying oxygen infusion through robust water circulation, not only invigorates your aquatic inhabitants but also accelerates the decomposition of organic matter, curbing muck accumulation.
Bid farewell to surface nuisances like algae and debris, as the Boilermaker's dynamic surface currents swiftly sweep them away. Harnessing the sun's energy, this solar marvel operates at variable speeds during the day, gracefully winding down after sunset ā no batteries needed. With stainless steel durability and an oil-free motor, maintenance is a breeze, ensuring worry-free pond bliss.
But that's not all ā the Boilermaker excels as a pond de-icer during winter. No more costly winterization procedures; simply leave it in the water, turn off the power, and let it endure sub-zero temperatures without damage. When spring arrives, re-energize the unit, and you're good to go.
Note:Ā Please disconnect the power source when swimmers are present.
Everything you need is included with your Scott Solar Boilermaker Aerator.

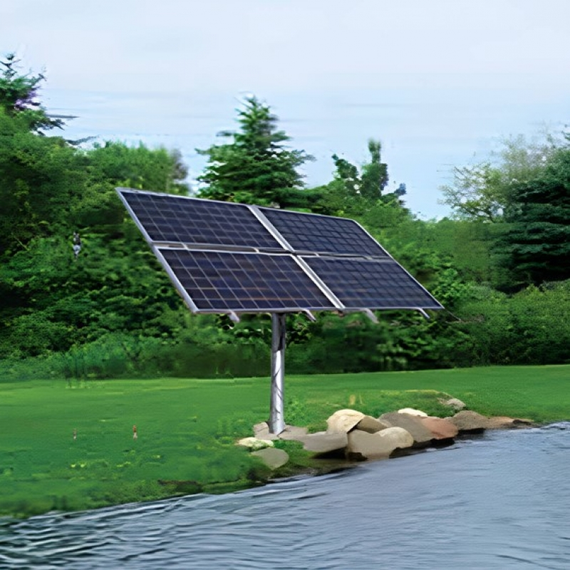

The Solar Array - The system includes a pole-mounted frame, four photovoltaic panels, a disconnect box, a control unit, and all necessary wiring components. The entire structure mounts on a 4-inch SCH40/80 galvanized steel pipe and concrete footing which is not included (installer supplied).Ā
Controller - The brains of the system is our Fhoton Driveā¢, a variable speed motor drive designed to run the Boilermaker specially equipped with a Franklin Electric submersible induction motor. This allows the solar PV array to gradually bring the water flow up to capacity and operate with variable sunny or cloudy conditions.
The Scott Aerator Solar Boilermaker is easy to install and comes with everything you need to get started.
Whether you're a seasoned professional or a first-time pond owner, you'll find the installation process quick and easy.
Once your aerator is up and running, you'll be amazed at how quickly it starts to make a difference in the health and appearance of your pond.
The unit is designed for freshwater or saltwater. Please disconnect power source when swimmers are present.Ā
The Scott AeratorĀ color-changing LED light sets offer full control over your fountain lights. A long-range remote allows you to change your settings with ease from up to 1,000 feet away. The fully programmable timer lets you set up to 16 on/off settings.
Solid color lighting is available in red, warm white, blue, green, lavender, cyan, and yellow-green, with many additional colors available in the rotating patterns such as purple, gold, hot pink, and orange, to name just a few.
Available In:
 |
 |
|
| Unit Model | 1/2 HP Unit (2 Panels) | 3/4 HP Unit (4 Panels) |
| Voltage | 48V | 100V |
| Gallons Per Minute | 200 GPM | 300 GPM |
| Watts | 370 Watts | 810 Watts |
| Amps | 10.3 Amps | 8.6 Amps |
| Solar Panel | Two 325-watt 60-cell mono-crystalline panels | Four 325-watt 60-cell mono-crystalline panels |
| Solar Panel Measurement | 39" x 65" | 39" x 65" |
| Minimum Pond Depth | 32 Inches | 32 Inches |
| Power Cord Available | 70', 100', 150', 200' | 70', 100', 150', 200' |
| Saltwater Compatible | Yes | Yes |
| Light Kits Can Be Added | Yes, now or later | Yes, now or later |
| Motor Warranty | 5-Year | 5-Year |
Scott Aerator Solar Boilermaker Aerator 1/2 HP (2 Panels) Owner's Manual
Scott Aerator Solar Boilermaker Aerator 3/4 HP (4 Panels) Owner's Manual
Scott Aerator Boilermaker Anchoring Method
