Upgrade your pond's health effortlessly with the ProLake Mini Diffused Aeration Kit. Engineered for ponds and lakes up to 1 surface acre, this kit boasts a robust 1/2 horsepower compressor delivering 5.3 cubic feet of air per minute to our low-maintenance diffusers.
The 3/8" airline and Level-Aer aeration pad, coupled with high-volume cooling blowers and adjustable brushed aluminum manifolds, create a durable and energy-efficient solution. Enjoy a clean and easily maintained pond year after year with this trustworthy aeration system.
The best attributes of the Mini can be found in its product engineering. As the name indicates, the Mini measures 14 x 14 x 16 so it is easily concealable. It is also designed to run whisper quiet so you wonāt even notice it's there no matter where it is installed.

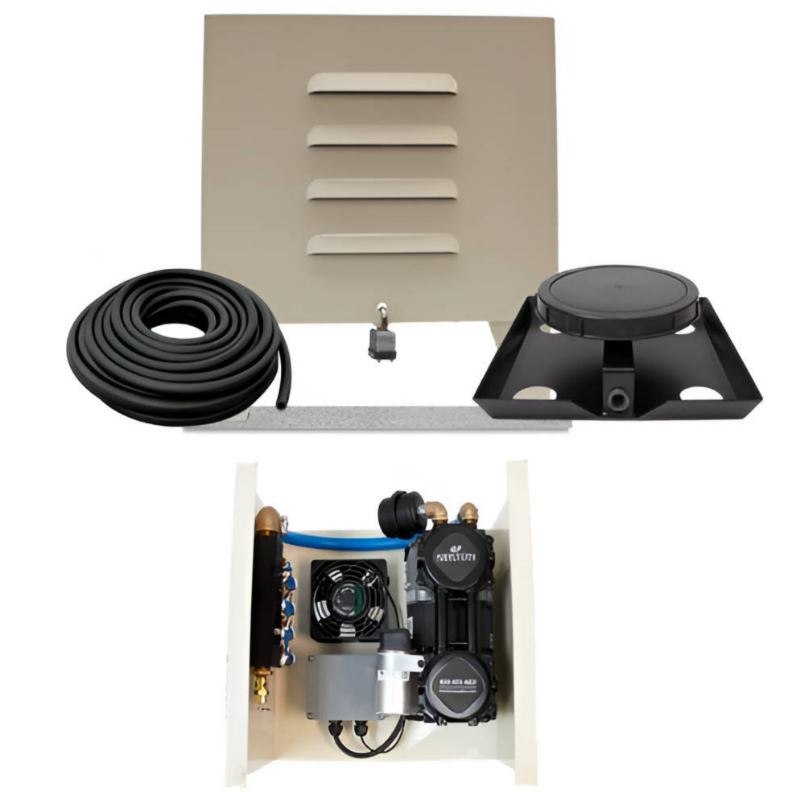

Everything you need is included with your Mini Diffused Aeration Kit.
The ProLake Mini Diffused Aeration Kit is designed for smaller bodies of water and offers several features to improve water quality and circulation. Key features of this aeration kit include:
ProLakeĀ Mini 1 Aeration Kit ā 1000 GallonsĀ ā 80,000 Gallons
Comes Complete With: 1 Cabinet, 1 Diffuser, 100 Feet of 3/8ā Airline, 1 Level-Aer Pad
ProLakeĀ Mini 2 Aeration Kit ā 80,000 Gallons ā 160,000 Gallons
Comes Complete With: 1 Cabinet, 2 Diffusers, 200 Feet of 3/8ā Airline, 1 Level-Aer Pad
ProLakeĀ Mini 3 Aeration Kit ā 160,000 Gallons ā 240,000 Gallons
Comes Complete With: 1 Cabinet, 3 Diffusers, 300 Feet of 3/8ā Airline, 1 Level-Aer Pad
ProLakeĀ Mini 4 Aeration Kit ā 240,000 Gallons ā 1 Acre
Comes Complete With: 1 Cabinet, 4 Diffusers, 400 Feet of 3/8ā Airline, 1 Level-Aer Pad
The Alpineā¢ Self-Weighted Airlines for solar or electric aeration offers the perfect balance of flexibility and weight. Alpineā¢ airline sinks directly to the bottom and will not kink or break. Alpine tubing is a high density, flexible tubing that features a thick, Ā¼ā sidewall.

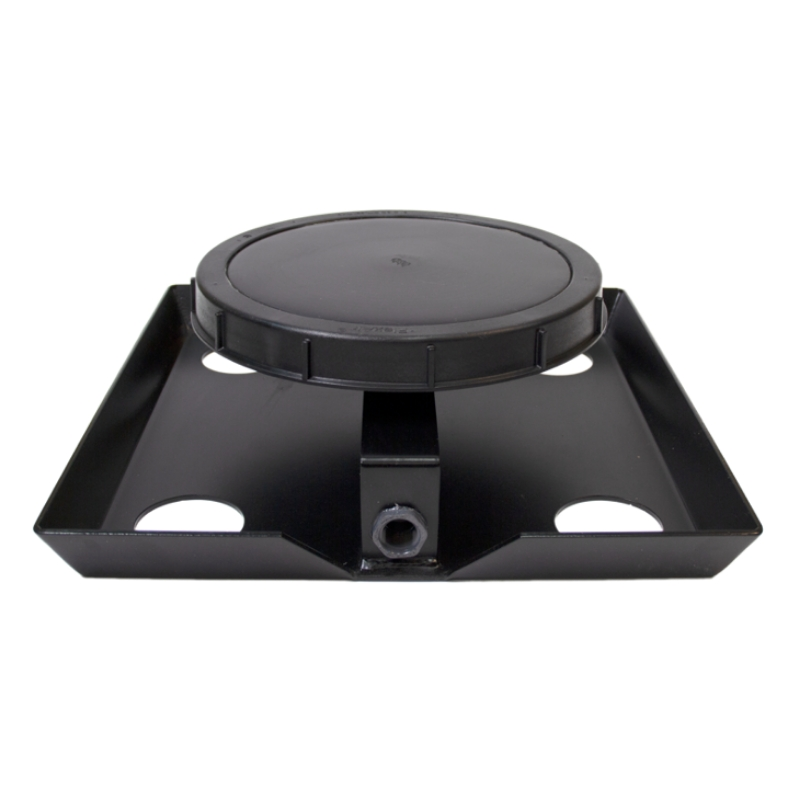

Duraplateā¢ diffusers never need to be removed for cleaning like many of the other diffuser designs on the market, and are backed by a lifetime warranty. The rotationally molded diffuser shell is also fishhook resistant, making them an ideal choice for fishing ponds and lakes.Ā DiffusersĀ also come in dual and quad set-ups for those larger jobs where single compressor layouts just arenāt enough.
ProLakeā¢ Level-Aerā¢ Equipment Pads, made from a high-density plastic, are a great way to ensure that your system is on a sturdy durable surface without having to use concrete or other heavy construction materials.
| Model | ProLake Mini 1 Kit | ProLake Mini 2 Kit | ProLake Mini 3 Kit | ProLake Mini 4 Kit |
| Item Number | PL-MINI1KIT | PL-MINI2KIT | PL-MINI3KIT | PL-MINI4KIT |
| Horsepower | 1/2 HP | 1/2 HP | 1/2 HP | 1/2 HP |
| Maximum Pond Size | 1 Acre | 1 Acre | 1 Acre | 1 Acre |
| 115V Compressor | 1 | 1 | 1 | 1 |
| Duraplateā¢ Diffusers | 1 | 2 | 3 | 4 |
| Maximum Diffuser Depth | 50 Feet | 50 Feet | 50 Feet | 50 Feet |
| Max CFM | Up To 5.3 | Up To 5.3 | Up To 5.3 | Up To 5.3 |
| Amps | 4.3 | 4.3 | 4.3 | 4.3 |
| Alpineā¢ 3/8" Weighted Airline | 100 Foot Roll | 200 Foot Roll | 300 Foot Roll | 400 Foot Roll |
| Manifold | 1-4 Port | 1-4 Port | 1-4 Port | 1-4 Port |
| Pressure Gauge | 1 | 1 | 1 | 1 |
| Cooling Fan | 1 | 1 | 1 | 1 |
| Level-Aerā¢ Equipment Pad | 1 | 1 | 1 | 1 |
| Decibels/Operational Sound | 50/60 DB | 50/60 DB | 50/60 DB | 50/60 DB |
| Cabinet Dimensions | 14"W x 14"L x 16"T | 14"W x 14"L x 16"T | 14"W x 14"L x 16"T | 14"W x 14"L x 16"T |
| Alpineā¢ Ā½" Weighted Airline Measurement | 3/8" OD | 3/8" OD | 3/8" OD | 3/8" OD |
| Level-Aerā¢ Equipment Pad Dimensions | 24" x 24" x 3" | 24" x 24" x 3" | 24" x 24" x 3" | 24" x 24" x 3" |
| Complete Product Warranty | 2-Year | 2-Year | 2-Year | 2-Year |
| EcoFlowā¢ 24V Compressor Warranty | 2-Year | 2-Year | 2-Year | 2-Year |
| Alpineā¢ 3/8" Weighted Airline Warranty | Lifetime | Lifetime | Lifetime | Lifetime |
| Cabinet Warranty | 2-Year | 2-Year | 2-Year | 2-Year |
| Duraplateā¢ Diffuser Warranty | Lifetime | Lifetime | Lifetime | Lifetime |
If you have a pond or lake that is remotely located, you can still have a quality aeration system that will keep your water clean and clear, all year round. Most importantly, aerator is a completely āgreenā and eco-friendly option. Our electric pond aeration systems require very little maintenance, running during the day and all through the nightāeven on cloudy days! Although there are varies different methods and options to aerate your ponds and lakes, electric aeration is considered to be the best option due to it being safer for the environment and naturally powered by the sun. Having a electric aerator installed can help cut cost, save electric, and save energy.
Most ponds and lakes can benefit from the addition of an aeration system. After many years of research, we believe that aeration is the foundation for improving and maintaining proper water quality in ponds and lakes. Lake bed aeration acts to increase dissolved oxygen levels, while eliminating water stratification.
When an aeration system is initially installed, there will be a period of time where the aerator will draw up large amounts of poor-quality water and some organic debris from the bottom that can have an impact on the water quality. It will increase the oxygen demand and potentially raise the phosphorus and nitrogen levels for a short period of time. This is a critical time for the lake, but as long as the aeration system is running, it will be able to combat these issues and, in time, the lake will turn around.
ProLake Mini Diffused Aeration Kit Product Data Sheet
