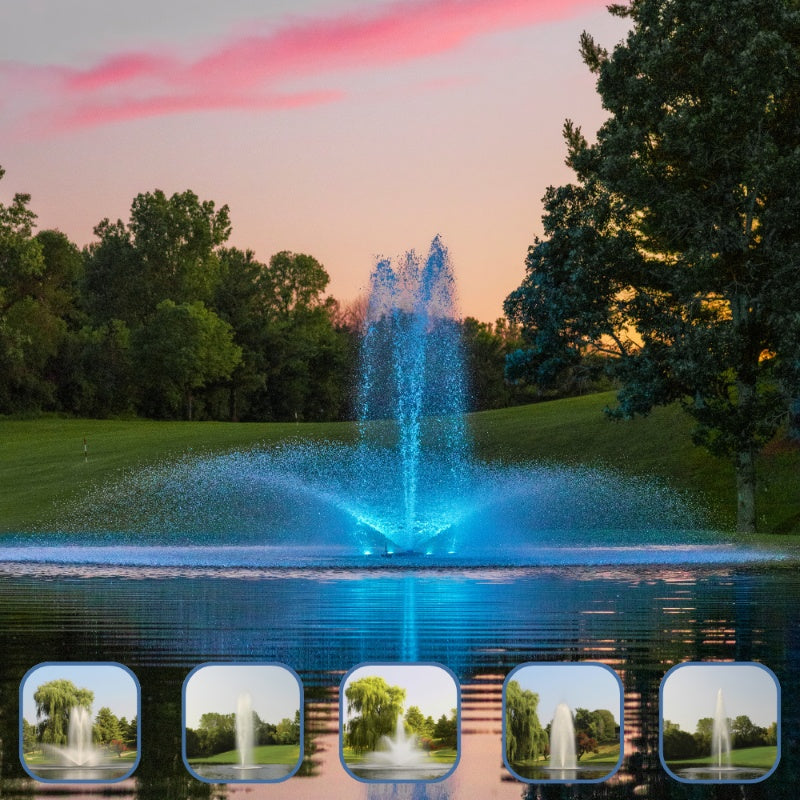

Kasco J Series Fountain with multiple spray patterns swatches

Kasco J Series Fountain

Name: Kasco J Series Fountain
Brand: Kasco Pond Fountains and Aerators
SKU: 3400JF050
Price: 2116.0 USD
Availability: InStock

★★★★★ (5)

$2,116.00

★ Memorial Day Sale Is On Now ★

★ Limited Time

This product is included in our Memorial Day sale

Save big this week. Offer ends May 25.

Call or text us to get the deal

866-383-7258

Call or text us to get the deal

866-383-7258

📞 Call 💬 Text

Unit Option

Cord Length

Cord Protection Option

Quantity

Bring Your Pond To Life With The Kasco J Series Decorative Fountains!

Kasco's J Series Fountains redefine elegance and affordability, delivering stunning displays that captivate at the most competitive prices available. Meticulously crafted for both aesthetic allure and practicality, each package includes a selection of twist-and-lock nozzles at no additional cost.

From attention-commanding geysers to sophisticated 3-tier displays, these fountains provide a range of visual delights.

Available as 3/4, 1, 2, 3, and 5 HP
Offered as 120V and 240V at 60 Hz
5 spray patterns included
Cable is UL, CSA & NEC rated for underwater use
The total package listed by ETL to UL/CSA standards
Control panels feature human-rated GFCI protection
Intake near the surface allows for shallow operation
Saltwater compatible
2-year warranty on 3/4 HP and 1 HP units
3-year warranty on 2 HP units (optional 5-year extended warranty available)
5-year warranty on 3 HP and 5 HP units

Note: Stainless Steel cord lengths over 200 ft require an estimated 4-week lead time.

What's Included With Your J Series Pond Fountain

Everything you need is included with your Kasco Marine J Series Pond Fountain.

Motor Unit
Float
Bottom Screen
5 Interchangeable Nozzles

Control Panel with GFCI protection
Mooring Lines
Power cord (Standard or Stainless Steel)
Comprehensive Warranty

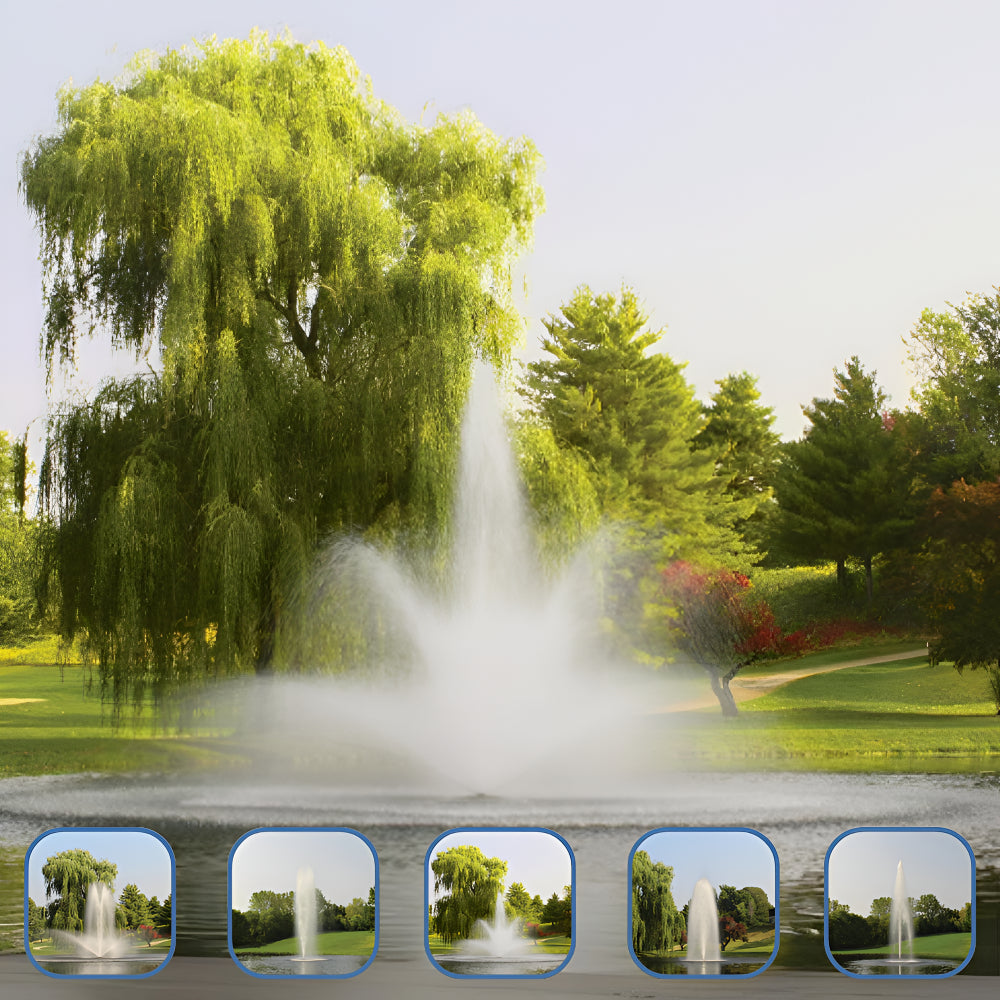

Spray Patterns: 3/4 & 1 HP (60Hz)
	Willow	Sequoia	Cypress	Linden	Birch
3/4 HP Unit	Height: 6.5 ft. Width: 21 ft.	Height: 13 ft. Width: 8 ft.	Height: 7 ft. Width: 17 ft.	Height: 9 ft. Width: 29 ft.	Height: 7 ft. Width: 5 ft.
1 HP Unit	Height: 9 ft. Width: 31 ft.	Height: 18 ft. Width: 11 ft.	Height: 9 ft. Width: 28 ft.	Height: 12 ft. Width: 31 ft.	Height: 11 ft. Width: 8 ft.

Spray Patterns: 2 to 7.5 HP (60Hz)
	Balsam	Linden	Spruce	Redwood	Birch
2 HP Unit	Height: 14 ft. Width: 32 ft.	Height: 18 ft. Width: 32 ft.	Height: 19 ft. Width: 8 ft.	Height: 22 ft. Width: 6 ft.	Height: 9 ft. Width: 9 ft.
3 HP Unit	Height: 19 ft. Width: 34 ft.	Height: 20.5 ft. Width: 38 ft.	Height: 25 ft. Width: 9 ft.	Height: 20 ft. Width: 4 ft.	Height: 14 ft. Width: 9 ft.
5 HP Unit	Height: 18 ft. Width: 34 ft.	Height: 20 ft. Width: 41 ft.	Height: 29 ft. Width: 10 ft.	Height: 32 ft. Width: 6 ft.	Height: 22 ft. Width: 11 ft.
7.5 HP Unit	Height: 21 ft. Width: 36 ft.	Height: 28 ft. Width: 46 ft.	Height: 34 ft. Width: 12 ft.	Height: 36 ft. Width: 8 ft.	Height: 26 ft. Width: 11 ft.

Optional Premium Fountain Nozzles for Kasco Marine J Series Decorative Fountain

Spray Patterns: 3/4 to 7.5 HP (60Hz)
	Mighty Oak	Mahogany	Madrone	Magnolia	Palm	Fern
3/4 HP Unit	Height: 10 ft. Width: 24 ft.	Height: 11.5 ft. Width: 28 ft.	Height: 11.5 ft. Width: 28 ft.	Height: 9 ft. Width: 29 ft.	N/A	N/A
1 HP Unit	Height: 13 ft. Width: 34 ft.	Height: 14 ft. Width: 34 ft.	Height: 14 ft. Width: 35 ft.	Height: 11.5 ft. Width: 37 ft.	N/A	N/A
2 HP Unit	Height: 14.5 ft. Width: 40 ft.	Height: 12 ft. Width: 43 ft.	Height: 15 ft. Width: 43 ft.	Height: 14 ft. Width: 35 ft.	Height: 12 ft. Width: 26 ft.	Height: 12 ft. Width: 36 ft.
3 HP Unit	Height: 19.5 ft. Width: 51 ft.	Height: 19 ft. Width: 48 ft.	Height: 20 ft. Width: 59 ft.	Height: 18 ft. Width: 60 ft.	Height: 16 ft. Width: 36 ft.	Height: 16 ft. Width: 54 ft.
5 HP Unit	Height: 24.5 ft. Width: 58 ft.	Height: 28 ft. Width: 64 ft.	Height: 24 ft. Width: 70 ft.	Height: 23.5 ft. Width: 72 ft.	Height: 20.5 ft. Width: 40 ft.	Height: 23 ft. Width: 68 ft.
7.5 HP Unit	Height: 27 ft. Width: 60 ft.	Height: 29 ft. Width: 72 ft.	Height: 26 ft. Width: 75 ft.	Height: 26 ft. Width: 80 ft.	Height: 22 ft. Width: 42 ft.	Height: 24 ft. Width: 66 ft.

Kasco Control Panel (Included)

Empower your unit with KASCO control panels, enabling energy-efficient automatic control. Simply choose your preferred settings, and let the control panel take care of the rest. These panels are rigorously approved and listed to meet the highest UL and CSA standards, ensuring the safety and performance you demand.

Kasco panels are GFCI protection-rated, include a photocell for use with lighting packages, and feature a timer dial for programming operation.

Control Panel Options

C-25 or C-85 - For 3/4 and 1 HP Units
C-85 - For 2 HP Unit
C-95 - For 3 and 5 HP Units
CF-3075 - For 7.5 HP Unit

Kasco WaterGlow Lighting (Optional)

Kasco WaterGlow Lighting will dramatically illuminate your fountain or surface aerator. Available in composite or stainless steel housings and in several color options, these versatile LED lights are a perfect addition to your J Series Fountain.

Kasco J Series Technical Specifications


Motor	3/4 HP Unit	1 HP Unit	2 HP Unit	3 HP Unit	5 HP Unit	7.5 HP Unit
Model	3400JF / 3400HJF	4400JF / 4400HJF	8400JF	3.1JF	5.1JF	7.3JF
Voltage	120V / 240V	120V / 240V	240V	240V	240V	240V
Phase	1	1	1	1	1	3
Hertz	60 Hz	60 Hz	60 Hz	60 Hz	60 Hz	60 Hz
Running Amps	6.7 / 3.3	10.7 / 5.3	10	13	20	20
Lock Rotor Amps	18 / 12	40 / 20	40	63	97	100
Suggested Pond Size (SA)*	Up to 1/3 Acre*	Up to 1/2 Acre*	Up to 1 Acre*	Up to 1.5 Acres*	Up to 2.5 Acres*	Up to 3.5 Acres*
Min. Depth of Operation	17.5”	19”	20”	24”	26”	28”
RPM	1750	1750	1750	1750	1750	1750
Power Cord Length	50', 100', 150', 200', 250', 300', 400'	50', 100', 150', 200', 250', 300', 400'	50', 100', 150', 200', 250', 300', 400'	50', 100', 150', 200', 250', 300', 400'	100', 150', 200', 250', 300', 400'	100', 150', 200', 250', 300', 400'
Warranty	2-Year	2-Year	3-Year	5-Year	5-Year	5-Year
Lighting Kits	Optional	Optional	Optional	Optional	Optional	Optional
Control Panel Included	C-25 or C-85	C-25 or C-85	C-85	C-95	C-95	CF-3075
