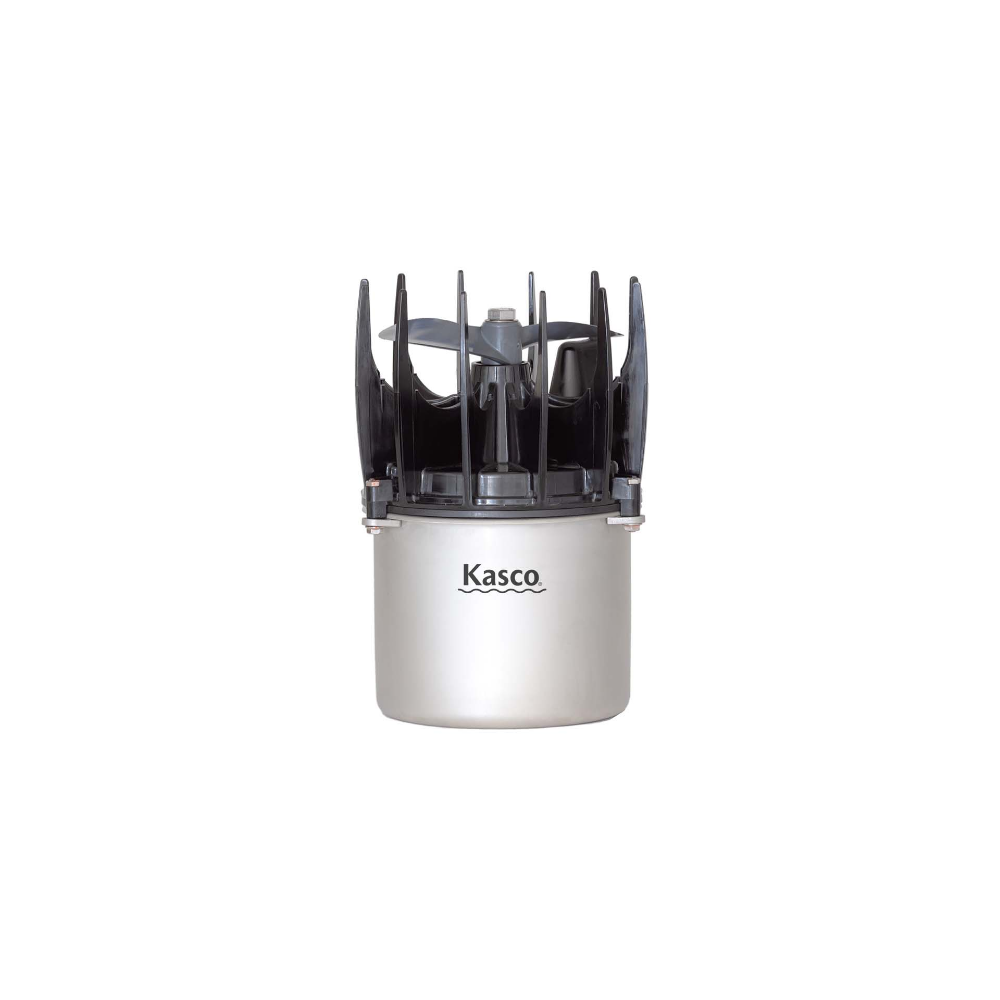

Kasco's AquaticClear is a dock water circulator, reimagined. This clog-resistant circulator produces continuous water movement to keep docks, marinas, canals, shorelines, and other areas free from algae, floating debris, and foul odors. AquatiClear capitalizes on Kasco’s proven circulator design. It’s the only circulator on the market that runs continuously without the need to clean out clogs from weeds and other debris.
With the revolutionary Clean Current Technology (patent pending), AquatiClear features a crown-like composite prop guard allowing for continuous operation and less maintenance.
Kasco AquatiClear Parts that are included!
To determine what size unit you need, first decide how many feet of water you want to move. Then use these figures to find your perfect match:

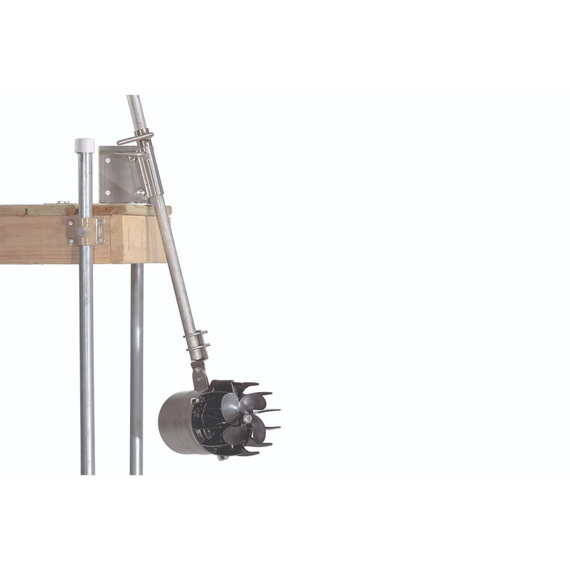

Easily lower, angle, and position units for proper water movement. Mount to a dock, piling, wall, or other in-water property. Packages include upper and lower mount assemblies; pipe is supplied by the customer. Adjust rotation with the Simple Swivel bracket (patent pending). Mount includes a lifetime warranty.

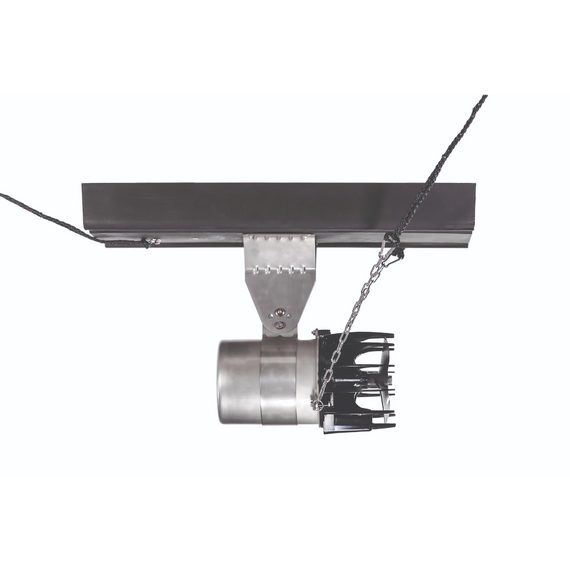

The Horizontal Float suspends the unit in the water via stainless steel components and offers three angles of unit orientation. This mount is well-suited for shallow water applications. Secure to the shore with three ropes and tie-down loops. Carries a 3-year warranty.
Empower your unit with KASCO control panels, enabling energy-efficient automatic control. Simply choose your preferred settings, and let the control panel take care of the rest. These panels are rigorously approved and listed to meet the highest UL and CSA standards, ensuring the safety and performance you demand.
Kasco panels are GFCI protection-rated, include a photocell for use with lighting packages, and feature a timer dial for programming operation.
Control Panel Options
C-25 - For AquatiClear 1/2 HP (120V), 3/4 HP (120V), and 1 HP (120V)
C-220 - For AquatiClear 3/4 HP (240V) and 1 HP (240V)
| Motor | 1/2 HP(120V) | 3/4 HP (120V) | 3/4 HP (240V) | 1 HP(120V) | 1 HP(240V) |
|---|---|---|---|---|---|
| Model | 2400C, 2400CFM, 2400CDM | 3400C, 3400CFM, 3400CDM | 3400HC, 3400HCFM, 3400HCDM | 4400C, 4400CFM, 4400CDM | 4400HC, 4400HCFM, 4400HCDM |
| Voltage/Phase/Hz | 120V / 1 / 60 | 120V / 1 / 60 | 240V / 1 / 60 | 120V / 1 / 60 | 240V / 1 / 60 |
| Operating Amps | 5.4 Amps | 6.6 Amps | 3.1 Amps | 9.1 Amps | 4.5 Amps |
| Locked Rotor Amps | 12 Amps | 18 Amps | 9 Amps | 40 Amps | 20 Amps |
| Thrust | 30 Lbs. | 36 Lbs. | 36 Lbs. | 41 Lbs. | 41 Lbs. |
| RPM (Revolutions Per Minute) | 1750 RPM | 1750 RPM | 1750 RPM | 1750 RPM | 1750 RPM |
| Minimum Operating Depth* | 4 Feet | 4 Feet | 4 Feet | 4 Feet | 4 Feet |
| Power Cord Lengths | 25', 50', 100', 150', 200' | 25', 50', 100', 150', 200' | 50', 100', 150', 200', 250', 300', 400' | 50', 75' 100', 150', 200' | 50', 100', 150', 200', 250', 300', 400' |
| Thermal Overload Protection | Yes |
Yes |
Yes | Yes | Yes |
| Control Panel (Optional) | C-25 | C-25 | C-220 | C-25 | C-220 |
| Warranty | 2-Year | 2-Year | 2-Year | 2-Year | 2-Year |
* Will operate in less depth, but may cause bottom disturbance
Kasco AquatiClear Flyer
Kasco AquatiClear Operation & Maintenance Manual
Kasco AquatiClear Horizontal Float Assembly & Installation Manual
Kasco AquatiClear Universal Mount with Simple Swivel Assembly Manual
