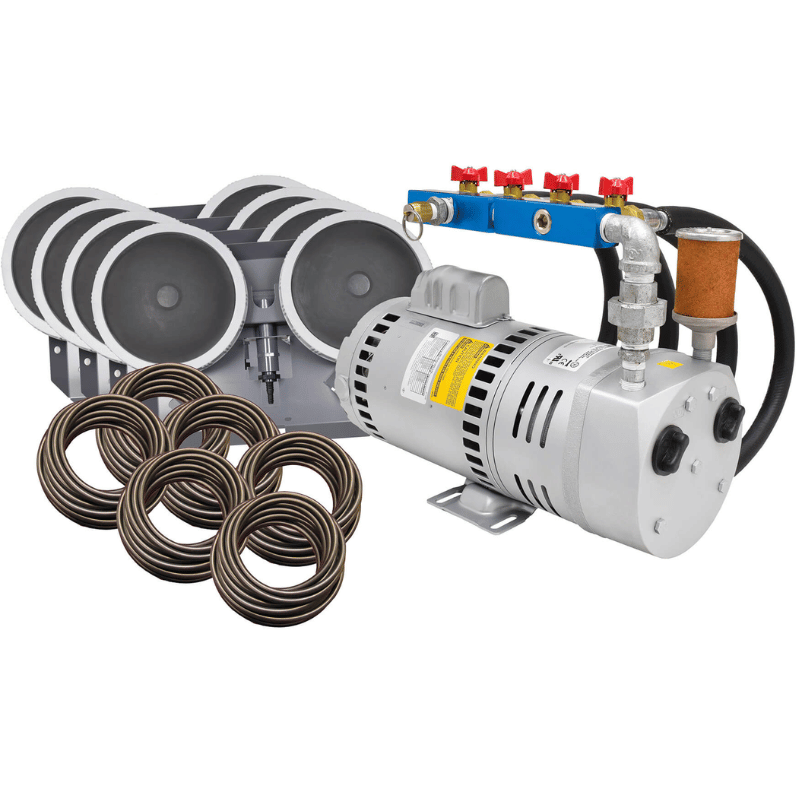

Revitalize Your Waters: Introducing the EasyPro PA75W 3/4 HP Rotary Vane Aeration System – a comprehensive solution tailored for ponds up to four acres, adapting to various shapes and depths. Driven by the powerful 3/4 hp Rotary Vane RV75 compressor, boasting 10 cfm and 12 amps, this system efficiently aerates depths of up to 18 feet. The PA75W kit comes complete with four QS2 Quick Sink air diffusers, four valved outlet assemblies featuring a pressure relief valve, and a generous 600 feet of 1/2" Quick Sink tubing, accompanied by fittings and clamps. Elevate your pond's vitality with unparalleled aeration prowess.
As the bubbles rise out of the diffusers, they create a "lifting" or boiling action, which generates significant circulation throughout the pond, preventing water stratification. The circulation created by this device helps to create a stable and productive ecosystem, providing a healthy environment for aquatic life to thrive.
This system is specially designed for demanding 24-hour operation. The oil-less design safely aerates ponds with no electricity in the water, providing a safe and effective way to aerate ponds.
The amount of surface area this system can effectively cover depends on two factors, depth, and shape. Long, narrow ponds may require multiple diffusers to properly aerate the entire pond, while square, circular, and oval ponds can usually be aerated from one central diffuser if they are one acre or less in size.
Everything you need is included with your EasyPro PA75W system and more!
Long lasting, continuous duty compressors offer less depth capabilities than the diaphragm or rocking piston compressors but produce considerably more air. Medium pressure, oil free compressors are excellent for pond and lake aeration.
Quick Sink, self weighted membrane air diffuser assemblies are designed to be placed at the bottom of a pond or lake. The self weighted design eliminates the need for gravel and reduces installation time. The Quick Sink diffuser assembly features round rubber (EPDM) membrane diffusers with thousands of holes which produce small air bubbles when supplied with air from an on shore compressor.
These bubbles rise to the surface and create circulation that helps destratify and aerate the water body.
Weatherproof Fortification for Your Compressors: Safeguard your air compressors with the EasyPro SC22 Standard Lockable Steel Cabinet – a resilient and enduring solution. Crafted from top-tier 14-gauge galvanized steel, this cabinet offers lasting protection, ensuring the safety and security of your compressors. Featuring up to six knockouts for airlines and one for incoming power, it provides customizable flexibility.
Opt for the pre-installed cooling fan option to maintain cooler operating temperatures, extending the lifespan of your compressors and minimizing the risk of damage.
| Part Number |
115V: PA75W, 230V: PA75W2 |
| Compressor |
3/4 HP Stratus RV75 Rotary Vane compressor |
|
Diffuser |
4 Quick Sink self-weighted dual-head air diffusers |
| Tubing | 1/2" Quick Sink |
| Tubing Length | 600' |
| Voltage | 115v or 230v |
| Suggested Cabinet | SC22 (Not Included) |
