The PA66W Rocking Piston Pond Aeration System is an advanced aeration solution designed to improve the health and vitality of your pond or water feature. Powered by a 1/2 HP motor, this system delivers efficient aeration to ensure optimal oxygen levels and circulation, promoting a thriving aquatic environment.
The typical operation cost of $0.86 per 24 hours at .09¢ per kWh, actual cost may vary.

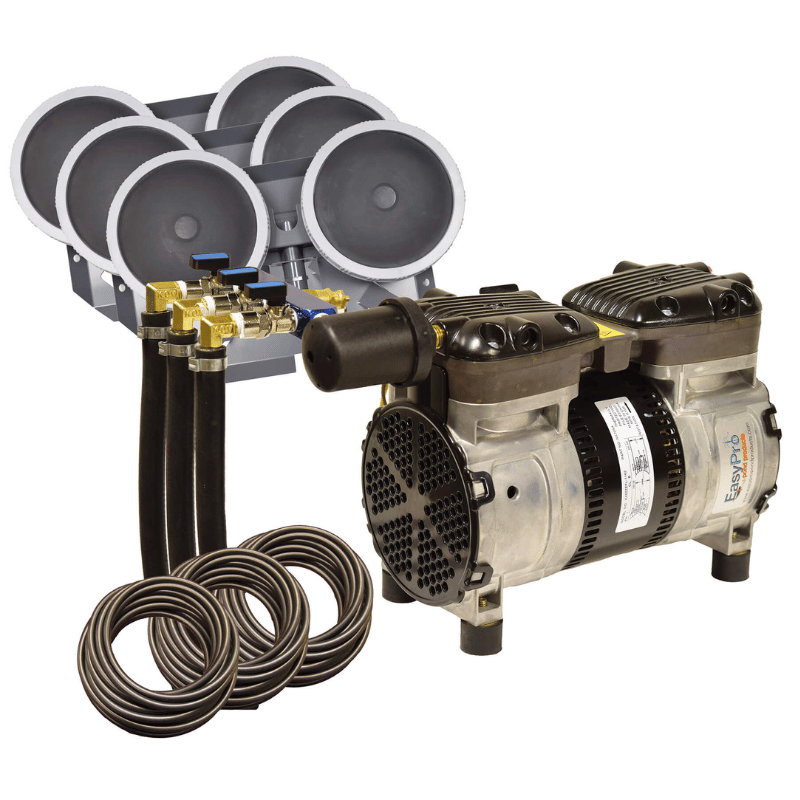

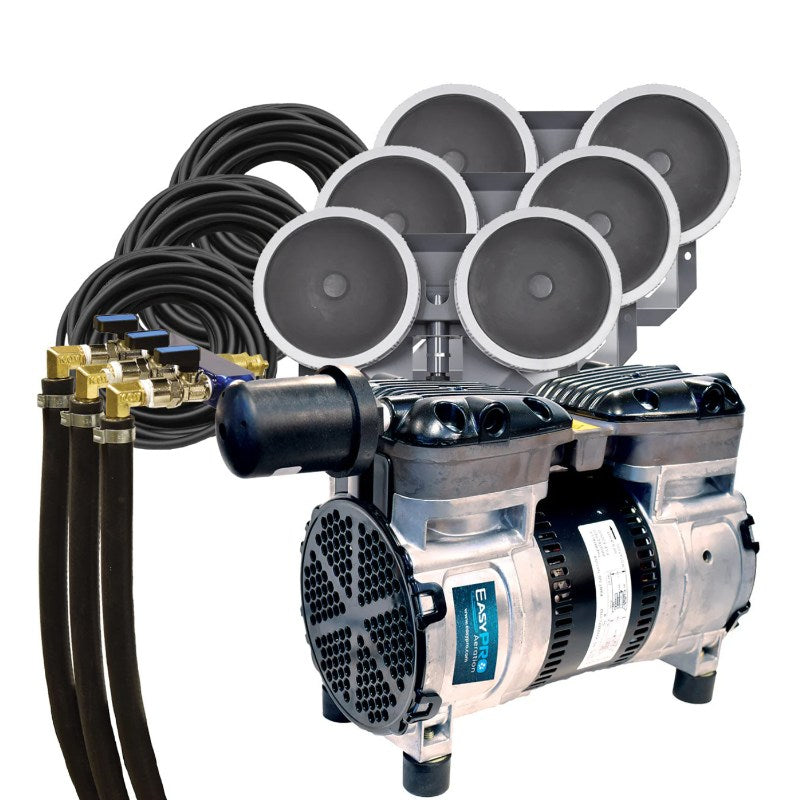

Everything you need is included with your EasyPro PA65.
Stratus SRC series “Gen 2” rocking piston compressors are specifically designed for the demanding job of 24 hour operation. These high-performance compressors are ideal for pond aeration systems. The oil-less design safely aerates ponds with no electricity in the water. The shore mounted compressor sends air through tubing to a bottom mounted diffuser for a safe, effective way to aerate ponds. Compressors are available in 115v or 230v.

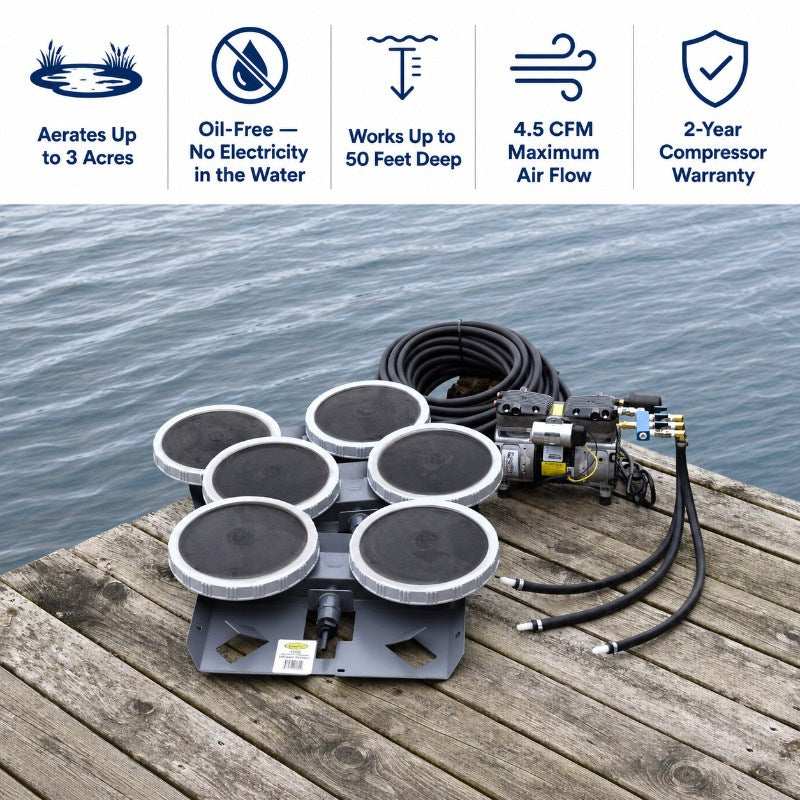

Quick Sink, self weighted membrane air diffuser assemblies are designed to be placed at the bottom of a pond or lake. The self weighted design eliminates the need for gravel and reduces installation time. The Quick Sink diffuser assembly features round rubber (EPDM) membrane diffusers with thousands of holes which produce small air bubbles when supplied with air from an on shore compressor.
These bubbles rise to the surface and create circulation that helps destratify and aerate the water body.

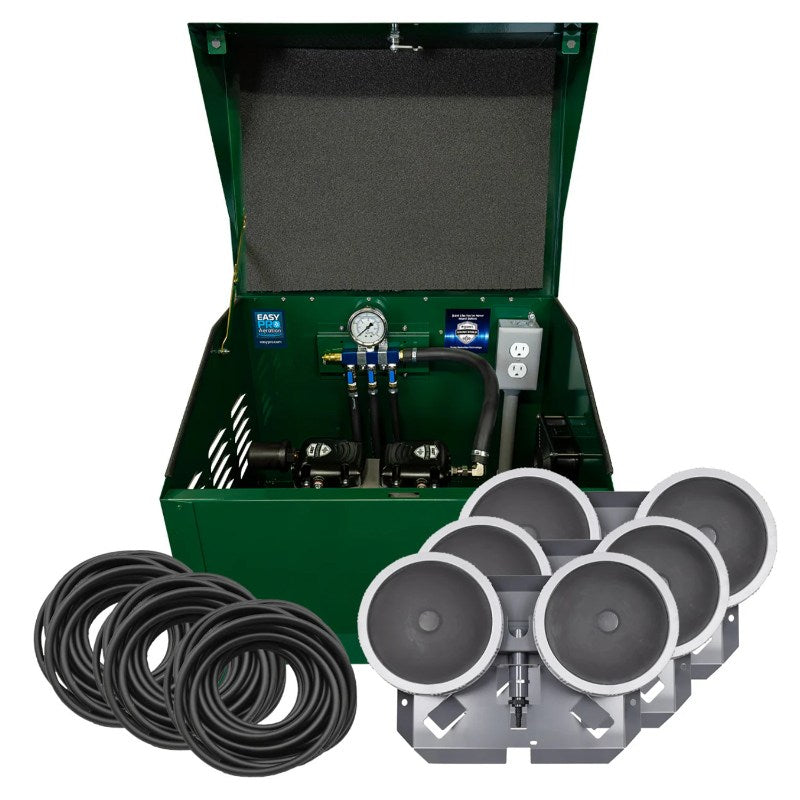

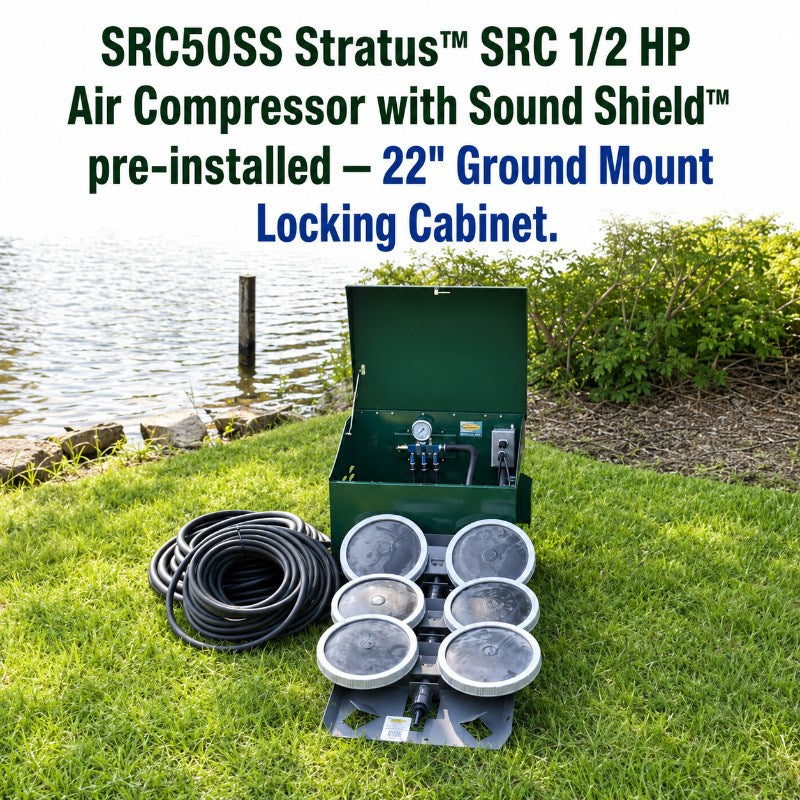

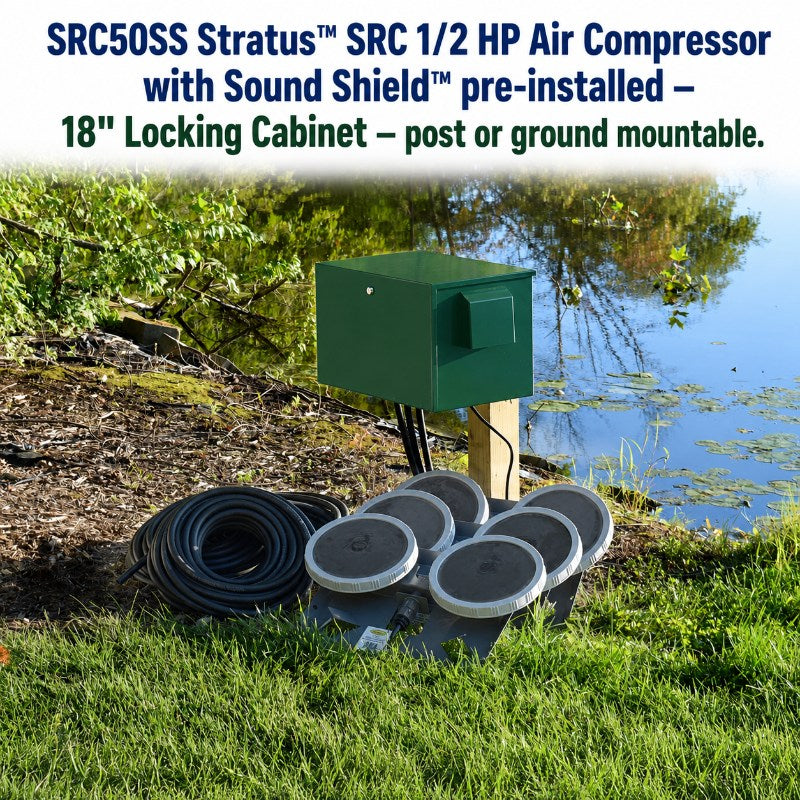

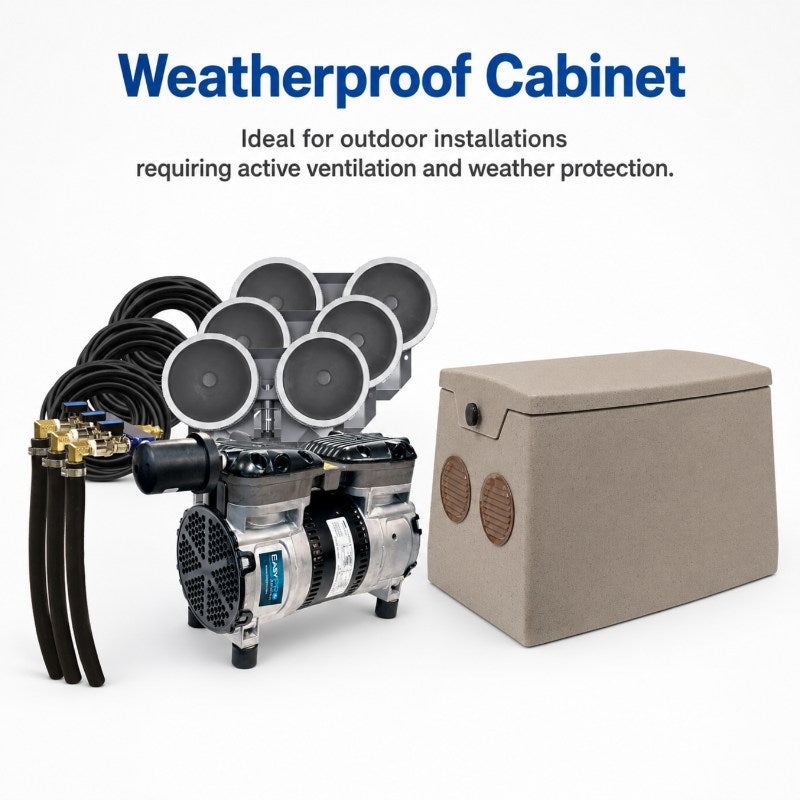

The EasyPro Compressor Cabinets provide a secure and weather-resistant housing solution for your pond aeration compressor. Designed with durability and functionality in mind, these cabinets offer protection for your compressor while allowing for proper ventilation and easy access for maintenance.
| Part Number |
115V: PA66W, 230V: PA66W2 |
| Compressor | Stratus SRC50 Gen 2 |
| Horsepower | 1/2 HP |
| Tubing | 300 ft 3/8" Quick Sink |
| Amps | 3.6/1.8 amps (at 10' operating depth) |
| Maximum Airflow | 4.5 cfm |
| Maximum Depth | 50' |
| Weight | 132 pounds |
| Pond Size | Up to 3 Acres |
| Compressor Warranty | 2 Year |
| Tubbing & Diffuser Warranty | 5 Year |
| Cabinet | Not Included - recommended cabinets are SC18, SC22, or SC25 and can be found here. |
Corie, the owner of Mahala Springs and Farm in Tennessee, had tried multiple solutions to aerate her pond without success. We helped her find the perfect pond fountain that truly met her needs, and she couldn't be happier!
EasyPro Rocking Piston Pond Aeration System PA66 Instructions
EasyPro Rocking Piston Compressor PA66 Specifications
EasyPro Rocking Piston Compressor PA66 Installation and Service Manual
EasyPro Quick Sink Diffuser PA66 Instructions
